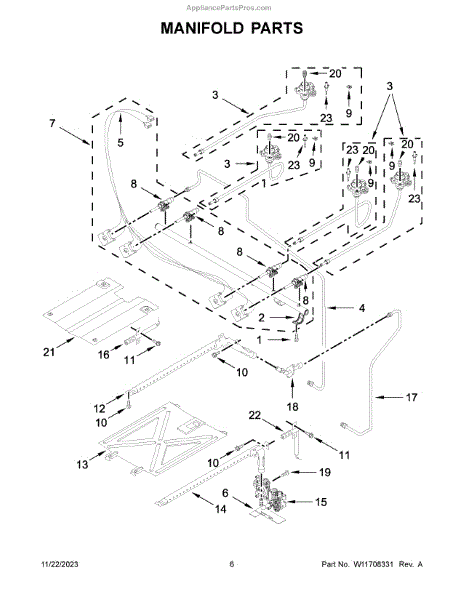

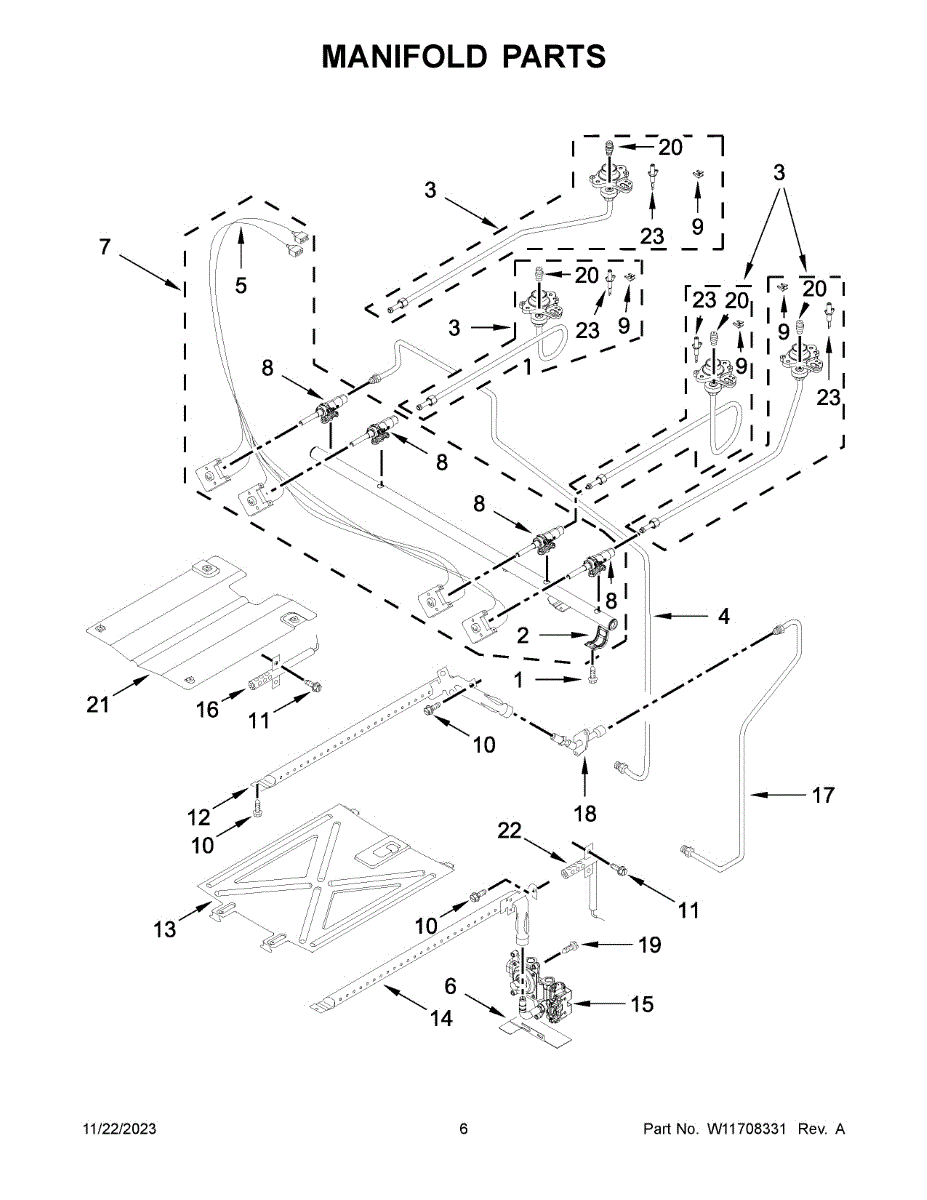

Parts for Amana AGR6603SMS1: Manifold Parts

This gas saddle valve controls and meters gas flow to the burner assembly for proper ignition and operation. Replaces a worn or damaged saddle-style gas valve to restore steady burner performance and safe gas delivery. What it does:

• Mounts to the main gas line and routes regulated gas to the range/oven burner system.
• Provides the correct pressure/flow path for reliable ignition and consistent flame.
• Commonly replaces valves that leak, fail to supply gas, or cause weak/uneven flames.
• Helps stop unwanted gas flow when the valve body is cracked or connections are compromised.

• One saddle-style gas valve (9.5k) as pictured and specified.

• Turn off gas supply and electrical power before attempting any service; verify gas is off with a qualified tester.
• Installation requires basic plumbing skills and proper tools; use approved pipe sealant rated for gas on threaded fittings.
• After installation, check all joints for leaks with a gas leak detector or soapy water and test appliance operation.

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

This Valve is an OEM part for Whirlpool ovens. Specifically engineered for Whirlpool gas ovens, this gas valve plays a crucial role in regulating the flow of gas to the oven burner. The valve's robust design is tailored to withstand the high-heat environment of gas ovens, ensuring longevity and safety.

Gas valves may fail due to normal wear and tear, exposure to high temperatures over extended periods, or mechanical issues like blockages or leaks.

Symptoms of a bad gas valve include:

• Inability to maintain consistent oven temperatures.
• Difficulty lighting the oven burner.
• A noticeable gas smell when the oven is in use.
• Unusual sounds from the valve area.
• Inefficient fuel consumption.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.


This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This fitting is a small connector that secures an appliance hose or tube to restore a sealed fluid or air path, helping stop leaks and maintain normal water or airflow to the appliance. What it does:

• Connects and seals a hose or tubing to an appliance inlet/outlet to maintain a watertight or airtight connection
• Provides a stable attachment point for supply or drain lines
• Common symptom relief: fixes visible leaks at the connection, intermittent filling or flow problems, and loose/disconnected hoses
• Works where a worn, cracked, or corroded connector causes loss of seal or unstable hose attachment

• Always disconnect power and shut off the water supply before replacing fittings
• Inspect adjoining hose/tubing and seals; replace any damaged or brittle parts for a reliable seal
• Hand-start threads to avoid cross-threading, then tighten securely per OEM guidance; avoid overtightening plastic parts
• After installation, restore power/water and run a short test cycle; check carefully for leaks

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This orifice is the small precision jet that meters gas flow to a range burner for consistent flame performance and reliable cooking. Replaces a worn or damaged orifice to help restore proper burner ignition and even heating. What it does:

• Controls the amount of gas delivered to a specific burner for correct combustion
• Helps maintain a steady, even flame for consistent cooking results
• Can resolve symptoms like weak or uneven flames, burner that won't reach proper heat, or inconsistent ignition
• Works as a direct-fit replacement where the OEM orifice is specified

• Turn off the gas supply and unplug the appliance before servicing
• Use appropriate tools; handle small parts carefully to avoid damage
• Verify correct orifice orientation and secure fittings; check for leaks after installation

This orifice directs a controlled flow of gas to the appliance burner, helping restore the correct flame size for reliable heating and ignition. Use when burner performance is weak or inconsistent to help return proper operation. What it does

• Restricts and meters gas flow to the burner for consistent flame characteristics
• Helps the burner ignite and maintain a steady flame when sized correctly
• Commonly replaces worn, clogged, or damaged orifices that cause low or irregular flames
• Resolves symptoms like weak heat, slow ignition, or uneven burner performance

• Turn off gas supply and electrical power before servicing; follow all safety precautions
• Inspect surrounding burner and sealing surfaces for debris or damage before installation
• Tighten securely but avoid overtightening; use proper fittings and thread sealant rated for gas if required

This replacement burner orifice controls gas flow to a cooktop/range burner to help restore a proper, steady flame and consistent cooking heat. Fits applications that use a 1.00 Type 2 orifice. What it does

• Regulates gas delivered to the burner for a stable flame and even heating.
• Helps resolve weak or inconsistent flames, slow heat-up, or uneven burner performance.
• Used when a clogged, damaged, or incorrect orifice prevents proper ignition or flame shape.
• Matches OEM fit and function for affected manifold/burner assemblies.

• Turn off the gas supply and unplug the appliance before starting any service.
• Access the burner orifice through the burner base or manifold as specified in your model's service instructions.
• Use the correct wrench and avoid overtightening; inspect fittings and recheck for gas leaks after installation.

This bake electrode conducts the spark or flame-sensing signal used by direct spark ignition (DSI) systems so your oven lights reliably and monitors burner operation. It's a direct-replacement ignition electrode for the bake burner assembly. What it does:

• Transfers ignition spark to the bake burner so the oven can ignite.
• Senses flame presence for proper DSI safety control.
• Helps resolve intermittent ignition, clicking without lighting, or failed bake burner operation when electrode is faulty.
• Works as part of the bake burner/ignition system; replace when damaged, cracked, or heavily corroded.

• One bake electrode (DSI)

• Disconnect power and shut off gas supply before servicing the range or oven.
• Access typically requires removing the oven bottom or burner assembly—keep track of fasteners and any insulation.
• Handle ceramic/porcelain insulators carefully to avoid cracking; avoid bending the electrode tip.

This replacement surface ignitor is the electrode that creates the spark to light a gas cooktop burner. Installing the correct ignitor restores reliable burner ignition and helps your range light quickly and safely. What it does:

• Produces the spark at the burner to ignite the gas flow
• Replaces a cracked, worn, or non-sparking electrode
• Common symptom: burner does not light or ignition is inconsistent
• Works with the cooktop's ignition module and valve to start the flame

• One (1) surface ignitor

• Disconnect power and turn off the gas supply before starting any work
• Handle the ceramic insulator carefully to avoid chipping or breakage
• Verify fit and orientation against the original part; some disassembly of the cooktop may be required

The Orifice is an OEM component for Whirlpool and KitchenAid ranges. Located inside the burner ventures on the stovetop, this precision ring regulates gas flow to each burner flame. Properly sized orifice openings are essential for controlled burner performance.

Causes of a faulty orifice include mineral buildup narrowing gas ports or damaged ring openings affecting flow regulation.

Symptoms of a bad orifice include:

• Unstable or uneven burner flame sizes
• Burners that will not ignite or stay lit
• Changes in cooktop temperature control
• Potential gas leak issues or inefficient combustion

Whirlpool engineered this replacement for exact design and flow specifications. Replace yours today for dependable burner control and optimal range use.

This OEM part is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This LP broil burner orifice precisely meters propane to the oven's broiler. Replacing a damaged or incorrect orifice restores proper flame size and reliable ignition on LP fuel for consistent, efficient broiling performance.

• Regulates gas flow to the broil burner when using LP (propane) fuel
• Helps ensure correct flame size/shape for even broiling heat
• Can address weak or uneven broil flame or yellow/sooty flames
• May help resolve a broiler that won't ignite or won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool completely.
• Access the broil burner/orifice per the manufacturer's instructions. Remove the old orifice and hand-thread the new one; snug gently—do not overtighten.
• Restore gas and check all connections for leaks using a non-corrosive leak-detection solution; never use an open flame.
• Use only on LP systems. If converting fuel types, adjust the regulator and air shutters as specified.

This LP bake orifice meters propane to the oven's bake burner to deliver the specified BTU output. It helps ensure a stable, blue flame and consistent baking performance after LP conversion or when replacing a damaged or missing spud.

• Meters LP gas to the bake burner for the intended BTU output
• Promotes correct flame size and color for efficient, even baking
• Useful after LP conversion or when the original orifice is clogged, damaged, or missing
• Symptoms can include weak or unstable bake flame, oven not reaching temperature, or yellow/sooty flame

• For LP use only; verify the correct orifice for your model and gas type
• Disconnect power and shut off gas; allow the oven to cool completely before service
• Access the bake burner orifice holder; start threads by hand to avoid cross-threading and tighten snugly—do not overtighten brass
• After reassembly, leak-check all gas connections and verify proper flame/air-shutter adjustment.

The LP Bake and Broil Kit is an OEM replacement part for Whirlpool ranges. It is a kit containing everything needed to convert the oven from Natural gas to LP.

Causes of a bad bake/broil system can include cracks, leaks, or corrosion in gas lines that produce unsafe flames over time. Pilot lights may fail to light consistently.

Symptoms of failures include:

• Inability to ignite bake/broil burners
• Erratic or intermittent baking temperatures
• Uneven cooking due to improper burner positioning
• Strong gas or chemical smells from the oven

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
