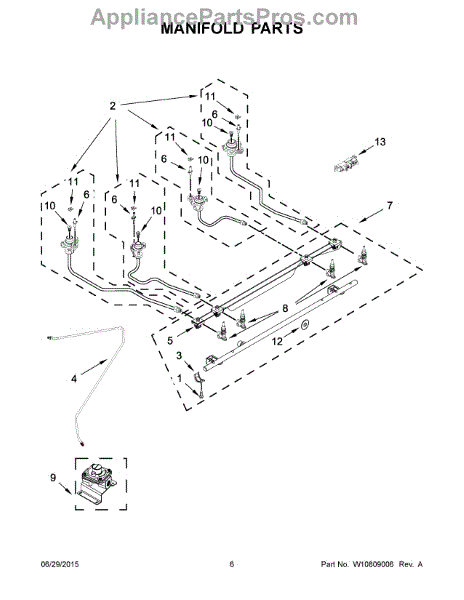

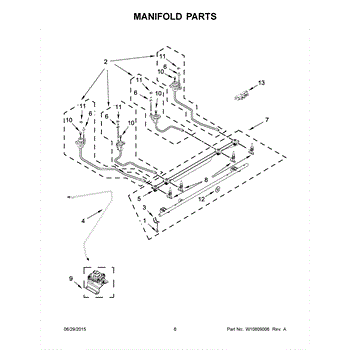

Parts for Maytag JDS1750EB0: 04 - Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This Holder ORF is a factory-style retainer that secures the ORF assembly in place, helping restore proper fit and reduce movement of the related components. Use it to replace a cracked, broken or missing holder. What it does:

• Secures the ORF assembly so connected parts stay aligned and stable
• Stops rattling or shifting caused by a damaged or worn holder
• Restores correct position for reliable operation of the associated assembly
• Visible damage, missing pieces, or loose fit are common signs this part is needed

• Disconnect power to the appliance before starting any repair
• Inspect surrounding parts and mounting points; replace any damaged fasteners
• Install using the OEM mounting locations; avoid forcing the part into place

This Holder ORF is a small retainer used to secure components in place so moving parts stay aligned and operating smoothly. It prevents loose fittings that can cause noise or poor performance. What it does:

• Secures specific appliance components to prevent shifting or rattling
• Keeps moving parts aligned for consistent operation
• Helps reduce noise caused by loose fittings
• Commonly replaced when the original holder is cracked, broken, or missing

• One Holder ORF retainer

• Turn off and unplug the appliance before starting any repair
• Inspect adjacent clips and mounts and replace if worn
• Install in the exact orientation of the original part; do not force into place

This replacement holder secures the ORF assembly in place to maintain proper alignment and reliable operation. It restores the mounting point for the ORF so the related components stay stable during normal use. What it does

• Secures the ORF assembly to the appliance frame or housing to prevent shifting or misalignment.
• Helps eliminate symptoms caused by a loose or damaged holder, such as rattling, intermittent operation, or misaligned components.
• Provides a stable mounting surface so connected parts seal and function as intended.
• Replaces worn, cracked, or broken holders that no longer hold the ORF securely.

• Disconnect power and water before starting work.
• Access may require removing outer panels or trim; keep track of fasteners and their locations.
• Inspect surrounding parts for wear when replacing the holder and replace any damaged fasteners or clips.

This Holder ORF is a direct replacement mounting bracket that secures the ORF assembly in place. Installing the correct holder restores proper alignment and reduces movement or rattling of the attached component. What it does:

• Secures the ORF assembly to the appliance to maintain correct positioning
• Prevents the attached component from shifting, rattling, or becoming misaligned
• Helps restore smooth operation when the original holder is damaged or worn
• Matches OEM fit and mounting points for a straightforward replacement

• One Holder ORF mounting bracket

• Disconnect power to the appliance before beginning any repair
• Remove access panels as needed; retain original fasteners unless replacements are provided
• Installation typically requires basic hand tools; follow the appliance service manual for step-by-step instructions

This surface burner spark electrode creates the spark that lights the gas on your range or cooktop. Replacing a worn or cracked electrode restores reliable ignition so burners light quickly and consistently when you turn the knob.

• Produces a high-voltage spark at the burner to ignite the gas flame
• Helps resolve: burner won't light, no or weak spark at that burner, needs manual lighting, intermittent ignition
• Damage or contamination on the ceramic insulator can prevent proper arcing
• Direct replacement for the failed electrode at the affected burner

• Disconnect power and shut off gas supply before servicing
• Allow unit to cool completely
• Remove burner cap and head to access the electrode; transfer mounting hardware if reused
• Handle the ceramic insulator carefully; reconnect lead securely and align the tip near the burner head as originally positioned

This surface burner igniter creates the spark that lights a gas cooktop or range burner. The attached wire lead simplifies hookup and helps restore quick, dependable ignition when a burner won't light or only lights intermittently.

• Generates a high-voltage spark at the burner to ignite gas
• Restores reliable burner lighting and consistent flame startup
• Common symptoms: burner won't ignite, no visible spark, intermittent lighting, or a chipped/cracked ceramic insulator
• Replaces a worn or damaged electrode to eliminate the need for manual lighting

• Disconnect electrical power and shut off gas before servicing
• Allow the cooktop/range to cool; handle the ceramic tip carefully to avoid damage
• Match the igniter position/orientation to the original for proper spark at the burner
• Route the lead away from sharp edges and heat; make a secure connection to the harness, then test for spark before reassembly

This surface burner igniter is the spark electrode that lights the flame on your gas cooktop or range. Replacing a worn electrode restores reliable ignition at the affected burner for fast, consistent lighting.

• Generates a high-voltage spark at the burner to ignite gas
• Positions and insulates the tip for consistent flame lighting
• Common symptoms: burner won't ignite or no spark at that burner
• Other signs: needs a match to light, intermittent/erratic spark, cracked ceramic

• Disconnect power and shut off gas supply; allow appliance to cool
• Remove burner cap and head to access the electrode; note wire routing and mounting
• Transfer any bracket/clip from the original part if required and set proper gap/position near the burner port
• Restore power and gas, then test ignition at the repaired burner

This surface burner igniter is the spark electrode that lights the flame on your gas cooktop or range. Replacing a worn electrode restores reliable ignition at the affected burner for fast, consistent lighting.

• Generates a high-voltage spark at the burner to ignite gas
• Positions and insulates the tip for consistent flame lighting
• Common symptoms: burner won't ignite or no spark at that burner
• Other signs: needs a match to light, intermittent/erratic spark, cracked ceramic

• Disconnect power and shut off gas supply; allow appliance to cool
• Remove burner cap and head to access the electrode; note wire routing and mounting
• Transfer any bracket/clip from the original part if required and set proper gap/position near the burner port
• Restore power and gas, then test ignition at the repaired burner

This surface burner valve controls gas flow to a single cooktop burner, restoring safe, reliable ignition and flame control for gas ranges. It's a direct-replacement valve used where the original valve failed or leaks. What it does:

• Regulates gas to an individual surface burner so the burner lights and holds a steady flame
• Commonly replaces valves that stick, leak, or fail to respond to the control knob
• Helps stop gas flow when the control knob is turned off to improve safety
• Works with range ignition systems to enable consistent lighting

• One burner valve

• Turn off gas supply and electricity to the appliance before beginning service
• Follow OEM service manual and use proper seals; replace any gaskets or fittings that are damaged
• Verify correct valve orientation and secure connections; test for leaks after installation

This surface burner valve regulates gas flow to a single cooktop burner through the control knob. Replacing a worn valve restores smooth flame control, reliable ignition, and a positive shutoff for safer, consistent cooking.

• Regulates and meters gas to one surface burner for off, simmer, and full-flame settings
• Works with the control knob and spark-ignition switch to light the burner
• Common symptoms: burner won't light or adjust properly, flame doesn't shut off completely, or the knob is hard to turn or wobbly
• If a gas odor is detected near the control area, stop use and service the appliance

• Disconnect electrical power and shut off gas before servicing; allow the appliance to cool
• Access the valve/manifold; note valve orientation and stem position before removal
• Transfer the spark switch, mounting clip, and fittings from the old valve as needed
• Apply an approved gas-rated thread sealant, tighten connections, and leak-test all joints with a soap solution before use

The Surface Burner Valve is an OEM part for Whirlpool cooktop ranges. As an internal fixture, each valve regulates gas flow to a specific burner allowing customized heating levels.

Symptoms of a bad surface burner valve include:

• Burners that will not ignite or only ignite at max capacity
• Inability to lower a burner's flame below the maximum setting
• Gas leaks characterized by unusual smells

Causes relate to regular use corrosion restricting valve movement or impact damaging stems preventing full aperture control. Neglect threatens safety.

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

This gas pressure regulator controls fuel flow to the appliance's burner system to maintain steady, safe burner performance. Replacing a worn regulator restores consistent flame height and reliable ignition. What it does:

• Reduces and stabilizes incoming gas pressure so burners operate at the correct flame level
• Helps prevent weak or uneven flames and frequent flameouts caused by pressure fluctuations
• Ensures stable fuel delivery for reliable ignition and steady cooking heat
• Works as part of the fuel delivery path between the supply line and the valve assembly

• One regulator

• Turn off the gas supply and disconnect power to the appliance before servicing
• Use proper thread sealant for gas fittings and tighten fittings to OEM torque recommendations
• Do not attempt repairs if you are unfamiliar with gas appliance service

This orifice spud is the small gas burner fitting that holds the burner orifice and helps direct fuel to the burner for proper ignition. It restores correct gas flow to the burner assembly for reliable ignition and flame. What it does:

• Secures the burner orifice in the burner tube so the correct-sized jet is positioned for ignition
• Helps maintain steady, consistent gas flow to the burner
• Commonly replaced when burners fail to light or flame is weak/irregular
• Works with the burner tube assembly to ensure proper burner operation

• One orifice spud

• Turn off gas supply and unplug appliance before beginning service
• Use correct tools and replace only the part(s) explicitly specified for your model
• Do not overtighten fittings; follow torque guidance from the appliance manufacturer
• If you smell gas or suspect a leak after installation, stop immediately

This orifice meters gas flow to a range or oven burner for consistent, controllable flames. Replacing a damaged or clogged orifice restores proper burner performance and helps maintain safe ignition and cooking. What it does

• Controls the gas flow to a specific burner for the correct flame size and heat output.
• Commonly replaces clogged, corroded, or damaged orifices that cause weak or uneven flames.
• Can resolve symptoms such as burners that won't light reliably, low flame, or irregular flame shape.
• Helps restore stable combustion when the flame is sputtering or lifting from the burner head.

• One gas burner orifice (single piece as shown)

• Turn off the appliance and shut off the gas supply before removing or installing the orifice.
• Use the correct-size wrench; avoid overtightening which can damage the fitting.
• Inspect threads and seat for debris; replace sealing gasket or use approved thread sealant per service manual if specified.

This natural gas burner orifice regulates gas flow to the cooktop burner for a consistent 17K output, restoring proper flame size and heat. It's a direct-fit replacement designed for compatible Whirlpool-range gas valves and burners. What it does

• Controls gas flow to the burner so the flame reaches the intended heat output
• Helps correct weak or uneven flames when the orifice is clogged or worn
• Can resolve ignition or simmering problems caused by improper gas flow
• Matches the OEM 17K specification for proper burner performance

• One natural gas burner orifice (17K)

• Turn off the gas supply and power to the appliance before servicing
• Remove burner components carefully to access the orifice; avoid forcing fittings
• After installation, check for leaks with a soap solution or approved gas leak tester

This clip is a small mounting retainer used to secure panels, harnesses, or trim pieces on compatible Whirlpool appliances. It provides a simple, reliable hold to keep components in place and prevent rattles or shifting during use. What it does:

• Secures plastic panels, trim, or wire harnesses to the appliance frame
• Helps prevent vibration noise by holding parts tight
• Keeps wiring and small components routed and out of the way
• Simple mechanical retention—no tools-specific hardware required for the clip itself

• One clip

• Disconnect power (and water, if applicable) before beginning any repair
• Inspect surrounding parts and alignment before installing the clip to avoid forcing it
• Use appropriate hand tools to remove panels or fasteners as needed; press clip into place until it snaps securely
• If the clip is brittle or broken, replace it rather than reusing damaged pieces

This small mounting clip secures small panels and components on compatible Whirlpool appliances, restoring proper fit and preventing parts from coming loose. It's a simple replacement that helps stop rattles and misaligned panels. What it does:

• Secures trim, panels or small components to the appliance frame to maintain proper alignment
• Prevents parts from shifting or vibrating during operation, reducing rattling noises
• Restores fit where a broken or missing clip allowed gaps or loose pieces
• Designed to snap into place for a secure hold without added hardware

• One clip

• Disconnect power to the appliance before attempting any repair
• Remove any trim or panels carefully to access the clip location; note original orientation
• Press or snap the clip into the mounting slot until it seats; some locations may require a flat tool or light force
• Replace or repair the adjacent parts for a secure fit

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This speaker module produces the audible alerts and tones used by the appliance to signal cycle completion, errors, and user input feedback. Replacing a failed module restores clear beeps and chimes for reliable notifications. What it does:

• Outputs audible tones for cycle end, alerts, and button presses
• Restores sound when the appliance is silent or tones are distorted
• Helps confirm user inputs and warns of errors or malfunctions
• Works with the control board to play predefined alert patterns

• Disconnect power before removing the control panel or module to avoid shock.
• Handle the module and connector gently to avoid damage to wiring or pins.
• Reinstall using existing mounting points and secure connectors fully.
• Inspect the control board and wiring for faults.

The orifice spud is the fixed jet that meters gas to a burner. Replacing a worn, clogged, or incorrect spud helps restore proper flame size, cleaner combustion, and reliable ignition on your gas cooking appliance.

• Precisely meters gas flow to the burner through a fixed opening
• Helps produce a stable blue flame and consistent heat
• If clogged, damaged, or wrong size, can cause weak/yellow flames, uneven heating, delayed ignition, or burners not lighting
• Supports correct operation when matched to the specified fuel type and burner rating

• Shut off gas supply and power before servicing
• Match the spud to the exact burner position and fuel type specified in your model documentation
• Thread the spud into the orifice holder/manifold with a wrench; do not overtighten
• Restore gas, then leak-test connections and verify proper flame characteristics
