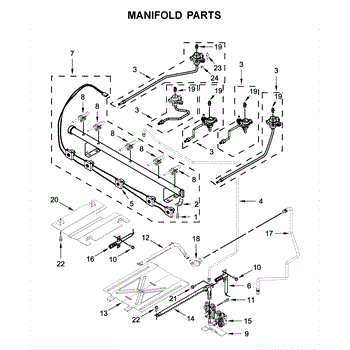

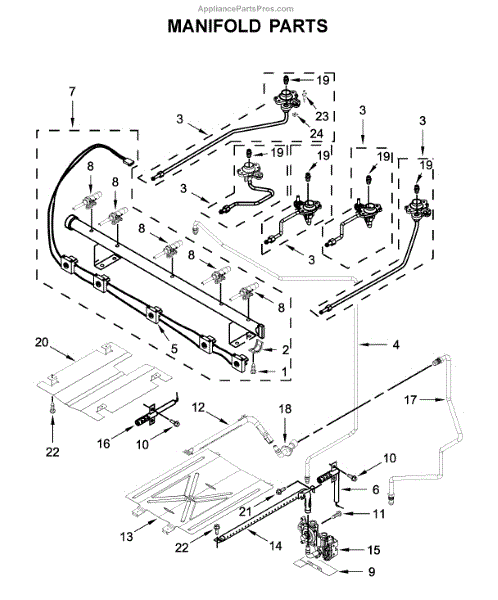

Parts for Maytag MGR6600FB2: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

The Wire Harness is an OEM part for Whirlpool ranges. It is responsible for initiating the spark that ignites the gas burner on your range. The switch controls the flow of electricity to the spark module, while the wire harness connects the switch to the rest of the ignition system.

A bad wire harness can occur due to wear and tear, loose connections, or electrical malfunctions. If you notice symptoms such as no spark when turning on the burner, intermittent sparking, or a complete lack of ignition, it may be time to replace the ignition switch and wire harness.

Symptoms of a bad wire harness include:

• No spark when turning on the burner
• Intermittent sparking
• Complete lack of ignition

Repair your range by replacing the faulty or damaged wire harness with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This manifold routes and distributes water to the dishwasher spray arms and wash system, ensuring even cleaning performance and proper water flow. It replaces a damaged, cracked, or leaking manifold to restore normal wash cycles. What it does

• Directs incoming water to the spray arms and internal wash channels for effective cleaning
• Prevents leaks and loss of water pressure caused by cracks or broken fittings
• Supports proper dishwasher cycle operation by maintaining correct water paths
• Common symptom fix: stops visible leaks under the dishwasher or poor spray performance

• One manifold assembly as pictured

• Disconnect power and water supply before starting any repair
• Verify water supply is off and drain any standing water from the tub before removal
• Inspect and replace any worn O-rings or gaskets as needed; tighten fittings per OEM guidance

This burner valve controls gas flow to a single cooktop burner so the burner lights and adjusts smoothly. It replaces a worn or faulty valve to restore proper flame control and consistent cooking heat. What it does:

• Regulates gas flow to a cooktop burner for ignition and flame adjustment
• Helps correct symptoms like a burner that won't light, has weak or uneven flame, or will not maintain ignition
• Works as the valve component in the range's gas delivery system for one burner

• Turn off gas supply and electrical power before starting work
• Follow appliance wiring and gas connections exactly; use a fuel-rated thread sealant where required
• Verify correct fit and orientation against the existing valve before final assembly
• After installation, check all gas connections for leaks and test burner operation

This burner valve controls gas flow to a surface burner on compatible gas ranges, restoring proper ignition and flame control for safe cooking. It replaces a worn or leaking valve to help re-establish normal burner operation. What it does

• Regulates gas supply to a single surface burner so the burner lights and maintains a steady flame
• Commonly replaced when a burner won't light, has weak or no flame, or the knob does not control flame level
• Stops or reduces unintended gas flow when valve seals fail, helping prevent leaks
• Interfaces with the range's control knob and internal gas line to modulate heat output

• One burner valve

• Turn off the gas supply and unplug the appliance before starting work
• Follow OEM disassembly steps for safe access; handle gas fittings carefully to avoid damage
• After installation, check all connections for leaks with a soap solution or approved leak detector

This gas saddle valve controls and directs propane/natural gas flow to the appliance burner assembly, restoring reliable fuel delivery when a worn or leaking valve impairs operation. Fits applications specifying an 18k saddle-style gas valve. What it does:

• Regulates gas flow from the supply line to the appliance burner assembly.
• Replaces valves that leak, fail to open, or cause weak/no heating and ignition problems.
• Helps stop intermittent gas flow that can cause inconsistent burner performance.
• Designed as a direct-replacement saddle-style valve where specified.

• Turn off the gas supply and electrical power before starting work.
• Use approved gas fittings and a proper thread sealant rated for gas connections; torque and connection methods vary by installation.
• After installation, test all fittings with an approved leak-detection solution; never use an open flame to check for leaks.

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This fitting is a small connector that secures an appliance hose or tube to restore a sealed fluid or air path, helping stop leaks and maintain normal water or airflow to the appliance. What it does:

• Connects and seals a hose or tubing to an appliance inlet/outlet to maintain a watertight or airtight connection
• Provides a stable attachment point for supply or drain lines
• Common symptom relief: fixes visible leaks at the connection, intermittent filling or flow problems, and loose/disconnected hoses
• Works where a worn, cracked, or corroded connector causes loss of seal or unstable hose attachment

• Always disconnect power and shut off the water supply before replacing fittings
• Inspect adjoining hose/tubing and seals; replace any damaged or brittle parts for a reliable seal
• Hand-start threads to avoid cross-threading, then tighten securely per OEM guidance; avoid overtightening plastic parts
• After installation, restore power/water and run a short test cycle; check carefully for leaks

This orifice controls the gas flow to a single burner, helping the appliance produce a stable, correct flame for cooking. Replace a worn or clogged orifice to restore consistent burner performance and safer operation. What it does:

• Regulates gas flow to the burner for proper flame size and heat output
• Helps maintain an even, steady flame for reliable cooking
• A clogged or damaged orifice can cause a weak, uneven, or yellow flame
• Resolve issues where a burner is slow to light or does not reach normal heat

• Turn off the gas supply and unplug the appliance before starting work
• Remove burner parts and orifice holder to access the orifice; use appropriate hand tools
• Replace with the identical orifice and proper seating and orientation
• After installation, check for gas leaks and proper burner flame

This genuine OEM-style gas burner orifice controls the flow of gas to a stove or range burner for a steady, correct flame. Replacing a worn or damaged orifice restores proper burner performance and helps ensure safe, efficient operation. What it does:

• Meter gas to the burner jet so the flame burns correctly and evenly
• Helps correct weak or uneven flames and poor burner ignition
• Prevents over- or under-firing that can affect cooking performance
• Works with the burner assembly to maintain stable combustion

• One gas burner orifice

• Turn off the appliance power and shut off the gas supply before starting work
• Replace only with the exact orifice specified for your appliance; check fit before final assembly
• Use proper gas-rated thread sealant or tape if the application requires it; follow local codes

This orifice controls gas flow to a cooktop burner, restoring proper flame size and consistent cooking heat. It replaces a worn or clogged nozzle to help re-establish reliable ignition and even burn across the burner. What it does:

• Meters gas to the burner so the flame burns evenly and at the correct size
• Helps correct weak or uneven flames that cause slow cooking or hot spots
• Can resolve ignition issues when a blocked orifice prevents consistent lighting
• Restores proper combustion after corrosion, debris, or wear reduces gas flow

• Turn off the gas supply and power before removing or installing this part
• Use proper tools to avoid damaging threads; confirm fit before final tightening
• Inspect surrounding gaskets/seals and clean burner ports before reassembly

This orifice spud is the small metal fitting that meters gas to a cooktop or range burner, restoring proper flame size and heat control. It fits into the burner manifold to direct fuel flow for safe operation. What it does:

• Regulates gas flow to a specific burner for correct flame height and heat output
• Helps restore even or full-strength flames when a burner is weak or uneven
• Can resolve ignition difficulty or burners that won't stay lit when caused by a worn or damaged spud
• Works as a direct replacement for the corresponding burner orifice in the manifold assembly

• One orifice spud

• Turn off the appliance's gas supply and electrical power before servicing
• Use appropriate wrenches and avoid overtightening to prevent damage to threads
• After installation, check all connections for gas leaks with a soap solution; do not use an open flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This LP broil burner orifice precisely meters propane to the oven's broiler. Replacing a damaged or incorrect orifice restores proper flame size and reliable ignition on LP fuel for consistent, efficient broiling performance.

• Regulates gas flow to the broil burner when using LP (propane) fuel
• Helps ensure correct flame size/shape for even broiling heat
• Can address weak or uneven broil flame or yellow/sooty flames
• May help resolve a broiler that won't ignite or won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool completely.
• Access the broil burner/orifice per the manufacturer's instructions. Remove the old orifice and hand-thread the new one; snug gently—do not overtighten.
• Restore gas and check all connections for leaks using a non-corrosive leak-detection solution; never use an open flame.
• Use only on LP systems. If converting fuel types, adjust the regulator and air shutters as specified.

This LP bake orifice meters propane to the oven's bake burner to deliver the specified BTU output. It helps ensure a stable, blue flame and consistent baking performance after LP conversion or when replacing a damaged or missing spud.

• Meters LP gas to the bake burner for the intended BTU output
• Promotes correct flame size and color for efficient, even baking
• Useful after LP conversion or when the original orifice is clogged, damaged, or missing
• Symptoms can include weak or unstable bake flame, oven not reaching temperature, or yellow/sooty flame

• For LP use only; verify the correct orifice for your model and gas type
• Disconnect power and shut off gas; allow the oven to cool completely before service
• Access the bake burner orifice holder; start threads by hand to avoid cross-threading and tighten snugly—do not overtighten brass
• After reassembly, leak-check all gas connections and verify proper flame/air-shutter adjustment.

The LP Bake and Broil Kit is an OEM replacement part for Whirlpool ranges. It is a kit containing everything needed to convert the oven from Natural gas to LP.

Causes of a bad bake/broil system can include cracks, leaks, or corrosion in gas lines that produce unsafe flames over time. Pilot lights may fail to light consistently.

Symptoms of failures include:

• Inability to ignite bake/broil burners
• Erratic or intermittent baking temperatures
• Uneven cooking due to improper burner positioning
• Strong gas or chemical smells from the oven

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
