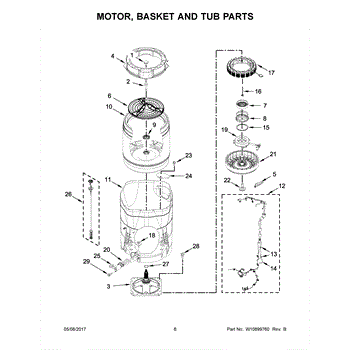

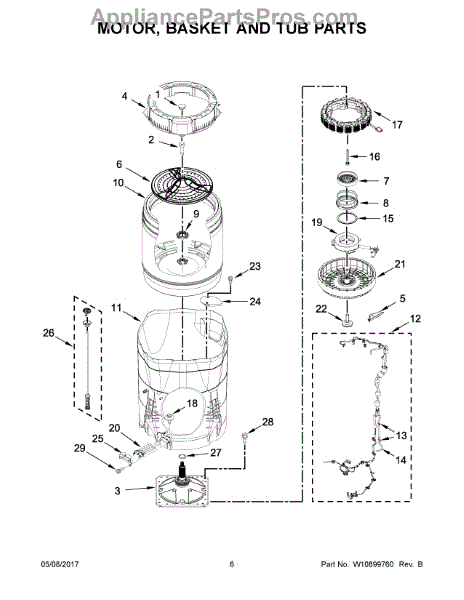

Parts for Maytag MVWB955FC0: 04 - Motor, Basket And Tub Parts

The Cap is an OEM part for Whirlpool washing machines. It provides a secure closure over the agitator post. The cap is designed with precision tolerances to fit snugly over the central agitator shaft.

Causes of a bad cap are typically wear and tear through repeated use and continuous exposure to detergents and other wash chemicals. Physical damage from dropping heavy loads could also potentially compromise the cap.

Symptoms of a bad cap include:

• Shifting or loose movement during the wash cycle
• Clicking or clanking sounds from a loose fit
• Improper stabilization of the wash basket

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool washing machines. This screw is used to securely attach the wash plate or agitator to the bottom of the washer's drum. This screw ensures that the wash plate remains firmly in place during the washer's operation, preventing movement that could lead to inefficient washing or damage to the machine.

Causes of damage to the screw can include corrosion over time, overloading of the washing machine which puts excess stress on the wash plate, or wear and tear from regular use.

Symptoms of a bad Screw include:

• The wash plate becoming loose or detached
• Unusual noises during the wash cycle, such as rattling or banging
• The washer failing to agitate properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine OEM part is a gearcase for washers. The gearcase is the metal housing that holds the components of a washer's transmission. It serves as a protective exterior to the transmission. If the gearcase is no longer secured to the washer tub, or if the washer is no longer rotating properly the gearcase will need to be replaced. To replace this part, start by unplugging the washer. Once unplugged, proceed to remove the back panel of the washer. Once removed, locate the gear case behind the drum of the washer. Once located, remove the four screws that attach it to the unit and proceed to pull the gearcase off of the washer. After it is completely removed, line up the new gearcase to its mounting holes and thread the screws to secure the gearcase.This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand washers.

The Impeller is an OEM part for Whirlpool and Maytag top-load washing machines. As a core agitation component, this flat paddled impeller is designed to efficiently collect and distribute water flow during all wash cycles.

Symptoms of an outdated impeller can include:

• Incomplete water drainage after cycles
• Reduced agitation power affecting wash results
• Scratches or cracks impacting its sealing ability

Causes involve wear from continuous contact with wash loads and gradual degradation due to mineral deposits accumulating over many years of use.

This OEM replacement fits select Whirlpool, Maytag, Amana, and other top-load models.

The Clutch is an OEM part for Whirlpool washing machines. It is crucial for the proper functioning of the washer's spin cycle, connecting the transmission to the inner tub and facilitating the movement needed for spinning and agitating. The clutch ensures that the tub reaches the appropriate spin speed, thereby effectively removing water from clothes.

Causes of a bad clutch can include wear and tear from regular use, overloading the washing machine, or damage due to an imbalance during the spin cycle. When the clutch becomes faulty, the washing machine may struggle to spin or agitate correctly, affecting the overall efficiency of the appliance.

Symptoms of a bad clutch include:

• The washer not spinning or agitating properly
• Excessive noise during the spin cycle
• Wet clothes at the end of the cycle
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clutch is an OEM part for Whirlpool washing machines. It is crucial for the proper functioning of the washer's spin cycle, connecting the transmission to the inner tub and facilitating the movement needed for spinning and agitating. The clutch ensures that the tub reaches the appropriate spin speed, thereby effectively removing water from clothes.

Causes of a bad clutch can include wear and tear from regular use, overloading the washing machine, or damage due to an imbalance during the spin cycle. When the clutch becomes faulty, the washing machine may struggle to spin or agitate correctly, affecting the overall efficiency of the appliance.

Symptoms of a bad clutch include:

• The washer not spinning or agitating properly
• Excessive noise during the spin cycle
• Wet clothes at the end of the cycle
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small nut-spacer secures and spaces appliance components to maintain correct alignment and prevent metal-on-metal contact. It's a simple replacement when the original spacer is missing, damaged, or causing loose panels. What it does:

• Provides clearance between parts to prevent binding and wear
• Secures assemblies by threading onto a stud or bolt
• Helps eliminate rattling or vibration caused by loose or missing spacers
• Restores proper alignment for panels and internal components

• Disconnect power (unplug or shut off breaker) before servicing the appliance
• Hand-thread onto the stud to avoid cross-threading, then snug with the appropriate tool
• Do not overtighten; overtightening can strip threads or deform the spacer
• Inspect mating threads and replace if damaged

This wire harness routes electrical power and signals between components, restoring reliable connections and helping the appliance power up and respond correctly. It's a direct-fit replacement when factory wiring is damaged or disconnected. What it does:

• Carries power and control signals between the control board, switches, and components
• Replaces frayed, pinched, burnt, or broken wires that can cause no power or intermittent operation
• Helps stop arcing or burning smells caused by damaged wiring connections
• Restores secure connector fit to prevent loose connections and erratic behavior

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Handle connectors by the housing; avoid pulling on individual wires
• Route wiring exactly as original and secure any clips or strain-relief fasteners
• If you see damaged insulation on adjacent wiring or signs of overheating, inspect related components and replace as needed

This clamp secures a washer or dryer hose to its connection to prevent leaks and keep the hose firmly in place during operation. It replaces worn or loose clamps that allow water to escape or hoses to detach. What it does:

• Holds a washer/dryer hose to a nipple, collar or fitting to maintain a sealed connection
• Prevents water leaks caused by loose or corroded clamps
• Stops hoses from slipping off during drain or fill cycles
• Restores proper hose retention and reduces risk of water damage

• Disconnect power and turn off the water supply before starting any repair
• Inspect hose and fitting for damage; replace hose if cracked or frayed
• Use appropriate pliers or a screwdriver for the clamp style; avoid overtightening to prevent hose damage
• Verify a leak-free connection after restoring power and water

This is a clear plastic hose that runs from the water level switch to the bottom of the tub.

The Water Level Pressure Switch Hose is an OEM part for Whirlpool washers, playing a critical role in the accurate measurement of water levels within the machine.

Causes of damage to the Water Level Pressure Switch Hose can stem from natural wear and tear over time, leading to cracks or holes in the hose.

Symptoms of a bad Water Level Pressure Switch Hose include:

• The washer overfills or underfills, indicating a problem with water level detection.
• Unusual noises during the fill cycle, which may suggest air leaks in the hose.
• Error codes related to water level or filling issues displayed on the washer.
• The machine stops mid-cycle due to incorrect water level readings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Clutch is an OEM part for Whirlpool washing machines. It is crucial for the proper functioning of the washer's spin cycle, connecting the transmission to the inner tub and facilitating the movement needed for spinning and agitating. The clutch ensures that the tub reaches the appropriate spin speed, thereby effectively removing water from clothes.

Causes of a bad clutch can include wear and tear from regular use, overloading the washing machine, or damage due to an imbalance during the spin cycle. When the clutch becomes faulty, the washing machine may struggle to spin or agitate correctly, affecting the overall efficiency of the appliance.

Symptoms of a bad clutch include:

• The washer not spinning or agitating properly
• Excessive noise during the spin cycle
• Wet clothes at the end of the cycle
• The washer stopping mid-cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance components so panels, brackets, and trim stay tight and aligned. Replace a missing or stripped screw to stop rattles, restore a secure fit, and keep parts mounted as designed.

• Fastens panels, brackets, covers, and trim to the chassis
• Restores proper alignment and reduces vibration or rattling
• Replaces missing, rusted, or stripped hardware
• Helps maintain a solid, factory-style fit after service

• Disconnect power (and water, if applicable) before servicing
• Match the original screw location and orientation; start threads by hand to avoid cross-threading
• Use the correct driver for the head type; tighten snugly without overtightening
• Reuse any original washers or clips if present

This is the stator for the washer's direct-drive motor. The stationary coil generates the magnetic field the rotor uses to spin and agitate the basket, restoring smooth, reliable drive performance when the original windings fail.

• Creates the electromagnetic field that powers the direct-drive motor
• Works with the rotor to spin the basket and drive agitation
• Failure symptoms can include no spin, no agitation, or the basket not turning
• Intermittent or weak spin performance can also indicate a failing stator

• Disconnect power and turn off water before servicing; allow components to stop moving
• Access from the bottom of the washer; remove the rotor cover and center bolt, then lift off the rotor (strong magnets—handle carefully)
• Unplug the motor harness, remove stator mounting bolts, and note wire routing/orientation
• Install the new stator evenly, tighten bolts in a crisscross pattern, reconnect the harness, then reinstall the rotor and cover

This replacement dryer heater is the heating element assembly that warms air inside the dryer so clothes dry efficiently. Restores normal drying performance when the original heater has failed. What it does:

• Generates the heat required for the dry cycle so laundry reaches the selected temperature
• Commonly used when the dryer produces no heat or clothes remain damp after a full cycle
• Can help resolve long dry times and reduced drying efficiency caused by a failed element
• Works with the dryer's air flow system to deliver consistent, controlled heat

• Disconnect power (unplug or shut off breaker) before starting any work.
• Allow the dryer to cool completely; heating elements and surrounding metal may be hot or sharp.
• Handle the element carefully to avoid bending or damaging the coils; secure all wiring and ground connections during reassembly.
• If replacing the heater for a no-heat issue, also inspect the thermal fuse, thermostats, and venting for related faults.

The Motor Rotor is an OEM replacement part for Whirlpool washing machines. Situated within the transmission housing, this specialized metal component physically connects the drive motor to the outer brake housing that controls the drive shaft and wash basket movements during all cycles.

Causes of failure involve the wearing of motor bearings or cracking of cast magnesium surfaces from repeated rotations over extended usage periods.

Symptoms requiring replacement include:

• Vibration or shaking noises heard from inside cabinetry
• Cycles displaying mechanical faults or not advancing properly
• Grinding sounds impeding smooth motor operations
• Drive failure troubles identified through diagnostic codes

This Whirlpool replacement is also compatible with Maytag, KitchenAid, and select other brands utilizing common Whirlpool motor designs.

Replacement screw used to secure appliance components such as panels, brackets, and assemblies. Installing a fresh screw in place of missing, stripped, or corroded hardware restores a solid fit and helps prevent rattles, vibration, or shifting parts.

• Fastens panels, brackets, or internal assemblies in place
• Maintains alignment and stability of mounted parts
• Helps reduce noise and vibration from loose hardware
• Replace when a screw is missing, threads are stripped, or corrosion is present

• Disconnect power and, if applicable, shut off gas before servicing
• Access the mounting point and remove damaged hardware
• Start the new screw by hand to avoid cross-threading, then tighten with the correct driver; do not overtighten
• Recheck fasteners after reassembly

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages

This genuine replacement water filter cartridge helps keep your refrigerator's ice and drinking water tasting clean by reducing particles and common impurities. Designed to restore proper flow and filtration for compatible Whirlpool-family refrigerators. What it does:

• Filters water used for ice and drinking to improve taste and clarity
• Helps reduce dirt, sediment, and other common particulates that cause cloudiness
• Restores weakened or slow water flow caused by a clogged or old filter
• Supports normal ice production by maintaining filtered water supply

• One water filter cartridge

• Replace with the refrigerator powered on but the water supply turned off if required by your model
• Flush several gallons of water through the filter after installation to clear air and carbon fines
• Follow your refrigerator's manual for filter location, removal, and reset steps
• If you detect leaks or persistent water flow issues, turn off water.

The Suspension Rods are an OEM component specifically designed for Whirlpool washing machines. They work with springs and mounts to isolate washers from damaging vibrations.

Causes of bad rods can include fatigue and cracking from years of absorption, breaks due to impact damage, or loosening of mounting brackets.

Symptoms include:

• Excessive shaking or bouncing even on gentle cycles
• Loud clanking and knocking noises while spinning
• Floor damage from pounding or walking of the washer
• Stress on transmission parts from uncontrolled movements

Note: This does include all 4 rods.

This OEM replacement kit restores optimal vibration control with new reinforcement rods, springs, and mounting hardware. Compatible models include those from brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This WASHER  is an OEM part specifically designed for Whirlpool top-load washing machines. Tailored to fit seamlessly, this component ensures the efficient operation of the washer. It plays a crucial role in maintaining the stability and balance of the machine during the washing cycles.

A damaged or worn-out top-load washer can negatively impact the appliance's performance. Causes of a defective washer might include prolonged use, physical damage, or exposure to excessive weight or force, resulting in instability or imbalance during operation.

Symptoms of a bad WASHER may include:

• Excessive vibration or shaking during the wash cycle
• Difficulty in maintaining balance while spinning
• Noisy or erratic behavior during the operation

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This replacement 7-2-1 screw secures components in compatible Whirlpool appliances, providing a dependable fastener for panels and assemblies. Use it to restore proper fitment and reduce rattling or loose parts. What it does

• Fastens trim, panels, brackets, or internal assemblies to keep parts secure
• Helps stop vibration-related noise from loose components
• Restores correct mounting where the original screw is missing or damaged
• Matches the form and fit of the OEM fastener for intended attachment points

• One replacement 7-2-1 screw

• Use the correct driver to avoid stripping the screw head
• Hand-start threads before tightening to prevent cross-threading
• Tighten until snug—do not over-tighten to avoid damaging plastic or sheet-metal parts
• Disconnect power to the appliance before accessing internal areas

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal
