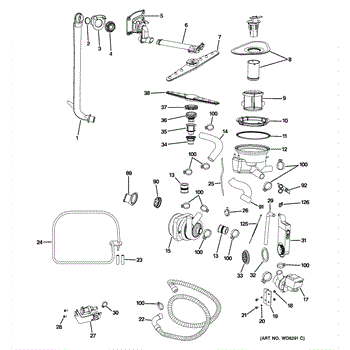

Parts for Ge PDW1860N00SS: 04 - Motor-Pump Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Spray Arm Connector Assembly is an OEM replacement part for GE dishwashers. This assembly connects the upper and lower spray arms to the water inlet valve, allowing water to flow through the spray arms during the wash cycle.

Symptoms of a bad spray arm connector assembly include:

• Uneven or inconsistent water coverage on dishes
• Clogged or kinked spray arm assemblies
• Leaks at the tub connections
• Reduced water pressure impact

Causes of a bad spray arm connector assembly can be mineral buildup affecting water flow, cracked or damaged connectors, or wear over time.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This microfilter sits in the dishwasher sump to capture fine food particles so water recirculates cleanly. Replacing a torn or clogged filter can help restore wash performance and protect the pump and spray arms from debris.

• Screens out fine debris to keep recirculating wash water cleaner
• Helps prevent redepositing and spray-arm clogs
• Common signs include gritty residue on dishes, poor cleaning results, visible tears/warping, or a filter that won't lock securely

• Disconnect power at the breaker before servicing.
• Open the door and remove the lower rack.
• Twist to unlock and lift out the old filter; clear any debris from the sump (locking direction varies by model).
• Seat the new filter fully and rotate to lock; ensure it's flush and secure.

This sump clamping nut secures the washer/dishwasher sump seal and housing, helping keep the sump assembly sealed and stable during operation. It's a small but essential fastener for preventing leaks and maintaining proper drainage. What it does:

• Holds the sump/tub seal and sump housing tightly in place to maintain a watertight connection
• Prevents the sump assembly from loosening during spin or wash cycles
• Helps reduce leaks and related water damage when installed correctly
• Works with the factory sump and seal components as the retaining nut

• Replace only with the matching part number; verify orientation before tightening
• Hand-start threads to avoid cross-threading, then tighten to factory spec (do not overtighten)
• Disconnect power and water to the appliance before servicing

This sump gasket seals the dishwasher's sump to the tub to keep wash water contained. Replacing a worn or flattened gasket helps stop leaks and maintain proper wash and circulation performance.

• Creates a watertight seal between the sump/pump assembly and the tub bottom
• Helps prevent leaks onto the floor or into the base pan
• Maintains wash pressure and circulation by preventing air intrusion
• Replace if torn, cracked, deformed, or if water is leaking from the center/bottom of the unit

• Disconnect power and water before servicing; use gloves to protect from sharp edges
• Access the sump from inside the tub or underside (model dependent); remove spray arm/filter as needed and release the retaining ring or tabs
• Clean mating surfaces; install the new gasket evenly without twists and ensure proper orientation
• Reassemble and run a brief fill/wash to check for leaks before fully reinstalling

A dishwasher sump assembly that houses the pump and routes wash water; replaces a damaged or leaking sump to restore proper draining and circulation. Designed to fit as the factory-style replacement for the original sump. What it does

• Channels and collects wash water for the dishwasher pump to circulate and drain.
• Replaces cracked or warped sump housings that can cause leaks under the appliance.
• Can stop intermittent draining problems or pump cavitation caused by a damaged housing.
• Helps reduce vibration and noise when the pump and housing are functioning correctly.

• One sump assembly.

• Disconnect power and water to the appliance before beginning any repair.
• Inspect surrounding seals, gaskets and fasteners during install; replace any damaged items.
• Tighten mounting hardware to OEM torque and ensure proper alignment to prevent leaks.
• Test or replace those components separately as needed.

A squeeze-style clamp that secures wiring or small hoses to the appliance frame, helping prevent chafing and movement. Compact and simple, it restores proper routing and keeps components stable for reliable operation. What it does:

• Holds wiring harnesses or small hoses in place to prevent rubbing and wear
• Keeps wires and tubes routed away from heat or moving parts
• Reduces electrical and mechanical stress caused by loose routing
• Helps stop intermittent failures caused by chafed or pinched lines

• Disconnect power (and water if applicable) before servicing the appliance
• Remove the damaged clamp and position the new clamp over the wire or hose and frame tab
• Squeeze closed with appropriate pliers until secure; avoid over-crimping which may damage wiring
• Replace any damaged wiring or hoses discovered during installation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This heating element assembly supplies heat for tumble drying, restoring warm airflow so clothes dry efficiently. It replaces a failed or burned element to help return normal drying performance. What it does:

• Generates the hot air used to dry clothes by heating incoming air that circulates through the drum
• Commonly replaces a burned-out or open element that causes no heat or reduced heat
• Helps address symptoms like cool air from the dryer, extended dry times, or loads that never fully dry
• Works with the dryer's safety thermostats and fuses to regulate operating temperature

• Heating element assembly (1)

• Disconnect power at the breaker or unplug the dryer before starting any repair
• Allow all components to cool and wear gloves to avoid sharp edges
• Basic hand tools are typically required; follow the dryer's service manual for safe removal and reassembly
• If the dryer still has heating issues after replacement, inspect thermostats, thermal fuses, and wiring

This replacement pressure switch hose routes air/suction from the wash tub to the pressure/water-level switch so the machine can detect fill level and run correctly. It restores reliable pressure signal transfer when the original hose is cracked, split, or blocked. What it does:

• Transfers air pressure from the tub to the pressure/water-level switch so the control senses water level
• Helps prevent overfilling or incorrect fill-level detection caused by leaks or clogs in the hose
• Can resolve symptoms like inconsistent fills, washer not completing cycles, or erratic water-level sensing
• Replaces brittle, collapsed, or hardened tubing that no longer seals

• Disconnect power and water before starting any repair; follow all safety guidance for your appliance
• Inspect hose routing and orientation, then slip new hose onto the same fittings with a secure, snug fit
• Replace any damaged clamps or connectors and avoid kinked or pinched hose routing

Pressure switch that monitors water level and signals the washer control board when to start or stop filling. Replacing a failing pressure switch can help restore correct fill levels and normal cycle operation. What it does:

• Senses air pressure from the tub and tells the control when the correct water level is reached
• Stops the fill valve once the desired level is detected to prevent overfilling
• Can cause underfilling, overfilling, or failure to advance cycles when faulty
• Works with the washer's control system to ensure proper fill and cycle progression

• Disconnect power to the appliance before starting any repair
• Shut off water supply and relieve any trapped water before accessing components
• Carefully disconnect wiring harness and air tube; note routing for reassembly

The Water Valve is an OEM replacement part for GE dishwashers. Located inside the valve body, this electronically-controlled component precisely regulates water inlet and flow during each cycle of the wash sequence. The water valve utilizes sensors and timer modules to open and close water lines at the correct times based on cycle selections.

Symptoms of a defective water valve include:

• Failure to fill or improper filling
• Inability to switch between cycles
• Water leaks from the valve body area
• Erratic or inconsistent water usage amounts

Causes of malfunction often stem from worn internal seals, mineral buildup obstructing valve ports over time, or issues with the electronic control board. Replace yours today with this genuine GE water valve for reliable water control, sensor functions, and trouble-free dishwasher cycles.

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models.

This replacement screw secures panels and components on compatible GE appliances, restoring proper fastening to prevent loose parts and rattling. It's a simple hardware fix that helps maintain safe, quiet operation. What it does:

• Fastens and secures panels, brackets, or internal components
• Replaces missing or stripped screws to stop rattling and reduce vibration
• Helps maintain alignment of removable covers and service panels
• Used wherever the OEM specifies this exact screw for a secure fit

• Disconnect power and water before servicing the appliance
• Use the correct size screwdriver or driver bit to avoid stripping the head
• Tighten snugly but do not overtighten; overtightening can strip threads or damage parts
• Keep removed hardware organized before final reassembly

This fill hose delivers water from the washer inlet valve to the tub, restoring proper water flow and preventing leaks. Replace a cracked, split, or leaking hose to stop water damage and restore normal fill operation. What it does:

• Carries incoming water from the inlet valve to the washer tub during fill cycles
• Stops leaks and water spraying when the original hose is cracked, swollen, or split
• Helps restore normal water fill levels and cycle performance when the hose is failing
• Fits where a direct OEM replacement hose is required for proper seal and routing

• One fill hose

• Turn off water supply and unplug the appliance before starting work
• Inspect inlet valve fittings and hose ends; replace clamps or fittings if worn
• Hand-tighten fittings, then snug with tools—do not overtighten to avoid damage
• Check for leaks after restoring water and power; recheck fittings after a test cycle

This ring nut and clamps assembly secures the washer tub/housing connections so seals and hoses stay tight during operation, helping reduce leaks and excess movement. What it does:

• Holds tub or hose fittings firmly in place to maintain a water-tight connection
• Helps prevent leaks caused by loose or worn fastening hardware
• Restores proper alignment to reduce vibration or rubbing from loose components
• Used when replacing corroded, broken, or missing retaining hardware

• Disconnect power and water before starting any repair to avoid shock or flooding
• Basic hand tools required; access panels may need to be removed
• Tighten clamps to secure fit but avoid overtightening plastic fittings

This lower manifold support secures the appliance's lower manifold assembly, keeping water and valve components properly aligned for reliable operation and reduced movement. It helps prevent undue stress on connections and reduces wear. What it does:

• Holds the lower manifold/valve assembly in the correct position to prevent sagging or misalignment
• Reduces vibration and movement that can lead to loose fittings or leaks
• Helps maintain a proper seal at manifold connections to minimize water drip or seepage
• Can stop rattling or clunking noises caused by a loose manifold assembly

• One lower manifold support bracket

• Disconnect power and turn off water supply before starting work
• Basic hand tools required; handle the manifold and connected tubing carefully
• Inspect adjacent gaskets, hoses and fittings for wear and replace as needed

This connecting ring nut secures a threaded water-path connection inside the dishwasher, helping keep the joint tight and leak-resistant. Replace a cracked, stripped, or missing nut to restore a secure fit and reliable operation.

• Tightens and holds a mating connector, tube, or manifold in place
• Helps maintain a watertight connection when used with the proper seal
• Replaces worn or cross-threaded hardware that can cause leaks or loose joints
• Typical symptoms include dripping at the connection, a loose hose/manifold, or difficulty keeping the fitting tight

• Disconnect power and shut off the water supply before servicing
• Access the joint; start threads by hand to avoid cross-threading, then snug with the proper tool—do not overtighten
• Inspect any O-ring or gasket at the connection and replace if worn
• Restore water and check for leaks before reassembling panels

This small rubber cushion provides a soft stopping surface to reduce noise, vibration and wear where moving parts contact the cabinet or tub. It helps keep components aligned and running quietly for longer. What it does

• Acts as a bumper between moving parts and the cabinet to reduce rattling and impact noise
• Dampens vibration to prevent premature wear on adjacent parts
• Helps maintain proper spacing and alignment for doors, panels or internal assemblies
• Commonly used where a soft, durable contact point is required

• One cushion as shown

• Disconnect power to the appliance before inspecting or replacing the cushion
• Typically installs by pressing into a slot or onto a mounting post; check exact position before removal
• Replace any worn or torn cushions to restore quiet operation and prevent damage

This sump drain hose carries wastewater from the washer tub to the drain pump, preventing leaks and keeping your laundry cycle draining properly. It replaces worn or cracked hoses to restore reliable draining. What it does:

• Routes water from the washer sump to the drain pump so the machine can pump out used wash water
• Stops leaks caused by splits, cracks, or collapsed hose sections
• Helps prevent standing water and incomplete drain cycles
• Works with the washer's pump assembly to maintain proper water flow

• Disconnect power and water before starting any repair
• Remove the cabinet or access panel only as needed for safe access to the sump area
• Ensure hose connections are seated and clamp(s) tightened to prevent leaks; do not overtighten
• Inspect adjoining seals and the pump inlet for damage while replacing the hose

This wire tie secures and organizes wiring inside the appliance to help prevent chafing and loose connections. Its 7-7/8 inch length is suited for bundling harnesses and routing cables away from heat and moving parts. What it does:

• Fastens and groups wires or small hoses to keep them neatly routed
• Helps prevent wire chafing, abrasion, and contact with sharp edges
• Reduces the chance of intermittent connections from loose wiring
• Keeps wiring away from moving components to reduce noise and wear

• Disconnect power before servicing the appliance
• Position wiring as needed, insert tie and tighten; avoid over-tightening
• Trim excess tie length flush and secure cut end away from wires
• Replace any damaged wiring insulation and verify routing before restoring power
