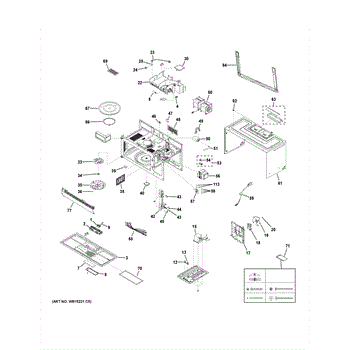

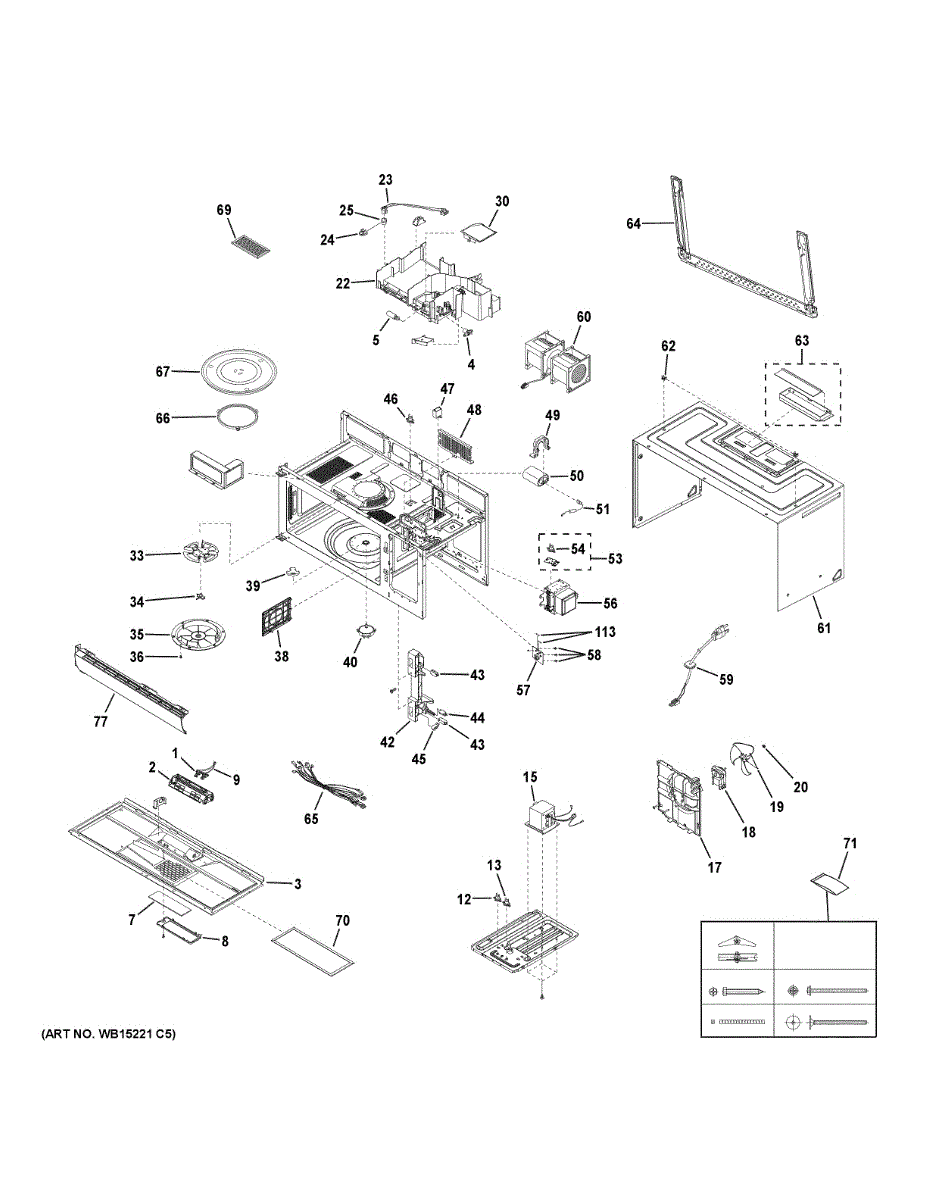

Parts for Ge JVM6175DK2BB: Oven Cavity Parts

The Halogen Light Bulb is an OEM part for GE microwaves. It provides bright interior lighting, allowing you to monitor food while it's cooking and to see clearly when opening the microwave door.

You should replace the halogen light bulb if it burns out or becomes damaged. Halogen bulbs can wear out over time or may break due to impacts or electrical surges.

Symptoms of a bad halogen light bulb include:

• No light inside the microwave during operation
• Flickering or dim light
• Visible damage to the bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb Socket is an OEM part for GE microwaves. It holds the light bulb securely in place within the microwave, ensuring proper illumination of the interior when the door is opened or the microwave is in operation.

Causes of a bad light bulb socket can include wear and tear over time, exposure to high heat, electrical faults, or damage from replacing the bulb improperly.

Symptoms of a bad light bulb socket include:

• The interior light not turning on when the microwave is in use
• Flickering or intermittent lighting
• Difficulty securing the light bulb in the socket
• Visible damage or discoloration to the socket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb is an OEM part for GE microwaves. This bulb illuminates the interior of the microwave during operation, enhancing visibility so you can monitor the cooking process without opening the door. It is designed to withstand the high temperatures and vibrations typically found in microwave ovens.

Over time, the light bulb can burn out or become damaged due to the harsh environment of the microwave. Frequent on and off cycles can also shorten the lifespan of the bulb. Replacing a non-functioning or dim bulb will restore visibility and improve the functionality of your microwave.

Symptoms of a bad light bulb include:

• Dim lighting inside the microwave.
•  Flickering or inconsistent performance.
• Complete lack of light when the microwave is operating.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Glass Light Lens is an OEM part for GE microwaves. It covers the light bulb inside the microwave, protecting it from food splatters and ensuring even illumination.The lenses measure approximately 7" x 3".

Causes of a bad glass light lens can include accidental impact, exposure to high heat, or general wear and tear.

Symptoms of a bad glass light lens include:

• Cracks or breaks in the glass
• Diminished visibility inside the microwave
• Light not being properly diffused
• Potential exposure of the light bulb to food splatters

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the clear glass lens that covers the cooktop light on select GE over-the-range units. It shields the bulb from grease and splatters while allowing bright, even illumination of the cooking surface below.

• Protects the cooktop light bulb from grease, moisture, and debris
• Restores proper lighting if the original lens is missing, cracked, or stained
• Helps maintain safe, even illumination of the range area
• Common symptoms: broken or missing lens, dim or uneven light due to a damaged cover

• Disconnect power to the appliance before servicing
• Allow bulbs and surrounding area to cool completely
• Handle glass carefully to avoid chipping; wear cut-resistant gloves
• Ensure the lens seats fully and any retaining tabs/screws are secured per the product's service instructions

This replacement light socket restores safe, consistent power to the appliance light. If the original socket is heat-damaged, loose, or shorted, installing a new socket brings back reliable illumination and solid electrical contact.

• Provides the electrical connection and physical support for the light bulb
• Replaces cracked, scorched, or worn sockets that cause poor contact
• Helps resolve a light that won't turn on, flickers, or works intermittently with a known-good bulb
• Designed for a secure fit to maintain dependable lighting performance

• Disconnect power at the breaker before servicing.
• Allow the area to cool before working near any heated light cavity.
• Transfer wires one at a time (or take a quick photo) to ensure correct reconnection.
• Install a bulb type and wattage specified for your model; avoid touching bulb glass with bare hands if your model uses a halogen lamp.

This thermal cut-off installs in the bottom location and protects the appliance by interrupting power when excessive heat is detected. It helps prevent overheating-related damage to internal components.

• Monitors temperature at the bottom of the unit and opens the circuit if an over-temperature condition occurs
• Common symptoms include no power, shutting off during use, or not starting after an overheating event
• The TCO tests open (no continuity), it must be replaced

• Disconnect power before servicing; microwaves contain a high-voltage capacitor that must be safely discharged
• Note wire positions and mounting orientation; transfer any reusable bracket/insulator and make secure, insulated connections
• After reassembly, ensure airflow and vents are unobstructed to prevent repeat overheating

This thermostat switch is a temperature-sensitive safety device used in select appliances to open or close an electrical circuit at a set temperature. Replacing a failed switch helps restore proper temperature control and protects components from overheating.

• Monitors temperature and changes state (open/closed) at its calibration point
• Helps prevent overheating or incorrect temperature regulation
• Common failure signs: no heat/overheating, intermittent cycling, or unit shutting off prematurely
• May be mounted to a bracket or surface near the heated area, depending on the model

• Disconnect power before servicing; verify no voltage is present
• Note wire positions and orientation of the original switch before removal
• Transfer any mounting hardware from the old part if not reusable
• After installation, test operation and observe initial heating cycle for proper function

This microwave high-voltage transformer steps household AC up to the high voltage required by the magnetron to generate microwave energy. Replacing a failed transformer restores heat when the oven runs but food remains cold.

• Steps up line voltage to supply the magnetron during cooking
• Common symptom of failure: microwave runs but does not heat
• May also cause loud humming, a burning odor, or tripped breaker/fuse when energized
• Visual signs can include scorching or discoloration on the windings or terminals

• Disconnect power; the high-voltage capacitor can retain a dangerous charge—discharge it before servicing
• High-voltage microwave repairs are hazardous
• Note wire positions and mounting orientation before removal; transfer any brackets or insulators as configured
• Secure with original hardware and verify all connections are tight and routed clear of heat or moving parts

This fan motor spins the oven/convection fan to circulate heat for even cooking and help exhaust hot air. Replaces a worn or noisy motor to restore proper airflow and temperature consistency in the appliance. What it does:

• Drives the convection/circulation fan blade to move air through the oven cavity
• Helps maintain even cooking and consistent oven temperatures
• Reduces buzzing, grinding, or failure-to-spin symptoms when the old motor is failing
• Works as the mechanical drive for air exhaust and internal circulation systems

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the motor and wiring gently; match mounting orientation and connector type during install
• Verify blade and shroud clearance before powering the unit

This spring blade is a small metal tension spring that restores proper tension and movement in the appliance's linkage or latch assembly. It replaces worn or broken blades to help restore normal door or component action. What it does:

• Provides tension and return force in linkage, latch or lever assemblies
• Helps stop sagging, slipping or loose movement in the affected mechanism
• Can reduce related rattling or binding caused by a worn spring blade
• Restores reliable engagement where a broken or fatigued blade allowed failure

• Unplug the appliance or shut off power before starting any repair
• Verify orientation and engagement of the blade before final assembly
• Use proper hand tools; the blade may be under tension—wear safety goggles and gloves
• If the assembly uses multiple springs, replace all worn parts to ensure balanced function

This replacement wire harness routes power and signals between an appliance's control and functional components so the unit operates reliably. It restores proper electrical connections when the original wiring is damaged or worn. What it does:

• Re-establishes electrical connections between control(s) and components for reliable operation
• Helps resolve symptoms like intermittent power, controls not responding, or components failing to start
• Keeps wire routing and connector fit consistent with the original harness design
• Avoids DIY splices by restoring original plug-and-play connections

• Disconnect all power (unplug or shut off breaker) before starting any work
• Take photos of the original routing and connector positions to ensure correct reinstallation
• Route the harness along the same path and secure with existing clips or ties; avoid sharp edges and heat sources
• If connectors are corroded or damaged, replace them rather than using temporary splices

This gas sensor monitors moisture levels during sensor-cook cycles so the control can adjust time and power for consistent results. Replacing a failed sensor restores reliable sensor-cook performance. What it does:

• Detects steam/vapor inside the cavity and sends feedback to the control board
• Helps the appliance automatically set or adjust cooking time on sensor settings
• Failure symptoms can include sensor-cook not starting, stopping early, or running too long
• May trigger "Sensor" or general error messages related to sensor-cook functions

• Disconnect power before servicing; if working on a microwave, discharge the high-voltage capacitor
• Access is typically behind the control panel or air channel; avoid touching/contaminating the sensing surface
• Transfer any mounting clips/brackets and ensure the wiring connector is fully seated
• After installation, run a simple sensor-cook test to confirm operation

This Cover-Stirrer protects the microwave's stirrer assembly and helps direct microwave energy for more even cooking. It's a direct-replacement plastic cover that restores proper operation and prevents debris from reaching the stirrer. What it does:

• Shields the stirrer/fan area from food splatter and debris to prevent damage.
• Helps maintain proper microwave energy distribution so food heats more evenly.
• Prevents contact with moving stirrer components for safer operation.
• A cracked or missing cover can lead to uneven heating, noise, or arcing.

• One Cover-Stirrer

• Disconnect power to the appliance before servicing.
• Remove the microwave's inner components or cavity access panels to reach the stirrer area.
• Align and seat the cover securely over the stirrer assembly; do not force or overtighten.
• If the existing cover is damaged, replace it; inspect surrounding components for damage or wear.

A replacement control panel cover that restores the appliance's front console appearance and protects the underlying control assembly from spills and debris. Fits the OEM panel opening for a clean, factory look. What it does:

• Covers and protects the control console assembly from moisture, grease and everyday wear
• Keeps buttons, switches and display areas free from debris that can interfere with operation
• Restores the appliance's exterior appearance after damage or wear to the original trim
• Helps maintain proper airflow and spacing around control components

• One control panel cover (trim piece) as shown

• Designed for a direct fit; install with basic hand tools — disconnect power before starting
• Handle gently to avoid scratching the finish; align mounting tabs before securing
• Replace missing or damaged screws or clips with OEM-specified fasteners

This turntable coupler connects the microwave's turntable motor to the glass tray to drive smooth rotation during cooking. Replacing a worn coupler restores even heating and prevents the tray from slipping, stalling, or wobbling. What it does:

• Transfers rotation from the turntable motor to the glass tray
• Centers and supports the tray for stable, even spinning
• When worn or cracked, may cause the turntable not to turn, slip, wobble, or click/grind at the center hub
• Helps restore consistent heating by ensuring proper tray movement

• 1 turntable coupler

• Disconnect power by unplugging the microwave or switching off the breaker before service
• Remove the glass tray and roller ring; lift the old coupler straight up off the motor shaft
• Align the new coupler with the shaft and press firmly until fully seated

This is a turntable motor intended for use with microwave ovens. A turntable motor is required to rotate the turntable so that food is heated evenly. With time, because of misuse, or as a result of accidental damage, the turntable motor may malfunction or fail. To continue using the appliance efficiently, the turntable motor must be replaced.The primary indication that there is something wrong with the turntable motor is a tray that doesn't spin. When replacing the turntable motor, it is essential to disconnect the machine from the power source. Wear gloves for safety. The part can be replaced easily by removing screws from the back and side of the microwave, which allows the panel to swing open. Take the wires of the old motor and reconnect them to the new one.This turntable motor is an authentic OEM replacement part. It is sold as an individual unit. The turntable motor is made of high-quality, durable materials. The component comes sourced directly from the manufacturer. The replacement part can be installed in several models of microwaves. It is compatible with appliances produced by General Electric, RCA, and Hotpoint brand appliances.

This latch body is the door latch component that secures the appliance door during operation, restoring reliable closure so cycles can run normally. Use it to replace a worn or damaged latch that won't hold the door closed. What it does:

• Engages the door striker to hold the door closed and maintain a proper seal during operation
• Works with the door latch mechanism so the appliance can complete cycles that require a closed door
• Common symptom: door won't stay closed, is difficult to latch, or feels loose at the latch point
• Replacing a damaged latch body can prevent intermittent door-open errors and restore normal door operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Remove the door or access panel as needed; keep track of fasteners and any trim pieces
• Handle door glass and trim carefully to avoid damage; test latch engagement before full reassembly

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

A thermostat assembly with mounting bracket that regulates oven temperature for accurate cooking. Replaces a failed temperature control component to restore proper heating behavior and oven cycling. What it does:

• Senses and controls oven temperature to maintain set cooking temperature
• Helps prevent oven from running too cool or failing to reach temperature
• Common replacement for temperature-related heating or cycling issues
• Works as the control interface between the oven's heat source and thermostat circuitry

• One thermostat assembly with mounting bracket

• Disconnect power to the appliance before starting any repair
• Handle the capillary/temperature sensor carefully; avoid kinking or bending sharply
• Verify proper orientation and secure bracket mounting for accurate temperature sensing

The Magnetron Thermal Cut Off is an OEM part for GE microwave ovens. It is a safety component that protects the magnetron tube from overheating.

Symptoms of a bad magnetron thermal cut off include:

• Inability to heat or cook food
• Repeated blowing of fuses or tripping of circuit breakers
• Magnetron tube failure due to lack of overheat protection

Causes can be wearing out of the component over many heating and cooling cycles.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore microwave models.

This noise filter assembly is a direct-replacement line filter that helps reduce electrical interference and appliance noise for compatible GE appliances. It restores cleaner power to control boards and can help stop buzzing or interference-related behavior. What it does:

• Suppresses incoming electrical noise and RF interference on the power line
• Helps prevent control glitches and erratic behavior caused by voltage transients
• Can reduce humming, buzzing, or audio/EMI interference from the appliance
• Supports stable operation of electronic controls and sensors

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle wiring and connectors carefully; match wires/terminals exactly on reassembly
• Secure the filter in its mounting location and ensure wiring is routed clear of moving parts

This ventilation motor powers the blower assembly to move cooking exhaust and improve airflow in range hoods and over-the-range microwave ventilation. Replacing a worn motor restores proper ventilation and reduces noise or weak airflow. What it does:

• Spins the hood/microwave blower to exhaust or recirculate cooking air.
• Restores normal airflow when the fan is not running or is slow.
• Stops excessive noise or grinding caused by a failing motor.
• Helps eliminate odors and steam by re-establishing proper ventilation.

• One ventilation motor as pictured and supplied by the manufacturer.

• Disconnect power at the breaker before starting any work.
• Remove the hood or microwave vent cover and mounting hardware to access the motor; keep track of screws and clips.
• Match wiring and connector orientation exactly; if connectors differ, check the service manual.

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

This hood damper assembly opens to allow exhaust airflow and closes to help block outside drafts and odors when the fan is off. It restores proper venting and prevents back-drafts in over-the-range hoods and microwaves. What it does:

• Opens with the vent fan to let cooking smoke and steam exit the home.
• Closes when the fan is off to reduce backdrafts, outside air, and odors.
• A faulty or stuck damper can cause reduced airflow, rattling noises, or air blowing back into the kitchen.
• Works as the moving flap between the appliance exhaust and the ductwork to control airflow direction.

• Disconnect power to the appliance (unplug or shut off the circuit breaker) before servicing.
• Access typically requires removing the hood or microwave grille/cover; keep track of screws and mounting hardware.
• Basic hand tools (screwdrivers, possibly a nut driver) are usually sufficient; handle the damper flap gently to avoid bending.
• After installation, restore power and run the fan to ensure the damper opens and closes smoothly.

This mounting plate assembly is the rear wall bracket that supports and secures the microwave during installation. Replacing a bent or missing plate ensures a safe, level mount and stable operation without vibration or shifting.

• Acts as the rear-wall support the microwave hangs on and bolts to
• Maintains proper, level alignment of the unit and door
• Helps prevent vibration, rattling, or shifting during use
• Replace if the plate is bent, damaged, corroded, or missing

• Disconnect power and have a second person support the microwave before removal/installation
• Follow your model's installation template and manual for hole locations and hardware
• Fasten to wall studs or appropriate anchors; level the plate before tightening
• Verify clearances and door swing before fully tightening mounting hardware

Guide roller (TT) supports the appliance drum and keeps it aligned for smooth rotation. Replacing a worn guide roller reduces noise, prevents rubbing, and helps restore proper drum tracking. What it does:

• Supports and guides the drum/tub so it spins smoothly and stays centered.
• Reduces metal-on-metal rubbing and squeaking caused by worn rollers or bearings.
• Helps prevent uneven wear on the drum, belt, and seals.
• Improves drum tracking and overall operation when worn or damaged.

• Disconnect electrical power (and turn off gas supply on gas models) before starting any repair.
• Access may require removing the dryer cabinet or drum.
• Inspect other rollers, shafts, bearings, and the drive belt; replace as needed to avoid repeat failures.
• Use appropriate hand tools and support the drum during removal to avoid damage or injury.

The Glass Tray is an OEM part for GE microwaves. This tray holds food items and rotates them during the cooking process to ensure even heating. It fits into the turntable mechanism, allowing the food to be cooked uniformly.

Causes of a bad glass tray can include cracks or breaks from accidental drops, chips from heavy or sharp objects, and wear and tear from regular use.

Symptoms of a bad glass tray include:

• Cracks or chips on the glass surface
• The tray not rotating properly
• Unusual noises during operation
• Uneven cooking or heating of food

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Charcoal Filter is an OEM part for GE microwaves. It is used to filter and remove cooking odors, smoke, and grease from the air, ensuring that the kitchen environment remains fresh and clean. The filter is especially important for over-the-range microwaves, where it helps to maintain air quality by trapping contaminants before they are recirculated.

Over time, the charcoal filter can become saturated and lose its effectiveness. Causes of a bad charcoal filter can include regular use, accumulation of grease and food particles, and prolonged exposure to cooking fumes. These factors can reduce the filter's ability to purify the air, leading to poor ventilation and persistent odors.

Symptoms of a bad charcoal filter include:

• Increased or lingering cooking odors in the kitchen
• Reduced airflow or poor ventilation from the microwave
• Visible grease buildup on the filter
• The filter appearing clogged or discolored

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Air Filter is an OEM part for GE microwaves. This component is essential for trapping grease, smoke, and odors during cooking, maintaining a clean and safe kitchen environment. It is typically located above the cooking surface or within the microwave's ventilation system. The filter measures approximately 6.5 inches deep by 13.5 inches wide

Causes of a bad air filter can include clogging from grease and food particles, physical damage, or general wear over time. A compromised air filter can reduce the efficiency of the microwave's ventilation, leading to poor air quality and potential buildup of contaminants.

Symptoms of a bad air filter include:

• Reduced ventilation efficiency
• Increased smoke or odors during cooking
• Visible grease buildup on the filter
• The filter appearing damaged or excessively dirty

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hardware assembly secures designated components in your appliance, restoring a tight, rattle-free fit after service or wear. Replacing damaged or missing fasteners helps keep panels and parts aligned and operating as designed.

• Provides the correct fasteners/spacers for the specified location on the unit
• Replaces stripped, lost, or corroded hardware
• Helps eliminate looseness, vibration, or rattling noises
• Supports proper alignment and fit of the associated part or panel

• Disconnect power before servicing; allow hot surfaces to cool
• Support the part being fastened to prevent damage or misalignment
• Match each fastener one-for-one; note orientation and any washers/spacers
• Hand-start threads and do not overtighten; verify clearances and operation after install

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
