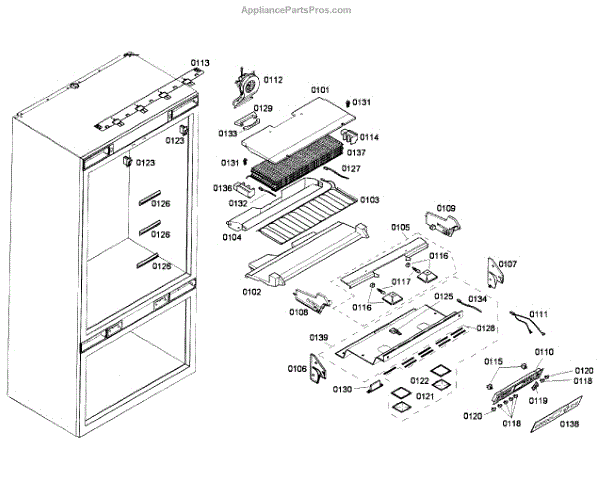

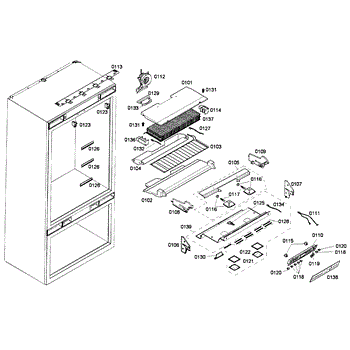

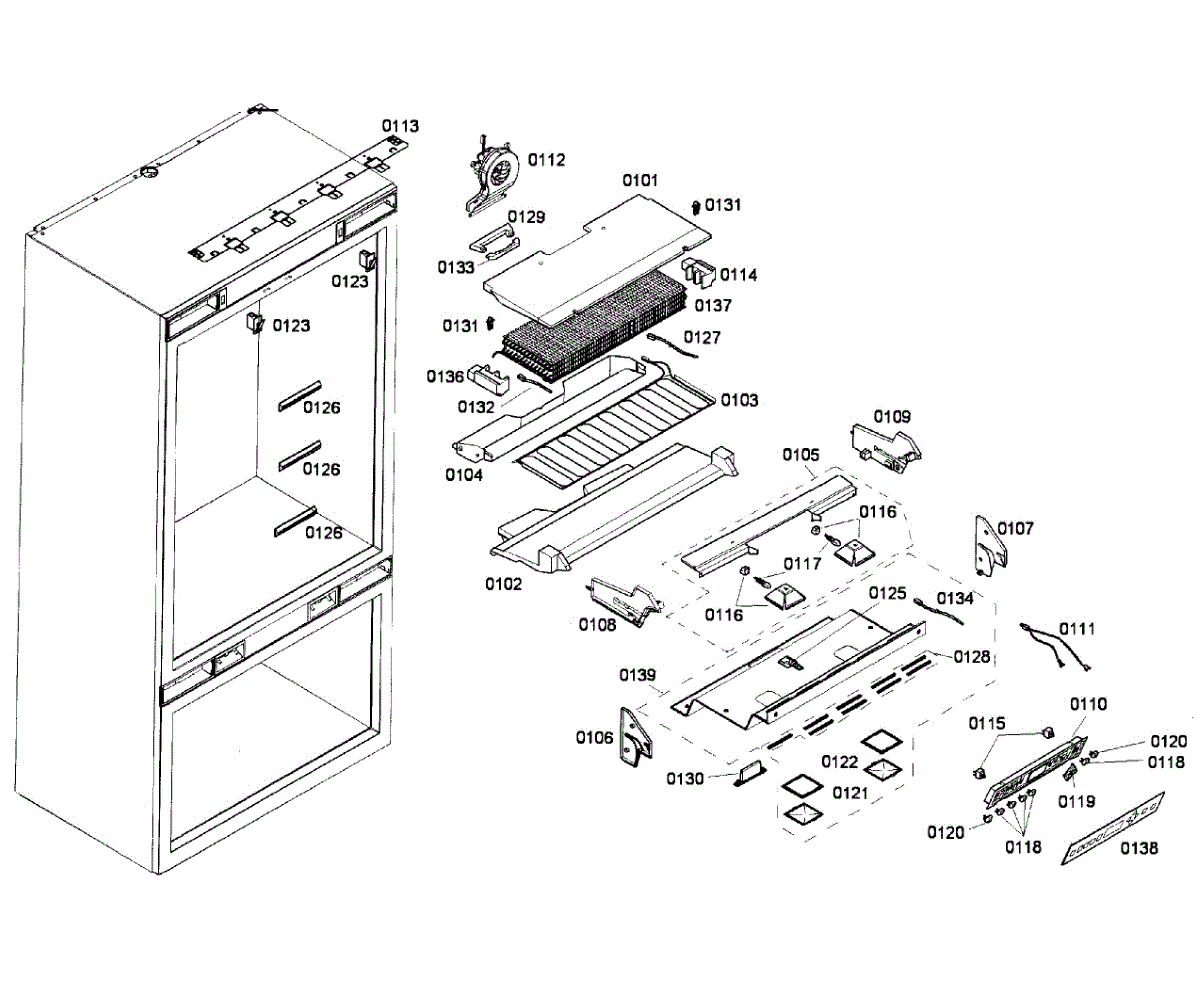

Parts for Thermador T36IT71FN/02: Refrigerator 1 Parts

This insulating part is a factory replacement insulation panel that helps limit heat transfer and dampen noise inside the appliance cabinet for reliable operation and quieter cycles. Use it to restore proper thermal/sound control after damage or removal. What it does

• Replaces worn, torn, or missing insulation to reduce heat loss and help maintain internal temperatures.
• Dampens operational noise from motors and pumps for quieter appliance cycles.
• Protects surrounding components from direct heat exposure.
• Helps the appliance reach and hold proper operating conditions more efficiently.

• One insulating panel as shown.

• Inspect surrounding clips and fasteners; replace any that are damaged before installing the new panel.
• Position the panel carefully to avoid compressing or folding the insulation; secure per original mounting points.
• Disconnect power before accessing the appliance interior and follow all safety precautions.
• If adhesive was used on the original, use heat- and appliance-rated adhesive or fasteners as specified by the manufacturer.

This defrost heater melts frost from the evaporator during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater stops ice buildup on the coils and helps your refrigerator cool reliably. What it does:

• Heats the evaporator coils to clear frost/ice during defrost
• Restores proper airflow for consistent refrigerator and freezer temperatures
• Helps prevent ice forming on the back panel/evaporator cover
• Common symptoms of failure: heavy frost on coils, poor cooling or warming, fan noise from ice contact, recurring frost soon after manual defrost

• 1 defrost heater

• Disconnect power before servicing; wear cut-resistant gloves
• Access is behind the freezer/evaporator cover; remove shelves/drawers and rear panel as needed
• Carefully release the heater from clips/retainers; avoid bending evaporator tubing or damaging fins
• Transfer any clips/insulators from the old part and fully seat connectors; also test the defrost sensor/limit and control

This heating element is the dishwasher heater assembly that warms wash water and helps the dry cycle perform properly. Replacing a failed heater restores water temperature control and improves cleaning and drying results. What it does:

• Heats wash water so detergents and sanitizing cycles work effectively
• Supports the dryer/tub warming stage to reduce residual moisture on dishes
• Common symptoms: dishwasher doesn't heat, dishes remain cold or wet, or cycles take longer than normal
• Works as the OEM heater assembly designed for compatible Bosch dishwashers

• Disconnect power (and water, if applicable) before servicing to avoid shock or injury
• Access typically requires removing the lower access panel or dishwasher base; follow OEM service instructions
• Inspect mounting hardware and seals; replace any damaged clips or gaskets to prevent leaks

This operating module is the user-interface control board assembly that manages cycle selection and user commands, helping your appliance respond correctly to button presses and display status information. It restores control functionality when the interface fails. What it does:

• Receives and processes user inputs from buttons or touch controls so the appliance can start and change cycles.
• Sends signals to the main control and other components to execute selected functions.
• Can resolve symptoms like unresponsive controls, missing or incorrect display information, or inability to select cycles.
• Works as the interface layer between the user and the appliance's main electronics.

• Disconnect power to the appliance before starting work to avoid shock or damage.
• Handle the module carefully and avoid touching exposed circuitry; use anti-static precautions where possible.
• Some disassembly of the control panel is typically required; keep fasteners and small parts organized.

The Motor-Fan is an OEM component specifically designed for Bosch refrigerators. It circulates air to optimize internal temperatures.

The motor-fan works continuously to push cool air from the freezer compartment and direct airflow throughout refrigerator shelves and bins. Strategically positioned vents help regulate temperature variances.

Symptoms of a bad motor-fan include:

• Inconsistent or fluctuating temps from section to section
• Frost or condensation building up unusually fast
• Abnormal sounds like grinding or squealing during the operation
• Complete lack of airflow

Causes can be a failed motor bearing, compromised fan blades off balance, or blockage preventing free rotation.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore refrigerator models.


This replacement fixture is the factory mounting housing that secures its paired component inside your appliance. Replacing a damaged or missing fixture restores proper support and alignment for reliable, rattle-free operation.

• Provides the mounting structure to hold the associated part in the correct position
• Helps protect connections from strain and vibration
• Common signs it's needed: cracked or broken housing, loose fit, rattling, or the attached part won't stay in place/intermittently works
• Direct-fit replacement built to match the original form and connection points

• Disconnect power to the appliance before service; shut off gas or water if applicable
• Access location varies by model; refer to your service manual and document wire routing/fastener locations
• Transfer any screws, clips, seals, or wiring from the original if they are reused
• Do not overtighten fasteners into plastic; check for a secure, even fit before reassembly

This is an electrical on/off switch used to control power to an appliance circuit. It replaces a failed switch so controls respond normally and the appliance can be powered on and off safely. What it does

• Opens and closes an electrical circuit to enable or disable appliance power or a specific control function
• Commonly replaces a worn, stuck, or unresponsive switch that prevents controls or lights from operating
• Can resolve symptoms like no power to a control, intermittent operation, or a button that won't actuate
• Designed to mate with the appliance's existing wiring and mounting points

• One electrical on/off switch

• Disconnect power to the appliance at the breaker or unplug before working on wiring
• Verify proper wire locations and secure all terminal connections; replace only with the exact part specified by the manufacturer
• Handle the part carefully to avoid bending terminals or damaging the switch actuator

This halogen light bulb restores bright, reliable illumination in your appliance so you can clearly see the cooking area or interior. Replace a burned-out or flickering bulb to maintain visibility and safe operation. What it does:

• Provides illumination inside the appliance or over the cooking surface
• Replaces a failed halogen lamp to restore proper lighting
• Typical symptoms: light won't turn on, is dim or flickers, or works intermittently
• Helps you monitor food and check progress without guesswork

• 1 halogen lamp

• Disconnect power/unplug and allow the bulb and surrounding area to cool completely before service
• Access the lamp per your model's instructions; remove any lens or cover carefully
• Handle the new halogen bulb with gloves or a clean cloth; avoid touching the glass capsule
• Match the bulb type and rating specified for your model; do not exceed the rated wattage

This replacement control panel push button restores a missing, worn, or broken button on compatible Bosch appliance control panels. It gives a clean, user-friendly surface for reliably activating the associated function. What it does

• Replaces a damaged or missing control panel push button so the corresponding command can be selected.
• Restores a crisp tactile feel for a more reliable button press.
• Helps resolve symptoms like a loose, cracked, jammed, or visually missing button.
• Matches the original form for proper fit and operation when installed correctly.

• One replacement control panel push button.

• Disconnect power to the appliance before starting any work.
• Typically snap-fits or slides into the front control panel; use a non-marring pry tool if needed.
• Remove gently to avoid damaging the control panel or surrounding buttons; note orientation for reinstallation.

This push button is a direct-replacement control button used on compatible appliance control panels to restore a responsive, tactile control interface. Replaces worn, broken, or missing buttons so functions register correctly when pressed. What it does:

• Acts as the user interface actuator that completes the mechanical press action for a specific control.
• Restores proper tactile feedback and reliable engagement when selecting functions.
• Commonly replaced when a button is cracked, jammed, loose, or no longer registers presses.
• Helps eliminate intermittent or non-responsive button symptoms caused by damaged controls.

• Disconnect power to the appliance before beginning any work to avoid shock.
• Access may require removing the control panel or console.
• Remove the old button by gently levering or sliding it free; do not force or damage surrounding components.
• If necessary, retain any clips or springs from the original button and reuse with the replacement.

This replacement cover is a protective panel used on compatible Bosch appliances to shield internal components and maintain proper airflow and appearance. It restores the appliance's finished look and helps keep wiring and mechanisms protected. What it does:

• Protects internal components from dust, spills and incidental contact
• Helps maintain proper airflow and clearance around internal parts
• Restores a missing or damaged exterior/internal panel for a finished appearance
• Reduces risk of accidental contact with electrical or moving parts

• One replacement cover

• Installation may require removing access panels and/or disconnecting power—always unplug the appliance before servicing
• Use appropriate hand tools; avoid forcing tabs or fasteners to prevent breakage
• Keep screws and mounting hardware from the original part; replace only with identical fasteners if needed

This temperature limiter safeguards the evaporator defrost heater by opening the circuit if temperatures rise too high. Replacing a failed limiter restores defrost safety and helps prevent frost buildup and inconsistent cooling performance.

• Protects the defrost circuit by cutting power to the evaporator heater when an over-temperature condition is detected
• An open/failed limiter prevents the heater from energizing, causing frost accumulation on the evaporator and warm refrigerator temps
• Designed to be installed in the original location and orientation for accurate temperature sensing

• Disconnect power before servicing; evaporator fins and sheet metal are sharp—use cut-resistant gloves
• Access the evaporator compartment and note the limiter's original mounting and wire routing before removal
• Transfer any clips/insulation sleeves and reconnect wiring to the same terminals; do not bypass this safety device
• Reassemble, restore power, and monitor for normal defrost operation

This sensor monitors operating conditions inside the appliance and reports to the control so cycles run correctly and safely. When the sensor fails, the control may receive inaccurate feedback, leading to irregular performance. What it does:

• Detects key conditions inside the appliance and sends a signal to the control
• Helps the control regulate heat and cycle progress
• Failure symptoms can include erratic cycle times, poor heating performance, or sensor-related error messages
• Can prevent the appliance from starting or completing a cycle if readings are out of range

• 1 sensor

• Disconnect power before servicing; shut off water supply if applicable
• Access the sensor and note wire orientation before removal
• Ensure any sealing surface is clean and the sensor is seated properly; check for leaks after reassembly where applicable
• Run a diagnostic or test cycle after installation to clear errors and verify operation
