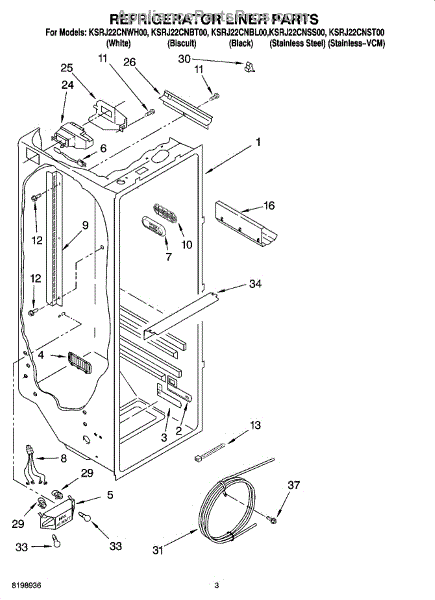

Parts for Kitchenaid KSRJ22CNST00: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Thermistor is an OEM part for Whirlpool refrigerators. It plays a critical role in regulating the temperature within the refrigerator and freezer compartments by monitoring and sending temperature readings to the control board, which then adjusts the cooling system accordingly.

Causes of a bad thermistor can include electrical faults, exposure to moisture, or physical damage from mishandling. A faulty thermistor can lead to incorrect temperature readings, causing the refrigerator to overcool or not cool sufficiently.

Symptoms of a bad Thermistor include:

• Inconsistent temperatures within the refrigerator or freezer
• The refrigerator running constantly or not at all
• Spoiled food due to improper cooling
• Error codes related to temperature regulation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

The Air Diffuser is an OEM part for Whirlpool refrigerators. It regulates the flow of cold air from the freezer compartment to the refrigerator compartment, ensuring proper temperature control and even cooling throughout the fridge.

Over time, the diffuser can fail due to mechanical issues, obstruction by ice or debris, or wear on the moving parts. This can result in uneven cooling, leading to spoiled food and inefficient operation.

Symptoms of a bad air diffuser include:

• Inconsistent temperatures in the refrigerator
• Frost buildup in the freezer
• Warm spots in the refrigerator compartment
• The refrigerator running constantly or not cooling adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

The Water Reservoir is an OEM part for Whirlpool refrigerators. It stores and chills water before it is dispensed through the refrigerator's water dispenser. This component ensures that you have a steady supply of cold water available directly from your fridge.

Common causes of a bad water reservoir include cracks or leaks from regular use, exposure to extreme temperatures, or blockages from mineral deposits.

Symptoms of a bad water reservoir include:

• Water leaks inside the refrigerator
• The water dispenser not dispensing properly
• Unusual tastes or odors in the water
• Visible cracks or damage to the reservoir

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: white. It measures about 18 inches wide by 4 inches high.
