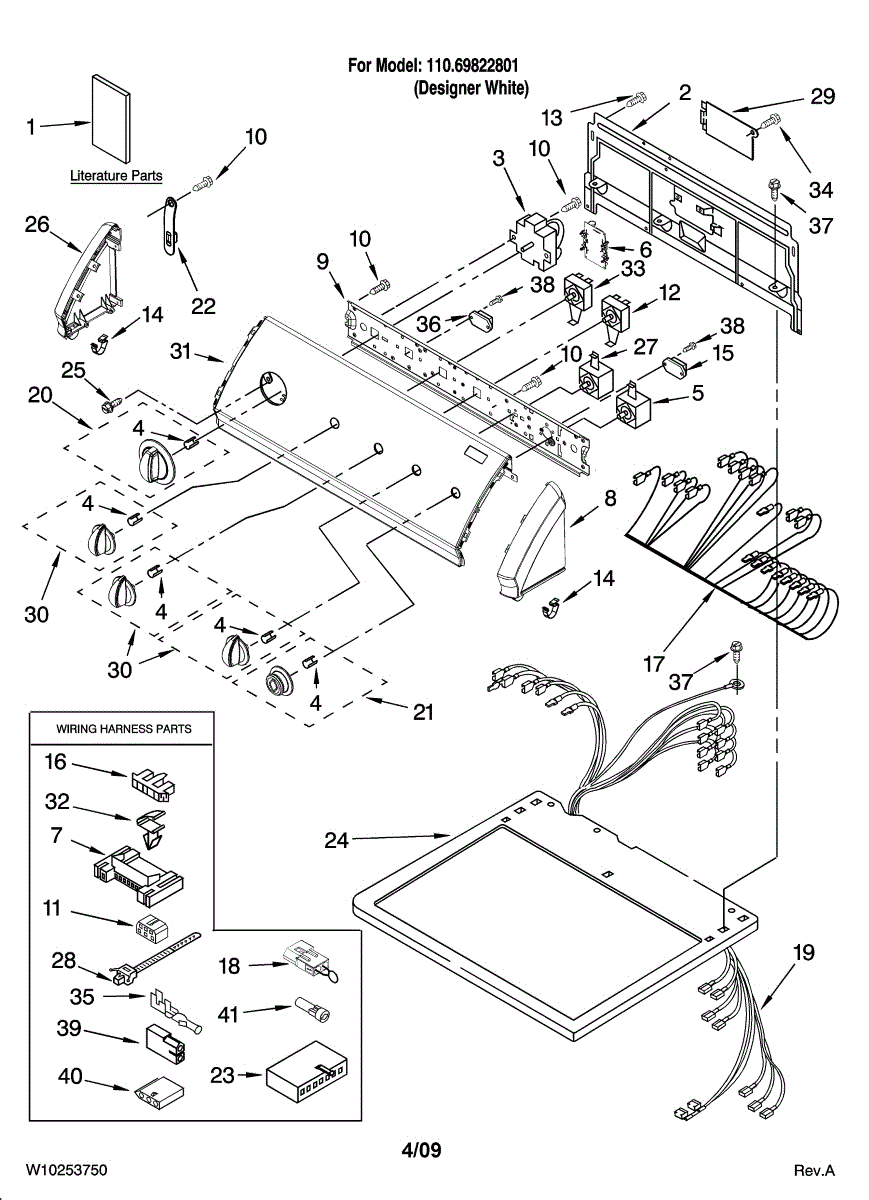

Parts for Kenmore 110.69822801 (11069822801, 110 69822801): Top And Console Parts

This mechanical dryer timer controls cycle selection and timing. Replacing a failed timer restores proper cycle advancement and automatic shutoff so your dryer runs and stops when it should. What it does:

• Controls the on/off sequencing of the motor and heater during selected cycles
• Advances through timed and automatic cycles
• Turns the dryer off at the end of the cycle
• Common symptoms: timer won't advance, dryer won't start, runs until manually turned off, stuck on one setting

• 1 mechanical timer assembly

• Disconnect power before servicing
• Access the control panel, remove the knob/dial, and transfer wires one-for-one from the old timer to the new timer
• Mount the timer in the same orientation and reinstall the dial/knob
• Run a timed-dry test to ensure proper advancement and shutoff

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Push to Start Switch is an OEM part for Whirlpool dryers. It is responsible for initiating the drying cycle when pressed, sending an electrical signal to start the dryer.

You should replace this push to start switch if it becomes defective. Causes of a bad switch can include electrical failures, physical damage from repeated use, or internal wear over time.

Symptoms of a bad push to start switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• No response or clicking sound when the button is pressed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For square top push to start switch, use part number W10156101.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This power relay is an electromechanical switch with a 48 VDC coil that lets the control board safely turn high-voltage components on and off. Replacing a weak or sticking relay helps restore consistent, reliable operation. What it does:

• Uses a 48 VDC coil signal from the control to open/close internal contacts
• Switches AC line power to high-demand loads (e.g., heater, motor, fan, or compressor)
• Helps maintain stable cycling and prevents intermittent operation
• Helps with symptoms such as no heat or no run, intermittent operation, clicking with no activation, or a component stuck on

• Power relay (48 VDC coil)

• Disconnect power to the appliance before servicing; allow capacitors to discharge
• Note/photograph wire locations and move wires one at a time to matching terminals
• Ensure terminals are fully seated; replace any burnt or loose connectors
• Mount in the original orientation and secure firmly to prevent vibration

This timer knob mounts on the appliance's mechanical timer shaft and lets you select cycles and settings. Replace a cracked or stripped knob to restore smooth, positive control of the timer and accurate cycle selection.

• Attaches to the timer shaft so you can set cycle and time
• Provides a secure grip for selecting and adjusting settings
• Common symptoms: knob spins without moving the timer, feels loose, cracked, or missing
• Helps restore proper engagement when the hub is worn or stripped

• Disconnect power before servicing
• Pull the old knob straight off the timer shaft
• Align the flat/splines of the new knob with the shaft and press on firmly
• Rotate through a full turn to confirm proper engagement

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This endcap assembly replaces a worn or damaged endcap to restore proper fit and protect the appliance's exposed end components. It helps keep parts aligned and prevents rubbing, vibration, and debris entry for smoother operation. What it does:

• Secures and protects the exposed end of the related component or housing
• Maintains proper alignment to reduce vibration, noise, and premature wear
• Replaces cracked, broken, or missing endcaps that allow movement or debris intrusion
• Restores finished appearance where the original endcap is damaged

• Disconnect power (and water if applicable) before starting any repair.
• Installation usually involves aligning the endcap and fastening or snapping it into place; confirm orientation before securing.
• Keep track of any screws or clips removed and reuse original fasteners unless replacements are specified.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

A replacement selector knob selection assembly that restores a secure, easy-to-turn control for cycle or setting selection. Replaces a cracked, loose, or missing knob so you can confidently select functions again. What it does:

• Replaces a worn, broken, or missing selector knob used to choose cycles or settings
• Provides a secure grip and positive engagement with the control shaft
• Helps stop slipping, wobbling, or a knob that won't turn properly
• Restores normal control operation when the original knob is damaged

• One selector knob selection assembly

• Disconnect power to the appliance before starting any repair
• Most knobs pull straight off the control shaft; align the splines and press on until fully seated
• If the knob resists, verify orientation—do not force to avoid shaft damage

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This 5-position fabric selector switch controls the dryer's fabric-cycle selection and associated heat/timing signals, restoring correct cycle choice and reliable control response when the original switch is faulty. What it does:

• Routes user fabric-setting selections to the dryer control so the correct cycle and heat options run.
• Common symptoms: selector won't move or click, dryer stays on one setting, or changing fabric settings has no effect.
• Helps eliminate intermittent or no-response issues from a worn or broken selector.
• Matches the control interface functions so cycles correspond to the chosen fabric type.

• Disconnect power before starting; for gas dryers also shut off the gas supply.
• Take photos of existing wiring and knob placement to ensure correct reassembly.
• Handle electrical connectors gently; verify secure connections and operation before final reassembly.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

For mating terminal use [AP31136300].

This power relay is an electromechanical switch with a 48 VDC coil that lets the control board safely turn high-voltage components on and off. Replacing a weak or sticking relay helps restore consistent, reliable operation. What it does:

• Uses a 48 VDC coil signal from the control to open/close internal contacts
• Switches AC line power to high-demand loads (e.g., heater, motor, fan, or compressor)
• Helps maintain stable cycling and prevents intermittent operation
• Helps with symptoms such as no heat or no run, intermittent operation, clicking with no activation, or a component stuck on

• Power relay (48 VDC coil)

• Disconnect power to the appliance before servicing; allow capacitors to discharge
• Note/photograph wire locations and move wires one at a time to matching terminals
• Ensure terminals are fully seated; replace any burnt or loose connectors
• Mount in the original orientation and secure firmly to prevent vibration

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This is a replacement mounting screw used to secure panels and components on compatible Whirlpool appliances, restoring loose or missing fasteners for safe, stable operation. What it does

• Fastens appliance panels, brackets, and small components in place
• Replaces stripped, rusted, or missing screws that cause rattling or loose parts
• Helps restore proper alignment and reduce vibration-related noise
• Matches OEM fit and function for straightforward replacement

• One replacement screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or panel damage
• Turn off and unplug the appliance before accessing internal components
