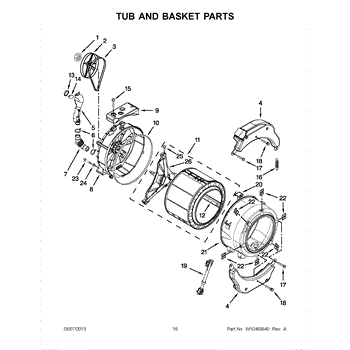

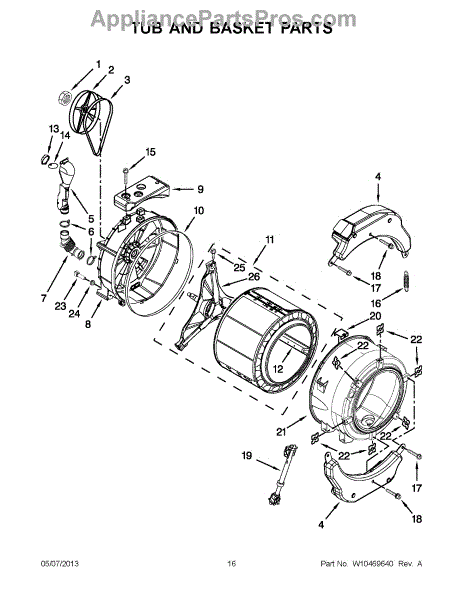

Parts for Maytag MLE20PRBYW2: 08 - Tub And Basket Parts

This retaining nut secures components within the pump/motor assembly, keeping them tight and properly aligned so your appliance can circulate water reliably. A worn or missing nut can lead to leaks, noise, or poor wash performance.

• Holds pump/motor parts firmly in place to prevent loosening and leaks
• Helps maintain proper water circulation and wash quality
• Direct-fit replacement for the original fastener in applicable units

• Disconnect power and shut off water before servicing
• Access the pump/motor area; note orientation of parts before removal
• Hand-start threads carefully to avoid cross-threading, then tighten to secure
• Inspect related seals and O-rings; replace any damaged components during reassembly

This pulley is part of your appliance's belt-drive system. It provides a smooth, low-friction surface for the drive belt and helps keep it tracking correctly so the motor can transfer power reliably to the drum or tub.

• Guides the drive belt and rotates freely to reduce friction and wear
• Helps maintain proper belt alignment for consistent operation
• Worn pulley symptoms can include squealing/squeaking, grinding or wobble, belt fraying or coming off, and little or no drum/tub movement
• If noise or belt damage persists, inspect the belt, tensioner/idler components, and rollers/bearings

• Disconnect power and, if applicable, shut off gas before servicing
• Access the drive path and note belt routing before removal
• Relieve belt tension, remove the old pulley, and transfer any spacers/retainers as needed
• After installation, spin the pulley by hand to ensure smooth, quiet rotation; replace a worn belt at the same time

This insulated belt secures the appliance's insulation blanket around the cavity, helping maintain proper temperatures and shielding surrounding components. Replace a torn, stretched, or missing belt to restore correct insulation retention and reliable performance.

• Holds the insulation wrap in its designed position
• Helps contain heat and reduce transfer to outer panels
• Supports thermal efficiency and stable cavity temperatures
• Common reasons to replace: belt frayed, stretched, or missing; insulation slipping out of place

• Disconnect power and allow the appliance to cool completely before servicing
• Access the insulation area by removing panels or the unit from its enclosure as needed
• Wear gloves and eye protection when handling fiberglass insulation
• Route and secure the belt as originally installed; do not overtighten or compress insulation excessively

This front counterweight mounts to the washer's outer tub to stabilize the drum assembly during spin. Replacing a cracked or loose weight helps curb excessive vibration, banging, and walking, restoring smoother, quieter operation.

• Adds mass at the front of the outer tub to help balance loads during spin
• Controls vibration and noise; reduces walking and off-balance interruptions
• Typical failure signs: cracked or broken weight, missing chunks, loose/rattling mount, loud knocking, severe shaking
• Visible damage to the weight or mounting area can indicate replacement is needed

• Unplug the washer and turn off water supply; wear gloves. The weight is heavy—use a second person if needed
• Support the tub and access the front of the outer tub; remove the original weight carefully to avoid damage
• Transfer and reuse any mounting hardware from the original part if needed; seat the new weight flush and tighten bolts evenly
• Run an empty test spin; inspect shocks/suspension and leveling

Rear counterweight that stabilizes the washer tub during spin cycles to reduce vibration and excessive movement. Restores balance for smoother, quieter operation and helps prevent premature wear from uncontrolled drum motion. What it does:

• Adds mass to the back of the washer tub to counterbalance loads and limit rocking and vibration during spin cycles.
• Common symptom: washer vibrates, rocks, bangs, or moves across the floor during spins.
• Replacing a cracked, loose, or missing rear counterweight often reduces noise and improves spin stability.

• Disconnect power before starting work; follow all safety precautions in your model's service manual.
• Support the tub or cabinet before removing/installing the counterweight; the part can be heavy—use two people or appropriate lifting support.
• Ensure correct orientation and securely tighten mounting hardware; run a short test spin to confirm balance after installation.

Service tub gasket that creates a watertight seal between the washer tub and cabinet. Replaces a worn or damaged seal to help stop leaks and limit water damage around the appliance. What it does:

• Seals the tub opening to prevent water from leaking onto the floor during fill, wash and drain cycles.
• Restores the seal that keeps moisture confined to the tub and reduces mildew buildup at the tub edge.
• Helps eliminate spray and dripping that can occur with cracked, torn or hardened gaskets.
• Supports normal drum/tub operation by maintaining the intended tub-to-cabinet seal.

• Disconnect power and shut off water supply before starting any repair.
• Inspect and clean mating surfaces before installing the new gasket; ensure proper orientation and seating into the groove or mounting channel.
• Use original clamps or fasteners and tighten evenly; replace any missing or damaged mounting hardware before testing for leaks.

The Suspension Spring Kit is an OEM replacement part for Whirlpool washing machines. It contains suspension springs that absorb vibrations and support the weight and movement of internal components like the tub, agitator, and transmission.

Causes of a bad spring kit include wear from years of use, dry rot of rubber components, or damage/breakage incident to an out of balance or overly aggressive load.

Symptoms include:

• Excessive shaking and vibration, especially on higher speed cycles
• Loud banging or knocking noises
• Stress fractures developing in other housing parts over time

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw secures appliance panels and components so assemblies stay stable and aligned. It's a direct-fit fastening solution when original screws are lost, stripped, or damaged. What it does:

• Fastens trim, panels, brackets, or internal components to restore proper fit and reduce movement
• Helps stop rattling, loose panels, or misaligned doors caused by missing or damaged screws
• Matches OEM thread and length for reliable fit when replacing a single worn or missing fastener
• Safe, corrosion-resistant finish for typical household appliance environments

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power to the appliance before accessing interior components when required

The Shock Absorber is an OEM part designed for Whirlpool washing machines. This part helps to dampen the motion of the tub during the spin cycle, reducing vibrations and noise. By absorbing the energy produced during operation, the shock absorber contributes to the stability and longevity of the machine. A well-functioning set of shock absorbers is essential for maintaining the washer's performance and preventing damage to other components.

Causes of a bad shock absorber can include wear and tear from regular use, excessive load sizes or unbalanced loads, and structural damage from moving or improper handling.

Symptoms of a bad Shock Absorber include:

• Increased vibration and noise during the spin cycle
• The washer moving or "walking" across the floor
• Unusual wear on other components due to excessive movement

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This tub clamp secures a flexible seal or hose to the appliance's tub, maintaining a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop leaks and keep the tub joint stable during operation.

• Applies even clamping pressure around the tub connection
• Helps prevent water leaks at the tub-to-seal or tub-to-hose joint
• Restores proper fit when the original clamp is stretched, stripped, corroded, or missing
• Common symptoms: water at the base/front, loose seal or hose, visible clamp damage

• Disconnect power and turn off water before service
• Access the tub connection; remove the old clamp and inspect the seal/hose for wear
• Clean mating surfaces; seat the seal evenly, position the clamp, and tighten until snug without pinching the rubber
• Run a quick fill/drain test and check for leaks

Push-in nut that secures panels, trim, or small components to studs or shafts. Restores a firm, vibration-resistant fastener to help stop loose panels and rattling caused by a worn or missing nut. What it does:

• Secures panels, trim or small assemblies to mounting studs or shafts.
• Helps keep parts aligned and reduces vibration or rattling during operation.
• Common symptom: loose or shifting panels, audible rattling, or components that won't stay in place.
• Designed for a push-fit installation to replace worn or missing fasteners.

• Always disconnect power to the appliance before servicing.
• Push the nut fully onto a clean, undamaged stud until seated; replace damaged studs or mounting hardware.
• If needed, use pliers or a socket to press the nut on evenly—avoid deforming surrounding plastic or sheet metal.

This rubber seal fits around the water temperature sensor where it passes through the tub or housing. It restores a watertight barrier at the sensor port to help prevent leaks and ensure reliable temperature feedback.

• Creates a watertight seal around the temperature sensor
• Helps prevent drips or leaks from the sensor opening
• Supports stable, accurate temperature readings during cycles
• Typical failure signs: cracked, flattened, or brittle seal; moisture at the sensor area; pooling water beneath the unit; temperature-related faults

• Disconnect power and turn off water supply before servicing
• Access the sensor location and drain any remaining water
• Withdraw the sensor, remove the old seal, and clean the seating surface
• Lightly moisten the new seal with water, seat it fully, reinstall the sensor, and check for leaks during a test cycle
