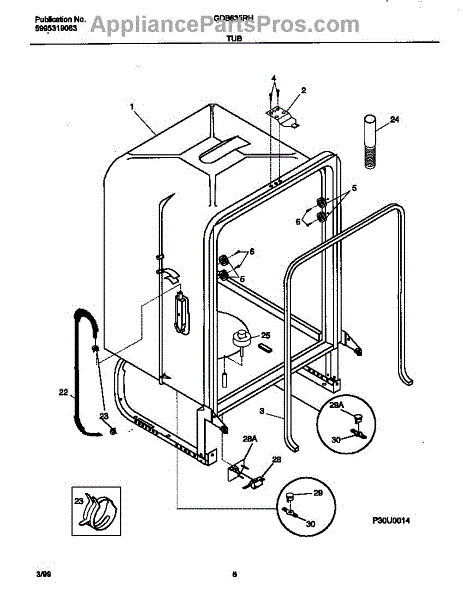

Parts for Frigidaire GDB635RHS0: 04 - Tub Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Strike is an OEM replacement part for Frigidaire dishwashers. It helps to secure the dishwasher door in the closed position during wash cycles. The door strike works with the door latch mechanism to provide a tight seal to help prevent water, debris, and unwanted odors from escaping the washer interior.

Symptoms of a bad door strike include:

• The dishwasher door not latching and popping open during cycles
• Leaks or water escaping around the door seal
• The door not feeling secure when closed
• Increased noise levels from a poor door seal

Over time, the door strike can become worn, bent, or damaged from normal use. Ensure your dishwasher door seals tightly with this genuine OEM Frigidaire replacement part.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dishwasher Tub Gasket is an OEM replacement part for Frigidaire dishwashers. It seals the gap between the dishwasher tub and the door, preventing water leaks and ensuring efficient operation. This tub gasket is typically made of durable rubber or silicone material, designed to withstand the heat, moisture, and chemicals involved in the dishwashing process

Symptoms of a faulty Dishwasher Tub Gasket include:

• Water leaks around the dishwasher door or base
• Failure to maintain proper water levels during cycles
• Condensation buildup or moisture issues outside the tub area
• Visible cracks, wear, or damage to the gasket material

Causes of a bad tub gasket can include normal wear and tear over time, exposure to excessive heat or chemicals, or physical damage from mishandling or improper door closure.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dishwasher models.

The Dishrack Roller is an OEM part for Frigidaire dishwashers. This part ensures smooth and effortless movement of the dishrack in and out of the dishwasher. These rollers are attached to the sides of the dishrack, ensuring that it can glide easily without sticking or jamming, thus preventing damage to the dishes or the dishwasher itself.

Causes of a bad Dishrack Roller can include wear and tear from regular use, damage from overloading the dishrack, or degradation of the roller material over time.

Symptoms of a bad Dishrack Roller include:

• The dishrack sticking or struggling to move in and out
• A noisy operation when pulling the dishrack
• The dishrack tilting or becoming unaligned due to a missing or broken roller

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Set of 8 screws and washers.

The Water Inlet Tubing is an OEM part for Frigidaire dishwashers. This tubing allows water to flow from the home's water supply lines into the dishwasher. Properly functioning inlet tubing is essential for supplying water to fill cycles and operate through different wash and rinse cycles.

Causes of a bad water inlet tubing can include mineral or sediment build up inside the tubing restricting water flow, splitting or cracking of the tubing material from stress or age, or damage from sharp objects or wear and tear.

Symptoms of a bad water inlet tubing include:

• The dishwasher failing to fill properly or slowly filling.
• Fluctuations in water pressure during cycles.
• Excessively long fill times.
• None or intermittent water flow into the dishwasher.
• Leaks or water drips around the supply lines.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Drain Hose is an OEM part for Frigidaire dishwashers. This part ensures that water flows smoothly and consistently out of the dishwasher after each wash and rinse cycle, preventing backflow, leaks, and potential water damage.

Causes of a bad Drain Hose can range from physical damage, such as cracks or punctures that occur over time or through misuse, to clogs formed by food particles or grease that restrict water flow.

Symptoms of a malfunctioning Drain Hose include:

• Water not draining properly from the dishwasher, leading to standing water after cycles
• Leaks detected around the dishwasher, which may indicate cracks or holes in the hose
• Kinking or blockage within the hose that impedes water flow

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Level Float Switch Assembly is an OEM replacement part for Frigidaire dishwashers. It uses a floating switch design to accurately sense water levels filling and draining during cycles. Proper level detection allows for optimized wash and rinse action and water volume control.

Causes of a bad float switch assembly can include wear and tear over many years of use, interfering with free float movement. Mineral or scale deposits may accumulate on float components, inhibiting functionality. Physical damage from impact could introduce leaks.

Symptoms of a bad float switch assembly include issues such as:

• Inability to properly detect water levels
• Long fill or drain times
• Failure to fill or drain completely
• Potential overflow or standing water issues
• Error codes pointing to level sensor faults

This OEM Frigidaire replacement part is also compatible with some Electrolux, Westinghouse, and Kenmore dishwashers.

F127-20

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The High Limit Thermostat is an OEM replacement part for Frigidaire dishwashers. It is a temperature control device located in the dishwasher's heating assembly that monitors water temperature levels during cycles.

The high-limit thermostat plays a crucial safety role by automatically shutting off the dishwasher's heating element if water temperatures get too hot, preventing potential burns or damage. It ensures the dishwasher maintains the proper temperatures required for effective cleaning.

Symptoms of a bad high-limit thermostat include:

• Incomplete or ineffective cleaning even on short cycles
• Lack of hot water or intermittent hot water during cycles
• Strange smells or visible steam emitting from the dishwasher
• The heating element fails to activate when needed

This OEM Frigidaire replacement part is also compatible with some Electrolux, Westinghouse, and Kenmore dishwasher models.

This thermostat retainer is the mounting clip that keeps the dishwasher's thermostat secured to its base or bracket. Proper retention helps maintain accurate temperature sensing and consistent heater safety through the wash and dry portions of the cycle. What it does:

• Holds the thermostat firmly in place on the base or mounting bracket
• Prevents the thermostat from shifting, vibrating loose, or falling out of position
• Supports accurate temperature sensing and overheat protection
• Common signs of a bad/missing retainer: broken or warped clip, thermostat hanging loose, intermittent heat/drying performance

• 1 thermostat retainer

• Disconnect power and shut off water before servicing
• Remove the lower access/toe-kick panel to reach the thermostat area
• Note the thermostat's orientation; transfer it to the new retainer and snap/secure the retainer to the existing mount/hardware
• Ensure the thermostat is fully seated and wiring is routed clear of sharp edges and hot/moving components

A replacement switch mounting screw that secures control switches and switch assemblies in place for reliable operation. Replaces lost or stripped mounting hardware to restore secure panel and switch attachment on compatible appliances. What it does:

• Fastens the switch or switch bracket to the appliance frame or control panel
• Keeps electrical switch connections stable to prevent intermittent contact or movement
• Helps eliminate loose or rattling switches and noisy control panels
• Restores proper alignment of the switch for reliable user control

• Turn off power to the appliance before accessing the control panel to avoid shock
• Use the matching screwdriver size to avoid stripping the screw head
• Tighten securely but do not over-torque to prevent damage to the switch or panel
• Replace all affected fasteners for a secure fit

F117-20 These are normally open thermostats

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fit and helps prevent rattling or loose parts for safe, reliable operation. What it does:

• Fastens panels, trim pieces, or internal components to maintain proper alignment
• Secures parts that can vibrate or become loose during normal use
• Helps stop rattling, squeaks, or gaps caused by missing or damaged fasteners
• Suitable wherever the OEM specifies part 154041001 as the required screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screw hole and match thread engagement; do not force or cross-thread
• Tighten firmly but avoid over-torquing to prevent stripped threads or cracked panels
• If multiple or different screws were removed, keep track of each location for correct reassembly

10 - 16 x 3/8 , hex

This dishwasher insulation is a sound-dampening blanket that reduces operating noise and helps contain heat and moisture, protecting surrounding cabinetry and restoring performance when the original insulation is missing, torn, or saturated.

• Helps absorb pump/motor and water-spray noise for quieter cycles
• Acts as a thermal and moisture barrier to limit exterior "sweating"
• Replaces damaged, compressed, or waterlogged insulation to restore design sound levels
• Common signs: louder-than-normal operation, visible missing/torn insulation, moisture around the toe-kick or adjacent cabinets

• Disconnect power at the breaker and shut off water supply before servicing; wear gloves.
• Access the insulation by removing the necessary panel(s); document original placement for reference.
• Position the new insulation in the same orientation; keep clear of hinges, wiring, and vent openings.
• Reassemble, secure/level the dishwasher, and run a test cycle to confirm quiet operation with no interference.

This replacement cabinet insulation panel helps reduce heat transfer and supports consistent refrigerator/freezer temperature control. It restores original thermal protection to help your appliance run more efficiently and quietly. What it does:

• Replaces torn, compressed, or missing insulation that can cause long run times or uneven cooling
• Helps limit frost buildup by improving thermal barrier performance
• Reduces chatter and vibration by filling gaps between inner liner and outer cabinet
• Preserves energy efficiency by restoring designed cabinet insulating value

• One cabinet insulation panel as shown

• Disconnect power and empty the compartment before starting; follow OEM disassembly steps
• Panel secured with adhesive, clips, or foam—remove damaged material and fit replacement into place
• Handle carefully to avoid compressing or tearing the insulation; maintain original thickness and placement
• If adhesive or fasteners are corroded or broken, replace them per service manual.

The Side Mount Kit is an OEM replacement part for Frigidaire dishwashers. It contains mounting brackets, screws, and other hardware required to securely install the dishwasher against cabinetry in a side-by-side configuration. Proper attachment is necessary for stability and safety during operation.

Symptoms of damaged or missing mounting hardware include:

• Excessive movement or rocking of the dishwasher body
• Potential detachment from cabinets
• Screws pulling loose from repeated vibrations
• Improper door alignment causing difficulty closing fully

Causes related to normal wear over extended use periods. Damage may occur if weight is applied during improper lifting or installation attempts.

Compatible models include Electrolux, Gibson, and select Kenmore units.
