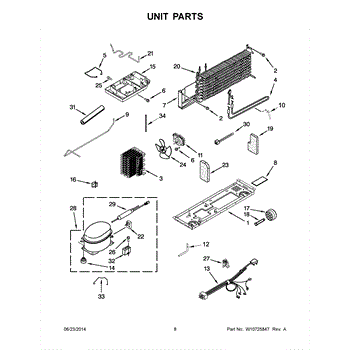

Parts for Maytag M8RXCGFXB04: 05 - Unit Parts

Size: 8-18 x 1/2 inch.

The Defrost Heater is an OEM part for Whirlpool refrigerators. This heater turns on during the defrost cycle to melt the frost on the evaporator coils. If you need the defrost thermostat order WP4387490

Causes may include cracked heater elements reducing heat output or open circuit damage limiting functionality over time.

Symptoms of a faulty heater involve:

• Periodic refrigerator odors
• Prolonged defrost cycles or remaining ice
• Frost and ice buildup beyond normal amounts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Condenser Fan Motor is an OEM part for Whirlpool brand bottom-mount refrigerators. This motor powers the condenser fan which dissipates heat from the refrigeration system coils, maintaining cool interior temperatures.

Causes of failure include normal bearing wear from continuous rotations, or buildup obstructing free blade movement.

Symptoms of a faulty motor include:

• Elevated interior temperatures and frost propagation issues
• Extended run times and higher energy consumption
• Grinding or buzzing noises emanating from the refrigeration system area

This Whirlpool replacement restores efficient heat removal and preserves food freshness. Compatible with KitchenAid, Maytag, and some Kenmore models too, it prevents future repair bills.


This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This compressor start device energizes the refrigerator compressor's start winding to begin the cooling cycle, then disengages it. Replacing a weak or failed start device can restore reliable starts and address repeated clicking and warm/no-cool symptoms.

• Provides initial power to the compressor's start winding for reliable startup
• Disengages the start circuit once the compressor is running
• Common failure symptoms: compressor won't start, frequent clicking from the rear, refrigerator or freezer not cooling
• Heat damage or burnt odor on the old device may be present when it fails

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove the rear access panel to reach the compressor compartment
• Note wire positions; if your model uses a separate run capacitor, transfer it; move wires to the new device one at a time
• Align the device with the compressor terminals and press straight on until fully seated; reinstall any cover or retainer

This is a replacement hex-washer-head screw used to fasten panels and components on compatible Whirlpool appliances. It restores proper fastening to eliminate loose parts, rattles, or misaligned assemblies for safe, stable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance frame
• Prevents vibration-related noise and movement from loose fasteners
• Replaces missing, stripped, or corroded screws to restore fit and alignment
• Simple hardware fix that supports other component repairs

• Unplug the appliance or shut off power before servicing
• Use the correct-size hex or socket driver to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten to avoid damaging parts
• Inspect mating threads and replace any that are damaged

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
