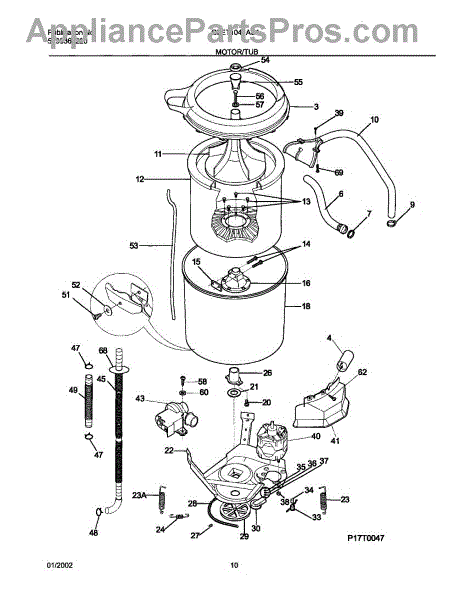

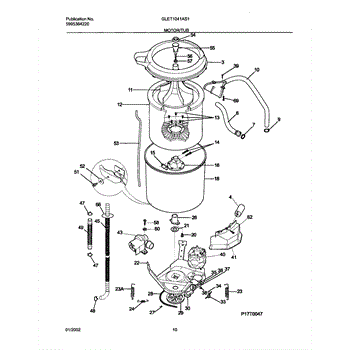

Parts for Frigidaire GLET1041AS1: 05 - Wswhr Mtr,Hose Parts

For seal only use part number 131901400.

The Capacitor is an OEM part for Frigidaire washing machines. This part stores and releases electrical energy to start and maintain the operation of the washer's motor, ensuring it runs smoothly during wash and spin cycles.

Causes of a bad capacitor can include electrical surges, general wear and tear over time, or exposure to high temperatures and moisture.

Symptoms of a bad capacitor include:

• The washer not starting or having difficulty starting
• The motor running intermittently or not running at all
• Unusual humming or buzzing noises from the washer
• The washer stopping mid-cycle or not completing cycles

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This inlet hose connects the household water supply to the refrigerator's water system so ice makers and dispensers receive a steady water feed. Durable, flexible tubing replaces worn or leaking supply lines to restore proper water flow. What it does:

• Channels incoming water from the home supply to the refrigerator's water valve and ice maker
• Replaces cracked, split, or leaking supply tubing that can cause reduced water flow or puddling
• Helps prevent leaks that can lead to water damage when original tubing fails
• Works with the fridge's internal water system to support ice and dispenser functions

• One inlet hose (single water supply line)

• Turn off the home water supply and unplug the appliance before servicing
• Inspect fittings for signs of corrosion; use the proper connector tools to avoid damage
• Tighten connections to a leak-free fit but avoid over-tightening plastic fittings

One per package.

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

Includes ATC

This replacement upper agitator restores the washer's normal wash action by moving clothes and improving water circulation for better cleaning. It fits the factory agitator location and replaces worn, cracked, or damaged agitators to restore performance. What it does:

• Rotates during the wash cycle to move garments through the water for more effective cleaning
• Promotes water flow and prevents clothes from bunching or tangling
• Replaces a cracked, broken, or excessively worn agitator that causes poor wash results
• Helps reduce unusual noise or vibration caused by a damaged agitator

• One upper agitator

• Disconnect power and water supply before beginning any repair
• Remove the agitator cap/cover and securement (bolt or clip) to lift out the old agitator
• Install hardware to manufacturer torque recommendations
• Run a short test cycle with a small load to check for leaks or vibration

This replacement bolt secures internal components in your appliance. A stripped, rusted, or missing bolt can let parts loosen and vibrate; installing a new bolt restores a tight, stable connection for reliable operation.

• Provides a secure, threaded fastener for brackets, weights, or assemblies
• Helps maintain alignment and reduce movement during operation
• Typical issues: missing hardware, stripped threads, or visible corrosion
• Helps address rattling or excessive vibration caused by loose hardware

• Safety first: Disconnect power; for water- or gas-connected units, shut off supplies
• Support the component being secured before removing the old fastener
• Start threads by hand to avoid cross-threading; tighten evenly to manufacturer guidance—do not overtighten
• Reuse original washers/spacers and thread locker only if they were originally present

This trunnion plate secures the washer's inner basket to the drive hub/trunnion, keeping the tub centered and stable during spin. Replace it if the basket feels loose, wobbles, or makes scraping/knocking noises from the hub area. What it does:

• Couples the inner basket to the trunnion/drive hub so the basket spins true
• Helps maintain alignment to reduce vibration and tub-to-basket contact
• Wear can allow play or slippage at the hub connection
• Common symptoms: wobble, scraping/grinding, excessive vibration, poor spin results

• One trunnion plate

• Disconnect power and wear cut-resistant gloves before servicing
• Access typically requires removing the agitator/wash plate and lifting out the inner basket
• Clean and inspect mating surfaces; align the plate correctly and tighten fasteners evenly
• Check related parts for wear and replace if needed

The trunnion is the hub that mounts the washer's inner tub to the drive shaft. Replacing a worn hub restores a solid, centered connection so the basket spins smoothly without wobble, slip, or grinding. What it does:

• Secures and centers the spin basket on the drive shaft for balanced rotation
• Transfers drive torque to the inner tub during spin
• Helps maintain basket alignment to reduce vibration
• Typical symptoms of failure: loose/wobbly tub, scraping or grinding noises, poor or no spin, frequent out-of-balance events

• 1 trunnion

• Disconnect power and water before service; wear gloves and eye protection
• Access the hub by removing top/access parts, then the agitator/wash plate and inner-tub fasteners
• Clean the shaft and mating surfaces; seat the new trunnion fully and tighten fasteners evenly in a crisscross pattern
• Inspect related parts (tub seal, bolts, bearing) while open and replace if worn; run a short test cycle to ensure smooth spin

This screw is a direct-replacement fastener used to secure appliance panels and components. It provides a simple, reliable fix when a missing or damaged screw lets parts sit loose or vibrate. What it does:

• Secures service panels, trim pieces, brackets, or small components
• Restores proper fit and alignment to reduce rattling or movement
• Replaces stripped, missing, or corroded screws to maintain safe assembly
• Works wherever the OEM screw specification is required for reliable fastening

• Use the correct driver bit and turn gently to avoid stripping the head
• Ensure mating threads are clean and aligned before tightening
• Tighten until snug; do not over-torque to prevent damage to threads or parts
• Disconnect power before working near electrical components or controls

The Spin Bearing Washer is an OEM part for Frigidaire washing machines. Situated inside the transmission housing, this thin metal washer acts as a subsurface support for the belt pulley bearing. The spin-bearing washer facilitates smooth, balanced rotation essential for agitated and spun wash cycles.

Causes of a bad spin-bearing washer include wear and fatigue from years of successive rotations, potentially allowing excessive movement between housing components.

Symptoms of a bad spin-bearing washer involve:

• Vibration or shaking noises coming from inside the washer cabinet
• Belt slippage wasting energy by inefficiently spinning loads
• Increased friction resulting in longer cycle times for spins
• Failure of belts or other components from unsupported bearing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This spring restores tension to the door lock mechanism so the latch returns to its proper position after operation. A worn or missing spring can cause a loose latch, difficulty locking, or a door that won't stay secured during a cycle.

• Returns the door lock latch to its resting position
• Helps ensure the door locks securely during operation
• Symptoms can include a floppy/loose latch, intermittent lock errors, or door not staying latched
• Also helps resolve issues where the door won't unlock smoothly

• Disconnect power before servicing
• Access the door lock assembly per your model's service procedure
• Note spring orientation during removal; install the new spring in the same positions
• Latch operation by gently opening/closing the door before reassembling

This genuine replacement spring restores proper tension and smooth movement in the affected mechanism, helping your appliance operate reliably. Replacing a weakened or broken spring can reduce noise and correct misalignment caused by lost tension.

• Maintains tension and provides return force for connected levers, brackets, or linkages
• Helps keep components in position and minimizes excess play or rattling
• A weakened, stretched, or broken spring can cause poor engagement or inconsistent operation
• Common signs include parts not returning to rest, excess slack, or new noises from the area

• Disconnect power; also shut off water supply
• Note the spring's hook orientation and routing; take a reference photo before removal
• Control the spring with pliers and wear gloves/eye protection to avoid snap-back injuries
• Inspect related brackets/retainers and replace any worn components to ensure proper tension

The Spin Bearing is an OEM part for Frigidaire washing machines, specifically designed to facilitate the smooth and efficient rotation of the washer drum. This bearing plays a pivotal role in the operation of your washing machine, allowing the drum to spin freely with minimal friction and noise.

Causes for replacement may include wear and tear from regular use, water damage leading to rust or corrosion, or physical damage from excessive load sizes.

Symptoms of a bad Spin Bearing include:

• Loud noises during the spin cycle, often described as grinding or rumbling
• The drum struggling to spin or not spinning as smoothly as it should
• A noticeable decrease in washing performance due to the drum's impaired movement

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

The Washer Drive Belt is an OEM part for Frigidaire washing machines. This belt connects the motor to the drum, enabling the drum to rotate during the wash and spin cycles. It ensures the proper transfer of power from the motor to the drum, allowing the washer to agitate and spin effectively.

Common causes of a bad drive belt include normal wear and tear, overloading the washer, or a misaligned drum that puts extra strain on the belt.

Symptoms of a bad washer drive belt include:

• The washer drum not spinning or agitating
• A burning smell during operation
• Unusual noises such as squealing or grinding
• The washer stopping mid-cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Idler Pulley is an OEM part for Frigidaire dryers. It helps guide and maintain tension on the dryer drum belt, ensuring the drum rotates smoothly during the drying cycle.

Over time, the idler pulley can wear out due to friction and regular use, or it may become damaged from excessive strain or misalignment. If the idler pulley fails, the dryer drum may not rotate properly, leading to inefficient drying or a complete inability to dry clothes.

Symptoms of a bad Idler Pulley include:

• Squeaking or squealing noises during operation
• The drum not rotating or rotating unevenly
• The belt appearing loose or slipping off the drum

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This retaining ring secures a shaft or component in-place to prevent axial movement and wear, restoring proper alignment and reducing noise or wobble. It's a small, durable replacement part for assemblies that use a snap-style ring. What it does:

• Holds shafts, bearings or components axially in their mating grooves to prevent shifting.
• Stops rattling, grinding, or excessive play caused by a worn or missing ring.
• Keeps assemblies aligned to reduce premature wear on surrounding parts.
• Provides a simple replacement solution when the original ring is bent, broken, or lost.

• Disconnect power and/or water and remove any panels needed before starting work.
• Use snap-ring pliers or the manufacturer-recommended tool to safely remove and install the ring.
• Inspect grooves and mating surfaces for damage or debris and clean before installing the new ring.
• Wear eye protection and keep fingers clear—snap rings can spring out during removal or installation.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

The Drive Motor is an OEM part for Frigidaire washing machines. This component is essential for powering the washing machine's drum, enabling it to agitate and spin during the wash and rinse cycles. It ensures that clothes are thoroughly cleaned and properly spun dry.

Common causes of a bad drive motor include wear and tear from frequent use, overheating due to heavy loads, electrical issues such as power surges, and physical damage from impact or mishandling.

Symptoms of a bad drive motor include:

• The washing machine not spinning or agitating
• Loud, unusual noises during operation
• The washer not starting or stopping mid-cycle
• Burning smell or visible signs of motor overheating

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Frigidaire Drain Pump is an OEM part for Frigidaire washing machines. It plays a crucial role in the washer's operation by removing water from the wash tub at the end of each cycle, ensuring your clothes are properly drained before the spin cycle.

Causes of a bad drain pump can include blockages from debris such as coins, lint, or small items that escape from clothing, as well as motor or impeller damage. Electrical failures can also impair pump function, leading to inadequate water removal.

Symptoms of a bad Frigidaire Drain Pump include:

• Water not draining completely from the washer
• Unusual noises, like humming or buzzing, indicating the pump is struggling
• Washer stopping mid-cycle
• Water pooling around the base of the machine

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drain Hose is an OEM part for Frigidaire washing machines. This hose is essential for directing used water out of the washing machine and into the household drain system, ensuring efficient water removal after each wash cycle.

You should replace the drain hose if it becomes damaged or clogged. Causes of a bad drain hose include wear and tear from repeated use, blockages from debris or lint, or physical damage such as cracks or splits. A compromised drain hose can lead to water leakage, improper drainage, or even flooding.

Symptoms of a bad Drain Hose include:

• Water not draining properly from the washing machine
• Leaks or puddles of water around the washing machine
• Visible cracks or splits in the hose
• Unusual sounds during the draining process

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This tub-to-pump hose connects the washer's outer tub to the drain pump, channeling water out during the drain cycle. Replacing a worn hose helps stop leaks and restore consistent draining when the original is cracked or deteriorated.

• Provides a sealed path from the outer tub to the drain pump during draining
• Helps the washer remove water at the end of wash and rinse cycles
• Common failure symptoms: water leaking at the front/bottom, puddles after a cycle, or slow/no drain
• Visual clues: cracks, splits, swelling, or soft spots in the hose rubber

• Unplug the washer and turn off water supply; expect residual water—use a pan/towels
• Access the hose per your model (often behind the lower front/service panel); note routing/orientation before removal
• Transfer and reuse the existing clamps; seat the hose fully on both fittings and secure evenly
• After reassembly, run a brief fill/drain test while watching for leaks

Hex washer head. 5/16-18 x 0.625

Tub to pressure switch hose.

Color: white. It measures about 3-1/2 inches in diameter, and 2-1/2 inches high.

Agitator screw spacer positions and cushions the agitator screw on top-load washers to keep the agitator stable and reduce wear. It helps maintain correct agitator alignment for reliable wash performance. What it does:

• Centers the agitator and creates the correct spacing for the agitator screw
• Prevents metal-on-metal contact that can cause noise, wear, or loosening
• Helps stop the agitator from wobbling or shifting during the spin cycle
• Contributes to secure engagement between the agitator and the transmission

• Disconnect power to the washer before beginning service
• Remove the agitator per the manufacturer's service instructions to access the screw and spacer
• Install the spacer flat and seated, then reinstall the screw and agitator; follow the OEM service manual for proper fastening procedure
• Inspect the agitator and screw for wear or damage and replace as needed

This is a Phillips pan head machine screw commonly used to secure panels and components in appliances. It provides a reliable, low-profile head for flush fastening and easy Phillips-driver installation. What it does:

• Fastens trim, panels, or internal components where a pan head screw is required
• Designed for secure grip in metal or threaded inserts compatible with #10-16 threads
• Helps prevent loosening from vibration when installed to correct torque
• Often used in refrigeration and major appliance assemblies in limited quantities

• One Phillips pan head screw (#10-16 x 5/8")

• Use the correct #2 Phillips driver and steady pressure to avoid cam-out or stripping
• Do not overtighten; stop when snug to avoid damaging threads or mating parts
• Replace only with an identical thread size and head style to ensure fit
• Wear safety glasses when working around sharp sheet metal and springs

This padded washer is a cushioned fastener washer that helps protect surfaces and reduce vibration where a bolt or screw passes through. It cushions metal-to-metal contact and helps prevent damage and loosening. What it does:

• Cushions and protects mating surfaces from wear and scratching
• Dampens minor vibration and reduces noise around the fastening point
• Helps maintain a secure connection by filling gaps and distributing load
• Commonly used where a soft barrier is needed between a fastener and equipment panel

• One padded washer

• Inspect the washer for damage or compression before reuse; replace if deteriorated
• Position the padded side toward the surface that needs protection
• Use the correct bolt or screw size for a snug fit; avoid over-tightening which can compress the pad
• Follow all safety precautions: unplug power and remove water supply before servicing appliances

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This drain hose ring secures the washer's drain hose to the tub or drain outlet to help maintain a watertight connection and prevent leaks. It's a direct-fit replacement for the original ring used on compatible Frigidaire washers. What it does:

• Secures and seals the connection between the drain hose and the washer tub or standpipe
• Helps prevent water leaks at the hose connection point
• Keeps the drain hose properly positioned to ensure reliable drainage
• Useful when replacing a cracked, stretched, or missing hose ring

• Disconnect power and shut off the water supply before starting repair
• Drain any standing water from the washer before removing the hose
• Use pliers or a suitable hose clamp tool to remove and install the ring; avoid pinching the hose
• After installation, run a short cycle and inspect the connection for leaks

This ratchet-style fastener secures replaceable panels or components, keeping parts locked in place to prevent loosening and maintain proper alignment. Use it to restore secure fastening and reduce vibration or rattling. What it does:

• Holds panels or components with a one-way ratcheting grip to prevent back-out
• Restores secure attachment when original fastener is worn or stripped
• Helps stop panel rattling, vibration noise, or intermittent gaps
• Works where a small, durable locking fastener is required

• Disconnect power and unplug the appliance before starting any repair
• Use appropriate hand tools; avoid overtightening which can strip threads
• Inspect mating holes and surrounding fasteners; replace any damaged parts
• Test fit and operation after installation to ensure secure engagement

Vertical spring adjuster insert.

This tub cover seal fits between the outer tub and the tub cover/splash guard on compatible washers. It keeps wash water and suds contained, helping prevent leaks from the top of the cabinet during agitation and spin.

• Forms a watertight barrier between the outer tub and the tub cover/splash guard
• Helps prevent splash-over and top-rim leaks during wash and spin
• Maintains proper containment of water and suds inside the tub assembly
• Common failure signs: water leaking from the top area, wet streaks down the outer tub, visible cracks, hardening, or flattening of the seal

• Disconnect power and shut off water supply before servicing; wear gloves and eye protection.
• Access the tub cover per service instructions; release the retainer ring/clips to remove the cover and old seal.
• Clean and dry all mating surfaces; remove residue so the new seal seats evenly.
• Lightly moisten the new seal, install uniformly around the rim, reinstall the cover/retainer, and run a short test with water to check for leaks.
