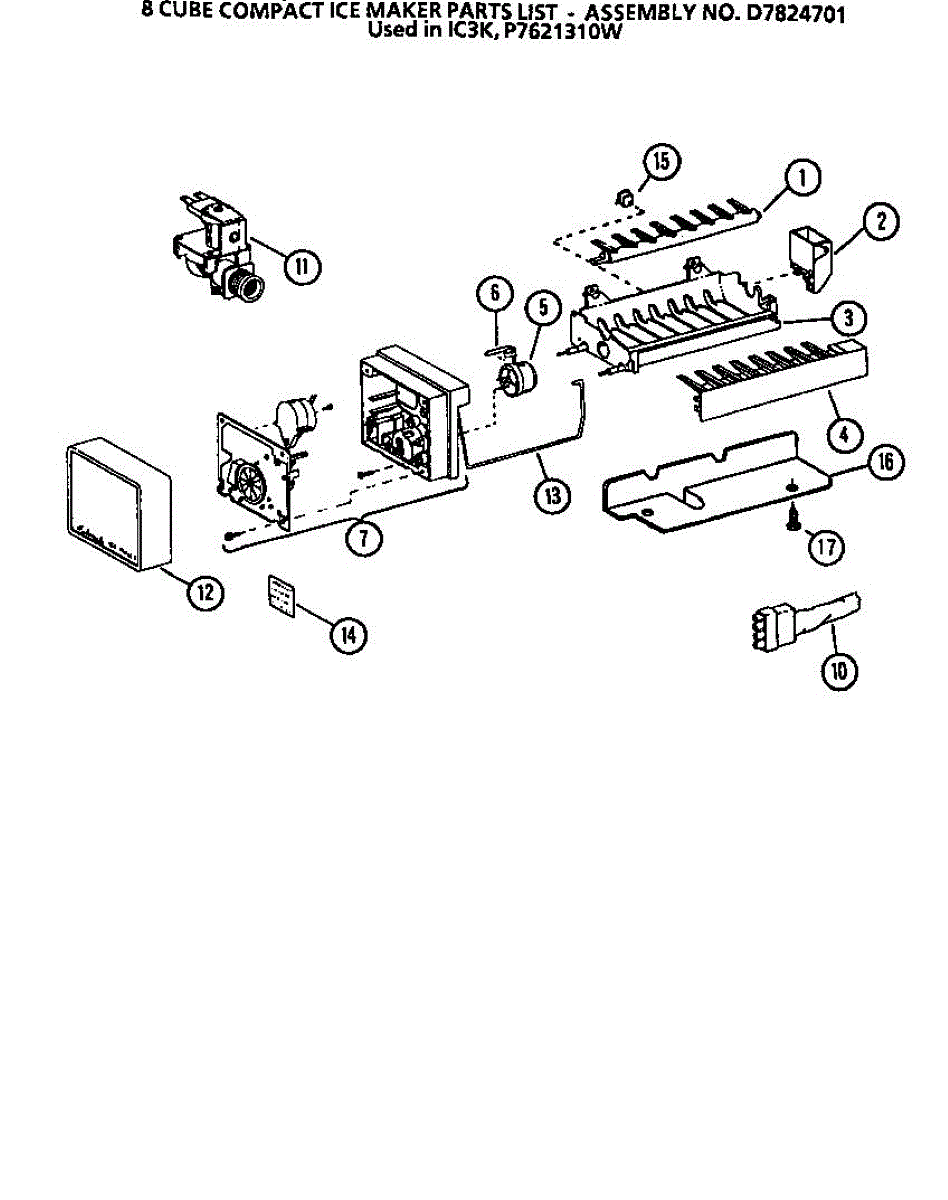

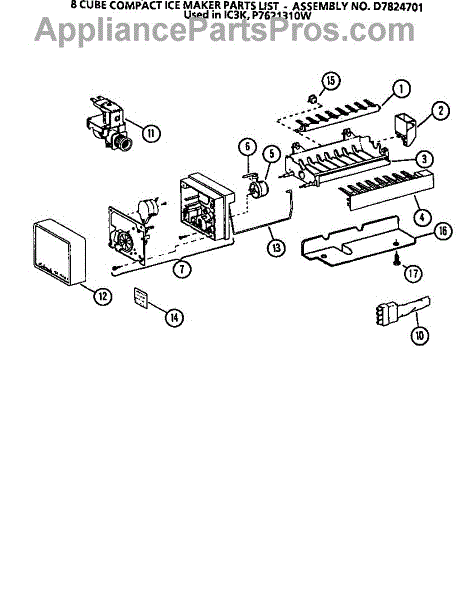

Parts for Amana TL18N / P1106212W: 01 - 8 Cube Compact Ice Maker Parts

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.

Wire harness contains thermal fuse.

The Ice Maker Wiring Harness is an OEM part for Whirlpool refrigerators. This part ensures electrical connectivity between the ice maker and the refrigerator's power supply, facilitating the various functions required for ice production. The wiring harness is key to the ice maker's operation, transmitting power and sensor signals that govern the ice-making cycle, including water filling, freezing, and ejecting ice into the bin.

Causes of a bad Ice Maker Wiring Harness can include physical damage from overextension or pinching, corrosion due to moisture exposure, and wear over time that leads to electrical failures.

Symptoms of a bad wiring harness include:

• Ice maker unit not operating or defective icemaking
• Malfunctions and error codes displayed relating to harness faults
• Physical cracks or splits in wires or connectors

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Single Water Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water to the refrigerator’s ice maker and water dispenser, ensuring a consistent and reliable supply of water for ice production and dispensing.

Causes of a bad single water valve can include wear and tear over time, mineral buildup from hard water, or electrical malfunctions.

Symptoms of a bad single water valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Unusual noises when the water dispenser is activated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Icemaker Shut-Off Arm is an OEM replacement part for Whirlpool refrigerators. Located within the freezer compartment attached to the ice maker assembly, this lever arm activates the shut-off switch to terminate the harvest cycle once the ice bin is full.

Causes relate to cracked or broken lever arms no longer reliably engaging the switch assembly. Mineral scale accumulation may also inhibit smooth operation over time.

Symptoms of a faulty shut-off arm include:

• Ice piling up outside the bin instead of dispensing properly
• The Bin light remaining on indicates a full bin when more ice can still fit
• Excessive ice production drives up energy costs

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Replacement Icemaker is an OEM replacement part for Whirlpool made refrigerators including Whirlpool, Amana, Maytag, and many others. It is a component responsible for producing ice cubes or crushed ice, ensuring a constant supply of fresh ice for your convenience. Measuring approximately 11 inches long and 5 inches wide, this ice maker assembly is made of durable plastic and metal

Symptoms of needing a replacement icemaker include:

• No ice production or significantly reduced ice output
• Ice cubes appearing misshapen or clumped together
•  Leaks or water buildup in the icemaker area
• Strange noises or grinding sounds coming from the icemaker

Causes of a faulty icemaker can include normal wear and tear over time, water supply issues, clogging or blockages, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Please note: that this ice maker is a replacement only and not suitable for add-ons or brand-new installations. It does not include the harness or hardware. For wire harness(Plug)order WPD7813010. For cover order WPW10289690. For shut off bail arm order WP67004028.
