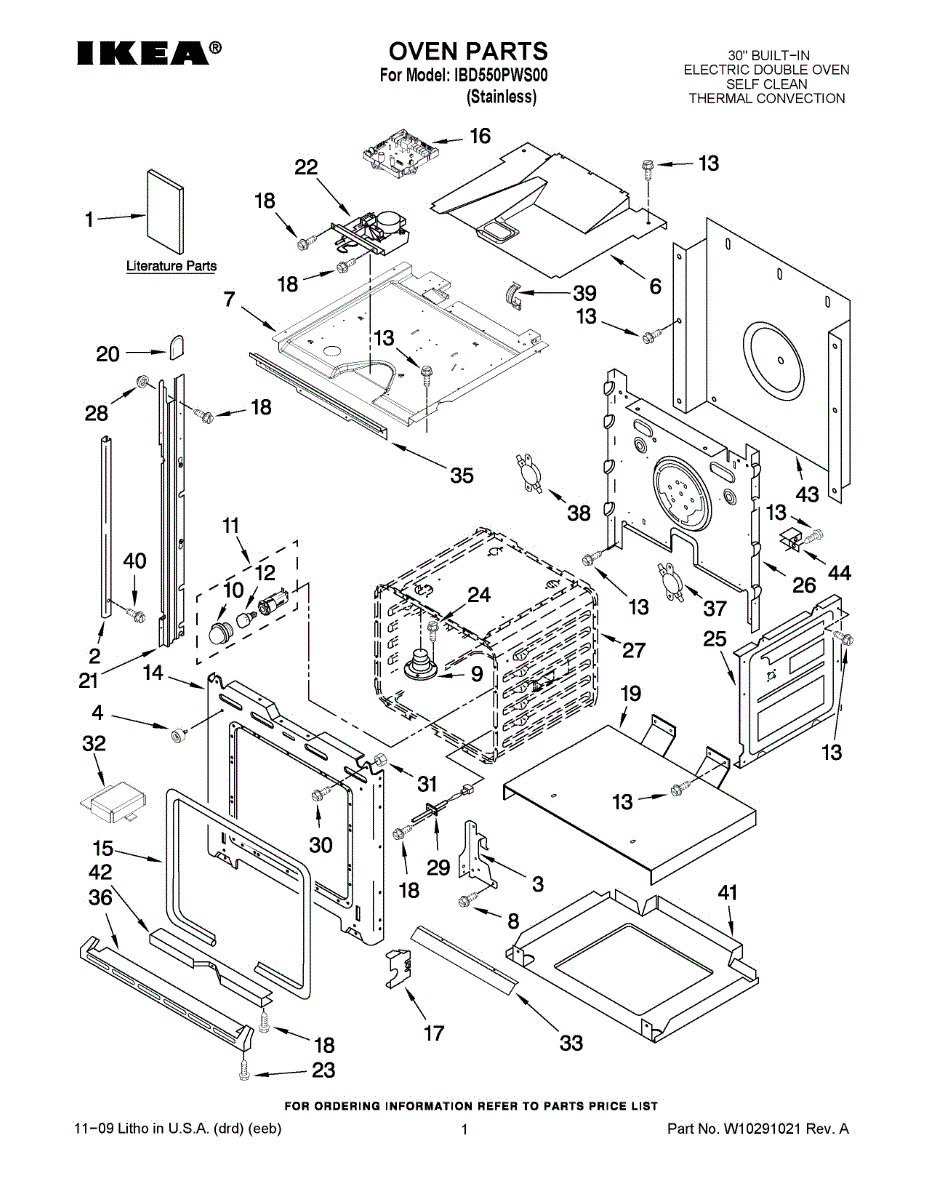

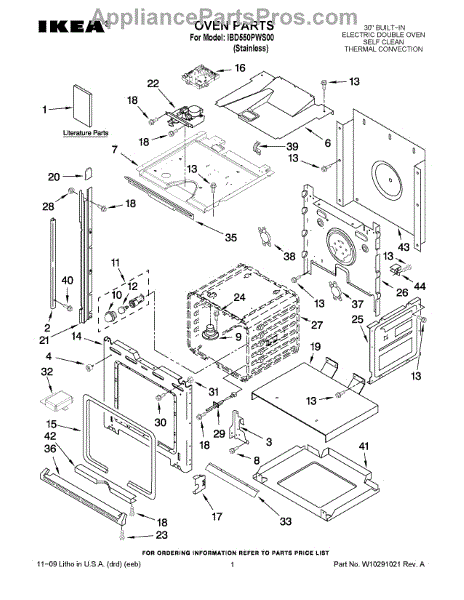

Parts for Whirlpool IBD550PWS00: 01 - Oven Parts

Left-hand side trim that finishes the edge of your wall oven panel. Replace when the original trim is cracked, missing, or loose to restore a clean look.

Right-side finishing trim for wall ovens. Covers the appliance edge for a clean look. Replace if cracked, broken, discolored, or missing from installation.

Left side hinge receiver bracket for wall oven doors. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked or deformed.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

Small cushioning bumper that installs on range doors or panels. Replaces worn, cracked, or missing bumpers to reduce noise and ensure quiet closing.

Missing or damaged ground screw can prevent proper electrical bonding. This 8-32 thread screw restores chassis grounding during installation or service.

Vent tube for wall ovens and ranges. Directs hot air from the oven cavity through the exhaust opening. Replace if cracked, damaged, or missing.

Replace your oven light assembly to restore interior illumination for checking cooking progress. Includes bulb and housing. Verify fit by model number.

Replace your burned-out oven light bulb to restore interior visibility while cooking. This 15-watt bulb fits most ovens. Confirm fit with your model.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

This front frame fin replaces a damaged or worn front frame piece to help keep the dryer drum/tub aligned and reduce rubbing or airflow leaks. It restores the front assembly fit for reliable operation. What it does:

• Supports the front edge of the tub/drum and helps maintain proper drum alignment
• Helps seal and guide airflow at the dryer front to promote efficient air movement
• Reduces rubbing, scraping, or vibration caused by a cracked or warped front frame area
• Resolves symptoms like unusual noise, clothes catching, or uneven drum rotation when damaged

• Disconnect power (and gas if applicable) before starting any repair
• Replacement typically requires removing the dryer front panel or bulkhead; follow your model's service instructions
• Keep all fasteners and seals in place and reassemble securely before testing

Seals your oven door to prevent heat loss and maintain cooking temperatures. Replace if worn, cracked, or heat escapes. Confirm fit with your model.

Mounting bracket that secures the bottom trim vent on your wall oven. Replace if the bracket is bent, broken, or missing to properly secure trim pieces.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement spacer cap for ovens and ranges. Installs to maintain proper spacing between components. Order a new cap if your original is cracked or missing.

Left-hand side mounting rail for electric wall ovens. Supports oven racks and interior components. Replace if bent, cracked, or missing.

Right-hand side mounting rail trim for electric wall ovens. Replaces cracked, broken, or missing trim pieces. Provides finished appearance along oven edge.

Fix F5-E1 errors or doors that won't stay closed with a new door latch assembly. Solves latch cycling issues and false door-open warnings.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Right and left hand side.

Replace a cracked or missing side rail grommet on your oven rack. This small plastic grommet fits into the rack rail to provide smooth gliding and support.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Size: 8-18 x 3/8 inch.

U-type clip

Protective sleeve that routes and shields oven wiring from abrasion and contact. Replace if cracked, worn, or missing to restore safe wiring coverage.

Replacement vent deflector for electric wall ovens. Directs hot air away from control panel. Order new deflector if original is cracked or missing.

Color: Stainless steel.

Oven won't heat after self-clean cycle? A blown thermal fuse cuts power when temps spike. Easy DIY fix—disconnect power, test with multimeter, replace.

Oven won't heat after self-cleaning? This thermal fuse cuts power when overheating occurs. Common DIY repair takes under 10 minutes with basic tools.

Black screw that secures the refrigerator side trim or finish panel. Replace if screw is missing, stripped, or damaged to restore a snug fit and clean look.

Secures the oven door gasket for a tight seal, preventing heat loss. Replace if gasket is loose or heat escapes. Confirm fit with your model number.

Replace a damaged or missing back cover panel that exposes internal components. This rear access panel protects wiring and controls from debris.

Secures and stabilizes oven panels and internal assemblies. Replace if cracked, bent, or missing to restore proper alignment and prevent sagging or vibration.

Replaces worn, damaged, or missing foam insulation panel that lines the oven cabinet. Restores heat retention and temperature efficiency inside the unit.
