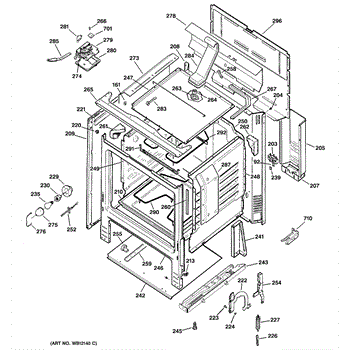

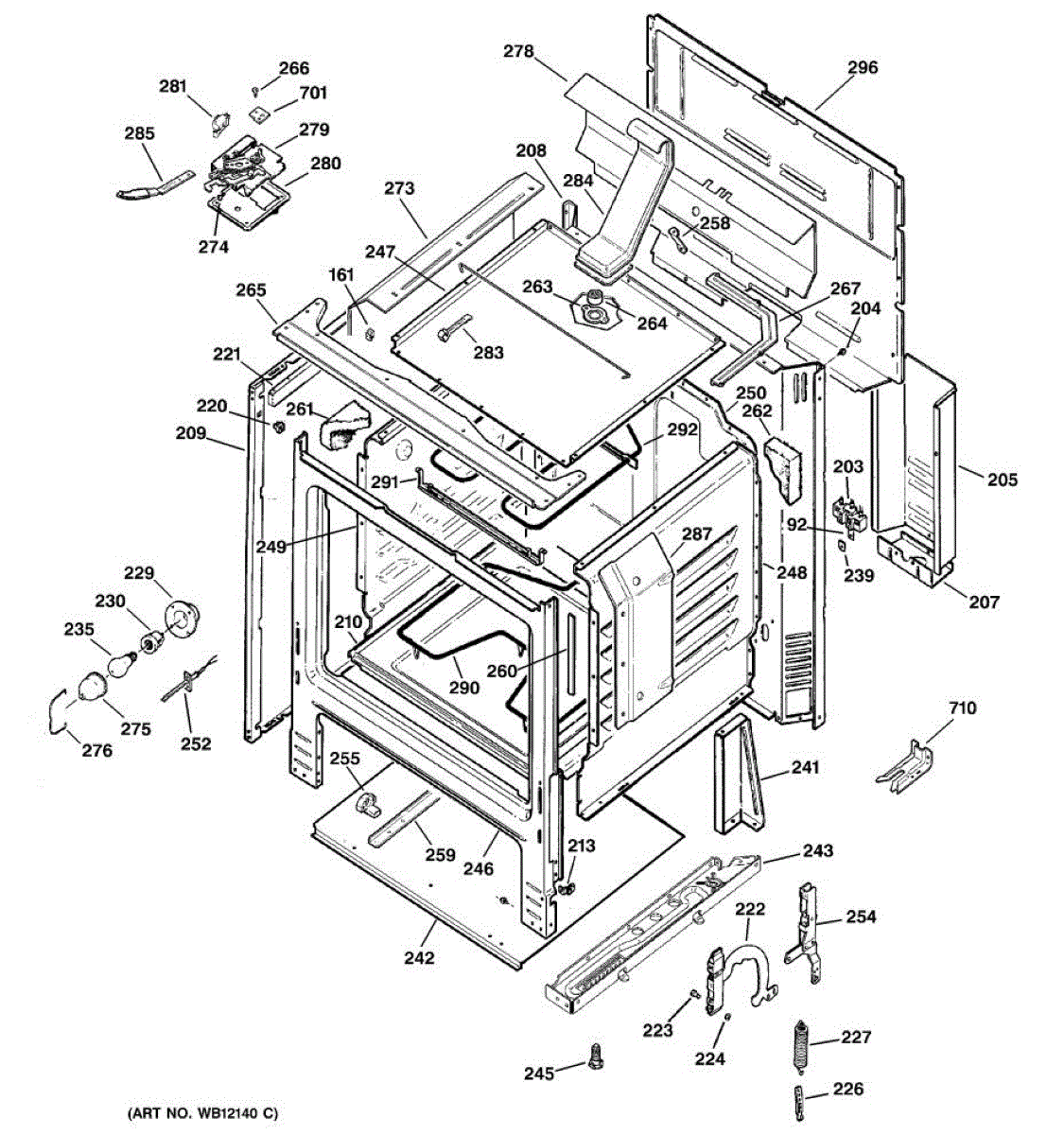

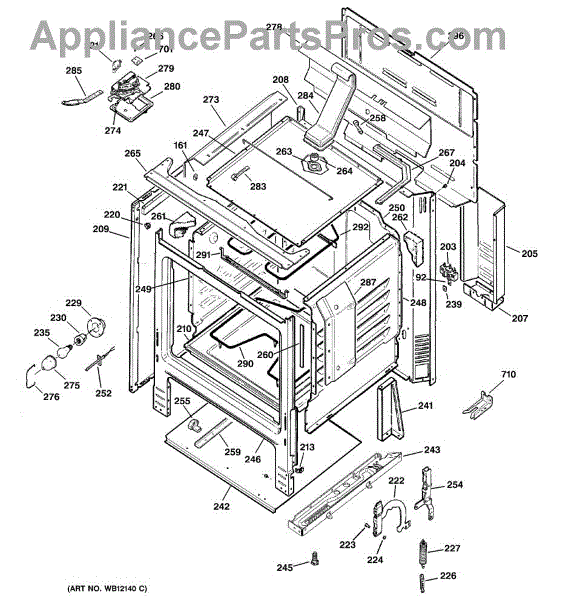

Parts for Ge RB787WC5WW: 02 - Body Parts

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Range won't heat or power cord overheated? A faulty terminal block disrupts power to elements. Common DIY fix with basic tools in under an hour.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Protects wire connection points on your range. Shields exposed terminals from accidental contact and shorting. Replace if cracked, broken, or missing.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replacement door spring for electric ranges. Installs inside the door hinge to provide tension and counterbalance. Needed when original is stretched or broken.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

10 - 32 Nickel plated

Hex

Protects insulation at the bottom of your range. Replace this guard if it's cracked, broken, or missing to maintain proper heat insulation and safety.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Replacement back panel for your range oven. Installs behind the oven cavity to enclose the unit. Needed when the original is cracked, damaged, or missing.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Left hand side

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Right hand side

Structural support bracket that mounts inside the range storage drawer cavity. Replaces broken, cracked, or worn supports that fail from heavy items.

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Replace cracked or missing sound dampening insulation in your electric range. Installs inside the unit to reduce noise and provide thermal protection.

Insulation sound dampening pad for electric ranges. Installs inside the range cavity to reduce noise. Replace if torn, compressed, or missing.

This vent gasket provides a reliable seal between appliance venting components to help prevent air and lint leaks and maintain proper airflow. It's a simple replacement that restores a snug vent connection. What it does:

• Seals the joint between vent parts to reduce air leakage and improve airflow
• Helps contain lint and moisture within the vent path for safer operation
• Dampens minor vibration and reduces rattling where vent pieces meet
• Commonly used when you notice reduced airflow, escaping air or lint, or loose vent connections

• Disconnect power (and gas if applicable) before servicing the appliance.
• Access may require removing an exterior vent cover or internal access panel—follow the OEM service manual.
• Verify orientation and seating of the gasket for a full seal; replace any damaged mating parts.
• Replace any excessively corroded or damaged vent components.

Mounting screw kit for securing range components and panels. Replace missing, stripped, or damaged screws. Package includes 12 screws for installation.

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

Right hand side

Left hand side

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Oven door won't lock during self-clean or stay closed? This latch assembly secures and releases your range door, restoring proper engagement and cycle start.

Replacement shield latch for electric ranges. Installs over the door latch mechanism to protect internal components. Order a new one if broken or missing.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

Replace your range's back cover panel if it's cracked, dented, or missing. This protective panel installs on the rear of your electric range cabinet.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.
