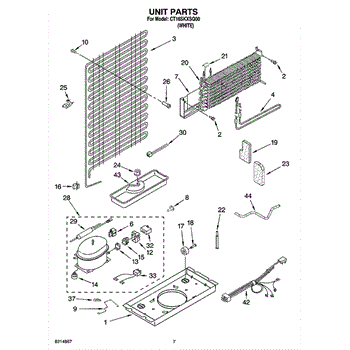

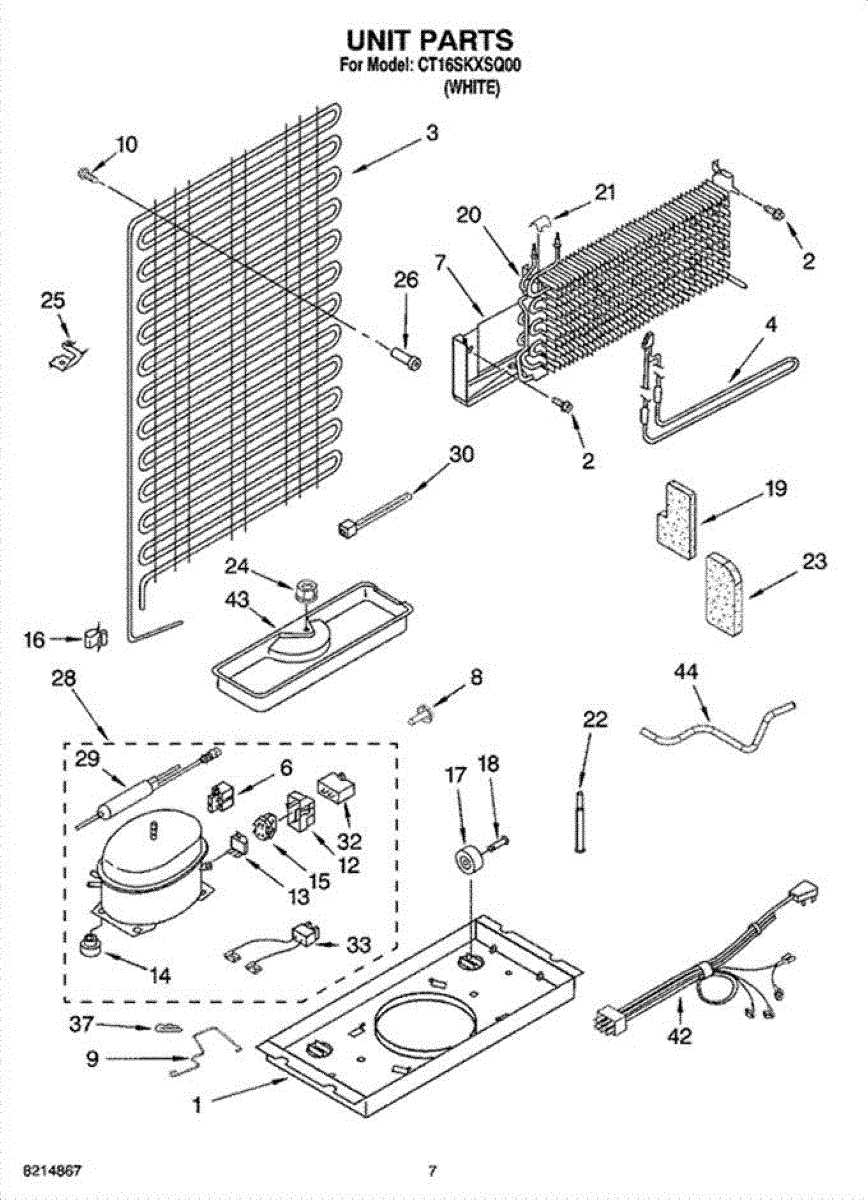

Parts for Whirlpool CT16SKXSQ00: 04 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

8-18 x 1/2 inch mounting screw for refrigerators, washers, dryers, and other appliances. Replace stripped, missing, or damaged screws during repairs.

Refrigerator not cooling or running constantly? A faulty condenser prevents proper heat release. This repair requires basic tools and 1-2 hours to complete.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Fix a refrigerator that won't cool and clicks repeatedly. This compressor start relay powers the motor's start winding. Easy DIY repair in under an hour.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Freezer won't cool or compressor won't start? This thermal overload protector cuts power when the motor overheats. Straightforward DIY repair.

Freezer won't cool or compressor won't start? This thermal overload protector cuts power when the motor overheats. Straightforward DIY repair.

Excessive vibration or loud humming from your fridge? This rubber compressor mount grommet reduces noise and vibration. Simple DIY fix in minutes.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Refrigerator not cooling or won't start? A failed compressor start device prevents startup. DIY repair in under 30 minutes restores reliable cooling.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Foam insulation support for refrigerator evaporator compartment. Replaces cracked, compressed, or missing foam that no longer provides proper insulation.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

Secures bi-metal thermostat or temperature sensor for accurate temperature control. Replace if loose or damaged to restore proper cooling. Confirm fit.

Foam insulation support for refrigerator evaporator compartment. Replaces cracked, compressed, or missing foam that no longer provides proper insulation.

Replacement mounting nut for refrigerators. Secures internal components and panels. Needed when original nut is stripped, lost, or damaged during repair.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

Refrigerator not cooling or running warm? This compressor pumps refrigerant through the sealed system to restore proper temperatures. Professional repair.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

Fixes freezer that won't start or runs intermittently. This capacitor wire assembly restores secure electrical connections to the motor for reliable operation.

Fixes freezer that won't start or runs intermittently. This capacitor wire assembly restores secure electrical connections to the motor for reliable operation.

Size: 1/2 inch.

Size: 5/8 inch.

This replacement drain tube routes defrost and condensation water away from the refrigerator cabinet to the drain pan, helping prevent leaks and pooling inside the unit. It's a simple, direct-fit plumbing part for effective water removal. What it does:

• Channels defrost and condensation water from the evaporator area to the appliance drain pan
• Helps prevent water pooling or dripping inside the cabinet that can cause odors or floor damage
• Restores a cracked, clogged or missing tube's ability to route water properly
• Works with the freezer/refrigerator defrost/drain system to maintain normal drainage

• One replacement drain tube

• Disconnect power before servicing to avoid electrical shock
• Remove food and shelving as needed to access the evaporator/drain area
• Verify routing and secure connections to avoid kinks; do not force fittings
• Inspect and clear the drain trough and drain heater while replacing the tube

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.
