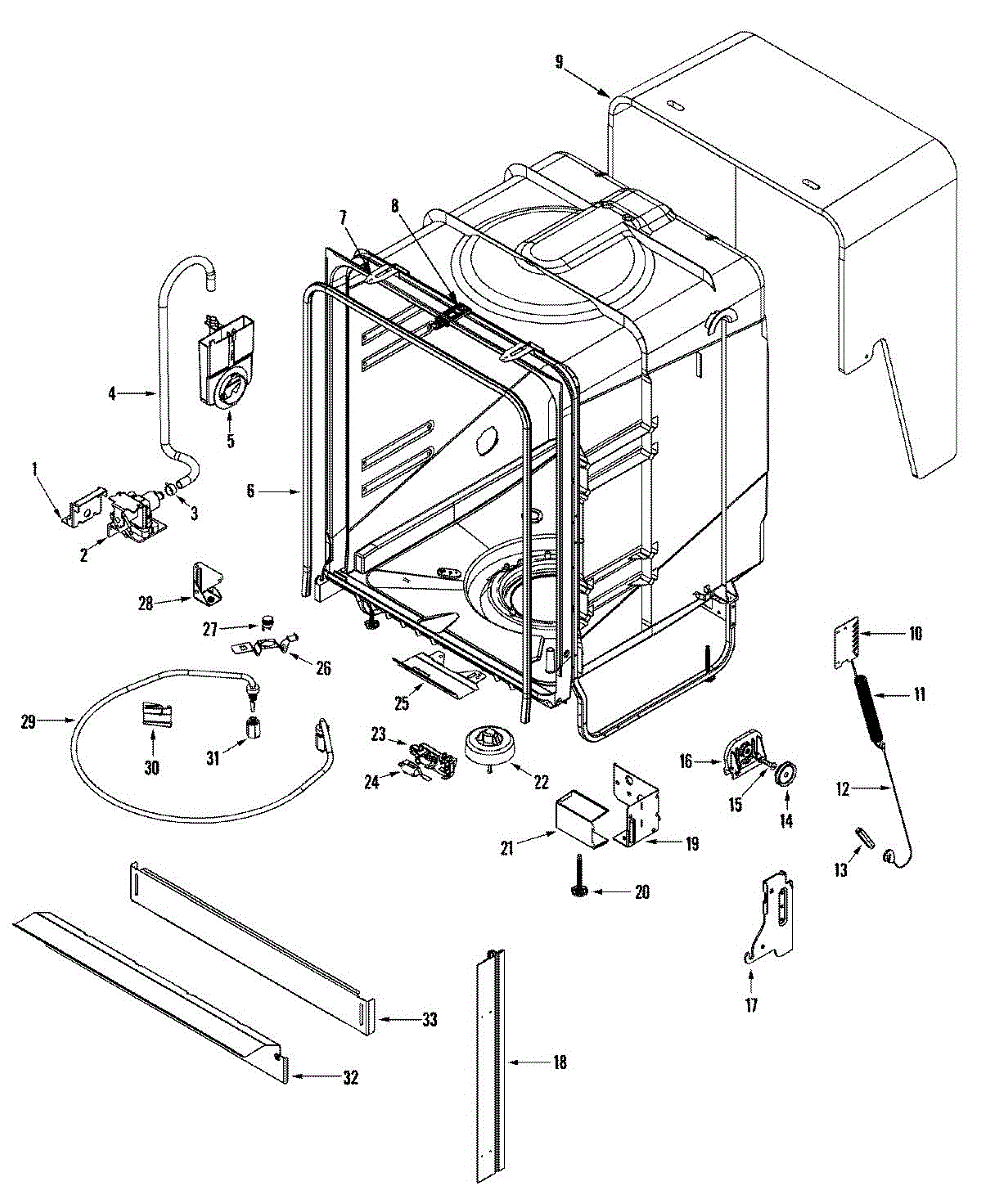

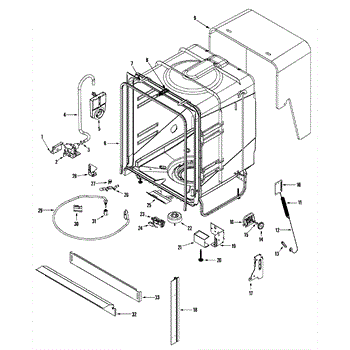

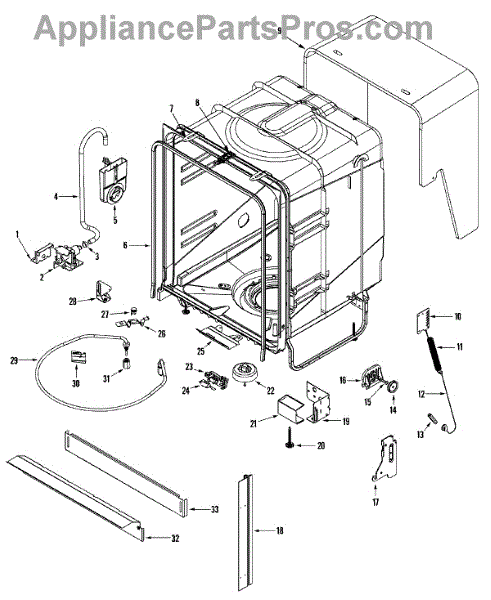

Parts for Maytag MDB5600AWQ: 06 - Tub Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Specs: 10-32X.400 (T-20 HEAD)

8-16 x 3/8 inch screw fastener for dryers. Secures baffles to drum and various internal components. Replace if missing, stripped, or damaged.

Fix a dishwasher not filling with water or filling too slowly. This inlet valve controls water flow into your dishwasher. DIY repair with video guide.

Secures water and drain hoses in washers to prevent leaks. Replace if connections loosen or clamp shows corrosion. Confirm fit with your model number.

Fix water leaking from your dishwasher with a new injector hose. This flexible hose connects the dispenser to the pump, restoring proper water flow. DIY-friendly repair.

This dishwasher door seal is used on some Amana, Maytag, Magic Chef, Crosley, Samsung, Admiral and Jennair dishwashers.

Secures your dishwasher to surrounding cabinetry. Replace this bracket if it's bent, broken, or missing to restore a tight, level installation.

Specs: 10-32X.400 (T-20 HEAD)

Dishwasher won't start or run? A worn door strike prevents the latch from engaging. Easy 10-minute fix with one screw—pull unit out 3-4 inches.

Sound dampening insulation wraps around the top and sides of your dishwasher. Replace when torn, ripped, or missing to restore proper noise reduction.

Specs: 10-32X.400 (T-20 HEAD)

Replace your dishwasher's spring adjustment bracket if cracked, bent, or missing. This structural component secures the spring mechanism inside your unit.

This dishwasher door spring provides the counterbalance tension that lets the door open and close smoothly. Replacing a worn or broken spring restores proper door feel and helps prevent the door from dropping unexpectedly.

• Provides counterbalance tension so the door opens and closes smoothly
• Helps the door stay partially open without drifting
• Reduces slamming or sudden drop when opening
• Common failure signs: door feels heavy, drops quickly, opens unevenly, or a spring is visibly broken

• Disconnect power and shut off water; remove the toe-kick/access panel
• Support the door; note spring routing and which frame holes are used before removal
• Install the new spring in the same holes; adjust hole selection only per service information to fine-tune tension
• Springs are under tension—wear gloves/eye protection; consider replacing both springs together for balanced operation

Connects dishwasher door to tension springs for balanced opening and closing. Replace if cable is broken, frayed, or detached from mounting points.

Connects dishwasher door to tension springs for balanced opening and closing. Replace if cable is broken, frayed, or detached from mounting points.

Replace the cable bracket guide roller on your dishwasher. This small wheel guides the door cable smoothly through the bracket, preventing binding and wear.

Specs: 10-32X.400 (T-20 HEAD)

Specs: 10-32X.400 (T-20 HEAD)

Right hand side. For left hand use WPW10117485

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Left hand side. For right hand use W10117484

Specs: 10-32X.400 (T-20 HEAD)

Replacement leveling leg that stabilizes and adjusts your dishwasher height for proper alignment. Needed when bent, broken, or missing to eliminate rocking.

8-16 x 3/8 inch screw fastener for dryers. Secures baffles to drum and various internal components. Replace if missing, stripped, or damaged.

Kit includes more than shown on picture. New kit is for both plastic and stainless tubs. Plastic tubs use only the float and the switch stainless tubs use all the parts.

Kit includes more than shown on picture. New kit is for both plastic and stainless tubs. Plastic tubs use only the float and the switch stainless tubs use all the parts.

Left hand side

Specs: 10-32X.400 (T-20 HEAD)

Fixes dishes not drying or water staying cold. This heating element warms wash water and aids drying. Requires pulling unit out. 30-60 min install.

Secures the heating element to the bottom of the dishwasher tub. Replace this bracket if it's loose, won't clip back into place, or has a flattened knob.

Secures the heating element to the dishwasher tub. Replace if stripped, corroded, or missing to properly mount and stabilize the heater assembly.

Color: Bisque

Color: Bisque.

Color: Bisque

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
