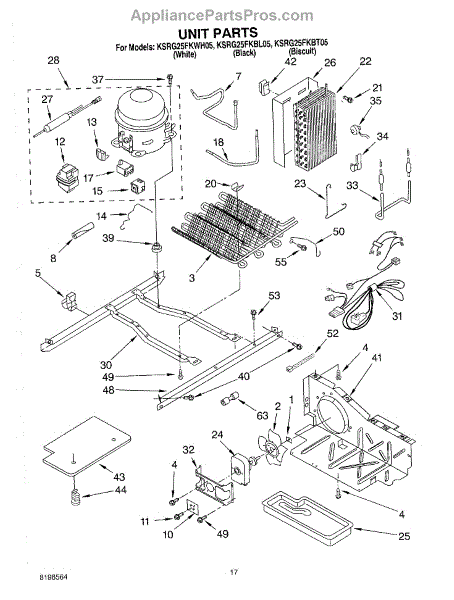

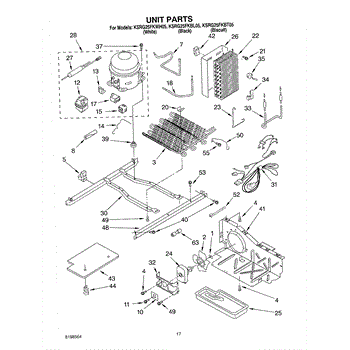

Parts for Kitchenaid KSRG25FKWH05: 11 - Unit Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

This refrigerator compressor starting device includes the start relay, overload and cover.

The Compressor Starting Device Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary components to help the compressor start and run efficiently, ensuring that the refrigerator maintains the correct temperature to keep food fresh.

Causes of a bad compressor starting device can include electrical surges, wear and tear over time, or overheating due to excessive usage or poor ventilation around the refrigerator.

Symptoms of a bad compressor starting device include:

• The refrigerator not cooling properly
• The compressor not starting or frequently cycling on and off
• Unusual clicking or buzzing noises from the compressor area
• The refrigerator being unusually warm

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Capacitor supplies a short burst of stored electrical energy to help the appliance motor start and run efficiently. Replacing a failing capacitor can restore reliable motor startup and reduce humming or intermittent operation. What it does

• Provides the electrical boost motors need to start and maintain proper speed.
• A failing capacitor commonly causes motors to hum, struggle to start, run slowly, or stop unexpectedly.
• Used on motors and fans that require a start/run assist; replacing a bad capacitor often resolves startup and intermittent operation issues.

• Always disconnect power to the appliance before accessing electrical components.
• Discharge the capacitor safely (use insulated tools and gloves) before touching terminals — capacitors can hold a dangerous charge.
• Photograph or label wiring and terminal locations before removal so replacements reconnect exactly the same way.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 8 x 1/2 ab.

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

This condenser fan motor bracket secures the condenser fan motor to the appliance chassis, keeping the cooling fan stable so it can move air across the condenser for proper cooling performance and prevent wobble or contact. What it does:

• Holds the condenser fan motor in the correct position so the fan blades clear surrounding components.
• Stabilizes the motor to reduce vibration and noise caused by a loose or damaged mount.
• Helps maintain proper condenser airflow to avoid overheating or reduced cooling.
• Can be replaced when the original bracket is bent, cracked, or broken and no longer supports the motor.

• Disconnect power before starting any repair to avoid electric shock.
• Verify motor and fan assembly alignment when reinstalling the bracket; secure mounting hardware snugly but do not overtighten.
• Inspect related fasteners and fan components for wear and replace as needed.

The Heater is an OEM part for Whirlpool refrigerators. This part prevents frost buildup by heating the evaporator coils during the defrost cycle. This part ensures that air flows freely over the coils, improving the efficiency of the cooling system and maintaining the refrigerator at the optimal temperature.

Causes of a bad heater can include electrical failures, such as a blown fuse or a faulty wiring connection, or physical damage to the heater element itself.

Symptoms of a bad Heater include:

• Frost buildup on the evaporator coils
• The refrigerator and freezer not maintaining the desired temperatures
• Increased energy consumption as the refrigerator works harder to cool
• Unusual noises from the refrigerator as the fan hits frost buildup

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

8 x 1/12

This air baffle directs and controls cold airflow inside the refrigerator compartment to help maintain even temperatures and proper circulation. Replaces a cracked, warped, or missing baffle to restore intended airflow paths. What it does

• Directs cold air from the evaporator into the refrigerator compartment for balanced cooling.
• Helps prevent uneven temperatures and localized warm or cold spots.
• Reduces excessive airflow directly onto stored items that can cause freezing or drying.
• Can rattle or obstruct airflow when cracked or loose, causing noise or reduced performance.

• One air baffle

• Disconnect power to the appliance before beginning work.
• Installation typically requires removing shelves or drawers for access; handle plastic parts gently to avoid damage.
• Align tabs or tracks and snap the baffle into place; do not force or bend beyond natural fit.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 5/16 to 1/4. Universal John Guess Push On
