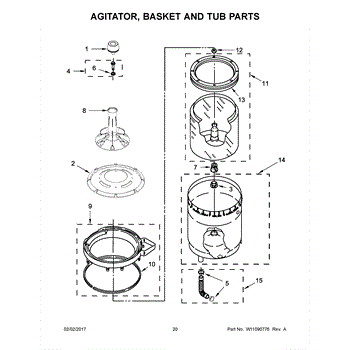

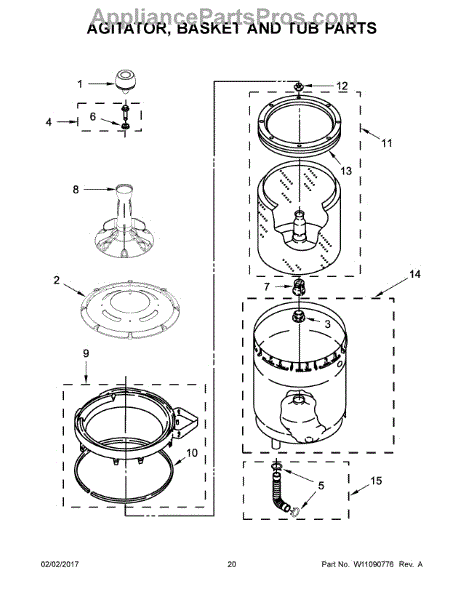

Parts for Whirlpool WETLV27FW0: 11 - Agitator, Basket And Tub Parts

Replacement protective shield that covers and protects internal components from abrasion, heat and debris. Restores the appliance's original barrier to help prevent component damage and reduce noise from loose or contacting parts. What it does:

• Protects wiring, sensors and nearby components from heat, debris and direct contact
• Helps prevent rubbing or contact that can cause noise or premature wear
• Restores the intended barrier to reduce risk of foreign-object damage
• Useful when the original shield is cracked, bent or missing

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Remove required panels to access mounting points; save and reuse original fasteners when possible
• Align shield and secure without over-tightening to avoid distortion

The Centerpost Gasket is an OEM replacement part for Whirlpool washers. This component serves as a vital seal around the center post or agitator shaft, preventing water leaks and ensuring proper operation during wash cycles.

Symptoms of a failing centerpost gasket may include:

• Water leaking from the top or bottom of the washer tub
• Excessive moisture buildup around the agitator area
•  Potential mold or mildew growth due to leaks

Causes of needing to replace the centerpost gasket can include normal wear and tear over extended use, damage or deterioration from exposure to heat or chemicals, or physical tearing or displacement of the gasket material.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This agitator Bolt is an OEM replacement part for Whirlpool washing machines. It is a crucial component for maintaining the performance of various washing machines and washer-dryer combos. This agitator bolt secures the agitator, ensuring smooth and efficient operation. The kit includes one 7/16" screw head bolt with a rubber gasket and threaded sealant.

Causes of a faulty bolt can be damage from mineral deposits accumulation preventing smooth tightening, or wear over time compromising the threading.

Symptoms of a bad agitator bolt include:

• Loose or wobbly agitator unable to spin freely
• Abnormal noises or vibrations during cycles
• Insufficient cleaning from improper agitation
• Safety concerns if the agitator detaches entirely

This OEM replacement part is also compatible with  Inglis, Estate, Admiral, Crosley, Roper, Magic Chef, Amana, KitchenAid, Maytag, Whirlpool, and Kenmore brand models.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Agitator Bolt Washer is an OEM part for Whirlpool washing machines. It sits beneath the agitator bolt, providing a secure and tight seal to ensure the agitator remains firmly attached to the drive shaft. This washer plays a crucial role in the smooth and effective operation of the agitator during the wash cycle.

You should replace this agitator bolt washer if it becomes worn out, cracked, or lost. Causes of a bad washer can include regular wear and tear, exposure to harsh detergents, or high levels of agitation that can degrade the material over time.

Symptoms of a bad agitator bolt washer include:

• The agitator being loose or wobbling during the wash cycle
• Unusual noises coming from the agitator area
• Ineffective washing performance
• The agitator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Washer Drive Block is an OEM part for Whirlpool washing machines. This component is situated between the washer's transmission and the inner tub, playing a key role in transferring the rotational motion from the motor to the tub.

Causes for replacement often stem from normal wear and tear, which can lead to the drive block becoming worn or damaged. This wear can prevent the drive block from properly engaging with the tub, leading to inefficient cycles and potential damage to other parts of the washing machine.

Symptoms of a bad Washer Drive Block include:

• The washer tub has difficulty agitating or spinning.
• A loud noise during the spin cycle, indicating that the tub is not engaging correctly with the transmission.
• The machine vibrates excessively or seems off-balance, even with a balanced load.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Agitator is an OEM part for Whirlpool washing machines. It is the central component that provides efficient cleaning action during cycles.

Symptoms of a bad agitator include:

• Reduced ability to fully saturate and scrub clothes
• Excessive noise or vibration coming from agitator area
• Visible wear like cracks or breaks in the plastic shell

Causes of failure involve normal wear over extended use as it rotates clothes through thousands of cycles. Foreign objects entering the agitator can also cause damage.

This part is compatible for select Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge and Kenmore models.

This tub ring mounts to the top of the washer's outer tub to act as a splash guard and cover. Replacing a cracked or loose ring helps contain wash water and helps prevent leaks or debris from the top. What it does:

• Forms the upper splash guard around the outer tub to keep water contained during wash and spin
• Serves as the top cover at the tub opening, locking in with tabs/clips
• Damage (cracks, broken tabs) may lead to leaks from the top, rattling, or a loose ring
• Visible wear can leave plastic fragments in the basket or around the tub opening

• 1 tub ring

• Disconnect power and turn off water supplies before servicing
• Lift or remove the top/console per model design to access the tub opening; support the lid
• Release the locking tabs/clips and remove the old ring; clean the tub lip
• Align and press the new ring evenly until all tabs fully engage; reassemble and test

The Outer Tub Ring Seal is an OEM part for Whirlpool washing machines. This seal is essential for maintaining a watertight connection between the outer tub and the tub ring, preventing water from leaking during the wash and spin cycles.

Causes of a bad tub ring seal can include regular wear and tear over time, exposure to harsh detergents or chemicals, or damage from foreign objects during the washing process.

Symptoms of a bad outer tub ring seal include:

• Water leaking from the washing machine during operation
• Visible cracks or tears in the seal
• Excessive moisture or water damage around the washing machine
• Mold or mildew buildup due to persistent leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Spanner Nut is an OEM part for Whirlpool washing machines. This nut secures the washer tub to the drive shaft, ensuring that the tub remains stable during the wash and spin cycles. Properly securing the tub is crucial for the machine's performance and longevity, as it helps maintain balance and reduce vibrations.

You should replace the spanner nut if it becomes loose or stripped. Causes of a bad spanner nut can include over-tightening, regular wear and tear, or damage from heavy loads. Exposure to moisture and detergent over time can also lead to corrosion, compromising the nut's ability to secure the tub effectively.

Symptoms of a bad spanner nut include:

• Excessive vibrations or shaking during the wash cycle
• Loud banging or knocking noises
• The washer tub being loose or misaligned
• Leaks around the tub area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Tool for removing the spanner nut - TB123B.

The Balance Ring is an OEM part for Whirlpool washing machines. This part maintains the stability of the washer drum during the spin cycle. It contains liquid that helps balance the load, minimizing vibrations and noise while ensuring smooth operation.

Causes of a bad balance ring can include general wear and tear, exposure to heavy or unbalanced loads, or physical damage.

Symptoms of a bad balance ring include:

• Excessive shaking or vibrating during the spin cycle
• Loud banging noises
• Washer moving or walking during operation
• Uneven or off-balance loads

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This OEM replacement part is a washer tub assembly. The tub is the cylindrical piece that is found inside the washer where the clothes are put. Damage to the tub can cause it to not rotate properly. If the tub is making excessive noise during the wash cycle and appears to be misaligned, damaged, or broken, it might be time for a replacement. Start by removing the front panel of the washing machine. Then proceed to remove the top and back panels. After gaining access to the interior of the machine, disconnect any hoses attached to the drum and take note of where they go. Using a screwdriver, remove the screws that hold the drum to the machine. Lift the tub out, and replace it with the new one. Be sure to re-attach everything properly. Secure the front back and top panels of the washer.This genuine replacement part is compatible with Bosch, Gaggenau, and Thermador, washing machines.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
