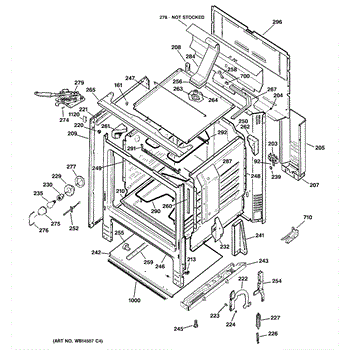

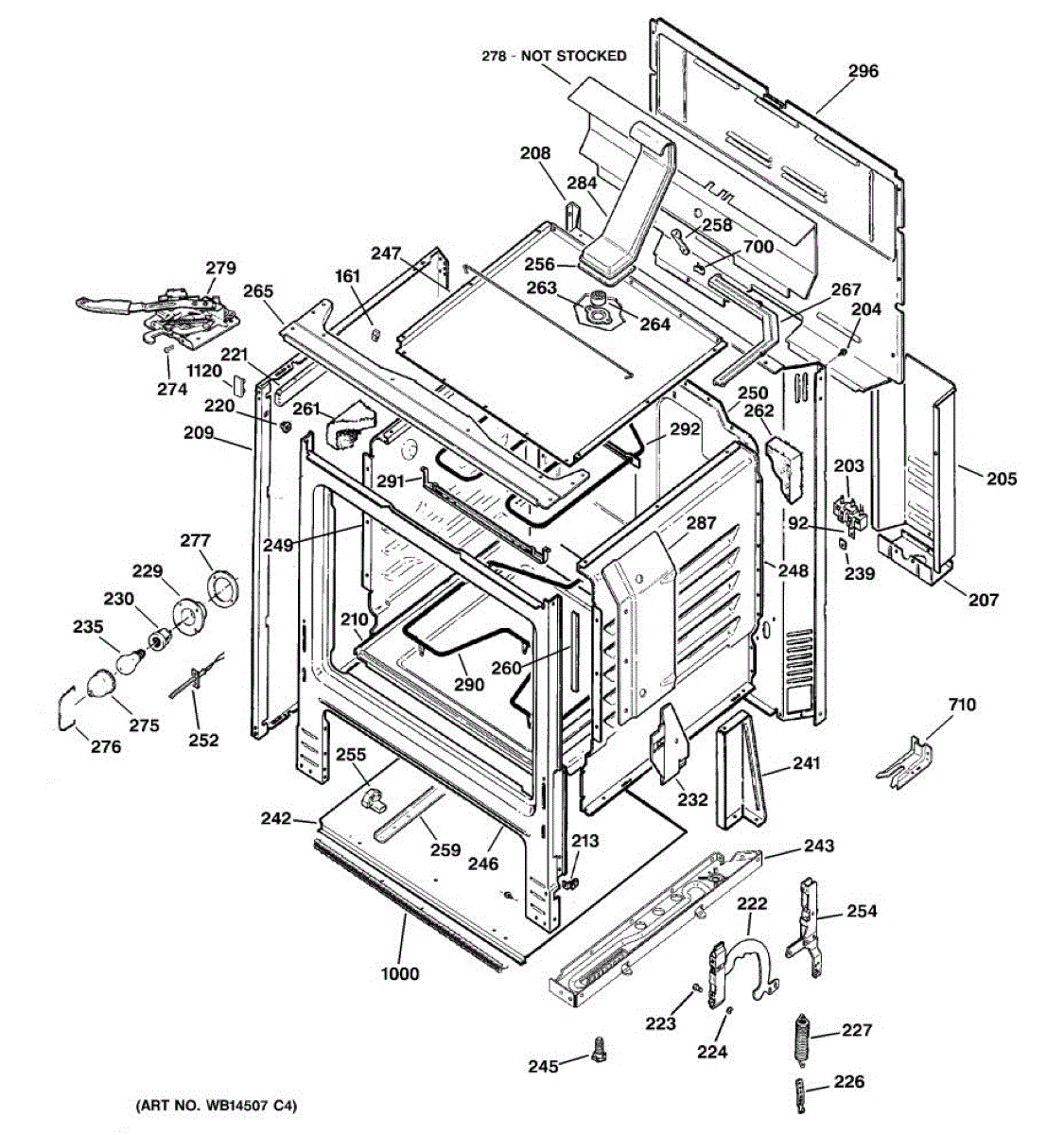

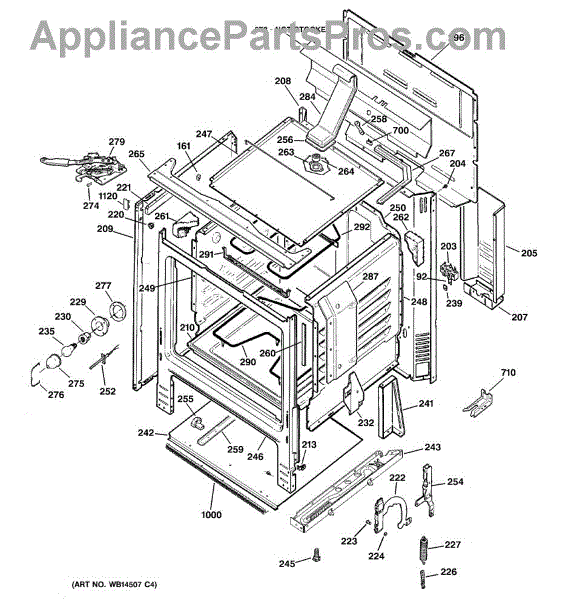

Parts for Ge RB787DP1BB: 02 - Body Parts

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Secures wiring harnesses in your range. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number before ordering.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Protects wire connection points on your range. Shields exposed terminals from accidental contact and shorting. Replace if cracked, broken, or missing.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

USE GEH WB63K10122

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Clip for door hinge.

Replacement door spring for electric ranges. Installs inside the door hinge to provide tension and counterbalance. Needed when original is stretched or broken.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Protects insulation at the bottom of your range. Replace this guard if it's cracked, broken, or missing to maintain proper heat insulation and safety.

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Replacement back panel for your range oven. Installs behind the oven cavity to enclose the unit. Needed when the original is cracked, damaged, or missing.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Structural support bracket that mounts inside the range storage drawer cavity. Replaces broken, cracked, or worn supports that fail from heavy items.

This vent gasket provides a reliable seal between appliance venting components to help prevent air and lint leaks and maintain proper airflow. It's a simple replacement that restores a snug vent connection. What it does:

• Seals the joint between vent parts to reduce air leakage and improve airflow
• Helps contain lint and moisture within the vent path for safer operation
• Dampens minor vibration and reduces rattling where vent pieces meet
• Commonly used when you notice reduced airflow, escaping air or lint, or loose vent connections

• Disconnect power (and gas if applicable) before servicing the appliance.
• Access may require removing an exterior vent cover or internal access panel—follow the OEM service manual.
• Verify orientation and seating of the gasket for a full seal; replace any damaged mating parts.
• Replace any excessively corroded or damaged vent components.

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap installs around the oven cavity to reduce heat transfer and dampen sound. Replace if torn, compressed, missing, or no longer effective.

Insulation panel that installs on the back of the oven cavity to provide heat protection. Replace if torn, degraded, or missing to restore proper insulation.

Insulation sound dampening pad for electric ranges. Installs inside the range cavity to reduce noise. Replace if torn, compressed, or missing.

Support plate that secures the vent extension housing on electric ranges. Replaces cracked, broken, or missing catalyst support plates. Installs inside vent.

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Hex

Oven door won't lock during self-clean or stay closed? This latch assembly secures and releases your range door, restoring proper engagement and cycle start.

Right hand side

Left hand side

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Anti-tip bracket assembly that secures your range to the wall or floor. Replace if bracket is bent, broken, missing, or doesn't anchor properly.

Seals the burner assembly to the cooktop on gas ranges. Replace when worn to restore proper ignition, stable flame, and prevent spills from entering the burner well. Confirm fit by model number.

Replacement door bumper for electric and gas ranges. Prevents door from slamming and protects cabinet finish. Replace if worn, cracked, or missing.

Rubber bumper cushions contact points on range doors and panels. Replace if cracked, missing, or worn to restore quiet operation and protect surfaces.
