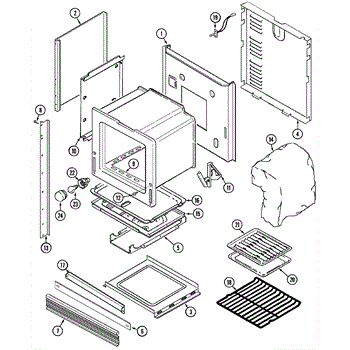

Parts for Jenn-Air WG30100B: 01 - Body Parts

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Oven Door Hinge is an OEM part for Whirlpool ranges. It is essential for the smooth operation and stability of the oven door, allowing it to open and close properly. This hinge supports the weight of the door and ensures it stays securely in place during use.

Causes of a bad oven door hinge can include wear and tear from frequent use, rust or corrosion, and damage from accidental force or misalignment.

Symptoms of a bad oven door hinge include:

• The oven door not closing completely or evenly
• Difficulty in opening or closing the door
• The door feels loose or makes unusual noises when moved

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-24X5/16-NI

This part has been discontinued by the manufacturer and is no longer available.

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven temperature sensor measures the heat inside the oven and sends that signal to the control so the appliance can reach and maintain the set temperature. Use it to restore accurate baking and consistent heating.

• Monitors actual oven cavity temperature and communicates with the control
• Helps regulate element/burner cycling for steady, even heat
• Failure may present as inaccurate temps, not reaching set temp, overheating, or very long preheat

• Disconnect power at the breaker and allow the oven to cool completely before service
• Remove the mounting screw(s) securing the sensor inside the oven; gently pull it forward to access the wire connector
• Disconnect the harness, connect the new sensor, route wires carefully, and resecure the sensor
• If the connector retracts behind the liner, rear-panel access may be required

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: clear. Measures about 3 inches in diameter.
