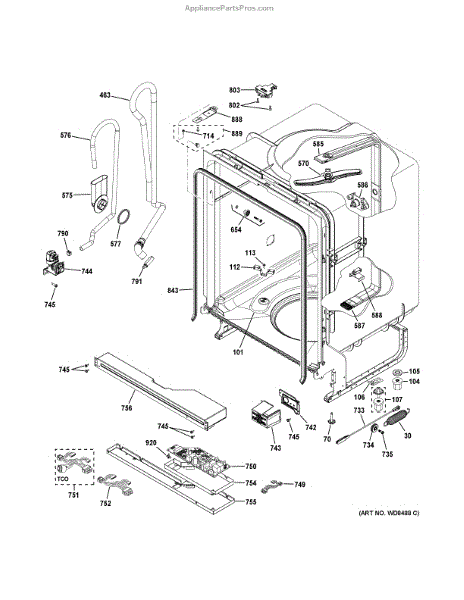

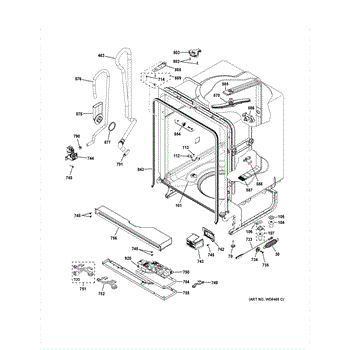

Parts for Ge GDF510PGD6BB: Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher door spring counterbalances the door so it opens smoothly and doesn't drop. Replacing a fatigued or broken spring restores proper door action, prevents sudden slamming, and reduces stress on the hinges and link components.

• Provides the tension that counterbalances the door's weight during opening and closing
• Helps prevent the door from dropping quickly or feeling unusually heavy
• Supports smooth, even movement within the door hinge/counterbalance system
• Common signs of failure: door falls open, won't stay partially open, or binds/squeaks while moving

• Disconnect power and shut off water before servicing; wear gloves and eye protection
• Remove the toe-kick to access the spring and hinge area
• Support the door; carefully relieve spring tension and transfer the spring to the same anchor points as the original
• Test door balance and motion before reinstalling the toe panel

This leveling leg adjusts the dishwasher's height at the base, helping you level and stabilize the unit inside the cabinet. Proper leveling reduces rocking and vibration and promotes a tight door seal and smooth rack operation.

• Screws into the base frame to set height and level the dishwasher
• Supports the unit to prevent rocking or wobbling
• Helps maintain door alignment and sealing; poor leveling can contribute to leaks
• A worn, bent, or missing leg can make leveling difficult and increase vibration/noise

• Disconnect power and shut off water; slide the dishwasher out if needed for access
• Turn the leg with a wrench or pliers to adjust height; replace by threading the new leg into the base
• Use a bubble level to set side-to-side and front-to-back level before re-securing the unit
• Do not overtighten; ensure both legs carry weight evenly on a solid floor surface

The Heating Element is an OEM part for GE dishwashers. It is responsible for heating the water during the wash cycles and for drying the dishes after the rinse cycle. Proper functioning of the heating element ensures optimal cleaning and drying performance.

Causes of a bad heating element can include mineral buildup from hard water, electrical faults, or general wear and tear over time. Damage to the heating coil or connections can also impair its functionality.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Dishwasher cycles taking longer than usual
• Water not heating during the wash cycle
• Error codes related to heating issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This grounding plate is a stamped metal bracket that provides a secure electrical ground connection for the appliance, helping protect components and reduce shock risk. It's a direct-replacement part used where the appliance chassis requires a dedicated grounding point. What it does:

• Provides a reliable chassis-to-ground connection for electrical safety.
• Maintains a stable grounding path for control boards and metal panels.
• Helps address symptoms such as intermittent electrical faults, tripped breakers, or grounding-related error codes when a damaged or missing bracket is suspected.
• Replaces a corroded, bent, or broken grounding/mounting plate to restore proper contact.

• One grounding plate

• Turn off power to the appliance at the breaker and unplug before servicing.
• Mount to the specified chassis location using the original screws or fasteners; ensure clean, bare metal contact for a good ground.
• Do not modify the part; if screw holes or fasteners are missing, replace with OEM-specified hardware.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

The Upper Spray Arm is an OEM part for GE dishwashers. It is designed to distribute water evenly throughout the upper rack during the wash cycle, ensuring that all dishes are thoroughly cleaned. The spray arm rotates to provide coverage and spray patterns that reach every dish and utensil. The arm measures about 10 inches by 2.5 inches

Over time, the upper spray arm can become clogged with food particles or mineral deposits, which can impede its function. Physical damage or wear and tear can also cause it to fail.

Symptoms of a bad upper spray arm include:

• Dishes on the upper rack not getting clean
• Reduced water pressure from the upper arm
• Spray arm not spinning or moving properly
• Visible cracks or damage to the spray arm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fill funnel assembly mounts inside the dishwasher tub at the water inlet. It directs incoming water into the tub and helps prevent splashing or leaks at the fill area for reliable fills and cleaner operation.

• Channels water from the inlet opening directly into the tub
• Helps control splash and seal the fill port to reduce drips
• Damage, cracks, or a missing funnel can cause leaks near the fill area during the fill cycle or unusual spraying sounds
• Restores proper water entry path for consistent filling

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the fill inlet on the tub wall
• Remove retaining fastener(s) or tabs, replace the funnel, and ensure any seal is properly seated
• Reassemble and run a brief fill/rinse to check for leaks at the inlet area

This fill funnel hose directs incoming water from the inlet assembly into the tub through the fill funnel. Replacing a worn or cracked hose helps stop leaks and restores a reliable, sealed fill path for consistent wash performance.

• Carries water from the inlet assembly through the fill funnel into the tub
• Maintains a watertight path to prevent external leaks
• Symptoms of failure: dripping during fill, puddles beneath the unit, or visible cracks/splits in the hose
• A significant leak may lead to low water level or extended fill times

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/kickplate; pulling the dishwasher forward may be needed for access
• Place a towel or pan to catch residual water; move clamps, remove the old hose, and fully seat the new hose on both fittings
• Re-secure clamps, restore water and power, and run a short fill to check for leaks before reinstalling panels

This fill funnel assembly mounts inside the dishwasher tub at the water inlet. It directs incoming water into the tub and helps prevent splashing or leaks at the fill area for reliable fills and cleaner operation.

• Channels water from the inlet opening directly into the tub
• Helps control splash and seal the fill port to reduce drips
• Damage, cracks, or a missing funnel can cause leaks near the fill area during the fill cycle or unusual spraying sounds
• Restores proper water entry path for consistent filling

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the fill inlet on the tub wall
• Remove retaining fastener(s) or tabs, replace the funnel, and ensure any seal is properly seated
• Reassemble and run a brief fill/rinse to check for leaks at the inlet area

This conduit seal fits the dishwasher's water-feed conduit connection, keeping wash water contained and pressure steady to the spray arms. Replacing a worn seal helps address leaks and maintain reliable cleaning performance.

• Seals the joint where the dishwasher's water feed conduit/tube connects within the wash system
• Helps prevent water leaks at the conduit connection point
• Maintains proper wash pressure for consistent spray performance
• Common signs of failure: drips beneath the unit, visible cracks/flattening, or a loose-fitting old seal

• Disconnect power and shut off the water supply before servicing
• Access the conduit connection (location varies by model), remove the old seal, and clean mating surfaces
• Lightly moisten the new seal to ease installation and seat it fully
• Reassemble and run a brief cycle to check for leaks

Replace a worn or broken tub roller with this Tub Roller and Stud Assembly. It mounts to the dishwasher tub wall to guide the rack smoothly, preventing dragging, binding, or derailment when loading and unloading.

• Mounts on the tub sidewall to provide a smooth glide point for the dish rack
• Restores easy rack movement and can reduce squeaking or scraping noises
• Helps keep the rack aligned and prevents it from jumping off track
• Typical signs of failure: cracked/broken wheel, missing/bent stud, rack difficult to slide

• Disconnect power and water supply before servicing; wear cut-resistant gloves.
• Pull the rack out to access the roller location inside the tub.
• Remove the old roller and stud (retainer/tab/screw varies by model) and install the new assembly in the same orientation.
• Slide the rack in and out to confirm smooth movement before returning the appliance to service.

This SCR 8-18 silicon-controlled rectifier replaces the control semiconductor that switches and regulates power to heating or motor circuits in compatible appliances, restoring proper power delivery and control. It's a direct-fit electrical replacement part. What it does

• Acts as a switching device on control boards to allow or block current flow when signaled.
• Regulates power delivered to heating elements or motor circuits to enable proper operation.
• Commonly linked to symptoms like no heat or intermittent heating, motors that won't start, or erratic control-board behavior.
• Helps restore reliable on/off control when a failed SCR is causing open or shorted conditions.

• One SCR 8-18 silicon-controlled rectifier (WD02X10160).

• Always disconnect power before servicing the appliance to avoid shock.
• Handle the part carefully; avoid touching leads and use anti-static precautions if available.
• Inspect surrounding connectors and wiring for damage; replace any corroded terminals.

The Door Cable is an OEM part for GE dishwashers, designed to support and assist in the smooth and controlled opening and closing of the dishwasher door. This cable connects the door to the spring mechanism, providing the necessary tension to balance the door's weight during operation.

Signs that you might need to replace the Door Cable include the door suddenly dropping open or being difficult to raise, indicating a break or excessive wear.

Symptoms of a bad Door Cable include:

• The dishwasher door slamming open or requiring extra force to close.
• Unusual noises when opening or closing the door, suggesting the cable is not running smoothly.
• Difficulty in keeping the door partially open, affecting loading and unloading dishes.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Pulley is an OEM part for GE dishwashers. This part works with the door springs and cables to provide smooth and balanced movement. This pulley ensures that the door operates efficiently, making it easy to load and unload dishes.

Causes of a bad door hinge pulley can include wear and tear from regular use, accumulation of debris or grease, or damage from accidental impacts.

Symptoms of a bad door hinge pulley include:

• The dishwasher door not staying open or closed properly
• Difficulty in opening or closing the door
• Unusual noises during door operation, such as squeaking or grinding
• The door feeling loose or unbalanced

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 1/4-inch zinc-plated screw secures internal panels and hardware in select dishwashers. Replace a missing, stripped, or corroded fastener to restore a tight fit and help prevent vibration or loosening during operation.

• Fastens brackets, panels, or components that use a 10-32 machine thread
• Replaces hardware that is missing, stripped, or rusted
• Helps reduce rattling or vibration from loose assemblies
• Supports proper component alignment for reliable operation

• Disconnect power and water supply before servicing the appliance
• Remove the old fastener and verify thread size and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace damaged clips, nuts, or inserts that won't hold a 10-32 screw securely

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Inlet Valve is an OEM part for GE dishwashers. This part controls the flow of water into the dishwasher. It opens and closes to allow water from the home's supply to enter the dishwasher at the correct times during the washing cycle.

Causes of a bad water inlet valve include wear and tear from regular use, sediment buildup from hard water, or mechanical failure of the valve components.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water filling too slowly or not stopping once the dishwasher is full
• Leaks detected around the valve area
• Unusual noises coming from the valve during the fill cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Electronic Control Board Jumper Wire is an OEM replacement part for GE dishwashers.

Causes of a faulty jumper wire include fracturing of internal interconnects from normal circuit board flexing during door closes. Overly aggressive cleaning solvents may also damage wire insulation over time.

Symptoms of a problematic jumper wire include:

• Intermittent or unreliable operation of wash cycle features
• Unresponsive touch controls and inability to start cycles
• Error codes displayed and failure to detect cycle outputs

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Main Control Board is an OEM component specifically designed for GE dishwashers. It acts as the central "brain" that facilitates all washing functions. Integrated electronic components and programmed controls coordinate important operations like wash cycles, temps, dispensing, the user interface, and more. Over time electrical connections can degrade or surface mount chips fail.

Causes of a bad control board may arise from power surges, water exposure damage or simply normal component wear over thousands of wash cycles.

Symptoms of a failed control board include:

• The dishwasher failing to start or stopping mid-cycle
• Inability to change wash options or respond to button inputs
•  Strange electrical noises, smells, or error codes displayed

This genuine OEM GE part restores full operational capability with factory programming and reliability. It is also compatible with Hotpoint, RCA, and some Kenmore models for a direct replacement upgrade.

This main wash pump kit restores strong water circulation to drive the spray arms for thorough cleaning. Replace if the existing pump is weak, noisy, or leaking to recover proper wash performance.

• Circulates wash water through the spray arms during wash and rinse cycles
• Maintains proper water flow for consistent cleaning results
• Common failure signs: poor cleaning or no spray action, loud humming or grinding from the base, or leaks around the pump area

• Disconnect power and turn off the water supply before servicing
• Access the pump from the bottom; remove the toe-kick and pull the unit as needed
• Expect residual water—use a towel or pan; note hose and wire positions
• Seat seals fully and secure clamps; run a short test cycle to check for leaks

The Harness Assembly is an OEM part for GE dishwashers. It contains multiple electrical wires and connectors that transmit power and signals throughout various areas of the dishwasher. This includes distributing power from the control board to components like motors, heating elements, and sensors located in the base and tub.

Proper wiring is essential to ensure these parts receive the correct voltage to operate as intended. The harness routes electrical signals back to the control board to communicate cycle progress and diagnostics.

Symptoms of a bad harness include:

• Motors, heating elements, or other components failing to activate
• Inability of the control board to monitor cycle steps accurately
• Intermittent electrical connections causing unreliable operation

Causes can be cracked insulation, loose connections due to repetitive component access, or damage over time from water, detergent, or other contaminants.

This part is compatible with Hotpoint, RCA, and select Kenmore models.

This dielectric shield is a small heat-resistant insulator that protects ignition wiring and components from heat and prevents electrical arcing near burners. It helps maintain reliable spark ignition and reduces risk of shorts or damage from high temperatures. What it does:

• Shields spark module wires and electrode areas from direct heat exposure
• Helps prevent arcing and electrical shorts that can interrupt ignition
• Reduces risk of melted or damaged wire insulation near burners or ovens
• Commonly replaced when cracked, deformed, or showing burn marks that affect ignition

• Disconnect power (and gas if applicable) before servicing electrical or ignition components
• Inspect surrounding wiring and connectors; replace any damaged insulation or terminals
• Reinstall using original mounting hardware and ensure the shield fully covers the wire/electrode area

This control box bottom is the lower housing that protects and supports the appliance's control electronics, helping keep wiring and components secure from debris and moisture. Fits into the control assembly to restore proper enclosure and support. What it does:

• Provides a protective lower enclosure for the control board and wiring harness
• Helps keep dust, lint and moisture away from sensitive electronics
• Secures the control board and related connectors in their correct position
• Prevents rattling or movement that can cause loose connections or noise

• One control box bottom (base cover) as pictured

• Disconnect power before servicing to avoid shock or component damage
• Handle electronics carefully and avoid touching circuit contacts
• Installation typically requires basic hand tools and removal of the control housing

Replacement control box top that restores the protective cover for the appliance control housing, keeping wiring and electronics enclosed for a cleaner appearance and safer operation. What it does:

• Covers and protects the control housing and internal wiring from dust, spills, and accidental contact
• Helps secure control components in place and maintain the appliance's factory appearance
• Commonly replaced when the original cover is cracked, broken, missing, or shows visible damage
• Can prevent loose wiring from catching or being accidentally disturbed

• One control box top

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Remove any screws or retainers securing the existing cover and lift off the old top; keep fasteners if reinstalling
• Align the replacement top and secure with the original fasteners; ensure wiring is routed and seated before closing

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

The Tub Gasket is an OEM part for GE dishwashers. It is installed around the perimeter of the dishwasher door to create a water-tight seal during operation, effectively preventing water leaks. This gasket ensures that the dishwasher can maintain the necessary water level and pressure to clean dishes effectively, while also protecting your kitchen from water damage.

Causes of a bad Tub Gasket can include natural wear and tear from regular use, exposure to harsh cleaning chemicals that can degrade the rubber material, or improper installation leading to gaps or loosening.

Symptoms of a bad Tub Gasket include:

• Water leaking from around the dishwasher door
• Signs of mold or mildew on the gasket
• The gasket becoming hard or cracked
• Visible gaps between the gasket and the dishwasher door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

This control board clip secures the dishwasher's electronic control board to its mounting location, keeping it properly seated during operation. Replacing a damaged or missing clip helps prevent vibration, movement, and wire-connector strain.

• Holds the electronic control board firmly in its designated mount or housing
• Helps prevent board movement, rattling, and connector stress from vibration
• Replace if the clip is cracked, deformed, or missing
• Symptoms include a loose control assembly, rattling noises, or a board that won't stay seated

• Disconnect power at the breaker before servicing
• Access the control area; support the board when removing/installing the clip
• Handle the control board by the edges and observe ESD precautions
• Ensure the new clip is fully seated and the board is secure before reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
