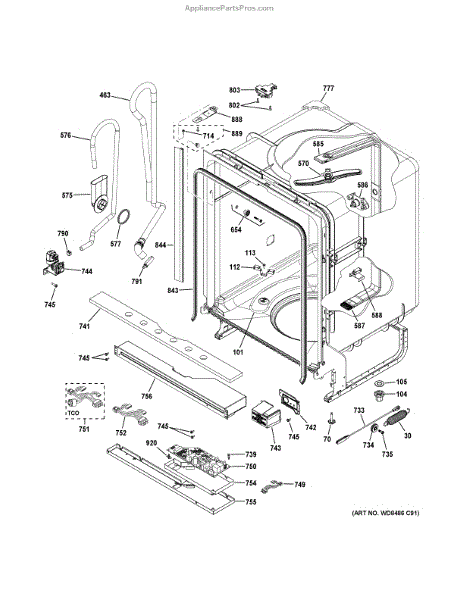

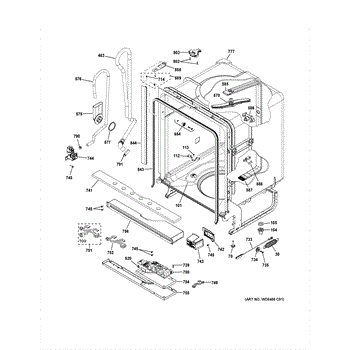

Parts for Ge GDF540HGD1BB: Body Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement door spring for dishwashers. Provides tension to help the door open and close smoothly. Replace if broken, worn, or door won't stay open.

Replacement door spring for dishwashers. Balances door weight for smooth opening and closing. Replace if spring is broken, stretched, or missing.

Adjustable leveling leg for dishwashers. Screws into the base frame to set height and stabilize the unit. Replace if worn, broken, or missing.

Dishes not drying or staying wet after cycle? This heating element heats water during wash and dries dishes after rinse. DIY-friendly replacement part.

Secures the dishwasher heating element to the tub from underneath. Replace if cracked, stripped, or missing to prevent leaks at the element mounting point.

Mounting screw for dishwasher tub assembly. Secures internal components like spray arms and baskets. Replace if stripped, corroded, or missing.

Replaces cracked, leaking, or worn drain hoses in your dishwasher. Creates the required elevated loop to prevent backflow. Essential for proper drainage.

Replacement upper spray arm for dishwashers. Installs at the top of the tub to distribute water across the upper rack. Replace if broken, cracked, or missing.

Fix leaks at the water inlet with this dishwasher fill funnel. Directs water into the tub and prevents splashing. Includes gasket for secure seal.

Directs water from inlet to tub through the fill funnel. Replace if cracked or leaking to restore a sealed fill path and prevent water damage.

Fix leaks at the water inlet with this dishwasher fill funnel. Directs water into the tub and prevents splashing. Includes gasket for secure seal.

Seals the water feed conduit connection to maintain spray arm pressure and prevent leaks. Replace if you notice low water flow or white residue on dishes.

Protective shield that covers electrical conduit connections on your dishwasher. Replaces cracked, broken, or missing shields to protect wiring.

Silicon-controlled rectifier that switches and regulates power to heating or motor circuits. Replace if the component is damaged, burned out, or failing.

Connects dishwasher door to spring mechanism to prevent door from dropping when opened. Replace if cable is broken, frayed, or detached from pulley.

Door hinge pulley for dishwashers. Works with springs and cables to balance door movement. Replace if cracked, broken, or causing uneven door operation.

Replace missing or stripped mounting screws in your washer dryer combo. This 12-pack secures panels, components, and internal parts during assembly or repair.

Foam insulation pad that installs under the dishwasher's front base. Replace if yours is crushed, damaged, or missing to maintain proper airflow.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Encloses the power-connection compartment at the base of your dishwasher. Replace if cracked, broken, or missing to protect wiring from debris.

Dishwasher not filling with water? A failed water inlet valve is often the cause. This valve controls water flow during wash and rinse cycles.

Hex washer head screw for dishwasher assembly. Secures internal components and panels. Replace if stripped, corroded, or missing during repairs.

Dishwasher won't start or lights are completely unlit? Main control board failure stops all functions. Moderate DIY repair restores power and cycles.

Fixes dishwasher not draining or draining slowly. This complete pump and motor assembly kit includes circulation pump, drain pump, and wiring harness.

The Harness Assembly is an OEM part for GE dishwashers. It contains multiple electrical wires and connectors that transmit power and signals throughout various areas of the dishwasher. This includes distributing power from the control board to components like motors, heating elements, and sensors located in the base and tub.

Proper wiring is essential to ensure these parts receive the correct voltage to operate as intended. The harness routes electrical signals back to the control board to communicate cycle progress and diagnostics.

Symptoms of a bad harness include:

• Motors, heating elements, or other components failing to activate
• Inability of the control board to monitor cycle steps accurately
• Intermittent electrical connections causing unreliable operation

Causes can be cracked insulation, loose connections due to repetitive component access, or damage over time from water, detergent, or other contaminants.

This part is compatible with Hotpoint, RCA, and select Kenmore models.

Protective lower housing for dishwasher control electronics. Replaces cracked, broken, or missing base covers. Shields wiring and components from debris.

Replaces the protective top cover for your dishwasher control box housing. Needed when the original is cracked, broken, or missing to keep electronics enclosed.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Secures hoses and tubing in your dishwasher to prevent leaks and ensure proper water flow. Replace if you notice water dripping or leaking around connections. Verify fit with your model number before ordering.

Dishwasher won't start or run? A faulty door latch prevents cycles from beginning. This latch assembly secures the door and activates switches. 5-10 min fix.

Seals dishwasher door perimeter to prevent water leaks during operation. Replace if you notice leaking from door sides or bottom. Easy 5-minute install.

Black trim piece that attaches to the dishwasher tub edge for a finished look. Replace if cracked, broken, or missing to restore the interior appearance.

Secures your dishwasher underneath the kitchen countertop. Replace if the bracket is cracked, broken, bent, or missing from installation.

Secure your dishwasher to the underside of countertops with this screw and button plug kit. Replace stripped, missing, or damaged fasteners.

Fix loose or rattling control board with this dishwasher clip. Secures electronic board to prevent vibration and wire strain. Simple snap-in install.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
