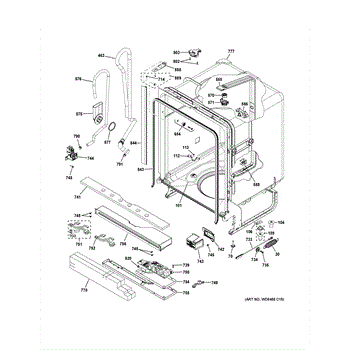

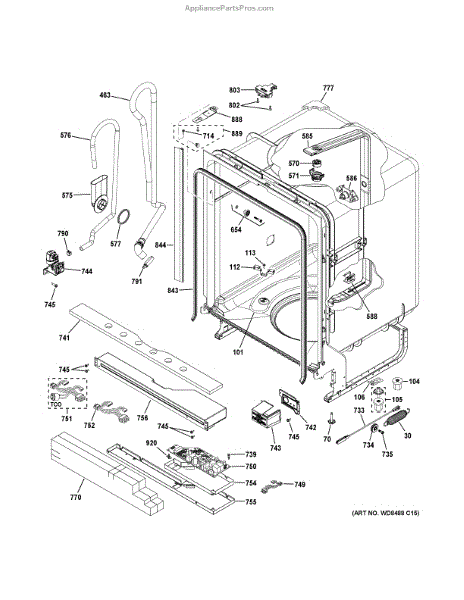

Parts for Ge GDF610PGJ2BB: Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher door spring counterbalances the door so it opens smoothly and doesn't drop. Replacing a fatigued or broken spring restores proper door action, prevents sudden slamming, and reduces stress on the hinges and link components.

• Provides the tension that counterbalances the door's weight during opening and closing
• Helps prevent the door from dropping quickly or feeling unusually heavy
• Supports smooth, even movement within the door hinge/counterbalance system
• Common signs of failure: door falls open, won't stay partially open, or binds/squeaks while moving

• Disconnect power and shut off water before servicing; wear gloves and eye protection
• Remove the toe-kick to access the spring and hinge area
• Support the door; carefully relieve spring tension and transfer the spring to the same anchor points as the original
• Test door balance and motion before reinstalling the toe panel

This leveling leg adjusts the dishwasher's height at the base, helping you level and stabilize the unit inside the cabinet. Proper leveling reduces rocking and vibration and promotes a tight door seal and smooth rack operation.

• Screws into the base frame to set height and level the dishwasher
• Supports the unit to prevent rocking or wobbling
• Helps maintain door alignment and sealing; poor leveling can contribute to leaks
• A worn, bent, or missing leg can make leveling difficult and increase vibration/noise

• Disconnect power and shut off water; slide the dishwasher out if needed for access
• Turn the leg with a wrench or pliers to adjust height; replace by threading the new leg into the base
• Use a bubble level to set side-to-side and front-to-back level before re-securing the unit
• Do not overtighten; ensure both legs carry weight evenly on a solid floor surface

The Heating Element is an OEM part for GE dishwashers. It is responsible for heating the water during the wash cycles and for drying the dishes after the rinse cycle. Proper functioning of the heating element ensures optimal cleaning and drying performance.

Causes of a bad heating element can include mineral buildup from hard water, electrical faults, or general wear and tear over time. Damage to the heating coil or connections can also impair its functionality.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Dishwasher cycles taking longer than usual
• Water not heating during the wash cycle
• Error codes related to heating issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heater nut secures the dishwasher's heating element where it passes through the tub, helping maintain a tight connection and proper positioning. Replacing a damaged or missing nut can help prevent leaks and keep the element stable.

• Fastens the heating element to the tub from below to hold it firmly in place
• Helps support a watertight connection at the element pass-through when used with the proper seal
• Replace if the nut is cracked, heat-damaged, stripped, or missing
• Common symptoms include water leaking under the unit near the heater terminals and a loose or wobbly heating element

• Disconnect power at the breaker and shut off water before servicing
• Access the nut from beneath the dishwasher; remove the toe-kick and pull the unit forward if needed
• Support the element from inside the tub while tightening; snug gently and do not overtighten to avoid damage
• Restore power/water and run a short cycle to check for leaks

This grounding plate is a stamped metal bracket that provides a secure electrical ground connection for the appliance, helping protect components and reduce shock risk. It's a direct-replacement part used where the appliance chassis requires a dedicated grounding point. What it does:

• Provides a reliable chassis-to-ground connection for electrical safety.
• Maintains a stable grounding path for control boards and metal panels.
• Helps address symptoms such as intermittent electrical faults, tripped breakers, or grounding-related error codes when a damaged or missing bracket is suspected.
• Replaces a corroded, bent, or broken grounding/mounting plate to restore proper contact.

• One grounding plate

• Turn off power to the appliance at the breaker and unplug before servicing.
• Mount to the specified chassis location using the original screws or fasteners; ensure clean, bare metal contact for a good ground.
• Do not modify the part; if screw holes or fasteners are missing, replace with OEM-specified hardware.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

This upper wash impeller circulates water to the upper spray system during the wash cycle, helping deliver thorough cleaning across dishes on the upper rack and throughout the tub.

• Drives water flow to the upper spray arm/manifold
• Worn or damaged impeller can cause weak spray, poor cleaning, or longer cycle times
• Physical damage (warping, cracks, stripped splines) warrants replacement

• Disconnect power and water before servicing
• Access is typically through the sump/pump area; note impeller orientation during removal
• Inspect mating parts (seal, hub, shaft/splines) and replace if worn
• Hand-tighten fasteners to OEM guidance and verify free rotation before reassembly

The Hub is an OEM replacement part for GE dishwashers. It is the central mechanism which attaches to the tub and facilitates rotation of the upper spray arm above dishes.

Causes of a bad hub include wear from years of repeated rotation, accumulation of hard water scale deposits inside moving parts, or accidental impact damage. This reduces proper function over time.

Symptoms of a bad hub include:

• Loud clunking or grinding noises from the center mechanism
• Reduced cleaning performance on upper racks or portions of dishes
• Dishes showing water spots or soil in sections not adequately rinsed
• Inability to attach or move the upper spray arm assembly smoothly

This OEM GE hub replacement is also compatible with Crosley, and KitchenAid models.

This fill funnel assembly mounts inside the dishwasher tub at the water inlet. It directs incoming water into the tub and helps prevent splashing or leaks at the fill area for reliable fills and cleaner operation.

• Channels water from the inlet opening directly into the tub
• Helps control splash and seal the fill port to reduce drips
• Damage, cracks, or a missing funnel can cause leaks near the fill area during the fill cycle or unusual spraying sounds
• Restores proper water entry path for consistent filling

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the fill inlet on the tub wall
• Remove retaining fastener(s) or tabs, replace the funnel, and ensure any seal is properly seated
• Reassemble and run a brief fill/rinse to check for leaks at the inlet area

This fill funnel hose directs incoming water from the inlet assembly into the tub through the fill funnel. Replacing a worn or cracked hose helps stop leaks and restores a reliable, sealed fill path for consistent wash performance.

• Carries water from the inlet assembly through the fill funnel into the tub
• Maintains a watertight path to prevent external leaks
• Symptoms of failure: dripping during fill, puddles beneath the unit, or visible cracks/splits in the hose
• A significant leak may lead to low water level or extended fill times

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/kickplate; pulling the dishwasher forward may be needed for access
• Place a towel or pan to catch residual water; move clamps, remove the old hose, and fully seat the new hose on both fittings
• Re-secure clamps, restore water and power, and run a short fill to check for leaks before reinstalling panels

This fill funnel assembly mounts inside the dishwasher tub at the water inlet. It directs incoming water into the tub and helps prevent splashing or leaks at the fill area for reliable fills and cleaner operation.

• Channels water from the inlet opening directly into the tub
• Helps control splash and seal the fill port to reduce drips
• Damage, cracks, or a missing funnel can cause leaks near the fill area during the fill cycle or unusual spraying sounds
• Restores proper water entry path for consistent filling

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the fill inlet on the tub wall
• Remove retaining fastener(s) or tabs, replace the funnel, and ensure any seal is properly seated
• Reassemble and run a brief fill/rinse to check for leaks at the inlet area

The Conduit Main Assembly is an OEM replacement part for GE dishwashers. It is installed within the dishwasher tub below the upper wash arm, and is responsible for securely mounting and holding the upper wash arm in place during operation.

Causes of a bad upper wash arm support include:

• Symptoms of a bad upper wash arm support include:
• Vibration or noise from an unsecured wash arm
• Improper alignment of spray pattern
• Restricted rotation of the wash arm during washing
• Leaks at the tub connection point

Symptoms can include cracks or breaks that compromise its structure, or wear over extended use without replacement.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small plastic clip secures a refrigerator's wiring conduit or harness to the cabinet, keeping wires routed and protected from abrasion. It helps reduce strain on connections and prevents wires from contacting moving parts. What it does:

• Holds wiring conduit or harness in place to maintain neat routing
• Prevents wires from rubbing on sharp edges or moving components
• Reduces strain on electrical connections that can cause intermittent faults
• Helps maintain safe separation between wiring and high-heat or mechanical areas

• Turn power off at the appliance and unplug before inspecting or replacing wiring clips
• Remove access panels only as needed to reach the clip; avoid stressing surrounding wires
• Snap the clip into the original mounting slot or replace any damaged fasteners for a secure fit
• If wires show damage or burns, replace the wiring/harness

Replace a worn or broken tub roller with this Tub Roller and Stud Assembly. It mounts to the dishwasher tub wall to guide the rack smoothly, preventing dragging, binding, or derailment when loading and unloading.

• Mounts on the tub sidewall to provide a smooth glide point for the dish rack
• Restores easy rack movement and can reduce squeaking or scraping noises
• Helps keep the rack aligned and prevents it from jumping off track
• Typical signs of failure: cracked/broken wheel, missing/bent stud, rack difficult to slide

• Disconnect power and water supply before servicing; wear cut-resistant gloves.
• Pull the rack out to access the roller location inside the tub.
• Remove the old roller and stud (retainer/tab/screw varies by model) and install the new assembly in the same orientation.
• Slide the rack in and out to confirm smooth movement before returning the appliance to service.

The Door Cable is an OEM part for GE dishwashers, designed to support and assist in the smooth and controlled opening and closing of the dishwasher door. This cable connects the door to the spring mechanism, providing the necessary tension to balance the door's weight during operation.

Signs that you might need to replace the Door Cable include the door suddenly dropping open or being difficult to raise, indicating a break or excessive wear.

Symptoms of a bad Door Cable include:

• The dishwasher door slamming open or requiring extra force to close.
• Unusual noises when opening or closing the door, suggesting the cable is not running smoothly.
• Difficulty in keeping the door partially open, affecting loading and unloading dishes.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 1/4-inch zinc-plated screw secures internal panels and hardware in select dishwashers. Replace a missing, stripped, or corroded fastener to restore a tight fit and help prevent vibration or loosening during operation.

• Fastens brackets, panels, or components that use a 10-32 machine thread
• Replaces hardware that is missing, stripped, or rusted
• Helps reduce rattling or vibration from loose assemblies
• Supports proper component alignment for reliable operation

• Disconnect power and water supply before servicing the appliance
• Remove the old fastener and verify thread size and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace damaged clips, nuts, or inserts that won't hold a 10-32 screw securely

Includes 12 screws.

This bottom-front foam insulation piece replaces the damaged or missing pad under the refrigerator's front base to help maintain proper airflow and thermal separation for more consistent cooling and reduced condensation risk. What it does:

• Replaces worn or crushed insulation at the refrigerator's lower front to restore intended thermal barrier.
• Helps limit warm air intrusion at the cabinet base that can contribute to frost or uneven temperatures.
• Reduces risk of condensation on the cabinet floor and improve overall efficiency when installed correctly.
• Restores correct spacing and support for the lower access area to prevent drafts.

• Disconnect power and remove the toe grille or front access panel before attempting replacement.
• Handle foam carefully — avoid tearing and align the pad to fit flush with surrounding insulation.
• Use existing clips/adhesive or OEM-recommended fasteners; replace adhesives if brittle or missing.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Inlet Valve is an OEM part for GE dishwashers. This part controls the flow of water into the dishwasher. It opens and closes to allow water from the home's supply to enter the dishwasher at the correct times during the washing cycle.

Causes of a bad water inlet valve include wear and tear from regular use, sediment buildup from hard water, or mechanical failure of the valve components.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water filling too slowly or not stopping once the dishwasher is full
• Leaks detected around the valve area
• Unusual noises coming from the valve during the fill cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Electronic Control Board Jumper Wire is an OEM replacement part for GE dishwashers.

Causes of a faulty jumper wire include fracturing of internal interconnects from normal circuit board flexing during door closes. Overly aggressive cleaning solvents may also damage wire insulation over time.

Symptoms of a problematic jumper wire include:

• Intermittent or unreliable operation of wash cycle features
• Unresponsive touch controls and inability to start cycles
• Error codes displayed and failure to detect cycle outputs

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Main Control Board is an OEM replacement part for GE dishwashers. It serves as the central control unit for your dishwasher, responsible for coordinating and regulating various functions and cycles. It controls functions such as water temperature, cycle duration, and detergent dispensing.

A bad Main Control Board can result in a range of issues, including cycle irregularities, error codes, or a complete failure of the dishwasher to function. Causes of a bad Main Control Board can include electrical failures, power surges, or damage due to moisture.

Symptoms of a bad Main Control Board include:

• Inconsistent or erratic cycle behavior
• Error codes or error messages displayed on the control panel
• Inability to start or complete a cycle
• Unresponsive control panel buttons

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Harness ASM DC is an OEM part for GE dishwashers. As the main wiring harness, it connects the control board to other components like the motor, sensors, and heating elements.

Causes of a bad Harness ASM DC can include cuts, cracks, or failure in the insulation over time which can cause shorts. Rodent damage is also common.

Symptoms of a bad wiring harness include:

• Components failing to power on or work properly
• Repeated tripping of the circuits
• Fault codes related to component connectivity issues
• Physical deterioration or rodent chewing of the wires

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Harness ASM DC is an OEM part for GE dishwashers. As the main wiring harness, it connects the control board to other components like the motor, sensors, and heating elements.

Causes of a bad Harness ASM DC can include cuts, cracks, or failure in the insulation over time which can cause shorts. Rodent damage is also common.

Symptoms of a bad wiring harness include:

• Components failing to power on or work properly
• Repeated tripping of the circuits
• Fault codes related to component connectivity issues
• Physical deterioration or rodent chewing of the wires

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dielectric shield is a small heat-resistant insulator that protects ignition wiring and components from heat and prevents electrical arcing near burners. It helps maintain reliable spark ignition and reduces risk of shorts or damage from high temperatures. What it does:

• Shields spark module wires and electrode areas from direct heat exposure
• Helps prevent arcing and electrical shorts that can interrupt ignition
• Reduces risk of melted or damaged wire insulation near burners or ovens
• Commonly replaced when cracked, deformed, or showing burn marks that affect ignition

• Disconnect power (and gas if applicable) before servicing electrical or ignition components
• Inspect surrounding wiring and connectors; replace any damaged insulation or terminals
• Reinstall using original mounting hardware and ensure the shield fully covers the wire/electrode area

This control box bottom is the lower housing that protects and supports the appliance's control electronics, helping keep wiring and components secure from debris and moisture. Fits into the control assembly to restore proper enclosure and support. What it does:

• Provides a protective lower enclosure for the control board and wiring harness
• Helps keep dust, lint and moisture away from sensitive electronics
• Secures the control board and related connectors in their correct position
• Prevents rattling or movement that can cause loose connections or noise

• One control box bottom (base cover) as pictured

• Disconnect power before servicing to avoid shock or component damage
• Handle electronics carefully and avoid touching circuit contacts
• Installation typically requires basic hand tools and removal of the control housing

Replacement control box top that restores the protective cover for the appliance control housing, keeping wiring and electronics enclosed for a cleaner appearance and safer operation. What it does:

• Covers and protects the control housing and internal wiring from dust, spills, and accidental contact
• Helps secure control components in place and maintain the appliance's factory appearance
• Commonly replaced when the original cover is cracked, broken, missing, or shows visible damage
• Can prevent loose wiring from catching or being accidentally disturbed

• One control box top

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Remove any screws or retainers securing the existing cover and lift off the old top; keep fasteners if reinstalling
• Align the replacement top and secure with the original fasteners; ensure wiring is routed and seated before closing

This Insulation Bag Assembly is an OEM part for GE dishwashers. It's designed to provide sound insulation and heat retention, enhancing the overall efficiency and noise reduction of the dishwasher. The insulation bag plays a vital role in maintaining the optimal operating temperature within the dishwasher while minimizing the sound during its operation.

Replacement of the insulation bag assembly may be necessary due to wear, damage, or inefficiency in sound dampening or heat retention. A compromised insulation bag can lead to increased noise levels and reduced energy efficiency.

Symptoms of a malfunctioning Insulation Bag Assembly include:

• Noticeably louder operation of the dishwasher.
• The outer surfaces of the dishwasher becomes unusually warm during operation.
• Physical damage or wear to the insulation material.
• Changes in the dishwasher's drying performance due to altered internal temperatures.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This tub insulation is the replacement foam/fiber wrap that lines the dryer drum area to help retain heat, reduce exterior cabinet temperature, and dampen operation noise for more efficient, quieter drying. What it does:

• Wraps around the dryer drum/tub to help limit heat loss during cycles
• Helps reduce cabinet surface temperature for safer operation
• Dampens vibration and operating noise from the rotating drum
• Supports consistent drying performance by improving heat retention
• Useful when original insulation is damaged, torn, or missing

• Disconnect power (and gas supply for gas dryers) before servicing
• Access requires removing the dryer cabinet or drum per OEM instructions
• Handle carefully—use gloves and eye protection; avoid breathing any loose fibers
• Reinstall with original fasteners and seal as needed to maintain drum clearance

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

The Tub Gasket is an OEM part for GE dishwashers. It is installed around the perimeter of the dishwasher door to create a water-tight seal during operation, effectively preventing water leaks. This gasket ensures that the dishwasher can maintain the necessary water level and pressure to clean dishes effectively, while also protecting your kitchen from water damage.

Causes of a bad Tub Gasket can include natural wear and tear from regular use, exposure to harsh cleaning chemicals that can degrade the rubber material, or improper installation leading to gaps or loosening.

Symptoms of a bad Tub Gasket include:

• Water leaking from around the dishwasher door
• Signs of mold or mildew on the gasket
• The gasket becoming hard or cracked
• Visible gaps between the gasket and the dishwasher door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Black Tub Trim is an OEM part for GE dishwashers. This trim piece attaches to the inner tub and provides an attractive black accent around the wash chamber. It helps improve the aesthetic design and appearance of the dishwasher interior.

Causes of a bad tub trim can include damage from impact or exposure to moisture over time, which can lead to cracking or discoloration of the plastic.

Symptoms of a bad tub trim include:

• Visible cracks or splits in the plastic material
• Sections of trim no longer securely attached
• Discoloration that detracts from the look of the dishwasher interior

This authentic OEM GE replacement tub trim restores the dishwasher's appearance and design integrity. It is constructed of durable plastic designed to last through years of wash cycles.


The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

The Countertop Screw & Buttonplug is an OEM part for GE dishwashers. This assembly includes screws and button plugs designed to securely fasten the dishwasher to the underside of kitchen countertops.

Causes of a bad Countertop Screw & Buttonplug can include stripped threads from over-tightening, corrosion due to exposure to moisture, or general wear and tear that diminishes the screws' and plugs' ability to maintain a secure hold.

Symptoms of a bad Countertop Screw & Buttonplug include:

• Dishwasher tilting forward when the door is opened
• Visible gaps between the dishwasher and countertop
• Loose feeling or movement of the dishwasher when pushed
• Screws failing to hold or remain in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control board clip secures the dishwasher's electronic control board to its mounting location, keeping it properly seated during operation. Replacing a damaged or missing clip helps prevent vibration, movement, and wire-connector strain.

• Holds the electronic control board firmly in its designated mount or housing
• Helps prevent board movement, rattling, and connector stress from vibration
• Replace if the clip is cracked, deformed, or missing
• Symptoms include a loose control assembly, rattling noises, or a board that won't stay seated

• Disconnect power at the breaker before servicing
• Access the control area; support the board when removing/installing the clip
• Handle the control board by the edges and observe ESD precautions
• Ensure the new clip is fully seated and the board is secure before reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
