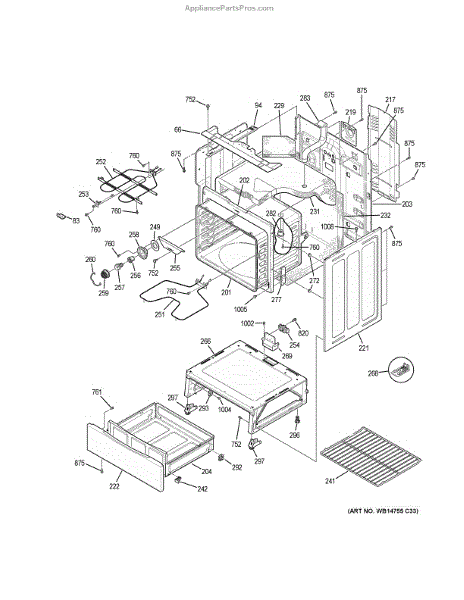

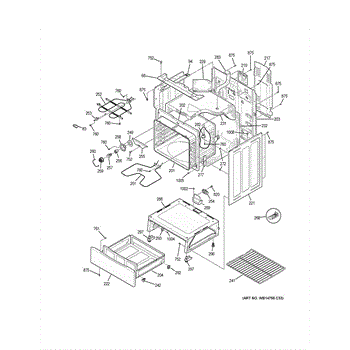

Parts for Ge JBS60DK2BB: Body Parts

This replacement storage drawer lining protects the drawer floor and keeps stored items stable—helpful for worn, stained or missing liners. It restores a clean, non-abrasive surface so drawers look and function like new. What it does:

• Provides a protective surface that helps prevent scratches, stains and wear to the drawer floor
• Reduces item shifting and sliding inside the drawer
• Helps contain minor spills and makes cleanup easier
• Restores a finished appearance when the original liner is damaged or missing

• Remove drawer and thoroughly clean and dry the drawer floor before installing
• Align the liner with the drawer edges and press into place; trim only if explicitly required by model
• No special tools usually required; keep fingers clear of edges when fitting
• Dispose of the old liner according to local regulations

This back cover is the rear panel that protects a range or oven's internal components and wiring, helping keep debris and heat away from sensitive parts for safer, more reliable operation. What it does:

• Shields control modules, wiring, and electrical connections from dust, spills, and physical contact
• Helps contain and direct appliance heat and airflow away from external surfaces
• Reduces risk of accidental contact with live components for improved user safety
• Prevents debris buildup that can lead to malfunctions or odor issues

• One back cover

• Disconnect power (unplug or switch off breaker) before removing or installing the cover
• Remove screws or fasteners securing the old panel; keep hardware for reuse only
• Watch for sharp edges; wear gloves to protect your hands
• Reinstall all fasteners securely and restore power; test appliance function after installation

This oven insulation wrap surrounds the oven cavity to help retain heat and protect nearby components. Replacing damaged or missing insulation helps maintain even cooking temperatures and prevents excess heat from reaching exterior surfaces. What it does:

• Wraps around the oven cavity to reduce heat loss and improve temperature stability.
• Protects wiring, control components and cabinet panels from excessive heat exposure.
• Helps reduce exterior surface temperature and prevents heat-related damage or discoloration.
• Improves cooking performance if old or deteriorated insulation is allowing heat to escape.

• Turn power to the appliance off at the breaker before starting any work.
• Allow the oven to cool completely and follow OEM service instructions for accessing the cavity.
• Handle insulation carefully to avoid tearing; avoid contact with heating elements and sharp edges.

The Oven Rack is an OEM part for GE ovens. This rack provides a stable and durable surface for placing baking dishes, pans, and trays inside the oven. Designed to fit perfectly within the oven cavity, it ensures proper airflow around the food, contributing to even cooking and baking results. The rack measures approximately 24"X17".

Common causes of a bad oven rack include bending or warping from heavy loads, rusting or corrosion due to prolonged exposure to moisture, or accidental damage during cleaning or handling.

Symptoms of a bad oven rack include:

• Warped or bent rack wires
• Difficulty sliding the rack in and out of the oven
• Uneven cooking due to improper rack placement
• Rust or flaking metal on the rack

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven light gasket seals the light lens/cover to the oven cavity. Replacing a worn gasket restores a tight barrier that helps keep heat, steam, and splatter away from the light assembly and lets the lens seat securely.

• Creates a heat-resistant seal between the light lens/cover and oven liner
• Helps keep moisture, grease, and food vapor out of the light assembly
• Supports proper seating of the lens cover to prevent looseness or rattling
• Common signs: cracked/brittle or missing gasket, visible gaps around the lens, condensation or residue behind the lens, lens cover that won't stay tight

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access; open/remove the light lens cover as directed in the manual
• Carefully remove the old gasket and any residue; clean the sealing surface
• Fit the new gasket evenly around the lens/fixture and reinstall the lens cover; restore power and test

The Bake Element is an OEM part for GE ovens. It is responsible for providing the necessary heat for baking, ensuring that the oven reaches and maintains the correct temperature for consistent and even cooking results. Measuring 18" from side to side, 17-3/8" from the mounting bracket to the back, and 2 3/4" between terminal centers, it's designed to deliver 2585 Watts at 240 Volts.

Causes of a bad bake element can include regular wear and tear from repeated heating cycles, electrical failures such as short circuits or blown fuses, and physical damage like cracks or breaks from mishandling.

Symptoms of a bad bake element include:

• The oven not heating up or taking too long to heat
• Uneven cooking or baking results
• Visible damage, such as burns or breaks, on the element
• The oven tripping the circuit breaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The broil element assembly is an OEM part for GE ovens. It is responsible for generating intense heat from the top of the oven cavity, allowing you to broil and brown food.

A bad broil element assembly can lead to issues such as uneven heating, failure to reach the desired broiling temperature, or complete lack of heat during the broiling process. Causes of a bad assembly can include wear and tear over time, electrical malfunctions, or damage to the element itself.

Symptoms of a bad broil element assembly include:

• Uneven browning or cooking of food
• Inability to achieve the desired broiling temperature
• No heat coming from the top of the oven during broiling
• Visible damage or burning on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This mount terminal block secures and organizes high-voltage wiring where the appliance power harness connects to the oven/range chassis. It provides a stable, insulated connection point to help restore reliable electrical contact. What it does:

• Holds and routes the incoming power wires and attaches them to the appliance wiring harness
• Provides insulated, screw-style terminal connections to maintain secure electrical contact
• Commonly replaces a cracked, melted, or loose terminal block that can cause poor power or intermittent operation
• Can stop visible sparking or burning at the connection point and prevent wire chafing

• Always disconnect all power at the breaker or unplug the appliance before servicing
• Verify wiring locations and take photos before removing the old block to ensure correct reconnection
• Use appropriate insulated tools and replace any damaged screws or wire terminals as needed

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

This hinge receiver secures the refrigerator door hinge to the cabinet frame, keeping the door aligned and closing smoothly. It replaces a worn or damaged receiver to restore proper door fit and operation. What it does:

• Secures the hinge pin to the cabinet frame so the door pivots correctly
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door seat and seal fully to maintain internal temperature
• Stops clicking, rubbing or loose-feeling hinges caused by a broken receiver

• Unplug the appliance or disconnect power before starting work to avoid electrical hazards.
• Support the door while removing hinge fasteners to prevent injury or damage.
• Use proper hardware and hand tools; do not overtighten fasteners which can strip mounting holes.

This vent tube directs heat and venting from the oven/radiant element to help maintain proper airflow and protect surrounding components. It's a direct-fit replacement designed to restore proper venting performance. What it does:

• Channels heat and vent airflow away from the radiant element and oven cavity
• Helps prevent hot spots and protect adjacent components from excess heat
• Replace when bent, cracked, corroded or blocking airflow
• Can resolve venting-related cooking issues and uneven broiling

• Vent tube

• Disconnect power to the appliance before starting any repair
• Remove oven panels and allow all components to fully cool before handling
• Handle carefully to avoid damaging ends or mounting tabs; use basic hand tools

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes of faulty support can include cracks or fractures developing over extended use, worn joints unable to sustain drawer weight, or misalignment from repeated opening/closing stress.

Symptoms of a bad support include:

• Loose or sagging lower oven drawer
• Grinding or binding noises when operating the drawer
• Difficulty fully extending or retracting the drawer
• The drawer not sitting securely in a closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Package of 12

Black. 8-18 AB HXW 3/8

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

Size: 8-18 BA POR 3/4 SN
