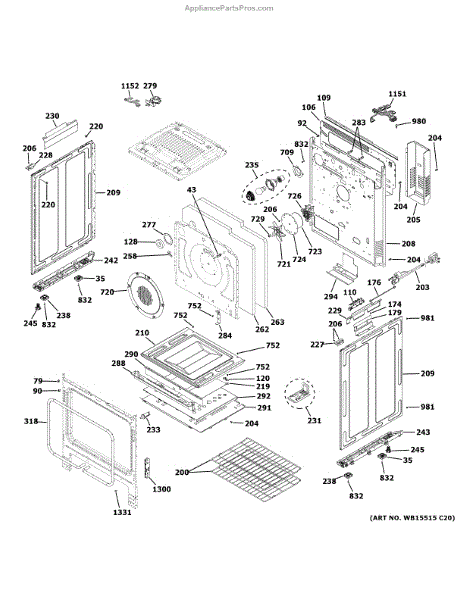

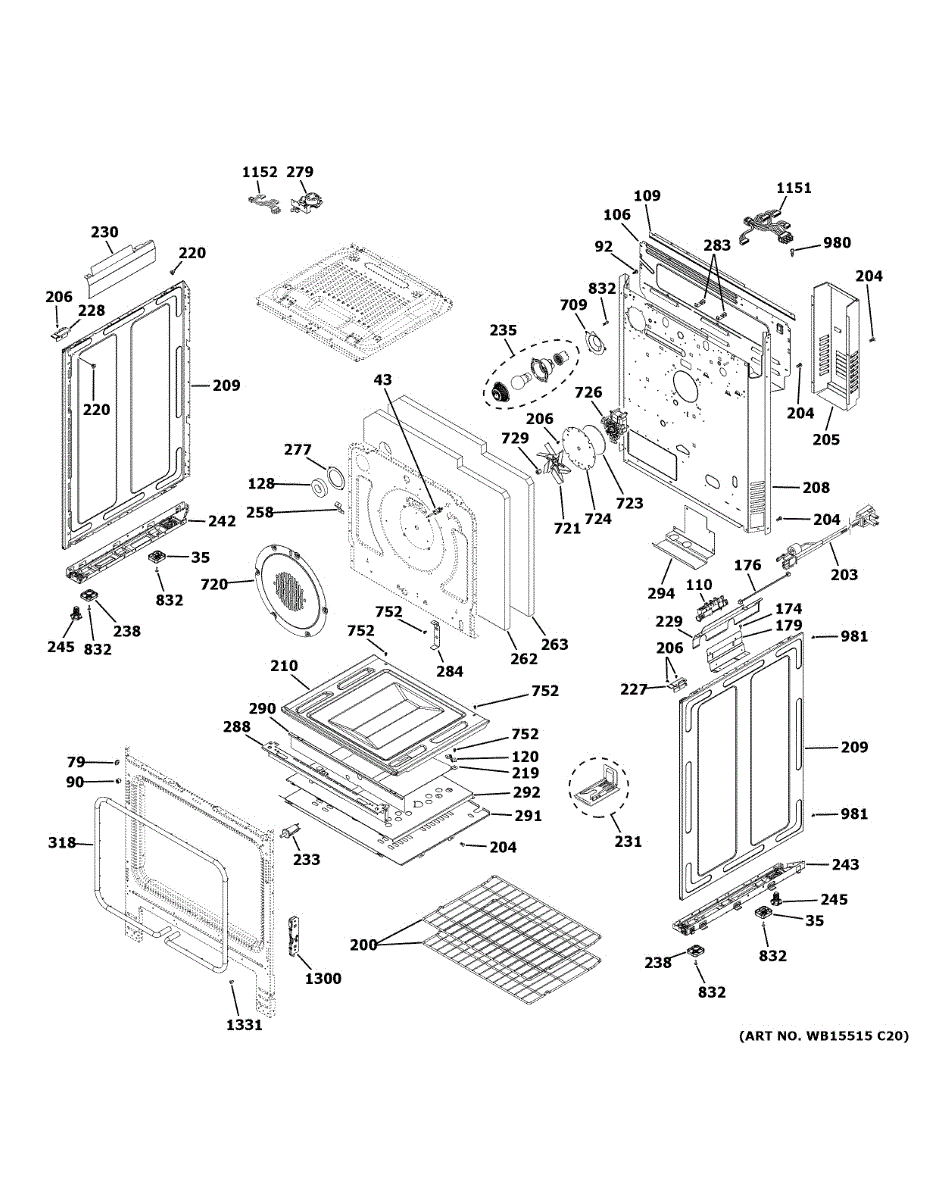

Parts for Ge JGS760BP1TS: Body Parts

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

The Temperature Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or sensors reaching the end of their lifespan after years of high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to achieve or maintain the set oven temperature
• Wide fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement front frame bumper that cushions and supports the appliance's front frame or door trim, helping reduce vibration and prevent metal-on-metal contact—restoring a secure, quiet fit for the door or trim assembly. What it does:

• Cushions the front frame/door trim to prevent wear, chipping, and metal rubbing.
• Helps align and stabilize the door/frame for proper closing and fit.
• Reduces rattling and vibration noise during operation.
• Commonly replaced when the door feels loose, rubs against the cabinet, or makes noise.

• Disconnect power to the appliance before beginning any repair.
• May require removal of the door trim or front panel—use basic hand tools and keep fasteners organized.
• Seat the bumper fully in its mounting location; avoid forcing or deforming the part.

The Ignition Module is an OEM part for GE ranges. This part generates the spark that ignites the gas burners on the cooktop. It ensures that the burners light efficiently and safely, allowing for reliable cooking performance.

Causes of a bad ignition module can include electrical surges, general wear and tear, or damage from exposure to moisture or high temperatures.

Symptoms of a bad ignition module include:

• Burners not igniting or taking longer to ignite
• Weak or inconsistent spark
• Clicking sound without ignition
• Burners going out shortly after being lit

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a #8-18 machine screw used to secure panels and components on compatible appliances. It replaces missing, stripped, or damaged screws so parts stay fastened and appliances run quietly and safely. What it does

• Fastens panels, trim, brackets, and small components to the appliance chassis
• Restores secure mounting when a screw is missing or damaged
• Helps eliminate rattling or movement caused by loose fasteners
• Used where a #8-18 machine-thread screw is specified by the manufacturer

• One #8-18 machine screw

• Use the correct driver and size to avoid stripping the head or threads
• Hand-start the screw to ensure proper thread engagement before using a power tool
• Do not overtighten; stop when parts are snug to avoid cracking plastic or deforming metal
• Disconnect power to the appliance before accessing internal components for repair

This grounding harness connects an appliance's metal chassis to earth ground, restoring a safe electrical return path and helping prevent shocks or arcing. Use when the original ground wiring is damaged or corroded. What it does:

• Provides the grounded connection between the appliance chassis and house ground
• Helps prevent electrical shock and reduces risk of arcing at metal parts
• Restores proper grounding after damage, corrosion, or failed wiring inspections
• Supports safe operation of controls and component grounding points

• Disconnect power to the appliance at the breaker before starting any work
• Inspect mounting points and terminals; replace any damaged clips or fasteners
• Route wire clear of heating elements and moving parts; secure with manufacturer clips

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement line cord restores the appliance's connection to household power so it can run safely and reliably. It replaces a damaged or worn cord to help eliminate power loss and intermittent operation. What it does:

• Supplies mains power from the wall outlet to the appliance
• Replaces frayed, cut or damaged wiring that can cause power failures
• Helps resolve symptoms like no power, intermittent power, or visible cord damage
• Works with the appliance's existing terminal block and strain-relief connection

• Disconnect the appliance from power at the breaker or outlet before starting work
• Route the cord and secure the strain relief exactly as the original to prevent wear
• Tighten terminal connections securely; replace damaged terminal hardware if present

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This motor cover protects the appliance motor and surrounding components by keeping debris out and helping direct airflow. It restores the motor enclosure for safer, more reliable operation after damage or wear. What it does:

• Shields the motor and wiring from lint, dust, and foreign debris that can cause wear or interference
• Helps maintain proper airflow around the motor for cooling during operation
• Reduces exposure of moving parts to accidental contact and improves overall safety
• Commonly replaced when cracked, broken mounting tabs allow movement, or visible damage exposes the motor

• Disconnect power before starting any repair to avoid shock or injury
• Remove access panels as needed to reach the motor area; keep track of fasteners
• Align cover mounting tabs and secure with the original screws or hardware; do not overtighten
• Inspect and repair/replace affected components before reinstalling the cover

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

The bottom oven and deflector assembly is an OEM part for GE ranges. It serves as the protective shield for the bottom of the oven, preventing any drips, spills, or food debris from falling into the internal part of the range.

A bad bottom oven and deflector assembly can result in issues such as increased smoke during cooking, difficulty in cleaning the oven, or potential damage to the heating elements. Causes of a bad part can include wear and tear over time, accidental spills or exposure to high heat.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive smoke or burning smell during cooking
• Difficulty in cleaning the oven due to accumulated debris
• Uneven heating or cooking results
• Visible damage or warping of the deflector

Replace your worn-out or damaged bottom oven and deflector assembly with this genuine OEM GE part to restore your range.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

This automatic latch secures the appliance door during operation and releases it when the cycle finishes, helping the appliance run safely and reliably. It replaces a worn or broken latch to restore proper door closure. What it does:

• Secures the door so the appliance can start and complete cycles
• Releases the door at cycle end for unloading
• Commonly used when the door won't stay closed, the appliance won't start, or cycles stop unexpectedly
• Fits into the door/latch assembly location and interfaces with the door strike

• One automatic door latch

• Disconnect power before attempting any repair to avoid shock or injury
• Access usually requires removing the appliance door or front panel; keep fasteners organized
• Test door operation after installation to ensure latch engages and releases smoothly
• If other door components are damaged, inspect and replace them as needed for reliable operation

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

This oven door gasket assembly seals the oven door to help keep heat, smoke and odors inside the oven cavity for more even cooking and improved efficiency. It replaces a worn or damaged door seal quickly and easily. What it does:

• Forms a heat-tight seal around the oven door to reduce heat loss and improve temperature stability
• Helps prevent smoke and odors from escaping into the kitchen
• Reduces energy waste from a failing or brittle seal
• Common symptom fix: visible gaps, charred or compressed gasket, heat felt at the door edge, longer cook times or uneven baking

• One oven door gasket assembly

• Disconnect power (and gas if applicable) and allow the oven to cool completely before beginning
• Inspect the door and retainer for damage; remove old gasket per OEM instructions and fit new gasket evenly into the retainer channel
• Avoid over-stretching the gasket; ensure a continuous seal around the full perimeter

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

This fan insulation pad cushions and isolates the fan assembly to reduce vibration noise and help direct airflow around the fan. It's a simple replacement that restores proper fit and helps the appliance run more quietly. What it does:

• Cushions the fan motor and housing to reduce vibration and rattling sounds
• Helps maintain correct air path around the fan for proper cooling or circulation
• Prevents metal-to-metal contact that can cause wear or noise
• Useful when torn, compressed, or missing insulation causes loose fit or added noise

• Remove power to the appliance before beginning any repair
• Handle the foam gently to avoid tears; align around fan housing per OEM positioning
• No special tools typically required; keep fasteners and mounting clips for reassembly

The Convection Motor is an OEM part for GE gas ranges. It is the component responsible for circulating hot air around food inside the oven cavity during convection cooking cycles.

Causes of a bad convection motor include failed windings, worn bearings, or damage from excess heat over time.

Symptoms of a bad convection motor include:

• Inability to select convection cooking functions
• Lack of air movement inside the oven
• Slower than normal cooking times
• Uneven baking or roasting results

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

A receiver hinge that secures and supports an oven door hinge pin to keep the door aligned and operating smoothly. Replaces a worn or broken receiver to restore proper door fit and movement. What it does

• Accepts and retains the oven door hinge pin so the door opens and closes correctly.
• Supports door weight to prevent sagging or uneven alignment.
• Helps the door latch and seal properly for safe, consistent operation.
• Commonly replaced when the door drops, rubs, or will not stay closed.

• One receiver hinge

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the oven door or access panel per the service manual for safer installation.
• Use basic hand tools; check hinge pins and mating hardware for wear and replace if needed.
