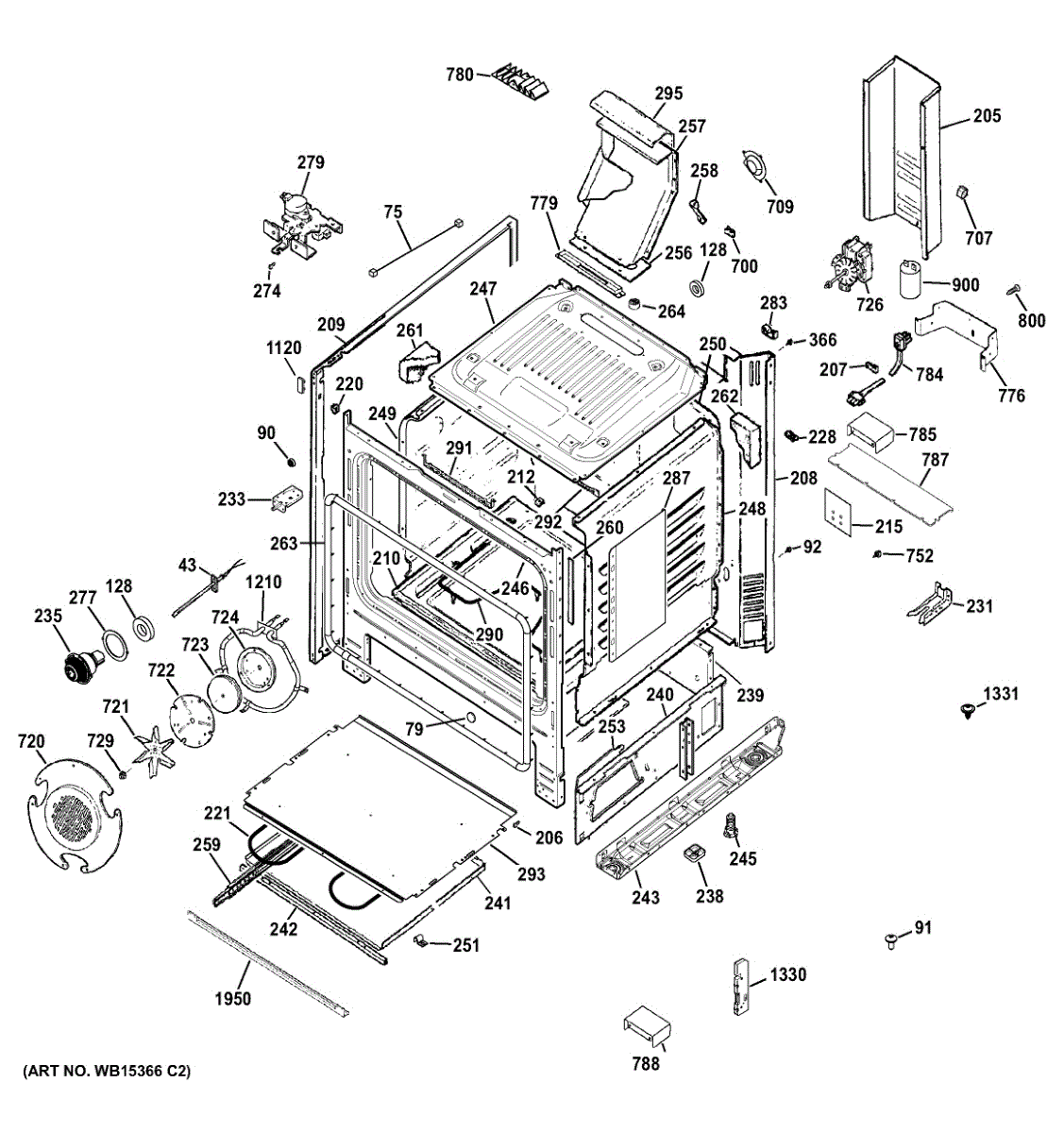

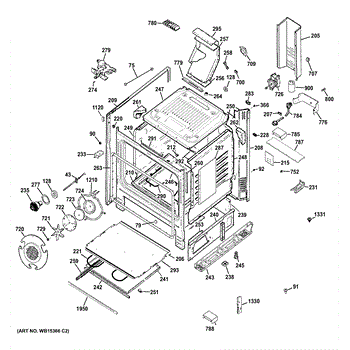

Parts for Ge P2B940DEH1BB: Body Parts

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This guard terminal protects and shields wire connection points on your appliance, helping prevent accidental contact and shorting while keeping terminals organized for reliable operation. What it does:

• Covers and insulates exposed terminal connections to reduce risk of arcing or short circuits
• Keeps wiring routed and separated for consistent electrical contact
• Helps avoid accidental contact during maintenance or part replacement
• Supports safe operation by protecting fragile terminal ends from bending or snagging

• Disconnect power to the appliance before inspecting or replacing electrical parts
• Replace only with the correct terminal guard
• Use basic hand tools; avoid bending terminals or over-tightening fasteners

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

This bake element heats the oven cavity so food cooks evenly on bake settings. It replaces a failed or damaged element to restore proper baking performance and clear heating issues. What it does:

• Heats the bottom of the oven for bake cycles
• Replaces elements that are broken, visibly burnt, or not producing heat
• Helps resolve uneven cooking, no-heat on bake, or error codes related to open elements
• Works with matched oven control settings to maintain set temperatures

• One bake/heating element

• Disconnect power to the appliance before starting any repair
• Handle the element carefully to avoid bending or damaging terminals
• Verify electrical connections are tight and secure; replace mounting screws if worn

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

Left hand side

Right hand side

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vent gasket seals a refrigerator/freezer vent opening to help maintain proper airflow and reduce warm-air intrusion into cooled compartments. A simple replaceable seal that restores a tighter vent fit and supports efficient cooling. What it does:

• Seals the vent opening to limit air leaks between compartments
• Helps maintain consistent internal temperatures by preventing warm air entry
• Reduces moisture transfer that can cause frost buildup around the vent
• Restores proper vent alignment and improves airflow routing

• Disconnect power to the appliance before beginning any service
• Remove any interior panels or shelving that block access to the vent per your model's service instructions
• Press the gasket into the vent channel, ensuring an even, secure fit without stretching or twisting
• If clips or screws are present, reinstall them to OEM torque.

Left hand side

Right hand side

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

The Bake Element is an OEM replacement part for GE electric ranges. It is the internal heating element located at the bottom of the oven cavity that provides heat for baking and convection cooking functions. This heating element measures 17 1/2 x 18 1/2 inches.

Causes of a bad bake element include failure due to normal wear and tear over extended use. Exposure to spills or splatters inside the oven can potentially damage heating coils or insulators.

Symptoms of a bad bake element are:

• Inconsistent or uneven baking temperatures
• Element does not heat up or turns red but puts out no heat
• Buzzing/humming sounds from beneath oven cavity
• Failure of oven to operate or preheat as expected

This OEM part is also compatible with ranges sold under the Hotpoint, RCA and some Kenmore brands.

The Oven Broil Element is an OEM replacement part for GE ovens. It is located in the upper portion of the oven cavity and is responsible for generating intense heat for broiling foods. This element provides even heat distribution, ensuring proper cooking and browning of food during the broil cycle.

Over time, broil elements can wear out or fail due to frequent use, high temperatures, or electrical issues. A damaged element will affect the oven's ability to broil properly.

Symptoms of a bad broil element include:

• The broil function not working or producing insufficient heat
• Uneven browning or cooking of food during broiling
• Visible damage, such as breaks or blisters on the element
• Sparking or tripping of the circuit breaker when the broil setting is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

Back

This fan insulation pad cushions and isolates the fan assembly to reduce vibration noise and help direct airflow around the fan. It's a simple replacement that restores proper fit and helps the appliance run more quietly. What it does:

• Cushions the fan motor and housing to reduce vibration and rattling sounds
• Helps maintain correct air path around the fan for proper cooling or circulation
• Prevents metal-to-metal contact that can cause wear or noise
• Useful when torn, compressed, or missing insulation causes loose fit or added noise

• Remove power to the appliance before beginning any repair
• Handle the foam gently to avoid tears; align around fan housing per OEM positioning
• No special tools typically required; keep fasteners and mounting clips for reassembly

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spindle to turn and move the air around inside the oven. The fan helps the food to cook more evenly and reduces areas in the oven that are not cool enough or hot enough. If the fan is not working, the convection oven will not cook correctly.Convection ovens are different from regular ovens, and the fan is part of the reason. Convection ovens use the fan and an exhaust system to move the heat around inside the oven to cook food more evenly and faster. Many convection ovens have a setting that allows the oven to be used as a regular oven. If the nut is missing and the fan is inoperable, the oven can be used for regular cooking if it has this feature. Otherwise, the convection oven should not be used until the nut is replaced.This nut is a silver metal replacement part that is sold individually. It is designed for use in convection ovens made by GE and Kenmore.

Package of 12

A protective terminal block guard that shields and secures the appliance's electrical terminal connections, helping prevent accidental contact and wire strain. Fits the original terminal mounting location and restores the factory safety cover. What it does:

• Covers exposed terminal connections to reduce risk of accidental contact.
• Helps keep wires routed and secured to prevent strain or loose connections.
• Restores the factory protective enclosure after terminal service or replacement.
• Commonly used when replacing or servicing terminal blocks, power cords, or controls.

• Disconnect power at the breaker or unplug the appliance before servicing.
• Install over the terminal block so all connection points are fully covered; secure with original fasteners.
• Inspect terminals and wiring for damage while the guard is off; replace damaged wiring or connectors.

This support smoke eliminator bracket secures the oven/range smoke eliminator assembly so it stays aligned and helps channel smoke and cooking vapors away from controls. It restores correct mounting and reduces rattling or misalignment during use. What it does:

• Secures the smoke eliminator/smoke baffle assembly to the appliance frame
• Helps maintain proper airflow path to reduce smoke and odor reaching controls
• Prevents movement or vibration that can cause noise or misalignment
• Common symptom: visible sagging, loose bracket, or rattling near the smoke eliminator area

• One smoke eliminator support bracket

• Disconnect power to the appliance before starting any repair
• Requires basic hand tools; access may involve removing oven door or rear panels depending on model
• Inspect surrounding fasteners and the smoke eliminator for damage; replace as needed

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This receiver hinge is the metal bracket that secures a refrigerator or freezer door hinge pin and helps the door open and close smoothly. It replaces worn or damaged receiver brackets to restore proper door alignment and operation. What it does:

• Secures the hinge pin to the cabinet so the door pivots correctly
• Supports door weight to reduce sagging and misalignment
• Restores smooth opening and closing when the original bracket is cracked or worn
• Helps maintain an effective door seal by keeping the door properly aligned

• One receiver hinge bracket

• Disconnect power to the appliance before beginning any repair
• Typically installed at the cabinet hinge location; basic hand tools required
• Support the door while removing/installing the hinge to prevent injury or damage
