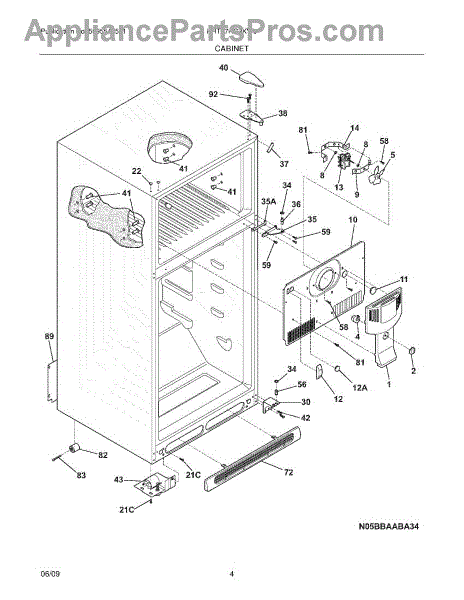

Parts for Frigidaire HRT17HG3KW0: 05 - Cabinet Parts

This evaporator fan cover protects and directs airflow around the evaporator fan to help maintain proper cooling and reduce fan noise. Replacing a damaged cover restores airflow and helps prevent fan interference from ice or debris. What it does:

• Channels cold air from the evaporator across the compartments for more even cooling.
• Shields the evaporator fan from ice buildup, frost, and loose insulation that can block airflow.
• Prevents fan blade contact with debris or wiring that can cause scraping, rattling, or excessive noise.
• Common symptoms: poor or uneven cooling, loud/scraping fan noise, visible cracks or broken mounts on the cover.

• Disconnect power to the appliance before starting any repair.
• Remove the freezer/refrigerator access panel and any shelves; handle sharp sheet metal carefully.
• Inspect the fan blade and motor while the cover is off; clear any ice or debris and ensure the fan turns freely before reassembly.
• Ensure the replacement cover seats securely and any mounting tabs align to restore proper airflow direction.

This damper control knob fits the refrigerator's air damper. It attaches to the damper control so you can open or close airflow between the freezer and fresh food compartments when the original knob is cracked, stripped, or missing.

• Attaches to the damper control shaft to adjust airflow from the freezer into the refrigerator compartment
• Direct replacement for a knob that is broken, missing, or stripped
• Symptoms can include a loose or slipping control, difficulty turning, or settings that won't stay in place
• If the control can't be turned, temperature response to damper adjustments may be inconsistent

• Disconnect power to the refrigerator before servicing
• Pull the old knob straight off the control shaft; avoid prying to prevent damage
• Align the new knob with the shaft and press it on until fully seated
• Rotate through the full range to ensure smooth operation without forcing

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator bracket and bushing assembly secures a moving component and provides a stable wear/pivot surface for smooth operation. Replace it when the original parts are worn or broken and causing looseness, scraping noises, or poor alignment.

• Provides a mounting point and bearing surface for rotational or sliding movement
• Helps maintain alignment and smooth, quiet operation
• Can help address wobble, scraping/binding, or a component that sags or sits out of position
• Replace if the bracket is bent/cracked or the bushing is worn/missing

• Disconnect power before servicing; turn off water supply if working near dispenser lines
• Support the attached component while removing fasteners; note the original orientation
• Transfer any spacers/clips from the old parts if present and tighten fasteners evenly
• After installation, verify smooth movement and proper alignment

Front evaporator fan motor mounting bracket

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

Size: 1" round

This plug seals an unused hole in an appliance cabinet or inner liner to help block drafts, pests and moisture. It restores a clean, finished appearance and prevents accidental debris entry where a fitting or fastener is not used. What it does:

• Seals unused openings in the appliance cabinet or liner to keep out dust, moisture and pests
• Helps prevent air leaks that can affect temperature stability in refrigerators and freezers
• Covers exposed holes left after removing or relocating components or fasteners
• Restores a finished look to access areas and reduces risk of small-item ingress

• One cabinet sealing plug

• Push the plug into the hole until fully seated; no special tools usually required
• Turn off and unplug the appliance before reaching into compartments or behind panels
• Inspect the hole and plug for correct fit; replace if cracked or deformed

The Evaporator Fan Motor is an OEM part for Frigidaire refrigerators. This essential component is responsible for circulating cold air throughout the refrigerator's evaporator coils, ensuring efficient cooling and maintaining the desired temperature.

A faulty evaporator fan motor can have various causes. Over time, the motor's bearings may wear out, resulting in decreased performance or complete failure. Accumulation of dirt, dust, or ice on the fan blades can also impede proper rotation and affect the motor's functionality.

Symptoms of a bad evaporator fan motor may include:

• Insufficient cooling or uneven temperature inside the refrigerator.
• Unusual noises such as grinding, rattling, or squealing coming from the freezer or refrigerator.
• The fan not spinning or operating at a slower speed than usual.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator bracket and bushing assembly secures a moving component and provides a stable wear/pivot surface for smooth operation. Replace it when the original parts are worn or broken and causing looseness, scraping noises, or poor alignment.

• Provides a mounting point and bearing surface for rotational or sliding movement
• Helps maintain alignment and smooth, quiet operation
• Can help address wobble, scraping/binding, or a component that sags or sits out of position
• Replace if the bracket is bent/cracked or the bushing is worn/missing

• Disconnect power before servicing; turn off water supply if working near dispenser lines
• Support the attached component while removing fasteners; note the original orientation
• Transfer any spacers/clips from the old parts if present and tighten fasteners evenly
• After installation, verify smooth movement and proper alignment

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: White. Used for the upper hinge holes.

The Door Hinge Washer is an OEM part for Frigidaire refrigerators. The washer acts as a protective barrier that reduces friction and wear on the hinge and frame, facilitating a quieter operation and extending the lifespan of the door mechanism.

Over time, hinge washers can become worn or damaged due to the constant opening and closing of the refrigerator door.

Symptoms of a bad Door Hinge Washer include:

• The refrigerator door is difficult to open or close
• Squeaking or grinding noises when the door is moved
• Looseness or sagging of the door, indicating misalignment
• Excessive wear on the hinge or the area of the frame where the hinge is attached

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This center hinge spacer sits on the refrigerator's center hinge pin to keep the door properly spaced and pivoting smoothly. Replacing a worn spacer helps restore even door alignment and a reliable gasket seal for easier opening and closing. What it does

• Maintains the correct gap between the door and center hinge to prevent metal-to-metal wear
• Supports smooth, quiet door movement on the hinge pin
• Helps keep the door level so the gasket seals evenly
• Worn or missing spacers can lead to door sagging, rubbing/squeaking, or doors that don't close cleanly

• One center hinge spacer

• Disconnect power and remove items from the door; support the door before loosening hinge hardware
• Lift the door off the center hinge pin and remove the old spacer
• Place the new spacer on the hinge pin, reinstall the door, and check alignment and seal
• Re-tighten hinge fasteners and verify the door opens/closes smoothly

This center hinge pin supports the refrigerator door at the middle hinge and serves as the pivot point. Replacing a worn pin restores smooth door movement and helps the door align and seal properly.

• Acts as the pivot shaft for the door on the center hinge bracket
• Helps maintain correct door height and alignment for consistent sealing
• Wear or damage may show as door sagging, rubbing, squeaking, or not sealing/closing reliably
• Can reduce wobble or looseness felt at the center hinge

• Unplug the refrigerator and remove items from the door before service
• Support the door, remove hinge cover and screws, then lift the door off the center hinge
• Replace the pin in the center hinge/bracket, transferring any original spacers/washers as found
• Reinstall and level the door; verify the gasket seals evenly all around

A replacement corner cabinet trim that restores the finished edge on the appliance cabinet and hides gaps for a cleaner look. Helps maintain the cabinet appearance and prevents debris buildup at the corner. What it does:

• Replaces a cracked, broken, or missing corner trim piece to restore the cabinet edge
• Covers gaps where two cabinet panels meet to improve appearance
• Helps reduce dirt and moisture accumulation in the corner area
• Stops rattling or catching caused by a damaged trim

• Service is generally simple; remove any nearby shelving or panels for access
• Fastens with the factory clip or screw method used on the model—retain original hardware and check alignment before final fastening
• Disconnect power to the appliance if needed to access fasteners near electrical components
• Wear gloves to protect hands from sharp sheet-metal edges during installation

Color: White

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.

Specs: Hex head ,1/4-20 x 5/8

Fixed rollers with leveling screw for the left hand side. For right side, order part 241889001.

The Lower Hinge Pin is an OEM replacement part for Frigidaire refrigerators. It serves as a pivot point to properly hang the refrigerator doors in place. This hinge pin supports the stable mounting of doors while allowing for smooth opening and closing.

Causes of a bad lower hinge pin can include wear from extended use, damage due to excess weight loads, or corrosion interfering with motion.

Symptoms of a bad lower hinge pin include:

• Doors not sitting securely when closed or hanging loosely
• Difficulty smoothly opening or closing the refrigerator door
• Noises or squeaking emanating from door hinge areas
• Gaps appearing around door seals

This Frigidaire refrigerator part is compatible with models by Electrolux, Gibson, Kelvinator, and some Kenmore.

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

Color: White

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

This access cover is a replacement access panel that protects internal components and closes service openings for safe, finished appliance operation. It restores a secure, clean appearance and prevents debris from entering service areas. What it does:

• Covers and protects internal components behind service openings
• Keeps wiring and connections enclosed and out of reach
• Prevents dirt, lint, and small objects from entering service areas
• Restores a finished look and secures loose or missing panels
• Helps reduce drafts through service openings

• Disconnect power (unplug or shut off breaker) before installing
• Use basic hand tools; align tabs or screw holes before fastening
• Handle edges carefully to avoid cuts and prevent damage to surrounding trim

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

Fixed rollers with leveling screw for the right hand side. For left hand, order part 241889002.

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This seal kit replaces worn sealing material in your appliance to restore a tight, reliable barrier. A fresh seal helps stop leaks and drafts, reduces noise, and supports proper temperature and moisture control.

• Creates a secure seal between mating surfaces or components
• Helps prevent air or water leaks around the sealed area
• Can reduce vibration noise from gaps or loose fits
• Supports stable temperatures and overall efficiency
• Common signs include visible gaps, cracking, flattening, or persistent leakage

• Disconnect power (and water or gas, if applicable) before servicing
• Remove the old seal and thoroughly clean mating surfaces of residue
• Test-fit for length/orientation; trim only if instructed by the manufacturer
• Press into place evenly; if adhesive-backed or cement is used, allow proper set time before use and check for leaks

Color: White

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Nylon
