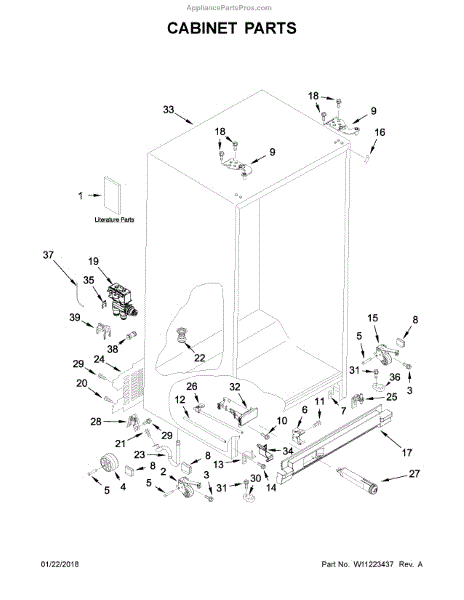

Parts for Kenmore 106.51335710 (10651335710, 106 51335710): Cabinet Parts

Note: Left Hand Roller

This factory screw secures appliance components, panels, and brackets. Replace a missing, stripped, or corroded fastener to restore a snug fit, reduce rattles and vibration, and keep assemblies properly aligned.

• Secures panels, brackets, and internal components in place
• Helps maintain correct alignment and clearances
• Replaces damaged, rusted, or missing screws
• Can help reduce rattling, vibration, or loose-fitting parts

• Disconnect power and shut off water/gas before servicing
• Match this screw to the original location; replace like-for-like
• Start threads by hand and use the correct driver to avoid cross-threading
• Tighten snugly; do not overtighten, especially into plastic or thin sheet metal

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This replacement plate restores the original support or cover function in compatible Whirlpool appliances, helping maintain proper part alignment and stable operation. It's a simple swap that renews fit and reduces rattling or misalignment. What it does:

• Replaces a worn, cracked, or missing plate to restore proper component positioning
• Helps stop vibration, rattling, or movement that can occur with a damaged plate
• Provides the correct surface or mounting point for adjacent parts to seat correctly
• Matches OEM form to maintain appliance fit and function

• Turn off and unplug the appliance before attempting any repair
• Handle the plate carefully to avoid damage; verify orientation before installing
• Follow OEM instructions or a service manual for removal and reassembly steps

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door hinge secures and pivots the appliance door to restore smooth opening and proper alignment. It replaces a worn or damaged hinge to stop door sag, binding, or uneven sealing and helps maintain proper door closure. What it does:

• Provides the pivot point that allows the door to open and close smoothly
• Restores proper door alignment to prevent gaps that can cause cooling loss or rubbing
• Stops sagging or loose doors that no longer latch correctly
• Useful when hinge is cracked, bent, or hardware is worn

• One replacement door hinge

• Disconnect power and empty the door before beginning repair to reduce weight and risk
• Support the door while removing hinge fasteners to prevent dropping or damage
• Tighten screws to secure hinge but avoid over-torquing which can strip threads

Color: no finish

This door hinge assembly supports and pivots either the refrigerator (RC) or freezer (FC) door. Replacing a worn hinge restores smooth door movement and reliable gasket contact to help maintain proper temperatures and reduce air leaks.

• Positions the door on its pivot for smooth opening and closing
• Helps keep the door aligned so the gasket seals against the cabinet
• Reduces air leaks that can lead to frost or temperature fluctuations
• Common symptoms of a failing hinge include a sagging or misaligned door, popping/squeaking, or a door that won't close or seal properly
• Visible wear, bending, or damage to the hinge

• Unplug the refrigerator and shut off the water supply before servicing
• Have a helper support the door; remove the hinge cover and fasteners, then lift the door off the hinge
• Transfer any shims/spacers from the old hinge to the new one in the same order
• Reinstall and tighten fasteners securely; adjust alignment per your model's service instructions

This door hinge assembly supports and pivots either the refrigerator (RC) or freezer (FC) door. Replacing a worn hinge restores smooth door movement and reliable gasket contact to help maintain proper temperatures and reduce air leaks.

• Positions the door on its pivot for smooth opening and closing
• Helps keep the door aligned so the gasket seals against the cabinet
• Reduces air leaks that can lead to frost or temperature fluctuations
• Common symptoms of a failing hinge include a sagging or misaligned door, popping/squeaking, or a door that won't close or seal properly
• Visible wear, bending, or damage to the hinge

• Unplug the refrigerator and shut off the water supply before servicing
• Have a helper support the door; remove the hinge cover and fasteners, then lift the door off the hinge
• Transfer any shims/spacers from the old hinge to the new one in the same order
• Reinstall and tighten fasteners securely; adjust alignment per your model's service instructions

This door hinge assembly supports and pivots either the refrigerator (RC) or freezer (FC) door. Replacing a worn hinge restores smooth door movement and reliable gasket contact to help maintain proper temperatures and reduce air leaks.

• Positions the door on its pivot for smooth opening and closing
• Helps keep the door aligned so the gasket seals against the cabinet
• Reduces air leaks that can lead to frost or temperature fluctuations
• Common symptoms of a failing hinge include a sagging or misaligned door, popping/squeaking, or a door that won't close or seal properly
• Visible wear, bending, or damage to the hinge

• Unplug the refrigerator and shut off the water supply before servicing
• Have a helper support the door; remove the hinge cover and fasteners, then lift the door off the hinge
• Transfer any shims/spacers from the old hinge to the new one in the same order
• Reinstall and tighten fasteners securely; adjust alignment per your model's service instructions

A single-purpose threaded screw used to secure components and panels on compatible appliances. Simple, durable hardware that restores proper fit and reduces vibration or loose parts when a missing or damaged screw is the issue. What it does:

• Fastens panels, brackets, or small components using a 10-32 thread pattern
• Helps stop rattling, loose trim, or misaligned parts caused by a missing or stripped screw
• Restores secure connections after disassembly for repair or maintenance
• Matches OEM thread form for correct fit where specified

• Screw

• Disconnect power and unplug the appliance before service
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and avoid cross-threading; do not overtighten
• Replace only with the exact OEM part number to ensure proper fit and function

Screw: 8-16 x 3/8 inch.

The Water Tube is an OEM component specifically designed for Whirlpool-brand side-by-side refrigerators. It transports fresh water from an external supply line into the internal ice maker and dispenser system.

The water tube plays a vital role in delivering clean drinking water on demand. A pinhole leak could disrupt supply to the entire refrigerator compartment over time if left unaddressed.

Symptoms of a bad water tube include:

• Low water pressure at ice/water dispenser
• Puddles forming inside rear refrigerator walls
• Kinks or cracks in tubing visible near connections

Causes may involve typical wear and tear like tube kinking over years of door openings. Scale buildup internally can gradually reduce water flow.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

Note: Right Hand Roller

The Grille is an OEM replacement part for Whirlpool refrigerators. It covers the gap between the bottom of the refrigerator and the floor, providing a clean and finished look to your kitchen. It helps protect the internal parts from dust and debris while also preventing small items from rolling underneath the appliance.

Symptoms of a bad toe grille include:

• Visible cracks or damage
• Discoloration or fading
• Missing pieces or gaps in the grille

A damaged or worn-out toe grille can occur due to regular use, accidental impacts, or general wear and tear over time. If you notice cracks, discoloration, or missing pieces on the toe grille, it may be time to replace it.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This genuine replacement screw secures appliance panels and components where a 12-24 thread fastener is required, restoring proper fit and reducing rattles or loose parts. Easy swap to get panels tight again. What it does:

• Fastens panels, brackets, and internal components that use a 12-24 threaded screw
• Restores secure mounting when original screws are stripped, lost, or corroded
• Helps eliminate vibration-related noise from loose parts
• Works wherever a 12-24 x 1/2 in. screw is specified by the manufacturer

• One 12-24 x 1/2 in. screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Do not overtighten; stop when the part is snug and seated to prevent damage
• If replacing a stripped or damaged hole, inspect mating threads and repair as needed
• Disconnect power to the appliance before accessing internal components

This hinge screw secures the door hinge to the appliance cabinet or door. Replacing a missing or stripped screw restores a tight, aligned hinge connection for smooth opening and reliable sealing.

• Fastens the hinge to the frame or door to prevent looseness
• Helps maintain door alignment for smooth opening/closing
• Direct replacement for lost, rusted, or stripped hinge screws
• Common symptoms: loose hinge, door sagging, rubbing/binding, or poor sealing

• Disconnect power before service; if working on a refrigerator, also shut off the water supply
• Support the door before loosening or tightening hinge hardware
• Start threads by hand to avoid cross-threading; tighten securely without over-torquing

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. This part is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser system. It operates by opening and closing to allow water from the household supply line to enter the refrigerator as needed.

Over time, water inlet valves can fail or become clogged with mineral deposits, especially in areas with hard water.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• A slow or irregular flow of water from the dispenser
• Unusual noises coming from the valve area during operation
• Water leaking from the valve or at the connection points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The adjustable hinge and cam assembly is an OEM part for Whirlpool refrigerators. It provides stability and smooth movement during opening and closing of the door. The hinge and cam assembly allows for easy access to the refrigerator compartment while maintaining a secure seal to keep your food fresh.

A bad hinge and cam assembly can occur due to regular wear and tear, accidental impact, or a malfunctioning cam mechanism. If you notice symptoms such as the door not closing properly, sagging or misaligned door, or difficulty in opening or closing the door, it may be time to replace this part.

Symptoms of a bad hinge and cam assembly include:

• Door not closing properly
• Sagging or misaligned door
• Difficulty in opening or closing the door

Restore your Whirlpool refrigerator door by replacing the worn or damaged bottom door hinge and cam with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This Whirlpool Water Line is an OEM part specifically designed for compatibility with select Whirlpool refrigerator models. It plays a key role in supplying water to the refrigerator's ice maker and water dispenser, ensuring a consistent and reliable flow of water.

Over time, water lines can develop issues such as wear and tear, kinking, or mineral buildup from hard water. These problems can lead to reduced water flow, potential leaks, or in some cases, complete blockage, affecting the functionality of the refrigerator's water dispenser and ice maker.

Symptoms of a bad water line include:

• Reduced water flow from the dispenser or to the ice maker.
• The ice maker produces smaller or misshapen ice cubes.
• Unexplained water leakage near the refrigerator.
• Visible wear, kinks, or damage to the water line.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The Door Closer-Gravity is an OEM part for Whirlpool refrigerators. It is an assembly located on the top hinge side of the refrigerator door, responsible for providing controlled resistance when opening and closing the door.

Causes of a bad door closer can include worn or broken springs, a damaged sliding mechanism, or misaligned components from repeated use over time.

Symptoms of a bad door closer include:

• The door not staying open at the desired angle when accessing shelves and bins
• Excessive force required to open or close the door
• The door not fully closing or sealing against the cabinet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Whirlpool Water Filter Housing is an OEM part for specific Whirlpool refrigerator models. It plays a role in accommodating the water filter, ensuring clean and safe drinking water is dispensed from your fridge.

A faulty housing may lead to water leaks, improper filter fitting, or reduced effectiveness in water filtration, affecting the quality of the water dispensed.

Symptoms of a bad water filter housing include:

• Leaking water near the filter area.
• Difficulty in installing or removing the water filter.
• Unusual noise or vibration when the water dispenser is used.
• The water filter does not lock in place securely.
• Noticeable decrease in water flow from the dispenser.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


The Water Filter Housing is an OEM part for Whirlpool refrigerators. It houses the water filter which helps improve taste and protects connected water lines and ice maker components.

Causes can include cracks or damage from falls/impacts, deterioration of seals and gaskets over time, or blockages in the internal filter cavity.

Symptoms of a bad filter housing include:

• Leaks or water spills around the filter area
• Inability to easily change out the water filter cartridge
• Cracks or issues with the housing door/latch mechanism
• Mineral or sediment buildup that impacts filter performance

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Housing is an OEM component for Whirlpool refrigerators. Located inside the cabinet, usually underneath the drink dispenser spout, this plastic housing contains the replaceable water filter cartridge.

Symptoms of a bad water filter housing include:

• Inability to properly secure new filter cartridges in place
• Leaks around housing seal when dispenser is in use
• Remnants of old cartridges remaining in housing

Causes stem from normal wear and tear on the plastic material over extended use. Precision alignment is key for water routing.

Replace now with this factory housing to restore dependable filtered water and ice. Fits Whirlpool brand models, including Maytag, KitchenAid, and select Kenmore units. Renewed performance and convenience await with the installation of this OEM component. Trust genuine construction for reliable, fresh water delivery.


This mounting bracket restores secure support for a loose or misaligned appliance panel or component. It provides a direct replacement that helps stop rattling and keeps parts aligned for proper operation. What it does:

• Secures panels or components to the appliance frame to restore stability
• Prevents rattling, vibration, and shifting caused by a broken or worn bracket
• Helps maintain proper alignment so doors, drawers, or panels close correctly
• Works as the OEM replacement part designed for the original mounting points

• Disconnect power (and water for relevant appliances) before starting any repair
• Use basic hand tools; retain any original fasteners unless replacements are provided
• Install in the original bracket location and confirm secure fit before restoring power

The Closing Cam is an OEM part for Whirlpool refrigerators. As an internal component, the closing cam is responsible for assisting with the smooth and secure closing of refrigerator doors.

Causes of a bad closing cam can include wear and tear over time reducing effectiveness, or damage from accidental impacts compromising operational shape.

Symptoms of a bad closing cam include:

• Loose or sagging doors that do not close properly
• Doors that do not fully latch or seal against the gasket
• Increased cooling costs from unsealed interior leakage
• Potential damage to other door parts over repeated stress

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and some KitchenAid models.

This water supply tube connects at the inlet water valve, routing water through your appliance's water system. Replacing a brittle, cracked, or kinked line helps restore reliable, leak-free operation and proper water flow. What it does:

• Carries water from the inlet valve to the designated component (such as dispenser, icemaker, or filter housing, depending on model)
• Helps maintain proper water pressure and uninterrupted flow
• Common symptoms include leaks at the back/bottom, slow or no water at the dispenser, or an icemaker not filling
• Addresses visible cracks, brittleness, or kinks in the existing tubing

• 1 water supply tube

• Disconnect power and shut off the household water supply; relieve line pressure by dispensing water
• Place a towel to catch residual water and note the original routing before removal
• For push-in/quick-connect fittings, insert fully and tug back to verify engagement; if using compression fittings, tighten snugly without overtightening
• Turn water on and check all connections for leaks before restoring power

This water connector is an inlet fitting that connects the household water line to the appliance, providing a secure path for water to reach the valve, dispenser or ice system. It helps maintain proper water flow and prevents leaks when installed correctly. What it does:

• Connects the incoming water supply to the appliance's inlet valve or ice/dispenser plumbing
• Provides a sealed transition between supply tubing and appliance fittings
• Restores normal water flow for ice makers and dispensers when damaged or corroded
• Can prevent dripping or pooling from a failing or broken connector

• Turn off the appliance power and shut off the house water supply before replacing
• Inspect and replace any worn tubing, O-rings, or clamps for a proper seal
• Hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten
• After installation, restore water and power and check all connections carefully for leaks
