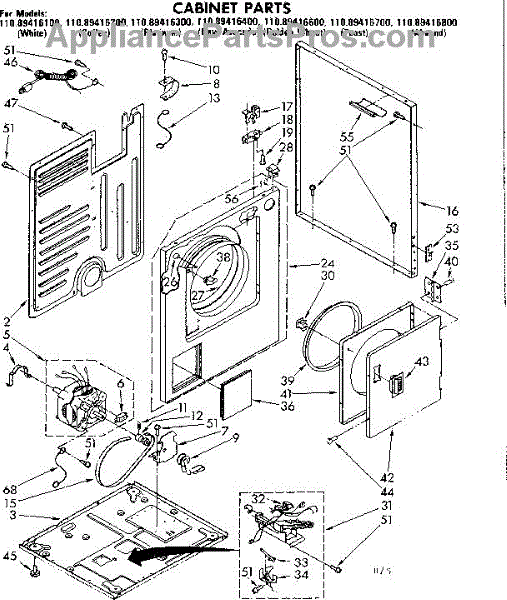

Parts for Sears 11089416700: Cabinet Parts

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Idler Pulley is an OEM part for Whirlpool dryers, responsible for maintaining the correct tension on the drive belt, allowing it to remain tight and aligned, preventing slipping and contributing to the consistent rotation of the drum during cycles.

Symptoms of a bad Idler Pulley include:

• Squealing or squeaking noises
• The dryer drum failing to turn
• Excessive vibration or unusual sounds

Causes of failure can range from normal wear and tear, which can lead to the pulley's bearing wearing out, to the accumulation of lint and debris causing the pulley to seize or function improperly. Additionally, a cracked or damaged pulley can lead to belt misalignment and slippage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fits all Whirlpool-made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate). Matching belt 341241 and rear support rollers 349241T. Whirlpool dryer repair manual 677818L.

The Door Switch Lever is an OEM part for Whirlpool dryers. It plays a vital role in ensuring the dryer only operates when the door is securely closed by engaging with the door switch to signal the door's status.

Causes of a bad door switch lever can include normal wear and tear from repeated use, physical damage from accidental impact, or deformation from heat and humidity inside the dryer. A faulty lever can prevent the dryer from starting or stopping correctly.

Symptoms of a bad door switch lever include:

• Dryer not starting
• Dryer stopping mid-cycle
• Door not latching properly
• The dryer continuing to run with the door open

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes two bumpers and two locking clips. You will use one or the other depending on hole size.

This top front lock secures the front edge of a lift-up range cooktop to the cabinet frame. Replacing a worn lock restores a flush, stable fit so the cooktop stays closed during everyday cooking and cleaning.

• Locks the cooktop down to prevent unintended lifting during use or cleaning
• Maintains alignment so the front edge sits flush and stable
• Reduces vibration and rattling from a loose or misaligned top
• Common symptoms: cooktop won't latch or stay down, front gap, rattling or movement

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Lift the cooktop to access the front frame, remove the old lock, and install the new lock in the same orientation
• Secure with the original fasteners and verify the lock fully engages the mating catch
• Close the cooktop and confirm a flush, stable fit

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This hinge pin assembly secures and guides a refrigerator or freezer door, restoring proper alignment and smooth opening. It replaces worn or bent pins so the door closes evenly and reduces rubbing or sagging. What it does:

• Acts as the pivot point for the appliance door, supporting door weight and movement
• Restores correct door alignment to improve sealing and reduce gaps
• Reduces rubbing, scraping, or uneven closing caused by a worn or bent hinge pin
• Helps prevent accelerated wear to door seals and hinge components when functioning properly

• One hinge pin assembly

• Disconnect power and remove food/contents from the door area before starting
• Support the door while removing or installing the hinge to prevent dropping or injury
• Typical installation uses basic hand tools; do not force parts—inspect mating hinge surfaces for damage

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Size: 8-18 x 3/8 inch.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This outer refrigerator door replaces a damaged or worn exterior door panel so your fridge seals and looks like new. It restores proper closure and helps maintain internal temperature control and appliance appearance. What it does:

• Replaces a damaged, dented or cracked outer refrigerator door panel
• Restores a straight, secure door edge for better sealing and operation
• Helps prevent cold air loss that can cause temperature fluctuations
• Improves appliance appearance by replacing scratched or faded exterior finish

• One outer refrigerator door panel

• Disconnect power and empty the door before starting; remove any screws or hinge covers securing the door
• Lift or support the door while removing hinge fasteners to avoid dropping or damaging the cabinet
• Align hinges and test door swing and seal before tightening all fasteners
• If inner components (bins, trim, gaskets) are attached, they should be properly reinstalled or transferred per manufacturer instructions.

This white front door panel replaces a damaged or worn exterior door and restores the appliance's appearance and sealing surface. It matches the original panel shape and finish for a factory look. What it does

• Replaces a cracked, dented, chipped or otherwise damaged front door panel
• Restores the appliance's exterior finish and helps maintain proper door alignment
• Provides the factory surface for attaching original trim, hinges and handles
• Improves appearance after impact or long-term wear

• One white front door panel

• Disconnect power and water before beginning work
• Some trim, handles or hinges may need to be transferred from the old door; inspect fasteners and hardware
• Handle panels carefully to avoid scratching the finish during installation
• Tighten fasteners to manufacturer torque specs and check door alignment after installation

The Handle, Door (White) is an OEM part for Whirlpool appliances, specifically designed for washing machines and dryers. This handle allows users to open and close the appliance door easily and securely, providing a reliable grip.

Causes of a bad door handle can include regular wear and tear, accidental impacts, or exposure to harsh cleaning chemicals that can weaken the material over time.

Symptoms of a bad door handle include:

• Difficulty opening or closing the door
• Loose or wobbly handle
• Visible cracks or breaks in the handle
• The handle coming off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

Replacement adjustable leveling feet that stabilize your dryer and help keep it sitting level on uneven floors. Restores proper clearance and reduces rocking, vibration and movement for safer, quieter operation. What it does

• Replaces worn or damaged leveling feet to stabilize the appliance
• Allows height adjustment so the dryer sits level on uneven surfaces
• Helps reduce rocking, rattling or excessive vibration during cycles
• Can improve door alignment and reduce friction-related noise

• One set of replacement leveling feet

• Unplug the dryer and move it away from the wall before installing
• Adjust feet by turning them to raise or lower each corner; use a level for best results
• Use two people when tipping or sliding the dryer to prevent injury or damage
• Do not operate the dryer without all leveling feet installed and secured

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.
