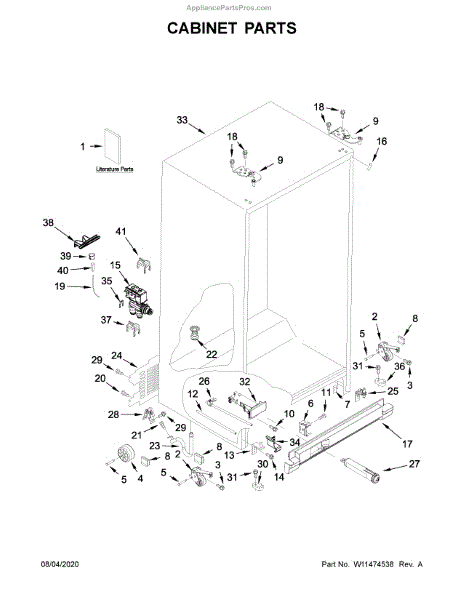

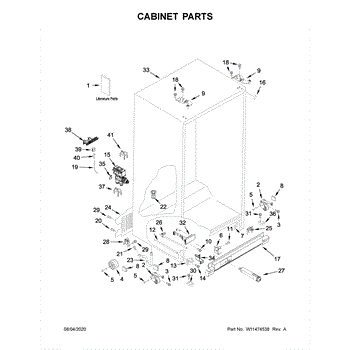

Parts for Whirlpool WRS331SDHM03: Cabinet Parts

Note: Left Hand Roller

Note: Right Hand Roller

Replacement mounting screw that secures panels, brackets, or internal components to restore a solid fit and reduce movement. Simple, direct replacement for a missing, stripped, or corroded fastener to help maintain safe appliance operation. What it does:

• Holds trim, panels, brackets or control assemblies in place to prevent rattling and misalignment.
• Replaces stripped, rusted, or missing screws that can cause loose parts or vibration.
• Restores proper component alignment for safe, stable appliance performance.
• Small, inexpensive fix that prevents further wear to attached parts when properly installed.

• Use the correct screwdriver or bit to avoid stripping the head; match size to the screw.
• Do not overtighten — snug is sufficient to secure parts without damaging threads or components.
• Disconnect power to the appliance before working near controls or wiring.
• Keep removed screws organized during disassembly so all fasteners are replaced.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This replacement plate restores the original support or cover function in compatible Whirlpool appliances, helping maintain proper part alignment and stable operation. It's a simple swap that renews fit and reduces rattling or misalignment. What it does:

• Replaces a worn, cracked, or missing plate to restore proper component positioning
• Helps stop vibration, rattling, or movement that can occur with a damaged plate
• Provides the correct surface or mounting point for adjacent parts to seat correctly
• Matches OEM form to maintain appliance fit and function

• Turn off and unplug the appliance before attempting any repair
• Handle the plate carefully to avoid damage; verify orientation before installing
• Follow OEM instructions or a service manual for removal and reassembly steps

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: no finish

The Top Hinge is an OEM part for Whirlpool refrigerators. It is located at the top of the refrigerator door and is an integral component that helps secure the door while allowing it to swing open and close.

Causes of a bad top hinge can include normal wear from years of opening and closing the door, excess stress from heavy loads inside the door shelves, or loosening of screws over time.

Symptoms of a bad top hinge include:

• The door not sitting flush against the refrigerator cabinet
• Gaps appearing around the door seal
• The door being difficult to open or close
• Squeaking or grinding noises coming from the hinge area

 This replacement hinge is also compatible with models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Water Tube is an OEM component specifically designed for Whirlpool-brand side-by-side refrigerators. It transports fresh water from an external supply line into the internal ice maker and dispenser system.

The water tube plays a vital role in delivering clean drinking water on demand. A pinhole leak could disrupt supply to the entire refrigerator compartment over time if left unaddressed.

Symptoms of a bad water tube include:

• Low water pressure at ice/water dispenser
• Puddles forming inside rear refrigerator walls
• Kinks or cracks in tubing visible near connections

Causes may involve typical wear and tear like tube kinking over years of door openings. Scale buildup internally can gradually reduce water flow.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. This part is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser system. It operates by opening and closing to allow water from the household supply line to enter the refrigerator as needed.

Over time, water inlet valves can fail or become clogged with mineral deposits, especially in areas with hard water.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• A slow or irregular flow of water from the dispenser
• Unusual noises coming from the valve area during operation
• Water leaking from the valve or at the connection points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This grille is the exterior vent trim that covers the appliance's lower front opening, restoring the original look and directing airflow for proper ventilation. It replaces a cracked, broken, loose, or missing grille. What it does:

• Covers and protects the lower front vent opening while maintaining airflow
• Keeps debris and small objects from entering the vent area
• Restores a finished appearance to the appliance front
• Helps prevent rattling or loosely hanging trim that can occur when the grille is damaged

• One grille

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove any retaining screws or clips from the old grille; retain fasteners if they are in good condition
• Align the replacement grille tabs and press or screw into place until secure

This grille is the factory replacement lower oven/kickplate trim that restores the appliance's finished look and allows proper airflow at the oven base. It fits in place of a damaged, cracked, or missing lower front grille. What it does

• Covers and protects the lower front opening of the oven while maintaining proper venting
• Helps keep debris from entering kickspace and internal components
• Restores the appliance's appearance when the original grille is bent, broken, or missing
• Compatible with service diagrams for oven/range lower trim pieces

• One lower oven grille

• Disconnect power to the appliance before beginning any service
• Access may require removing the oven door or toe kick depending on model; follow the factory service instructions
• Handle carefully to avoid scratching the finish; hardware may be reused if undamaged

This replacement grille restores the appliance's front vent trim for a finished look and proper airflow. It matches the original shape and mounting points to keep the front area protected and looking right. What it does:

• Covers and protects front vent openings while providing an attractive trim
• Helps direct airflow and maintain intended ventilation pathways
• Replaces cracked, dented, or discolored grilles to restore appearance
• Fits in the original mounting locations for a direct-fit replacement

• One grille

• Disconnect power to the appliance before starting any work
• Remove any retaining screws or clips and lift the old grille out before installing the replacement
• Align mounting tabs and secure with the original fasteners; do not force parts
• If damaged fasteners are found, replace them with OEM-recommended hardware

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover assembly protects the appliance's internal unit compartment and helps keep wiring and components secure for reliable operation. It replaces a cracked, broken or missing compartment cover to restore proper protection. What it does:

• Protects internal components and wiring from debris and accidental contact
• Keeps the compartment secure and helps prevent loose or exposed parts
• Helps reduce airflow or lint intrusion into the unit cavity when installed
• Restores a proper fit when the original cover is damaged or missing

• One cover assembly

• Disconnect power (unplug or shut off breaker) before beginning work
• Basic hand tools typically required; remove fasteners or clips holding the old cover
• Align tabs and secure with original screws or clips; do not overtighten

The adjustable hinge and cam assembly is an OEM part for Whirlpool refrigerators. It provides stability and smooth movement during opening and closing of the door. The hinge and cam assembly allows for easy access to the refrigerator compartment while maintaining a secure seal to keep your food fresh.

A bad hinge and cam assembly can occur due to regular wear and tear, accidental impact, or a malfunctioning cam mechanism. If you notice symptoms such as the door not closing properly, sagging or misaligned door, or difficulty in opening or closing the door, it may be time to replace this part.

Symptoms of a bad hinge and cam assembly include:

• Door not closing properly
• Sagging or misaligned door
• Difficulty in opening or closing the door

Restore your Whirlpool refrigerator door by replacing the worn or damaged bottom door hinge and cam with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This Whirlpool Water Line is an OEM part specifically designed for compatibility with select Whirlpool refrigerator models. It plays a key role in supplying water to the refrigerator's ice maker and water dispenser, ensuring a consistent and reliable flow of water.

Over time, water lines can develop issues such as wear and tear, kinking, or mineral buildup from hard water. These problems can lead to reduced water flow, potential leaks, or in some cases, complete blockage, affecting the functionality of the refrigerator's water dispenser and ice maker.

Symptoms of a bad water line include:

• Reduced water flow from the dispenser or to the ice maker.
• The ice maker produces smaller or misshapen ice cubes.
• Unexplained water leakage near the refrigerator.
• Visible wear, kinks, or damage to the water line.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The Door Closer-Gravity is an OEM part for Whirlpool refrigerators. It is an assembly located on the top hinge side of the refrigerator door, responsible for providing controlled resistance when opening and closing the door.

Causes of a bad door closer can include worn or broken springs, a damaged sliding mechanism, or misaligned components from repeated use over time.

Symptoms of a bad door closer include:

• The door not staying open at the desired angle when accessing shelves and bins
• Excessive force required to open or close the door
• The door not fully closing or sealing against the cabinet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Whirlpool Water Filter Housing is an OEM part for specific Whirlpool refrigerator models. It plays a role in accommodating the water filter, ensuring clean and safe drinking water is dispensed from your fridge.

A faulty housing may lead to water leaks, improper filter fitting, or reduced effectiveness in water filtration, affecting the quality of the water dispensed.

Symptoms of a bad water filter housing include:

• Leaking water near the filter area.
• Difficulty in installing or removing the water filter.
• Unusual noise or vibration when the water dispenser is used.
• The water filter does not lock in place securely.
• Noticeable decrease in water flow from the dispenser.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


The Water Filter Housing is an OEM part for Whirlpool refrigerators. It houses the water filter which helps improve taste and protects connected water lines and ice maker components.

Causes can include cracks or damage from falls/impacts, deterioration of seals and gaskets over time, or blockages in the internal filter cavity.

Symptoms of a bad filter housing include:

• Leaks or water spills around the filter area
• Inability to easily change out the water filter cartridge
• Cracks or issues with the housing door/latch mechanism
• Mineral or sediment buildup that impacts filter performance

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Housing is an OEM component for Whirlpool refrigerators. Located inside the cabinet, usually underneath the drink dispenser spout, this plastic housing contains the replaceable water filter cartridge.

Symptoms of a bad water filter housing include:

• Inability to properly secure new filter cartridges in place
• Leaks around housing seal when dispenser is in use
• Remnants of old cartridges remaining in housing

Causes stem from normal wear and tear on the plastic material over extended use. Precision alignment is key for water routing.

Replace now with this factory housing to restore dependable filtered water and ice. Fits Whirlpool brand models, including Maytag, KitchenAid, and select Kenmore units. Renewed performance and convenience await with the installation of this OEM component. Trust genuine construction for reliable, fresh water delivery.


This mounting bracket restores secure support for a loose or misaligned appliance panel or component. It provides a direct replacement that helps stop rattling and keeps parts aligned for proper operation. What it does:

• Secures panels or components to the appliance frame to restore stability
• Prevents rattling, vibration, and shifting caused by a broken or worn bracket
• Helps maintain proper alignment so doors, drawers, or panels close correctly
• Works as the OEM replacement part designed for the original mounting points

• Disconnect power (and water for relevant appliances) before starting any repair
• Use basic hand tools; retain any original fasteners unless replacements are provided
• Install in the original bracket location and confirm secure fit before restoring power

The Closing Cam is an OEM part for Whirlpool refrigerators. As an internal component, the closing cam is responsible for assisting with the smooth and secure closing of refrigerator doors.

Causes of a bad closing cam can include wear and tear over time reducing effectiveness, or damage from accidental impacts compromising operational shape.

Symptoms of a bad closing cam include:

• Loose or sagging doors that do not close properly
• Doors that do not fully latch or seal against the gasket
• Increased cooling costs from unsealed interior leakage
• Potential damage to other door parts over repeated stress

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and some KitchenAid models.

This connector is an electrical harness connection used to join wiring in compatible appliances, restoring a secure circuit and helping components receive reliable power. Replaces a broken or damaged plug-style connector to improve electrical contact and reduce intermittent operation. What it does:

• Provides a secure electrical connection between wiring harnesses or components
• Restores reliable power flow to the connected component when the original connector is damaged
• Helps eliminate intermittent faults caused by loose, corroded, or broken terminals
• Used where a plug-style harness connection is required for a serviceable splice or component plug

• Disconnect power to the appliance before servicing to avoid electric shock
• Verify connector orientation and fit against the appliance harness before final installation
• Inspect mating terminals for damage or corrosion and replace if necessary

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.
