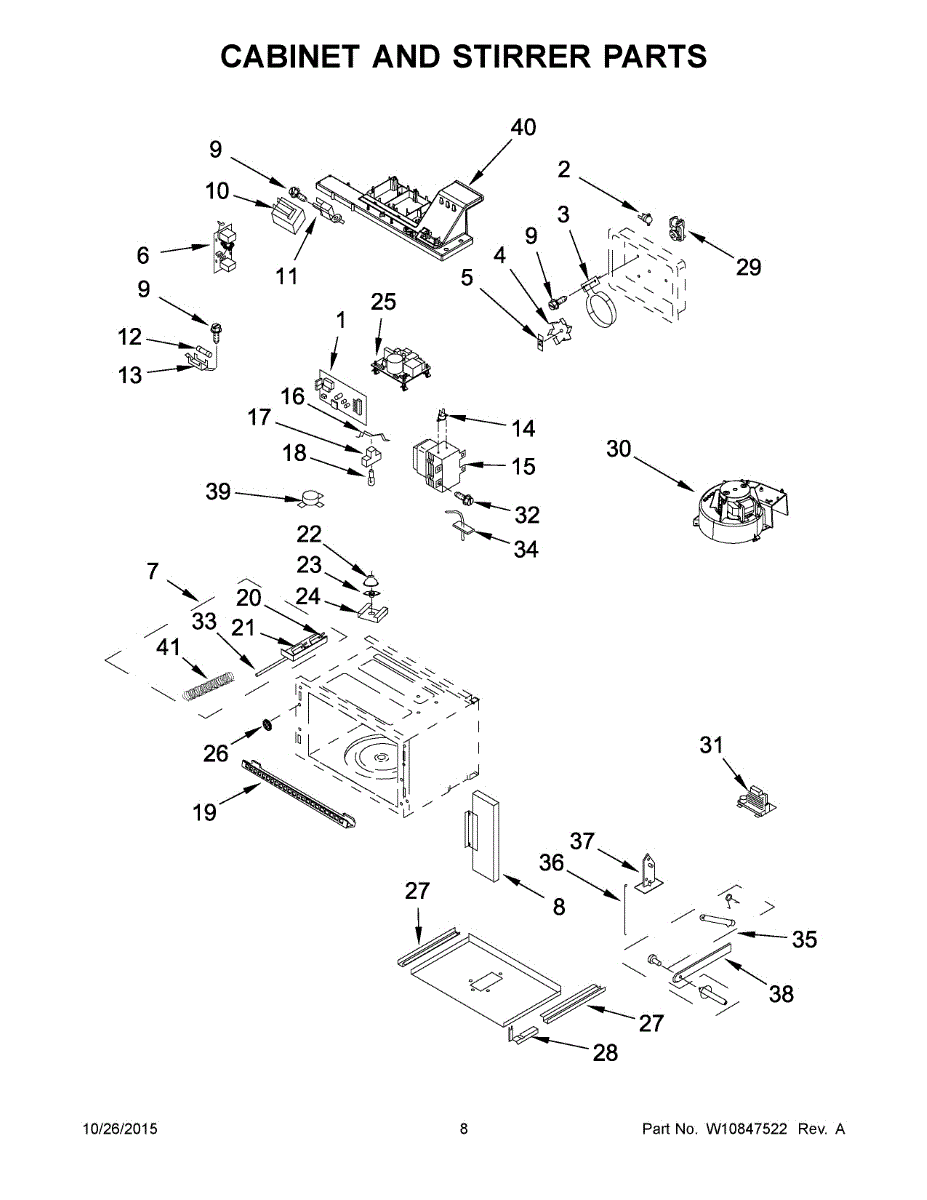

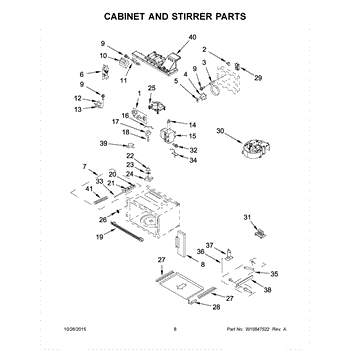

Parts for Whirlpool KMBP100EBS01: 05 - Cabinet And Stirrer Parts

Fix a microwave that won't start, shows 'close door' errors, or has unresponsive controls. This electronic control board manages timing and power distribution.

Oven won't heat or shuts off unexpectedly? A faulty thermal fuse is often the cause. This safety part prevents overheating. Moderate DIY repair.

Replace a microwave heater element when convection cooking isn't working or food isn't browning properly. Moderate skill repair in 30-45 minutes.

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

Broken heating element bracket in your microwave? This ceramic support secures the upper element for even heating. Simple twist-lock install in seconds.

Reduces vibrations and noise from your microwave's internal mechanisms. Replace if you notice excessive buzzing or humming during operation. Confirm fit with your model number before ordering.

Microwave won't start or stops mid-cycle? This door interlock bracket aligns the switch mechanism for proper door sensing. Moderate DIY repair.

Decorative trim frame for built-in microwave installations. Covers gaps between unit and cabinetry. Replace if cracked, discolored, or missing.

Control panel not responding or display flickering? This transformer supplies low-voltage power to your microwave's control board, restoring reliable operation.

Microwave won't start or shuts off unexpectedly? This door latch switch ensures proper door closure detection. Moderate DIY repair, 30-45 minutes.

Microwave won't turn on or has no power? This fuse protects circuits from power surges. Simple replacement restores operation in about 30 minutes.

Microwave won't heat or has no power? A damaged fuse block can prevent electrical flow. This holder secures the fuse to restore safe operation.

Microwave won't heat or shuts off after 10 seconds? This temperature sensor monitors the magnetron and prevents overheating. Simple DIY replacement.

Microwave not heating but runs normally? The magnetron generates microwave energy for cooking. Moderately difficult repair requiring careful handling.

Counterbalance spring for microwave drop-down doors. Assists with smooth opening and closing. Replace if broken, snapped, or door feels heavy to operate.

Secures and powers the G4-base bulb for reliable interior lighting. Replace if bulb flickers, won't stay seated, or socket is damaged. Confirm fit.

Halogen light bulb illuminates your microwave or oven cavity. Replace when light dims or burns out after extended use. Confirm fit with model number.

This outer door trim restores the finished edge and appearance of a damaged or worn appliance door. It replaces a cracked, dented, or loose trim piece so the door looks and seals properly. What it does:

• Covers and protects the door edge and any underlying components from damage and dirt.
• Helps keep door components aligned and prevents gaps that can affect performance.
• Replaces cracked, dented, or loose trim that causes cosmetic or fit issues.
• Improves the appliance's finished appearance after impact or wear.

• Disconnect power to the appliance before beginning any repair.
• Handle trim and adjacent parts carefully to avoid scratching or chipping finishes.
• Installation typically requires removing the door or inner liner—follow your model's service instructions.
• Keep fasteners and backing pieces from the original trim for reuse.

Microwave won't start or shows door error? This door switch signals when the door is closed so power flows to the magnetron. Moderate DIY repair, 30-45 min.

Microwave won't start when door closes? This door interlock assembly restores the safety switch mechanism. Requires panel removal to install.

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

Replaces cracked or missing microwave interior light lens and bulb. Restores clear illumination and protects bulb from food debris. Verify fit with model.

Restores a cushioned seal where hoses, tubes, or wires enter your oven. Prevents leaks and rattles while protecting against chafing. Confirm fit.

Mounting bracket that secures internal microwave components. Replace if your original bracket is cracked, broken, or missing to restore proper alignment.

Replace a worn, cracked, or broken microwave door hinge to restore smooth door movement and proper alignment. Ensures the door opens, closes, and seals.

Convection motor for microwave ovens. Installs in the convection assembly to circulate hot air. Replace if motor is broken, seized, or fan no longer spins.

If your microwave overheats or ventilation has stopped working, the fan motor likely needs replacement. Circulates air to regulate temperature.

Microwave won't heat or shows F1E5 error? The inverter regulates power to the magnetron. Intermediate repair, 1-2 hours with full disassembly required.

Microwave door won't open when you press the button? This release rod connects the button to the latch mechanism, restoring smooth door operation.

Fix inaccurate oven temperatures or temperature error codes with this oven temperature sensor. Monitors cavity heat for precise baking and broiling control.

Dishes coming out spotted or dirty? A worn lower spray arm reduces water coverage. This replacement part restores even cleaning. Moderate DIY repair.

Replacement tension spring for microwave doors. Installs on drop-down door hinge mechanism. Needed when original spring is broken, popped, or missing.

Replacement mounting bracket that secures internal microwave components. Restores proper alignment and stability. Ideal when original is cracked or broken.

Door hinge arm for built-in microwaves. Supports and controls door movement during opening and closing. Replace if cracked, bent, or broken.

Fix inaccurate oven temperatures or won't heat issues with this oven cavity temperature sensor. Restores precise temperature control for reliable baking.

Replace your broken or worn microwave door latch spring. This small metal spring ensures proper door closure and latch engagement on built-in models.
