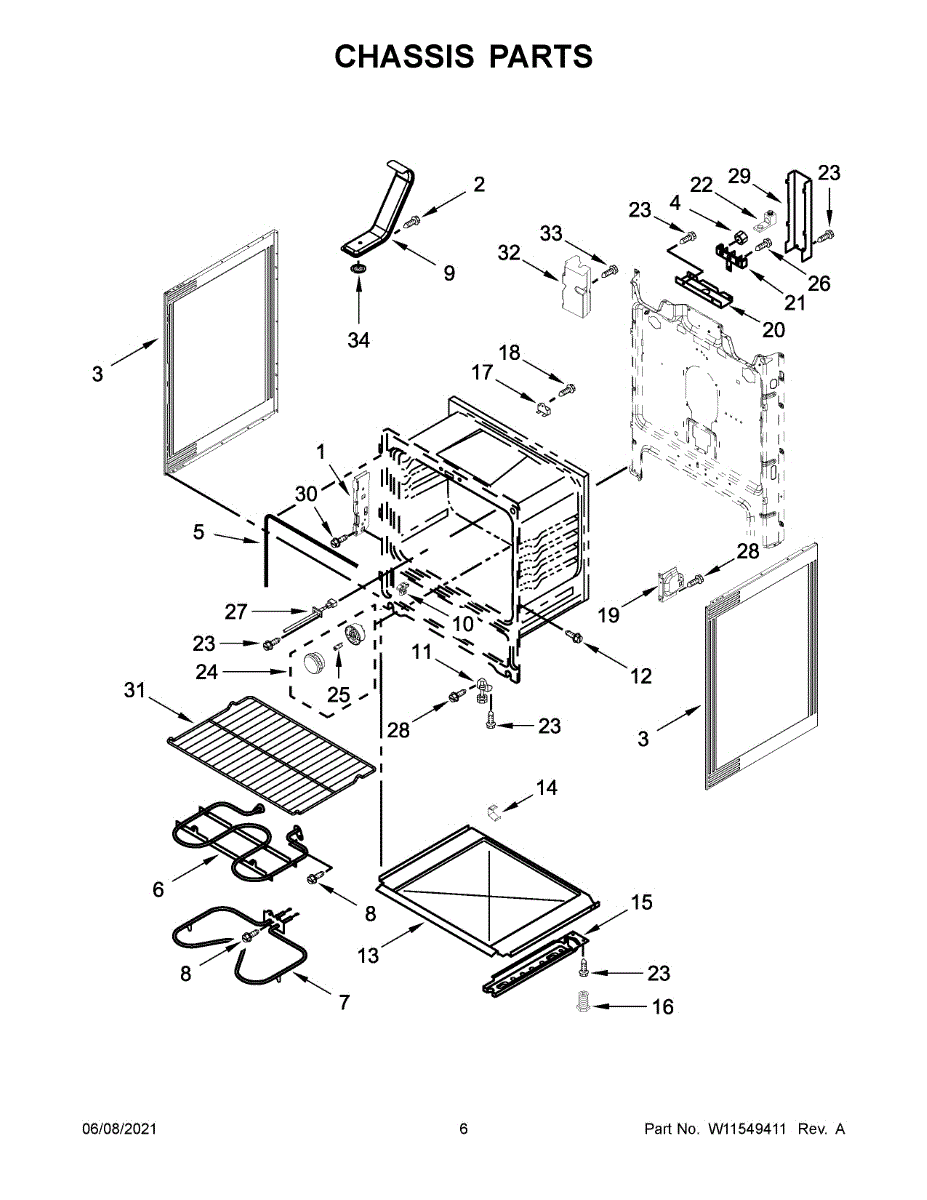

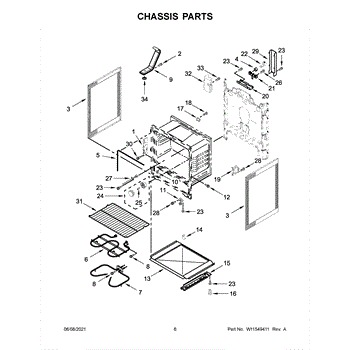

Parts for Whirlpool WFE505W0JZ1: Chassis Parts

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Replacement side panel that restores your range's exterior finish. Covers dents, scratches, or damaged cabinet trim. Easy-to-install cosmetic part.

Secures the terminal block to your range's back panel. Replace if stripped, corroded, or missing to ensure safe electrical connections. 10-32 size.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

Broil element burnt out or not heating? This top heating element provides intense direct heat for broiling. Takes 15-20 minutes to replace yourself.

If your oven won't heat during baking but broil works, the bake element has likely failed. DIY-friendly repair—remove oven racks, unscrew element, swap.

Ground wire screw secures grounding conductor to range chassis for electrical safety. Simple 5-minute repair with basic tools. Fits most models.

Replace worn range drawer glides to restore smooth sliding and eliminate sticking or rattling. Supports proper drawer alignment and movement. Confirm fit.

Front leveling foot adjusts range height for stability. Replaces cracked, broken, or missing feet. Ensures proper leveling to reduce vibration.

Secures burner heads or bases to the cooktop assembly. Replace when stripped, corroded, or missing to keep burners properly aligned and stable.

Metal tray that secures insulation beneath the oven cavity. Replaces damaged, warped, or missing retainers to restore proper insulation support.

Range door insulation clip secures insulation retainer between inner glass panels. Replace if loose, broken, or missing to maintain door seal integrity.

Structural support base for range drawer rail assembly. Replacement needed when original is cracked, broken, or warped causing misalignment or instability.

Structural support base for range drawer rail assembly. Replacement needed when original is cracked, broken, or warped causing misalignment or instability.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

Oven won't heat or both elements stopped working? A faulty thermal fuse cuts power to prevent overheating. Easy DIY fix with basic tools in under an hour.

Replacement mounting screw for securing appliance panels, trim, and internal components. Restores proper fastening when original screws are missing or stripped.

Secures and stabilizes range components to reduce movement and maintain alignment. Replace if cracked, broken, or missing to stop rattling and restore support.

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

Burned or damaged terminal block causing power loss? This connection point fixes arcing, sparking, and burnt wire issues. DIY repair with basic tools.

Fix loose or burnt wire connections in your range with this wire connector. Essential for restoring power to burners or oven elements. Simple repair.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Replace your burned-out range light bulb to restore interior illumination. Swap in when bulb fails to see contents clearly. Verify fit by model number.

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

Secures cooktop panels, burner components, and trim pieces. Replace missing, stripped, or damaged screws to eliminate rattles and keep parts aligned.

Exposed wiring at the back of your range? This terminal block cover shields power connections from contact and debris, restoring safe operation.

Mounting screw secures panels, control boards, and burners inside your range. Replace if lost, stripped, or corroded to keep components stable.

Small snap-in retainer that secures spring or linkage components in your range. Replaces cracked, broken, or missing anchor tips to restore proper alignment.

Replacement Torx screw for securing range panels and components. Needed when original fasteners are stripped, missing, or damaged during repairs.

Fiberglass insulation installs behind oven and broiler walls to contain heat within the cavity. Replace if worn, compressed, damaged, or missing for safety.

Insulation batting installs between inner and outer oven walls to retain heat. Replace if damaged, cracked, infested, or missing for proper temperature.

Mice nesting in your oven? Replace damaged insulation wrap to restore heat retention and cooking performance. Wraps around oven cavity. DIY-friendly.
