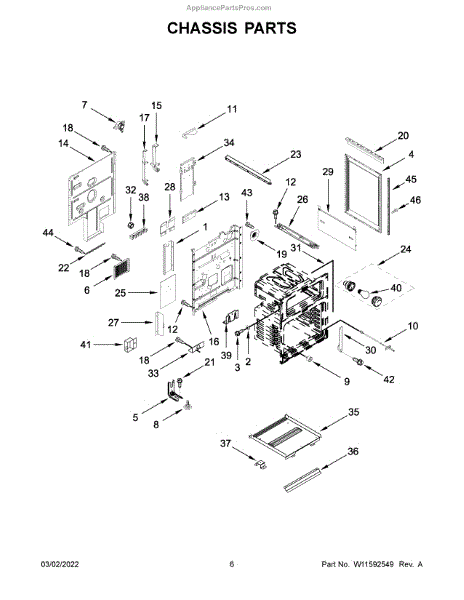

Parts for Whirlpool WGE745C0FH05: Chassis Parts

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Oven won't heat or stops heating during cleaning cycle? The high-limit safety switch cuts power when temperatures exceed safe limits. Moderate DIY fix.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

Small cushioning bumper that installs on range doors or panels. Replaces worn, cracked, or missing bumpers to reduce noise and ensure quiet closing.

Oven displaying error codes or baking unevenly? The temperature sensor monitors cavity heat and signals the control. Moderate DIY repair in 30-45 minutes.

Replacement mounting screw for securing components and housings in place. Order a new screw if yours is stripped, missing, or damaged during repairs.

This rear cover replaces the dryer's rear panel to protect internal components and restore the unit's enclosure. It helps keep wiring and components shielded while maintaining proper airflow and appliance appearance. What it does:

• Protects internal wiring, terminals and components from dust and damage
• Provides the enclosure for the dryer's rear area and vent connection points
• Reduces rattling and drafts caused by a cracked or missing rear panel
• Helps prevent excess lint accumulation around rear components

• Disconnect power (and gas supply if applicable) before servicing
• Remove the dryer from the wall and lay it on a protected surface to access the rear
• Typical installation requires removing screws and aligning the cover before fastening; use basic hand tools
• Watch for sharp edges and take care not to pinch wiring or hoses during reassembly

This lower vent tube routes exhaust/condensate away from the appliance to maintain proper airflow and drainage. Replacing a damaged vent tube restores correct venting and helps reduce leaks, noises, or performance issues tied to poor airflow. What it does:

• Channels air or condensate from the appliance's venting area to the lower exhaust/drain connection
• Prevents leaks and directs moisture away from internal components
• Helps restore proper airflow and reduces unusual sounds caused by damaged or collapsed tubing
• Used when visible cracks, holes, blockages, or detachment are found in the existing lower vent

• One lower vent tube (single piece as shown)

• Disconnect power and water (if applicable) before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a secure, leak-free fit
• Handle gently to avoid kinking; route the tube the same way as the original for correct airflow/drainage

Secures and stabilizes internal range components, keeping panels and assemblies properly aligned. Replace when your mounting bracket is broken, bent, or missing.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Oven door won't lock for self-clean cycle? This door lock motor and switch assembly controls locking and detects when the door is shut. Moderate repair.

Secures the terminal block to your range's back panel. Replace if stripped, corroded, or missing to ensure safe electrical connections. 10-32 size.

Replacement bracket for electric and gas ranges. Secures and supports internal components. Order a new one if yours is bent, broken, or missing.

Mounting bracket for range installation. Secures and stabilizes your appliance. Replace if bracket is bent, cracked, rusted, or missing hardware.

Protective sleeve that routes and shields oven wiring from abrasion and contact. Replace if cracked, worn, or missing to restore safe wiring coverage.

Missing or damaged ground screw can prevent proper electrical bonding. This 8-32 thread screw restores chassis grounding during installation or service.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order a new screw if yours is stripped or missing.

Black door handle mounting screw for ovens and ranges. Replaces missing, stripped, or damaged screws that secure oven or broiler handle trim to door.

Insulation for range oven doors that prevents heat loss. Replace if the insulation is damaged, torn, compressed, or missing to restore energy efficiency.

Insulation panel for range oven doors. Provides heat retention and energy efficiency. Replace if worn, damaged, or missing to restore proper insulation.

Insulation panel for range oven doors. Installs between door panels to maintain heat efficiency. Replace if torn, compressed, or missing.
