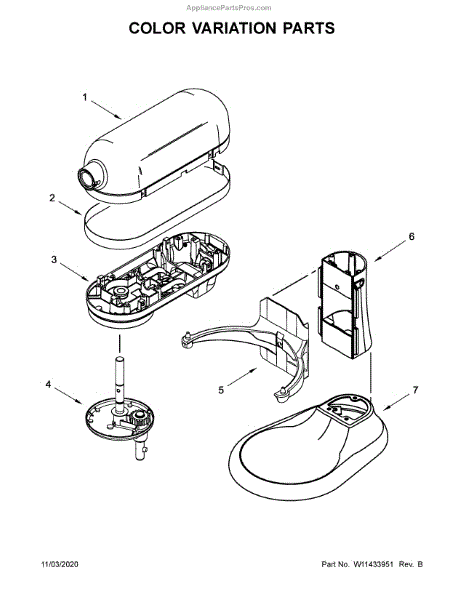

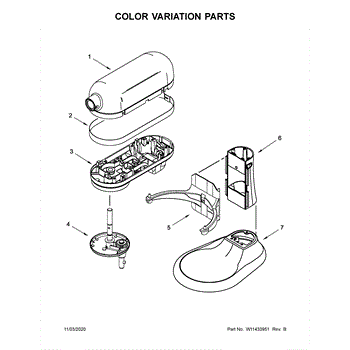

Parts for Kitchenaid KP26M1XQ3PP5: Color Variation Parts

This upper machined housing supports and aligns the appliance's drive/transmission assembly for smooth operation and reduced vibration. It replaces a worn or damaged support that can cause noise or imbalance. What it does:

• Provides a machined mounting surface for the transmission/drive assembly
• Keeps drivetrain components aligned to reduce wobble and noisy operation
• Helps maintain proper interaction between the transmission and tub/drum
• Commonly replaced when wear or damage causes vibration, grinding, or unstable spinning

• One upper machined housing

• Disconnect power and water before starting any repair
• Access may require removing outer panels or the cabinet
• Inspect related bearings, seals, and fasteners and replace if worn
• If you're not comfortable with drivetrain work, consider service

This upper housing is the outer cabinet/access panel that covers the top section of the washer and gives the appliance its finished look in passion red. It restores the machine's appearance and protects internal components from dust and damage. What it does:

• Provides a durable exterior top panel and mounting surface for controls and dispensers
• Protects switches, wiring, and other internal parts from spills and debris
• Restores the washer's original color and cosmetic finish
• Helps reduce noise and vibration by securing top assemblies

• Recommended for technicians or experienced DIYers; disconnect power before servicing
• May require removal of control console and attached components for access
• Handle painted surfaces with care to avoid scratching; use soft tools or towels
• Verify fit and alignment before tightening fasteners to avoid stress on tabs and clips

This replacement housing restores the appliance's exterior support and helps protect internal components from damage while returning a finished appearance. Fits the corresponding Whirlpool assembly and replaces damaged or cracked housings. What it does:

• Provides structural support for internal components and mounting points
• Protects wiring, controls, and internal parts from dust and impact
• Restores a secure, finished exterior to eliminate gaps or loose panels
• Can stop rattling or movement caused by a cracked or broken housing

• One replacement housing

• Disconnect power (unplug or switch off breaker) before beginning work
• Remove adjacent trim or panels as needed to access mounting screws
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Secure all fasteners; test appliance operation after reassembly

This porcelain enamel finish restores the factory color and smooth, glossy surface to compatible ranges and cooktops, improving appearance and protecting underlying metal from wear and staining. What it does

• Replaces worn, chipped, or faded enamel finish to make the appliance look like new
• Provides a durable, heat-resistant surface that resists stains and everyday wear
• Matches the OEM "Empire Red" color for a cohesive, factory-correct appearance
• Helps protect the underlying metal from corrosion and further cosmetic damage

• One porcelain enamel finish (Empire Red)

• Disconnect power and gas before starting any repair
• Removal of trim, screws, or panels may be required; follow the appliance's OEM service instructions
• Handle with care to avoid chipping the enamel during installation

A replacement trim band that restores the finished edge around the appliance door or front frame for a clean, factory appearance. Helps protect the cabinet edge and keeps the panel aligned for smooth operation. What it does:

• Covers and finishes the door or front-frame edge to restore original appearance
• Helps hold the panel trim in place and prevents gaps or rubbing at the edge
• Reduces the chance of snags on clothing or items near the door opening
• Useful when trim is cracked, bent, or cosmetically damaged

• Disconnect power to the appliance before beginning any work
• Remove the outer panel or door trim per the service manual to access the trim band
• Replace the band carefully to avoid damaging adjacent trim or painted surfaces
• Use appropriate hand tools and follow OEM instructions

This gearcase is the washer transmission that transfers the motor's power to the agitator and tub so your washer can agitate and drain properly. Replaces a worn or damaged transmission to restore normal wash motion. What it does:

• Transfers motor torque to the agitator and inner tub to produce wash and spin actions
• Houses gears and shafts that control direction and agitation patterns
• Commonly replaced when the washer won't agitate, makes grinding or rumbling noises, or the agitator spins freely
• Works with the washer's clutch and motor coupling to enable load movement

• Disconnect power and water supply before beginning any repair
• Installation requires disassembly of the washer cabinet and removal of the agitator, drive coupling, and motor
• Inspect related parts (agitator, drive coupling, seals) and replace if damaged

This gearcase is the main transmission assembly that transfers motor torque to the washer's tub and agitator, restoring normal agitation and spin performance when the original gearcase fails. What it does

• Converts motor rotation into the gear reductions needed for agitation and spin cycles.
• Commonly replaced for symptoms like no agitation, slow or failed spin, grinding or clunking noises during cycles.
• Contains internal gears and bearings that can wear or break, causing irregular movement or loss of drive.
• Works with the washer's motor coupling and drive components to re-establish reliable drum motion.

• One gearcase (transmission) assembly.

• Disconnect power and water supply before beginning any repair.
• Support the washer cabinet and tub when removing the old gearcase to avoid damage or injury.
• Gearcase assemblies are heavy and contain grease—expect some lubricant exposure; clean hands and work surfaces after installation.
• Use model-specific service manual or exploded parts diagram for proper alignment and reassembly; replacement may require transfer of seals or mounting hardware.

This planetary gear assembly transfers motor torque through the drive system to enable the washer's agitation and/or spin functions. Replacing a worn planetary restores reliable rotation and reduces noise caused by damaged gears. What it does:

• Drives the washer's agitator/drum by transferring motor power through the gear train
• Restores normal agitation and spinning when worn gears cause slipping or no movement
• Stops or reduces grinding, knocking, or unusual gear noise originating from the gearbox
• Works as the internal gearset inside the transmission/gearcase to maintain proper drivetrain operation

• Always disconnect power to the appliance before starting any repair
• Access typically requires removing the washer cabinet or transmission cover; follow OEM service instructions
• Support the drum/transmission and use appropriate tools to avoid further damage

This planetary gear assembly transfers motor motion to the appliance's rotating components, restoring reliable rotation and reducing abnormal noise. It's the direct replacement gear used in the appliance's drivetrain to help resume normal operation. What it does:

• Transfers motor torque to the agitator/drum or rotating hub for proper rotation
• Restores smooth, consistent movement and can stop slipping or reduced rotation
• Replaces worn or damaged gears that cause grinding, clunking, or unusual noise
• Helps prevent further wear to connected drive components when replaced promptly

• Disconnect power to the appliance before starting any repair.
• Requires partial disassembly of the washer/dryer/motor housing; refer to the service manual or diagram for access steps.
• Inspect surrounding components (seals, bearings, fasteners) for wear during replacement.

Color: Copper Pearl

This planetary gear assembly drives the agitator/inner transmission components in compatible top-load washers, restoring smooth rotational motion and reliable agitation for normal wash cycles. What it does:

• Transfers motor torque through the transmission to the washer agitator for proper wash action
• Helps restore smooth, even rotation and reduces slipping or erratic agitation
• Commonly replaced when you hear grinding, clunking, or when the agitator fails to rotate normally
• Works with the washer's gearcase/transmission as part of the drive train

• Replacement requires disassembly of the washer transmission/agitator; refer to your model's service manual
• Disconnect power and water, and remove the washer cabinet or transmission cover before starting
• Inspect surrounding seals and fasteners while the unit is open; replace any worn components as needed

This planetary gear assembly transfers motor movement to the transmission or agitator so your appliance can wash and spin properly. Replacing a worn planetary restores smooth power transfer and reduces grinding or binding. What it does:

• Converts motor rotation into the gear-driven motion used by the transmission/agitator
• Restores proper gear engagement and torque delivery
• Commonly replaces noisy, grinding, or slipping gear symptoms
• Helps stop erratic agitation or intermittent spinning caused by worn gears

• One planetary gear assembly

• Disconnect power and water before starting any repair; follow lockout/tagout as needed
• Access may require removing the washer/dryer cabinet or transmission cover
• Inspect surrounding gears and seals for wear and replace if damaged
• Use proper tools and service manual guidance

This is the planetary assembly for select stand mixers. It's the lower drive that holds the beater shaft and transfers power from the gearcase to rotate the beater for efficient mixing.

• Transfers torque from the mixer's gear train to the beater shaft
• Supports smooth, consistent beater rotation
• Worn planetary can cause wobbling beater, grinding/rumbling noises, poor mixing, or intermittent beater motion
• Needed if the beater shaft has excessive play or the gear teeth are damaged

• Unplug mixer before servicing; remove bowl and attachment
• Head must be opened to access and remove the retaining pin/fasteners
• Support the lower assembly when separating it from the gearcase to avoid damage
• Re-grease gears if specified by the service manual and proper beater-to-bowl clearance after reassembly

The Planetary is an OEM part for Whirlpool stand mixers. This part holds the beater and ensures it rotates around the bowl to mix ingredients thoroughly. The planetary mechanism allows for consistent and even mixing by moving the beater in a planetary motion, which covers the entire bowl.

Causes of a bad planetary can include regular wear and tear, heavy use, or mechanical failure within the gears.

Symptoms of a bad planetary include:

• Beater not rotating properly
• Unusual noises during operation
• The mixer head wobbling or shaking
• Inconsistent mixing results

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Empire red touch-up paint restores the original appliance finish to cover chips, scratches, and small blemishes for a clean, uniform look. Ideal for maintaining the appliance's appearance between larger repairs or panel replacements. What it does:

• Matches the Empire Red appliance color to conceal chips and surface scratches
• Prevents small bare spots from showing and improves overall cosmetic appearance
• Helps maintain consistent color on exterior panels and trim
• Useful for spot repairs after minor impacts or wear

• Clean and dry the surface thoroughly; remove grease and loose paint before applying
• Apply in thin coats, allowing recommended dry time between coats for best results
• Test on an inconspicuous area first to confirm color match
• Follow all product label warnings; use in a well-ventilated area and keep away from heat and open flame
