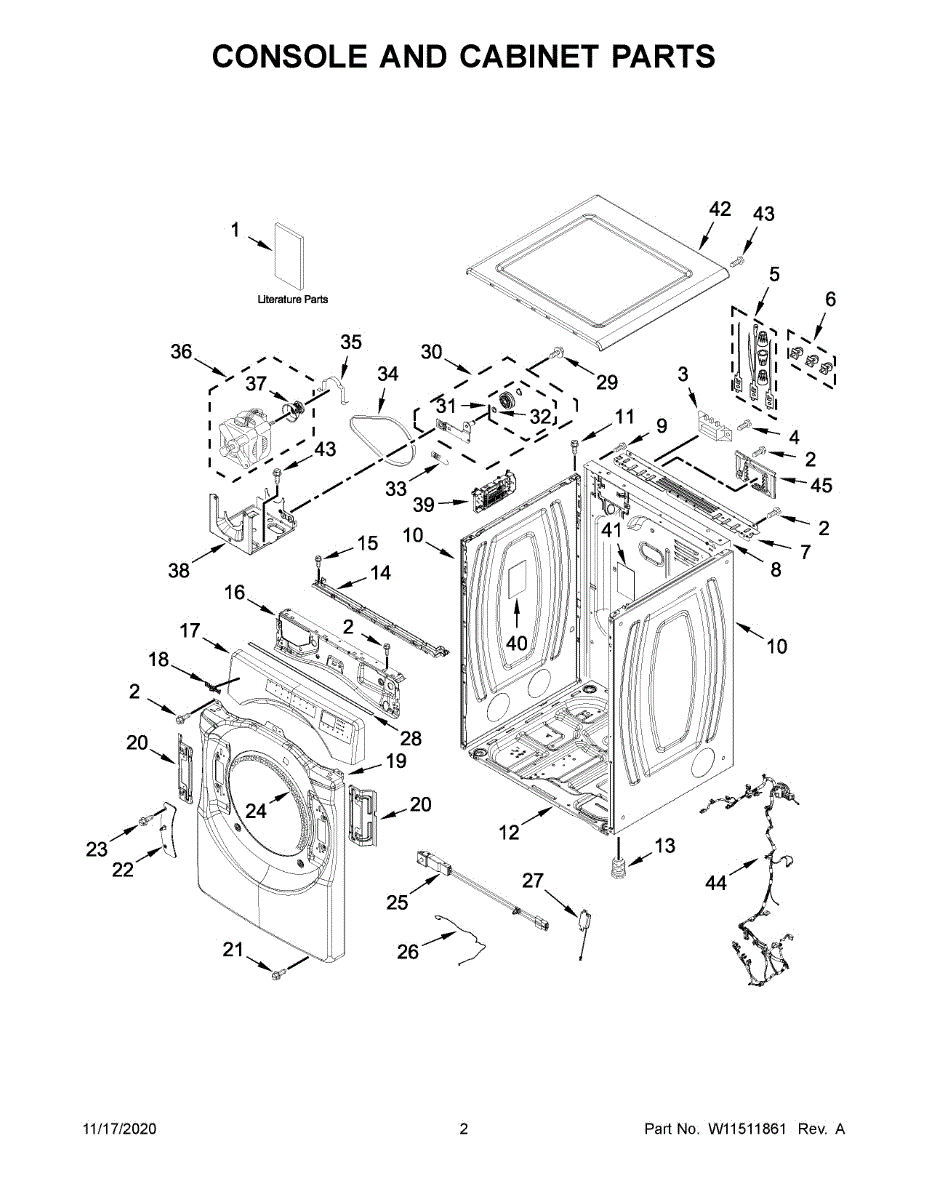

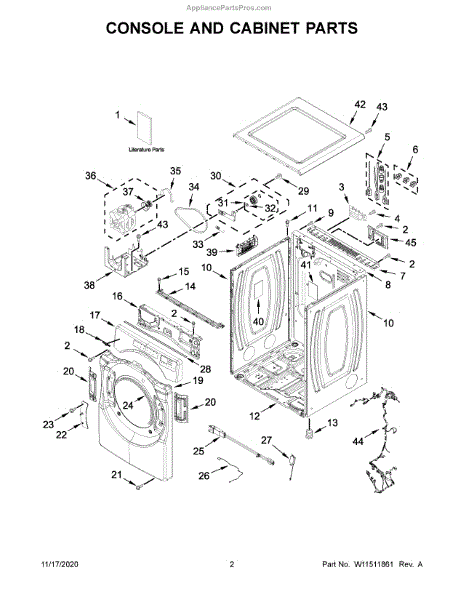

Parts for Whirlpool WED8620HW2: Console And Cabinet Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

Includes screws and wire connectors. For the complete terminal block kit use 279320.

This rear bracket secures the dryer's rear panel and helps align internal components for stable operation. It restores proper fit and support when the original bracket is bent, broken, or missing. What it does:

• Secures and positions the dryer's rear panel to the cabinet frame
• Supports internal components and helps maintain proper panel alignment
• Prevents rattling, vibration, and panel separation during operation
• Helps ensure consistent airflow path by keeping the rear housing properly positioned

• Disconnect power (and gas, if applicable) before servicing the dryer
• Access typically requires removing the rear panel; keep fasteners organized for reassembly
• Inspect adjacent mounting points and replace any damaged screws or clips

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

Color: White

Color: Chrome Shadow

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This bracket is a small mounting support that secures appliance panels or components in place to restore stable alignment and reduce rattling. It's a direct-fit replacement that helps keep parts properly positioned for reliable operation. What it does:

• Provides a secure mounting point for a panel or internal component to prevent shifting or vibration
• Restores correct alignment for doors, panels, or assemblies that have become loose
• Helps eliminate rattling, buzzing, or scraping noises caused by a loose support
• Maintains proper spacing so attached components operate smoothly

• Verify appliance is unplugged or power is disconnected before starting work
• Inspect mounting area and fasteners; replace any damaged screws or clips as needed
• Use basic hand tools to remove and reinstall the bracket; avoid overtightening

The Console is an OEM component specifically designed for Whirlpool electric dryers. Located at the top front of the dryer, it houses all controls and programming functions.

Causes of a faulty console include cracks developing from repeated opening and closing of the dryer door over many cycles. Heat exposure and general wear can also degrade plastic surfaces.

Symptoms of a bad console include:

• Misaligned or loose attachment to the dryer cabinet
• Warm air leaking from openings around control edges
• Buttons sticking or controls ceasing to respond properly
• Visible cracks or broken-off segments

This OEM Whirlpool replacement console ensures a tight fit and proper seal. Installed promptly, it prevents compromised ventilation and continued component connection damage.

Compatible also with some GE and Crosley models, this part restores seamless operation. Protect your trusted dryer with an OEM console replacement to maintain performance.

This replacement dryer control panel is manufactured by Whirlpool. The dryer control panel is a critical component and holds the buttons and the display for the dryer, allowing users to set drying cycles, check the time remaining, and more. Designed to be long lasting, the panel can nevertheless succumb to damage. Moisture, high heat, and corrosion can all render it inoperable. Signs that the dryer's control panel needs to be replaced include inaccurate screen display and issues with the dryer starting reliably. To replace the control panel, first disconnect the dryer from the power. Next, remove the housing to access the panel. Disconnect the wiring harness and remove the mounting screws. Install the new panel by following these steps in reverse order.This genuine OEM part is sold individually. It is designed to fit Whirlpool, Roper, and Amana branded driers.

This name plate is the appliance identification label that displays model, serial and rating information and restores the unit's factory appearance. It helps ensure readable identification for service or resale. What it does

• Replaces a missing, faded or damaged identification label so model and serial info are visible.
• Provides required equipment ratings and manufacturer markings used during diagnostics and parts replacement.
• Restores exterior appearance where the original name plate is worn or peeling.
• Helps technicians and homeowners quickly confirm appliance identity during repairs.

• Name plate (single label)

• Disconnect power to the appliance before attempting installation or working near electrical connections.
• Clean and dry the mounting area; some name plates attach with adhesive while others fasten with screws—use the original hardware if present.
• Avoid bending or creasing the label when aligning it; press firmly to ensure full contact for adhesive-mounted plates.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This genuine mounting screw secures panels and components so assemblies stay aligned and rattle-free. Designed to replace worn or missing fasteners and restore proper fit and function. What it does:

• Secures panels, brackets or trim to prevent movement and vibration
• Restores proper alignment of assemblies that feel loose or shift
• Helps eliminate rattling, squeaks, or parts that fall away during use
• Matches OEM thread and head type for correct fit

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Replace any additional damaged or missing fasteners for best results
• Disconnect power or follow appliance-specific safety steps before working near wiring or energized components

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

The Door Switch is an OEM component specifically designed for Whirlpool brand dryers. This door switch works to detect when the dryer door is open or closed and cuts power to internal components when the door is open for safety.

Causes of a bad door switch can include wear and tear over time, exposure to excessive shock or impact, or moisture damage.

Symptoms of a bad door switch include:

• The dryer operates with the door open
• Inability to start or run the dryer
• Error codes or fault messages relating to door detection

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This wire harness routes power and signals between the appliance's controls and components, restoring proper electrical connections for reliable operation. Replace a damaged or burned harness to fix intermittent or lost power and unresponsive controls. What it does

• Connects control board, switches and sensors so components receive power and signals
• Replaces frayed, melted or damaged wiring that can cause intermittent faults
• Helps resolve symptoms like controls not responding, lights or motors failing to start, or erratic operation
• Maintains correct wire routing and connector fit to prevent electrical shorts

• Disconnect power and, for gas models, turn off gas supply before starting any repair
• Handle connectors carefully; match connector shapes and pin count when reinstalling
• Route the harness along original clips and channels to avoid heat or pinch points

The Speaker is an OEM component specifically designed for Whirlpool brand washers. It alerts users with chime tones or voice prompts during cycle operation or any error states. Precise acoustic engineering allows for clear audio reception even amid operating vibrations.

Symptoms of a bad speaker include:

• No audio tones or voice prompts were heard
• Muffled, distorted, or unusually loud sounds
• Speaker making rattling or buzzing noises

Causes can be damage from water damage, defects in the audio circuitry, or aging components.

This speaker ensures optimal user communication. Without it, you cannot verify cycle progress or troubleshoot issues. Its dependable performance maintains the washer's convenience.

This Whirlpool OEM part fits perfectly while extending the equipment's lifespan. It is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Idler Pulley is an OEM replacement part for Whirlpool dryers. This essential component plays a crucial role in the drum drive system, helping to guide and maintain proper tension on the dryer belt.

Causes of a faulty idler pulley in a dryer can include normal wear and tear over time, improper belt tensioning leading to bearing failure, or physical damage from impact or debris buildup.

Symptoms of needing to replace the idler pulley include:

• Squeaking or grinding noises from the driveability area
• The dryer drum not spinning or rotating properly
• Excessive vibration or shaking during the dryer cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This replacement washer is a small hardware component used in appliance assemblies to provide a stable bearing surface and proper spacing. Replacing a worn or missing washer helps maintain alignment, reduce vibration, and protect mating parts from damage.

• Distributes load under a nut, bolt, pin, or shaft to protect mating surfaces
• Maintains correct spacing and alignment within stacked components
• Helps reduce friction, vibration, and noise in moving assemblies
• Worn or missing washers can contribute to looseness, wobble, rattling, or premature wear

• Disconnect power and shut off gas/water before servicing
• Note the original order and orientation of parts during disassembly
• Inspect fasteners, shafts, and bushings; replace any that show wear or damage
• Tighten fasteners securely per the service manual; do not overtighten

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This is the appliance's cabinet top panel in a chrome finish. It replaces a dented, bent, or rusted top to restore a clean appearance and a secure fit while protecting internal components and supporting mounted parts.

• Forms the finished top surface of the cabinet (chrome finish)
• Shields internal components from debris and accidental contact
• Provides mounting/support points for the console, hinges, or brackets (varies by model)
• Addresses damage, corrosion, looseness, or rattling from a bent or missing top

• Disconnect power before servicing; wear cut-resistant gloves (sheet-metal edges are sharp)
• Retain and reuse the original screws/clips; transfer any brackets from the old panel
• Fasteners are typically at the rear or beneath the console—support the panel, remove screws, then lift off
• Align the new panel and tighten fasteners evenly to ensure a secure, rattle-free fit

This top panel is the upper cover of your dryer's cabinet. Replace a dented, rusted, or warped panel to restore a secure, flush fit and the clean, finished look of your machine.

• Forms the dryer's upper cabinet surface and covers internal components
• Provides proper mounting/alignment for the control console and top hardware
• Helps maintain cabinet rigidity and a solid, secure fit
• Common signs it's needed: visible dents/bends or rust, top won't sit flush or stay secured, gaps or misalignment near the console

• Disconnect power; shut off gas supply for gas models
• Wear cut-resistant gloves—cabinet edges can be sharp
• Remove fasteners securing the top, lift off, and transfer any clips/insulation from the original panel
• Align the new panel and tighten fasteners evenly to ensure a flush, secure fit

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
