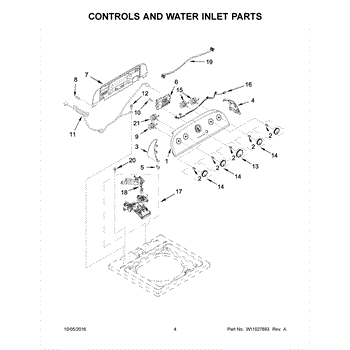

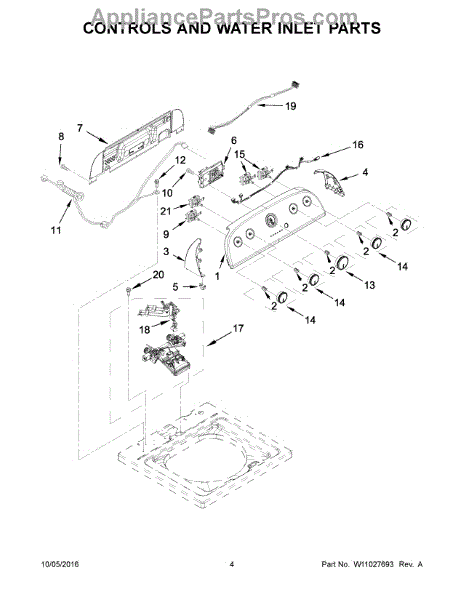

Parts for Whirlpool 4KWTW4845FW0: 03 - Controls And Water Inlet Parts

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear panel replaces the backguard that covers the appliance's rear housing, protecting internal components and wiring while giving the unit a finished appearance. It restores a safe, enclosed back area and helps prevent debris entry. What it does:

• Covers and protects control wiring, terminals, and components at the appliance rear
• Prevents accidental contact with electrical parts and reduces debris or grease buildup
• Restores a finished exterior back surface for safety and appearance
• Helps maintain proper airflow routing behind the appliance

• Disconnect power (unplug or shut off circuit breaker) before starting work.
• Handle edges carefully—metal panels may be sharp; wear gloves.
• Typical installation requires removing a few screws and aligning tabs; keep original fasteners if present.
• If clips, insulation, or mounting hardware are missing or damaged, replace with OEM-specified hardware for proper fit.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load

The Harness Wiring is an OEM part for Whirlpool washing machines. It comprises the bundled electrical wires and connectors that power internal components and circuits within the machine.

Causes of a bad harness and wiring can include cuts, cracks, or fraying of insulating casings over time, corroded connectors from moisture exposure, or wire fatigue from continuous bending during operation.

Causes of a bad harness wiring include:

• Failure or intermittent operation of components due to broken circuits
• Arcing, sparking, or burning smells due to exposed or shorted wires
• Restricted access to internal parts due to tangled or bound wires

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This is the main wire harness that routes power and signals between an appliance's control board and electrical components, restoring reliable electrical connections for proper operation. What it does

• Carries power and control signals between the control board, motor, switches and sensors.
• Replaces damaged or burned wiring that can cause intermittent operation or loss of functions.
• Commonly used when an appliance won't start, has unresponsive controls, or experiences random shutdowns.
• Ensures secure connector mating to reduce arcing and poor electrical contact.

• Disconnect power before any repair to avoid shock or damage.
• Compare connectors and wire colors to the old harness to match before installing.
• Route harness along original clips and channels; avoid sharp edges and pinch points.
• Inspect connectors and terminals for corrosion; replace any damaged terminals for a reliable repair.

This replacement wire harness routes power and control signals between the appliance's electrical components to restore reliable operation and proper connections. It replaces a damaged or worn harness to help stop intermittent power loss or component failures. What it does:

• Provides factory-style wiring connections for controls, motors, sensors and switches
• Restores interrupted circuits that can cause intermittent or no operation of affected components
• Replaces burnt, frayed or broken wiring that can cause arcing or poor contact
• Ensures correct routing and connector fit to prevent chafing and shorting

• Disconnect power to the appliance before starting any repair; verify power is off
• Compare the new harness to the old one for connector type and routing before installing
• Route harness to avoid sharp edges and moving parts; secure with existing clips or ties
• If connectors are damaged or corroded, replace them; do not use the appliance with exposed or repaired wiring

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

The Cycle Switch is an OEM part for Whirlpool washing machines. It is responsible for controlling the various cycles of the washing machine, such as wash, rinse, and spin. This switch ensures that the machine progresses through each cycle correctly, maintaining the proper sequence for effective cleaning.

Causes of a bad cycle switch can include wear and tear from frequent use, electrical malfunctions, or mechanical failure within the switch mechanism.

Symptoms of a bad cycle switch include:

• The washing machine not advancing through cycles
• The machine getting stuck on a particular cycle
• Irregular or inconsistent cycle timings
• The machine not starting or stopping at the correct times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
