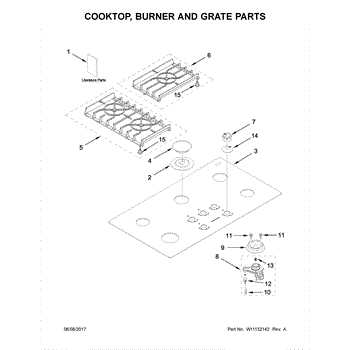

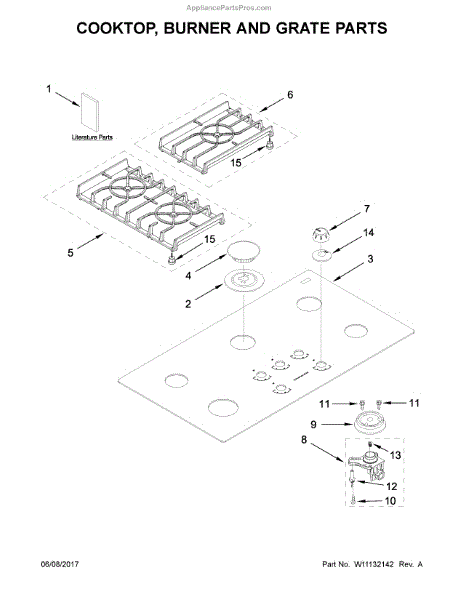

Parts for Kitchenaid KGCC566RBL07: Cooktop, Burner And Grate Parts

This glass cooktop surface replaces a cracked, chipped or worn cooktop to restore a smooth, easy-to-clean cooking area and proper support for burners and controls. Durable glass gives a finished look and reliable performance. What it does:

• Replaces damaged or broken cooktop glass to restore a safe, flat cooking surface
• Provides a smooth, easy-to-clean surface that resists stains and spills
• Supports burners and control components for proper alignment and operation
• Helps eliminate rattling or uneven cookware contact caused by warped or cracked tops

• One cooktop glass assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle glass carefully; wear cut-resistant gloves and eye protection to prevent injury
• Follow OEM diagram for correct alignment, fastener sequence and seal placement

A replacement control knob cap that restores the appearance and proper fit of a cooktop or range front control knob. Matches the original coal matte black finish for a seamless, like-new look. What it does:

• Covers and protects the end of a front control knob while providing the correct surface and color
• Restores worn, cracked, or missing caps so the knob fits securely and operates as intended
• Helps prevent dirt and moisture from reaching the underlying knob internals
• Matches OEM finish to keep controls visually consistent

• One coal matte black control knob cap (RF/LF) as shown

• Removes and installs by hand; pull off the old cap and press the replacement into place until seated
• Disconnect power to the range/cooktop before working near electrical components as a safety precaution

This replacement knob cap restores the look and function of a cooktop or range control knob by covering the knob hub and providing a finished, heat-resistant surface. It's a simple cosmetic and protective fix for worn or missing caps. What it does:

• Covers and protects the exposed knob hub from dirt, grease and wear
• Restores the original appearance when caps are scratched, faded or missing
• Provides the correct surface for turning control knobs comfortably and safely
• Helps keep spills and debris out of the knob shaft area, reducing buildup

• Before installing, make sure the appliance is off and cooled; disconnect power if recommended by your appliance manual
• Push the cap firmly onto the knob hub until it seats; do not force if it won't align
• Inspect the knob and shaft for damage; replace the entire knob assembly if the shaft or mechanism is worn

A replacement finish cap in coal matte black that restores the appliance's appearance and hides exposed hardware. Use it to refresh scratched, faded or missing trim for a neat, factory look. What it does:

• Covers exposed screws, fasteners or openings for a finished appearance
• Helps restore uniform trim color and hide cosmetic damage
• Prevents dirt buildup where trim is missing or damaged
• Useful when replacing damaged or worn decorative trim pieces

• Always disconnect power (or gas where applicable) before servicing the appliance
• Use common hand tools as needed; avoid forcing parts to prevent breakage

This replacement cap restores the finished look of a damaged or missing control cap and helps protect the underlying control shaft and fastener. Matches the coal matte black finish for a factory appearance. What it does:

• Covers and protects the control shaft and retaining screw from debris and wear
• Restores a worn, cracked or missing cap so the control looks like new
• Helps keep the control knob seated and stable during use
• Useful when the original cap is chipped, faded or cosmetically damaged

• Unplug the appliance or shut off power at the breaker before servicing
• Remove the control knob (pull straight off) to access the cap if needed
• Press the cap into place over the control shaft until it snaps or seats securely
• If a retaining screw is present, verify fit before reassembly; do not force or modify the part

The Burner Grate is an OEM replacement part for GE gas cooktops. It is a crucial component that sits on top of the cooktop surface, providing a stable and durable platform for placing cookware directly over the gas burners. The burner grate is typically made of cast iron or enameled steel, ensuring durability and resistance to high temperatures.

Symptoms of a bad Burner Grate include:

• Excessive wear or warping, causing instability or rocking of cookware
• Cracks, chips, or missing sections of the grate
• Discoloration or rust buildup due to prolonged exposure to heat and spills

Causes of a bad burner grate can include repeated exposure to high heat, accidental drops or impacts, improper cleaning methods, or general wear over time. Spills or food debris left on the grate can also contribute to accelerated deterioration.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas cooktop models.

This replacement center grate restores stable cookware support on a 36" gas cooktop, helping the cooktop look and perform like new. It fits into the middle burner area and provides a secure, level surface for pots and pans. What it does:

• Supports pots and pans over the center burners for safe, steady cooking
• Replaces cracked, broken, or warped grates that cause instability
• Prevents cookware from rocking or tipping on the cooktop
• Helps maintain proper spacing between cookware and burners for consistent use

• Turn off all burners and allow the cooktop to cool completely before handling
• Remove any surrounding grates and lift the center grate into place; no special tools usually required
• Inspect the grate seat area for damage or debris and clean before installation

This flush-style control knob fits onto the appliance's control shaft to select settings with a smooth, secure turn. Replace worn or missing knobs to restore reliable adjustment and a clean, factory look. What it does:

• Attaches to the control shaft to operate the underlying switch or valve
• Provides a secure grip for selecting and adjusting settings
• Restores control when the original knob is cracked, stripped, or missing
• Typical symptoms include a knob that spins freely, falls off, won't turn the control, or is visibly damaged

• 1 control knob

• Disconnect power (and shut off gas supply if applicable) before servicing
• Pull the old knob straight off the shaft—do not pry from the sides
• Align the new knob's opening with the control shaft and press straight on until fully seated
• Restore power and test for smooth, proper operation

This replacement Holder (ORF) secures the ORF assembly inside the appliance so the original component stays properly positioned for reliable operation. A direct-fit part that restores correct mounting after damage or wear. What it does

• Secures the ORF assembly in its mounting location to prevent movement or misalignment
• Keeps associated components properly supported for consistent performance
• Helps eliminate rattling or shifting that can occur with a broken or worn holder
• Works as the OEM-designed bracket used in the appliance's original assembly

• One Holder (ORF)

• Disconnect power (and water supply if applicable) before beginning work
• Basic hand tools typically required; handle parts carefully to avoid damage
• Align holder with original mounting points and fasten securely without over-tightening

This Holder ORF retainer secures the ORF assembly in place to keep internal components aligned and prevent movement that can cause noise or improper operation. A simple replacement when the original holder is cracked, loose, or missing. What it does:

• Secures the ORF assembly to its mounting location so parts stay aligned
• Prevents rattling or vibration caused by a loose or broken holder
• Helps maintain proper component positioning for reliable operation
• Common symptom: visible broken/missing holder, unusual noise, or component shifting

• One Holder ORF retainer

• Inspect surrounding plastic clips and mounting points for damage before installing
• Replace only with the exact OEM part number for proper fit
• Use basic hand tools; disconnect power before servicing appliances to avoid injury
• If multiple mounting pieces are damaged, replace all to ensure secure mounting

This small mounting holder secures the ORF assembly in place to keep the component stable and aligned for reliable operation. Replacing a damaged holder restores proper fit and helps prevent movement-related issues. What it does:

• Secures the ORF assembly to the appliance chassis or mounting point
• Keeps the ORF aligned to prevent rubbing, vibration, or misalignment
• Helps stop rattling or knocking caused by a loose or broken holder
• Maintains correct spacing so the ORF functions as intended

• One holder (ORF) as shown

• Turn off power to the appliance before beginning any repairs
• Compare the part to the original before installation
• Use basic hand tools; avoid forcing fasteners or plastic clips

This small retaining holder secures a trim or internal component, restoring proper fit and preventing rattles or misalignment. It's a simple replacement part that helps keep panels and assemblies seated for reliable operation. What it does

• Secures a trim, bracket, or small assembly so panels stay aligned and don't vibrate
• Replaces a cracked or missing holder that can cause loose or misaligned components
• Stops rattling or shifting caused by worn or broken retainers
• Restores original fit where the factory clip/holder has failed

• One holder/retainer

• Disconnect power to the appliance before starting any repair
• Handle small plastic clips carefully — they can break if forced
• Basic hand tools may be required to remove trim or access the mounting location

This gas surface burner head sits on the burner base and channels gas through precision ports for quick ignition and an even flame. Replacing a worn or clogged head helps restore reliable lighting and consistent heat.

• Distributes gas from the burner base to the flame ports for even flame patterns
• Interfaces with the spark electrode to enable ignition
• Helps maintain proper flame shape and heat output
• Common symptoms include burner won't light, weak/uneven or yellow flames, delayed ignition, or continuous clicking

• Disconnect power and shut off the gas supply before servicing
• Remove grate and burner cap; lift the old burner head off the base
• Clean the burner base and electrode area; align the new head with locator pins and the electrode opening, then seat fully
• Reinstall cap and grate; restore gas/power and test ignition and flame

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This surface ignitor sparks the burner on gas ranges so you can light cooktops quickly and reliably. It replaces a worn or damaged ignitor to restore normal ignition and consistent burner operation. What it does:

• Creates the spark needed to ignite the burner when a control is turned on
• Restores ignition when burners fail to light or produce weak/no sparks
• Stops intermittent ignition or continuous clicking caused by a faulty ignitor
• Works as the user-replaceable electrode for surface burner ignition systems

• One surface ignitor

• Disconnect electrical power and shut off the gas supply before starting.
• Handle the ceramic electrode carefully; oils or cracks can cause failure—avoid touching the tip.
• Verify proper wire connection and secure mounting; test ignition after reassembly.

Location: Right rear & left rear.

The Grommet is an OEM part for Whirlpool cooktops. This part provides a secure fit and cushioning for the control knobs on the cooktop, ensuring smooth operation and preventing damage to the control panel.

Causes of a bad knob grommet can include general wear and tear, exposure to high temperatures, or damage from frequent use.

Symptoms of a bad knob grommet include:

• Loose or wobbly control knobs
• Difficulty in turning the knobs
• Knobs not staying in place or falling off
• Visible cracks or wear in the grommet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Grate Pad is an OEM replacement part for  Whirlpool gas ranges. This set of 4 pads is designed to fit securely underneath the grates above the burner pans. The grate pad works to protect the grates from scratches and prolong their service life. It also helps distribute heat evenly across cookware during cooking.

Causes of a bad grate pad can include soiling or staining that is not removable through normal cleaning. Exposure to high heat over many years could cause cracks or brittleness in the material.

Symptoms include:

• Scratches or pits appearing on the grate surface
• Warping of the pad shape makes secure fitting difficult
• The pad deteriorating or flaking off in pieces

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other gas ranges

The Grate Pad is an OEM part for Whirlpool cooktops. It is designed to fit onto the grates of the cooktop, providing stability and protecting the cooktop surface from scratches and damage. This is a kit of four grate pads. If you also need the adhesive, order part number W10841140.

You should replace the grate pads if they become worn out or damaged. Causes of bad grate pads can include exposure to high heat over time, physical damage from heavy cookware, or regular wear and tear from frequent use.

Symptoms of bad grate pads include:

• Grates that wobble or do not sit securely
• Scratches or damage on the cooktop surface
• Uneven cooking due to unstable grates

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This single-conductor replacement wire restores an electrical connection between components in compatible Whirlpool appliances. It's a straightforward part used when a damaged or broken wire prevents normal operation. What it does

• Carries electrical current between terminals or components to enable operation.
• Replaces frayed, broken, or heat-damaged wiring that can cause intermittent or no power to a component.
• Common symptom: affected circuit or component won't power on or works sporadically.
• Helps re-establish a reliable connection when the original wire is corroded or has a broken conductor.

• Disconnect power (unplug appliance or shut off circuit breaker) before starting any repair.
• Use proper wire connectors/crimping techniques and ensure secure, insulated connections.
• Verify correct routing and strain relief to avoid contact with moving parts or heating elements.

NAT to LP gas conversion kit

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This foam tape is used to seal and cushion mating surfaces in your appliance. Replacing a worn strip restores a snug fit, helps reduce noise, and helps maintain proper airflow, heat, or moisture control where specified by the manufacturer.

• Provides a compressible seal between components per the unit's parts diagram
• Cushions panels and trim to reduce vibration, buzzing, or rattling
• Helps prevent air, steam, or heat leaks at joints and seams
• Replace if the original tape is torn, flattened, missing, or contaminated

• Disconnect power and shut off gas/water as applicable; allow the appliance to cool before service
• Note the original tape placement; remove old material and residue, then clean and dry surfaces
• Apply per the service manual; avoid stretching; press evenly to ensure full contact
• If the OEM procedure calls for trimming, cut carefully to length and avoid gaps or overlaps

This switch wire harness connects the appliance's switch assembly to the rest of the wiring, carrying power and control signals. Replacing a heat-damaged or brittle harness restores safe, reliable operation of the affected controls.

• Routes electrical power and control signals between the switch bank and other circuits
• Faults can cause controls to be unresponsive, work intermittently, or stop functioning
• Heat damage, discoloration, or melted connector housings indicate the harness should be replaced
• Ensures secure, properly keyed connections to prevent arcing and unreliable performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph existing routing and connector positions to aid reassembly
• Move one connector at a time and ensure each is fully seated and latched
• Inspect mating switches/terminals for heat damage and address any issues before reassembly
