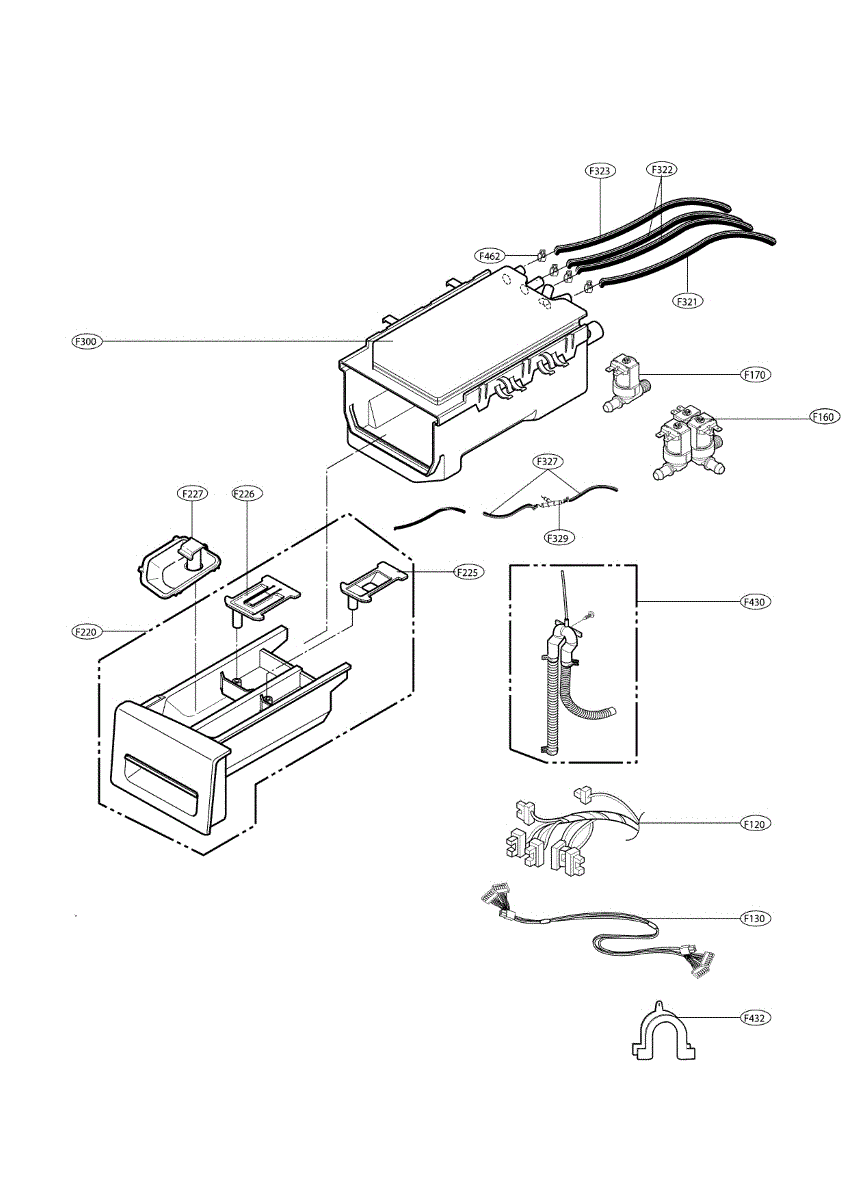

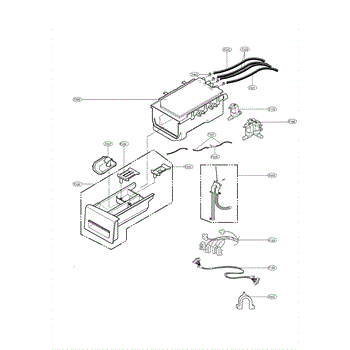

Parts for Kenmore 796.41303610 (79641303610, 796 41303610): Dispenser Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a replacement multi-connector wiring harness that restores factory electrical connections between appliance components, helping return proper control and motor function when the original harness is damaged or faulty. What it does:

• Carries power and signals between control board, sensors, and motors
• Replaces damaged, frayed, or corroded wiring that can cause intermittent or no operation
• Helps resolve symptoms like controls not responding, motors not running, or erratic behavior caused by wiring faults
• Maintains correct connector fit and routing to preserve OEM electrical connections

• Disconnect power to the appliance before starting any repair
• Compare the new harness to the old one to confirm connector types and routing before disconnecting components
• Route and secure the harness per the OEM layout; avoid pinching or sharp bends

This water inlet valve assembly regulates the flow of household water into the washer's dispenser and tub. Replacing a sticking or leaking valve restores proper filling during wash and rinse cycles and helps prevent unwanted drips or overfilling. What it does

• Opens and closes electronically to allow water into the machine as commanded by the control
• Directs water through the dispenser for detergent and softener flushing and into the drum
• Typical symptoms of a failed valve include no fill, slow fill, continuous filling, or water seeping into the tub when the washer is off
• Also presents external leaks at the valve body or hose connections

• 1 inlet valve assembly

• Unplug the washer and turn off both water supply valves before starting
• Relieve line pressure and have towels or a shallow pan ready to catch water
• Label or photograph hose and wire locations for accurate reassembly; transfer any mounting hardware from the original if needed
• After installation, reopen water supplies and check all connections for leaks; run a test fill cycle

The Water Inlet Valve Assembly is an OEM replacement part for LG washing machines, designed to control the flow of water into the laundry tub. This part is responsible for opening and closing to allow water into the wash drum at the appropriate times during the wash cycle, providing the correct water level and temperature.

Causes of a bad Water Inlet Valve Assembly can include mineral deposits blocking the valve, electrical failure preventing the valve from opening or closing properly, or physical damage to the valve mechanism itself.

Symptoms of a bad Water Inlet Valve Assembly include:

• Inadequate filling of the washer drum
• Water entering the drum when the washer is off
• Unusual noises during the fill cycle
• Water that is too hot or too cold, indicating a failure in valve operation that controls temperature

This OEM LG part can also be used on Kenmore/Sears appliances.

The Fabric Softener Cap is an OEM replacement part for LG front-loading washing machines. It is a replaceable component that securely fastens into the internal dispenser drawer, containing liquid fabric softener added during wash cycles. Color: blue. It measures about 2-1/2 inches wide by 4-1/2 inches deep.

Symptoms of a problematic cap could include:

• Softener stains or residue accumulating around base gasket seals
• Drips or puddles indicative of compromised sealing surfaces
• Cracks, fatigue, or warping affecting secure closure

Causes typically relate to normal plastic material breakdown after years of opening and closing cycles. Exposure to cleaning detergents could potentially deteriorate gaskets as well.

Compatible brands include Kenmore Elite and some Café laundry appliances too.

The Bleach Funnel is an OEM part for LG washing machines. This part safely dispenses and introduces liquid bleach or other cleaning agents into the wash cycle at the appropriate time.

Causes of a bad Bleach Funnel can include physical damage, wear and tear over time, or clogs from residue buildup.

Symptoms of a faulty Bleach Funnel include:

• Bleach or cleaning agents not being properly dispensed
• Leaks or residue buildup in the dispenser area
• Clogging or blockages preventing proper flow
• Washing machine not effectively utilizing bleach or cleaning additives

This OEM LG part is also compatible with some Kenmore models.

The Detergent Box Assembly is an OEM replacement part for LG washing machines. This assembly is responsible for holding and dispensing detergent and other laundry additives during the wash cycle. It ensures that the correct amounts of detergent, bleach, and fabric softener are released at the appropriate times, contributing to effective cleaning and care of your clothes.

Over time, the detergent box assembly can become worn out or damaged due to continuous exposure to water and detergent. Buildup of detergent residues can clog the compartments, and the mechanical parts of the assembly can also degrade.

Symptoms of a bad detergent box assembly include:

• The detergent, bleach, or fabric softener not dispensing properly
• Visible cracks, warping, or damage to the box
• Residues remaining in the compartments after a wash cycle
• Leaks from the detergent box area
• Error messages related to dispensing issues

This OEM LG part is also compatible with some Sears/Kenmore washing machine models.

The Dispenser Assembly is an OEM part for LG front-loading washers. It is responsible for dispensing detergent and fabric softener at the appropriate times during the wash cycle. The dispenser assembly contains separate compartments for detergent and fabric softener, as well as timed mechanisms that release each additive when needed for cleaning and softening results.

Causes of a bad dispenser assembly can include issues with the dispensing mechanisms like clogging, jamming, or malfunctions preventing the timely release of detergent and softener. Damage to compartment seals or lids could also cause improper dispensing.

Symptoms of a bad dispenser assembly include:

• Residue or buildup of detergent in the drum or tub
• Strong detergent or fabric softener odors that won't come out of clothes
• Dispenser drawers, lids, or seals that do not close or lock securely

This OEM LG part is also compatible with Sears/Kenmore.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Dispenser Inlet Hose is an OEM part for LG washing machines. This hose directs water from the water inlet valve to the detergent dispenser, ensuring that water mixes with the detergent before entering the drum for efficient washing. The hose is designed to withstand high water pressure and temperature fluctuations.

Over time, the dispenser inlet hose can become clogged, cracked, or worn out due to regular use. Causes of a bad inlet hose include mineral deposits or debris buildup, wear and tear, and exposure to high temperatures or pressure that can cause the hose to degrade.

Symptoms of a bad dispenser inlet hose include:

• Leaking water around the detergent dispenser area
• Reduced water flow into the dispenser
• Visible cracks or wear on the hose
• Incomplete dissolution of detergent during wash cycles

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Inlet Hose is an OEM part for LG washing machines. This hose directs water from the water inlet valve to the detergent dispenser, ensuring that water mixes with the detergent before entering the drum for efficient washing. The hose is designed to withstand high water pressure and temperature fluctuations.

Over time, the dispenser inlet hose can become clogged, cracked, or worn out due to regular use. Causes of a bad inlet hose include mineral deposits or debris buildup, wear and tear, and exposure to high temperatures or pressure that can cause the hose to degrade.

Symptoms of a bad dispenser inlet hose include:

• Leaking water around the detergent dispenser area
• Reduced water flow into the dispenser
• Visible cracks or wear on the hose
• Incomplete dissolution of detergent during wash cycles

This OEM LG part is also compatible with Sears/Kenmore.

This inlet hose carries water into the washer's fill system during wash and rinse cycles. Replacing a cracked or leaking hose restores proper filling and helps prevent water around the appliance from seepage at the connections.

• Routes incoming water to the washer's fill path during the fill cycle
• Helps maintain a watertight connection between the supply and the machine
• Replace if you see cracks, bulges, kinks, or active leaks
• Helps resolve water on the floor during fill, intermittent fill errors, or slow/no fill due to restricted flow

• Unplug the washer and turn off the water supply valves before starting
• Place a towel or pan to catch residual water and relieve line pressure
• Note hose routing/orientation; install the new hose without kinks and hand-tighten fittings
• Restore water and power, then check all connections for leaks during a short fill test

This replacement connector hose routes water between the refrigerator water valve and the dispenser or ice maker, restoring reliable water flow and helping prevent leaks. It's a direct-fit service part used where the factory hose is worn or damaged. What it does

• Connects the refrigerator water valve to the dispenser or ice maker, providing a sealed water path.
• Restores proper water and ice delivery when a cracked or leaking hose causes reduced flow or pooling.
• Helps prevent leaks by replacing brittle, cracked, or split tubing and fittings.
• Works with the original fittings and routing used by the manufacturer for a secure connection.

• One replacement connector hose.

• Turn off and disconnect the refrigerator's water supply and power before starting.
• Verify orientation and routing match the original hose; avoid sharp bends or kinks.
• Tighten fittings securely but avoid over-tightening; inspect for leaks after reconnecting water.

The Drain Hose Assembly is an OEM part for LG washing machines. It is a component designed to transport used water from the washer to the drain. This flexible hose assembly ensures that water flows smoothly out of your washing machine after each cycle, preventing leaks and maintaining the efficiency of your appliance.

Causes for replacement can include wear and tear over time, clogs from lint or small items, kinks that restrict water flow, or damage from moving or improper installation.

Symptoms of a bad Drain Hose Assembly include:

• Water leaking from the back or bottom of the washing machine
• Difficulty draining water out of the washer
• Puddles of water forming around the appliance during or after operation

This OEM LG part is also compatible with some Kenmore models.

This pivot hanger assembly supports and stabilizes the appliance component it mounts to, restoring smooth movement and alignment. Replace a worn or damaged pivot to reduce noise and prevent misalignment that can affect operation. What it does:

• Acts as the pivot point for the hanger to support the drum/door assembly and maintain correct alignment
• Helps eliminate squeaks, scraping, or jerky motion caused by a worn pivot
• Prevents sagging or uneven movement that can lead to rubbing or binding
• Restores proper mechanical support so the appliance operates quietly and reliably

• Unplug the appliance or disconnect power before beginning any repair
• Basic hand tools may be required; follow the appliance service manual for disassembly steps
• Inspect surrounding components (mounts, bearings, fasteners) and replace if worn

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.
