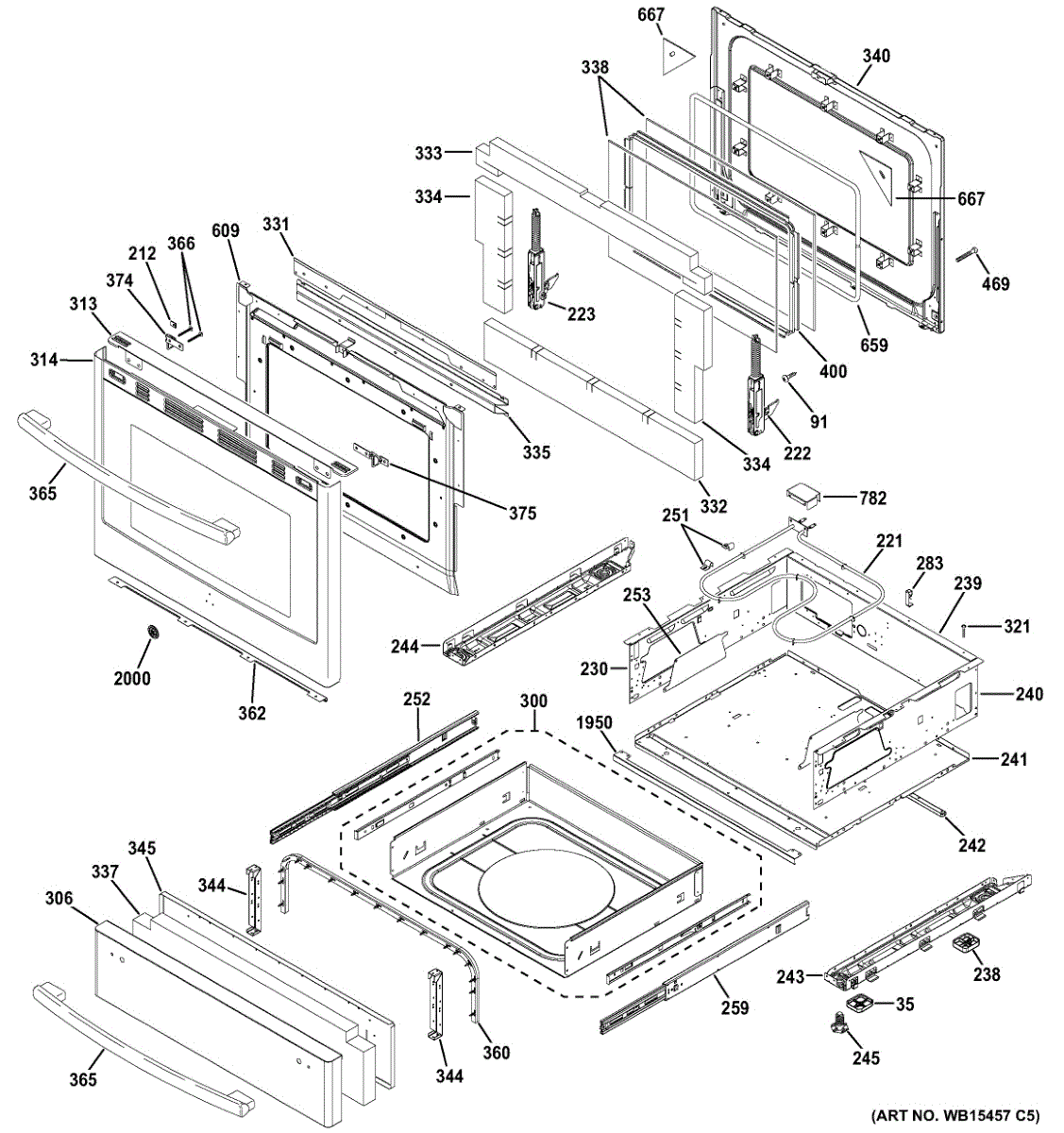

Parts for Ge PGB940SEJ2SS: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This bake element heats the oven cavity so food cooks evenly on bake settings. It replaces a failed or damaged element to restore proper baking performance and clear heating issues. What it does:

• Heats the bottom of the oven for bake cycles
• Replaces elements that are broken, visibly burnt, or not producing heat
• Helps resolve uneven cooking, no-heat on bake, or error codes related to open elements
• Works with matched oven control settings to maintain set temperatures

• One bake/heating element

• Disconnect power to the appliance before starting any repair
• Handle the element carefully to avoid bending or damaging terminals
• Verify electrical connections are tight and secure; replace mounting screws if worn

The Door Hinge (Right) is an OEM part for GE ranges. It acts as the pivot point that allows the right side of the range door to open and close.

Causes of a bad hinge include normal wear and tear from repeated use, accidental impacts that deform the hinge, or failure of brackets or bushings.

Symptoms of a bad right door hinge include:

• Difficulty or resistance when opening and closing the right side of the door
• Noise or squeaking coming from the hinge area
• Visual signs of damage or bending to the hinge itself
• The right side of the door not staying firmly shut or becoming misaligned

This OEM GE replacement hinge is also compatible with Hotpoint, RCA, and select Kenmore models.

The range door hinge is an OEM part for GE ranges. It acts as the pivot point that allows the range door to smoothly swing open and closed. The hinge must be durable enough to support the weight of the door during opening and closing motions, while also providing smooth movement.

Causes of a bad hinge can include normal wear and tear over time, repeated heavy use, or accidental damage. The stainless steel components that make up the hinge can become worn or misaligned.

Symptoms of a bad range door hinge include:

• Difficulty opening or closing the range door
• The door not sitting properly when closed or open
• Excessive noise or squeaking when operating the door
• The door unable to stay fully open or closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left hand side

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

Right hand side

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left hand side

Right hand side

This is a replacement front decorative drawer panel that restores the exterior finish and proper fit of a refrigerator/freezer drawer. It helps maintain a clean look and ensures the drawer closes and aligns correctly. What it does:

• Replaces a chipped, dented, or scratched drawer front to improve appearance.
• Provides the proper mounting surface for drawer handles and trim.
• Restores correct alignment so the drawer opens and closes smoothly.
• Prevents gaps that can affect internal temperature control or allow debris entry.

• Install requires removing the drawer assembly and detaching existing front panel fasteners; retain screws and clips for reinstallation if undamaged.
• Handle, trim, and any fasteners are included only if shown on the product page.
• Use basic hand tools; avoid overtightening fasteners to prevent panel cracking.
• Disconnect power only if required by your appliance's service instructions and follow OEM safety guidance.

This glass door assembly restores the oven door's outer glass panel and appearance while helping contain heat and maintain proper viewing. It replaces damaged, cracked or broken door glass to improve safety and oven performance. What it does:

• Replaces the oven's outer glass panel to restore a sealed, intact door
• Provides a clear viewing surface for monitoring cooking without opening the door
• Helps contain heat and reduce heat loss from the oven cavity
• Addresses symptoms such as visible cracks, shattered glass, or a damaged door surface

• Disconnect power/cut gas and allow appliance to fully cool before starting
• Handle glass with heavy-duty gloves and eye protection to avoid cuts
• Installation typically requires removing the oven door and fastening the assembly with screws or clips—retain all hardware and follow the oven manufacturer's instructions

Includes 12 screws.

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

This liner door weld assembly replaces the damaged or separated inner door liner to restore door strength and alignment. It provides a solid mounting surface and helps the door close properly for reliable operation. What it does:

• Replaces cracked, bent, or separated inner door liner caused by impact or wear
• Restores structural support and mounting points for door components
• Helps eliminate gaps, rattles, or misalignment that can affect door closure
• Returns the door to its intended shape so seals and latches engage correctly

• One liner door weld assembly

• Disconnect power to the appliance before starting any repair
• Handle sharp sheet-metal edges with care and wear gloves and eye protection
• May require partial door disassembly and common hand tools; follow the OEM service instructions

This drawer bracket secures and supports a refrigerator/ freezer drawer, restoring proper alignment and load-bearing at the front or side mounting point. It's a simple replacement that helps the drawer open and close smoothly. What it does:

• Holds and supports the drawer to prevent sagging or tipping under normal loads
• Keeps the drawer aligned on its track for smooth operation
• Restores proper engagement with the cabinet so the drawer seats and latches correctly
• Helps prevent binding, catching, or uneven gaps when opening or closing

• Disconnect power to the appliance before servicing and work with the drawer empty.
• Remove the drawer and any trim as needed to access the bracket; use appropriate hand tools (screwdriver/socket) for fasteners.
• Reuse existing screws only if undamaged; replace fasteners if stripped or corroded.
• Align the bracket carefully before tightening to avoid binding; do not force or overtighten plastic components.

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This handle bracket secures a refrigerator/freezer door handle to the appliance, restoring a solid grip and proper door operation. It replaces a worn, cracked, or broken bracket to keep the handle aligned and stable during use. What it does:

• Provides the mounting support for a door handle so the handle stays firmly attached
• Restores proper handle alignment to reduce wobble or shifting when opening the door
• Stops slipping or intermittent detachment caused by a cracked or damaged bracket
• Helps prevent further damage to the door or handle from continued use with a broken mount

• One handle bracket

• Designed for direct replacement; compare part number to the original before ordering
• Basic hand tools typically required; handle and trim may need removal to access bracket
• Disconnect power (and empty door area) if working near electrical components or lights
• If mounting hardware isn't present, reuse the original screws or order the specific fasteners listed by the OEM

A replacement inner door insulation that restores the refrigerator door's thermal barrier to help maintain proper temperature and reduce condensation. Fits behind the door panel to support efficient cooling and prevent cold air loss. What it does:

• Replaces damaged or compressed insulation that can allow cold air to escape
• Helps reduce moisture buildup and frost on the door interior
• Supports consistent internal temperatures for better food preservation
• Dampens noise and helps the door close more evenly

• Disconnect power to the appliance before starting any repairs
• Remove the door panel and any trim or handles to access the insulation
• Handle carefully around sharp sheet metal and retain any fasteners for reassembly
• Use the exact replacement part number for proper fit; avoid forcing or trimming the insulation
