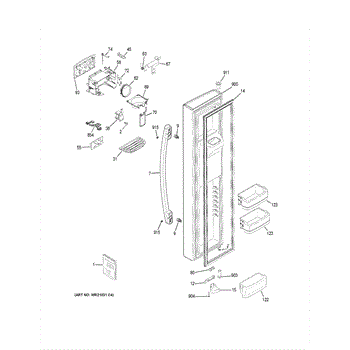

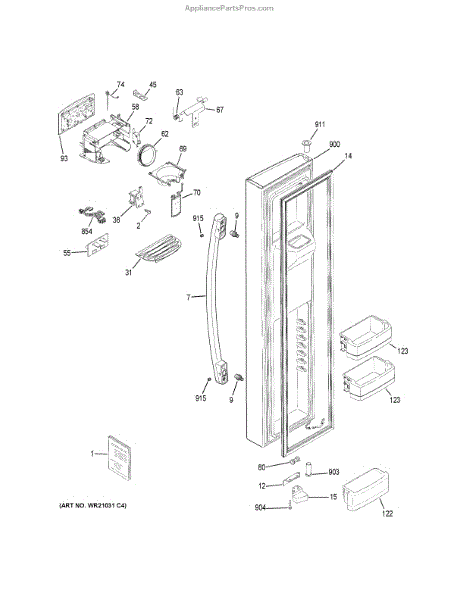

Parts for Ge GSS23HGHKCBB: Freezer Door Parts

The GE XWFE Refrigeration Water Filter is an OEM part for GE refrigerators. This advanced water filter is designed to reduce a wide range of contaminants, including chlorine, lead, cysts, and select pharmaceuticals, providing clean and safe drinking water and ice. It seamlessly integrates into the refrigerator's filtration system, ensuring optimal water quality.

You should replace this water filter if it becomes clogged or reaches the end of its lifespan, typically every six months. Common causes of a bad water filter include excessive contaminants, improper installation, or failure to follow the replacement schedule.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in water and ice
• Cloudy or discolored water
• The filter indicator light on the refrigerator signaling a replacement

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

The Arc Handle is an OEM part for GE refrigerators. It is designed to provide a sturdy and ergonomic grip for opening and closing the refrigerator door. The handle measures approximately 34 inches long by 2 inches wide.

Causes of a bad arc handle can include wear and tear from frequent use, accidental impacts, or stress from excessive force. A faulty handle can compromise the convenience and safety of using the refrigerator.

Symptoms of a bad Arc Handle include:

• The handle feeling loose or wobbly
• Cracks or visible damage on the handle
• Difficulty in opening or closing the door
• The handle detaching from the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

The Door Stop is an OEM component for GE refrigerator models. It is a small component located at the base of the refrigerator door that stops the door from opening past 90 degrees.

Symptoms of a bad door stop include:

• Door being able to open past 90 degrees
• Hitting other parts of the refrigerator or interior shelves

Causes of a bad door stop include cracking or breaking of the plastic material due to impact or excess force on the door over its lifespan. Small flaws present during manufacturing could also lead to premature wear. With its compact design and durable plastic, the door stop safely limits door movement.

This OEM GE part is also compatible with some Kenmore refrigerator models.

The Door Gasket is an OEM part for GE refrigerators, designed to ensure a tight seal around the door to maintain the internal temperature and efficiency of your appliance. This gasket prevents warm air from entering the refrigerator, which can lead to increased energy consumption and spoilage of food.

Causes of gasket deterioration can include normal wear and tear over time, frequent opening and closing of the refrigerator door, and exposure to kitchen grease and cleaners that can degrade the rubber material.

Symptoms of a bad Door Gasket include:

• Noticeable gaps or looseness around the door edge.
• Condensation or frost buildup near the seal area.
• Difficulty in maintaining the set refrigerator temperature.
• Increased energy bills due to the refrigerator working harder to maintain its temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Freezer Door Cam Closure is an OEM replacement part for GE side-by-side refrigerators. As a primary security component, it utilizes a cam mechanism to firmly latch the freezer door shut.

Causes of failure include wear from years of operation, and broken or misaligned cam parts reducing secure closure power.

Symptoms involve:

• Air leaks detectable around door seals when closure frozen
• Freezer door no longer clamping fully closed
• Light penetration into gasket if door poorly seated

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

The grill recess is an OEM replacement part for Whirlpool refrigerators. It is responsible for catching drips and spills from the water and ice dispenser. Over time, the tray can become damaged from repeated use and exposure to moisture. Causes of a failing drip tray include cracks, warping, and degradation of the plastic.

Symptoms of a bad dispenser drip tray include:

• Water leakage onto the floor
• Difficulty sliding the tray in and out
• Cracks, breaks or improper fit
• Spills not contained in the tray

This OEM Whirlpool tray is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Admiral, Magic Chef, and Kenmore models.

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

This electronic board powers and controls the light at the refrigerator's water/ice dispenser. Replacing it restores reliable illumination and proper on/off operation so you can clearly see the dispenser area during everyday use.

• Supplies regulated power to the dispenser light circuit for consistent brightness
• Responds to dispenser/control inputs to turn the light on and off
• A failing board can cause flickering or dim lighting
• Common symptoms include no dispenser light, intermittent light, or a light that stays on

• Disconnect power to the refrigerator before servicing
• Access the board behind the dispenser panel/escutcheon; remove trim carefully to avoid damage
• Handle the board by the edges and avoid static discharge; ensure connectors are fully seated

Replacement dispenser housing shield that protects internal dispenser components and restores a clean, finished appearance. Fits the dispenser area and helps prevent damage from spills or impacts while improving dispenser alignment and usability. What it does:

• Shields internal dispenser parts from spills, debris and everyday wear.
• Restores proper fit and finish to the dispenser opening for consistent cup placement.
• Common replacement when the dispenser guard is cracked, broken, warped or missing.
• Helps reduce risk of leaks and keeps controls and mechanisms covered.

• Disconnect power to the appliance before starting any repair.
• Typically requires removal of the dispenser front or trim; basic hand tools recommended.
• Retain or transfer any clips, screws or brackets during replacement.

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lever links the dispenser actuator/solenoid to the recess (chute) door in your refrigerator dispenser. It opens the flap during dispensing and helps it close afterward to maintain a proper seal and reduce frost and moisture.

• Couples the solenoid/actuator to the dispenser recess door flapper
• Opens the chute door for dispensing; returns it closed when released
• Helps maintain an air seal at the dispenser to limit warm-air leaks
• Common symptoms of a worn or broken crank: chute door won't open/close, frost or condensation around the dispenser, poor sealing

• Unplug the refrigerator before servicing
• Remove the dispenser trim/panel to access the recess-door mechanism
• Note spring/linkage positions and transfer them to the new crank
• Verify smooth movement and proper door seal before reassembly, then restore power and test

This dispenser ice funnel guides cubed or crushed ice from the door chute into your glass for clean, accurate dispensing. Replace a cracked or missing funnel to stop stray ice and keep the dispenser area tidy. What it does:

• Directs ice from the dispenser chute into your container to minimize scatter and spills
• Common fix for ice missing the glass, shooting to the side, or creating a mess at the dispenser
• Replace when the funnel is cracked, warped, loose, or has broken mounting tabs
• Helps restore smooth, consistent ice dispensing

• 1 dispenser ice funnel

• Disconnect power to the refrigerator; turn off the water supply if working around the dispenser area
• Remove the dispenser front panel/trim to access the funnel
• Release screws or locking tabs, remove the old funnel, and reuse existing hardware
• Seat and align the new funnel, secure it, restore power, and test ice dispensing

The Paddle Dispenser is an OEM part for GE refrigerators. Located inside the freezer compartment door, this electronic assembly dispenses cubed ice on demand through a motorized steel ice paddle.

Causes of a bad paddle dispenser include freeze damage from leaked water entering electronic components. The motor or gearing may degrade after extended use over time.

Symptoms include:

• Failure to dispense ice or jamming of the paddle mechanism
• "Ice" or "Select" lights remaining illuminated without operation
• Audible grinding or ticking noises coming from inside the door

This GE OEM replacement ensures convenient access to ice at any time. With high-reliability engineering even in cold freezer temperatures, it restores dependable operation for automatic ice retrieval. Suitable for retrofitting some Hotpoint, RCA, and Kenmore freezer doors as well. Keep drinks chilled easily and safely.


The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fixed freezer module shelf provides a secure mounting platform for the freezer control module and related components, helping keep electronics stable and organized inside the freezer compartment. What it does:

• Holds and stabilizes the freezer control module and attached wiring or components
• Prevents module movement that can cause noise or connection issues
• Helps maintain proper clearance around electronics for ventilation
• Supports safe routing of wires to reduce pinching or abrasion

• One fixed freezer module shelf

• Disconnect power to the appliance before starting any repair
• Typically installs with a few screws; access may require removing the freezer inner liner or nearby trim
• Handle plastic parts carefully to avoid cracking; support the module while fastening shelf

This freezer shelf module restores a stable, level storage surface inside the freezer so you can organize and access frozen foods. Replace it if the shelf is cracked, warped, missing, or no longer seats securely in its supports.

• Provides a sturdy, level surface for storing frozen items
• Helps organize contents and maintain proper spacing for airflow
• Replaces a damaged, bowed, or missing shelf
• Symptoms include cracked/broken components, broken tabs, sagging, or a shelf that won't sit flat or lock in place

• Clear the area and remove the old shelf; retain any trim or hardware your model may use
• Align the new shelf with the correct mounting points and seat it fully and evenly
• If your shelf has a glass insert, handle with care; wear cut-resistant gloves
• Do not overload the shelf; refer to your owner's manual for placement and weight guidance

The Freezer Door Lower Hinge Bushing is an OEM replacement part for GE refrigerators. It is a component located within the freezer door hinge.

Causes of failure typically involve normal wear over extended use. Refrigerator doors experience frequent adjustment which can deteriorate hinge bushings.

Symptoms of a bad lower hinge bushing include:

• The freezer door being loose or wobbly in its closed position
• Excessive noise, grinding, or vibration coming from the door hinge area
• Difficulty smoothly opening or closing the door

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This door thimble is the bushing that lines the upper hinge on your refrigerator door, supporting the hinge pin so the door swings smoothly, stays aligned, and helps reduce squeaks and wear.

• Provides a smooth bearing surface for the upper hinge pin
• Helps keep the door level and properly aligned with the cabinet
• Reduces friction and noise when opening and closing
• Replace if cracked, worn, or missing, which can cause door sagging, scraping, or poor closing

• Disconnect power and remove items from the door before servicing
• Support the door; remove the upper hinge cover and screws
• Lift the door off the hinge pin and remove the worn bushing from the hinge bracket
• Press the new thimble fully into place, reinstall the door, and verify proper alignment and seal

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads
