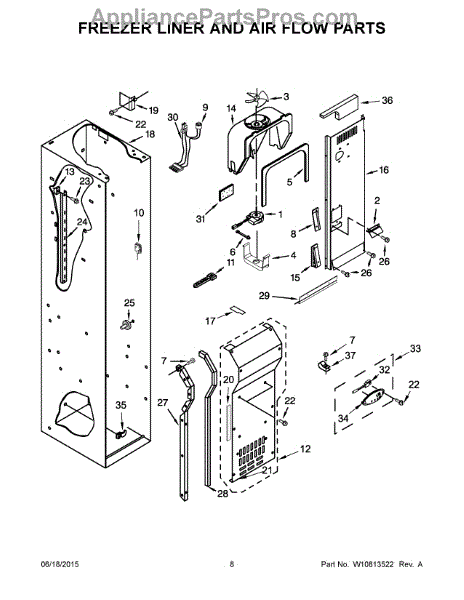

Parts for Kitchenaid KBSN608EPA00: 05 - Freezer Liner And Air Flow Parts

The Motor-Evap DC is an OEM part for Whirlpool refrigerators. As the evaporator fan motor, it is responsible for circulating air within the refrigerator compartment.

Causes of a bad evaporator fan motor can include normal wear and tear over time, overheating due to inadequate ventilation or dust buildup restricting airflow, or failure due to power surges or spikes.

Symptoms of a bad evaporator fan motor include:

• Inadequate or inconsistent air circulation and cooling within the refrigerator
• Frost or ice buildup due to stagnant air
• Unpleasant odors from lack of air movement
• Abnormally high energy usage
• Strange noises emanating from the cooling system

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retainer secures the dryer fan motor to its housing so the blower assembly stays aligned and runs quietly. Replacing a worn retainer restores proper motor mounting and reduces vibration or rubbing noise. What it does:

• Holds the fan motor in place to maintain correct blower alignment
• Prevents the motor or fan from shifting, which can cause noise or rubbing
• Helps avoid airflow loss that can lead to poor drying performance
• Reduces vibration that can stress mounts and fasteners

• One fan motor retainer

• Disconnect power before starting any repair to avoid shock or injury
• Basic hand tools are usually required; retain original fasteners unless replacements are provided
• Inspect surrounding mounts and the blower wheel for damage while accessing the motor

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This defrost bimetal thermostat opens and closes with temperature to protect the evaporator from overheating during defrost. It helps clear frost buildup while preventing damage, supporting stable cooling and efficient refrigerator operation.

• Monitors evaporator temperature and interrupts the defrost heater when the set limit is reached
• Helps resolve symptoms like warm fridge/freezer, heavy frost on evaporator, or long/no defrost cycles
• Can cause frequent temperature swings or compressor short cycling if failing
• Typically mounted on or near the evaporator coil in the freezer

• Disconnect power before servicing; defrost ice as needed to access the evaporator area
• Note wire locations; replace using existing connectors or approved splices
• Ensure the thermostat clips firmly to the evaporator tubing in the original location
• After install, restore power and confirm the unit enters and exits defrost normally

The LED Module Kit is an OEM component specifically designed for Whirlpool refrigerators. This kit contains 12 individual LED lights that illuminate targeted refrigerator sections.

As the primary light source, the module kit is responsible for clearly illuminating refrigerated spaces to easily locate and identify stored items. Uniform lighting is essential for accessible organization.

Causes of malfunctioning LED modules include bulb burnout over time or intermittent electrical connections.

Symptoms of a failing module kit involve:

• Dim lighting throughout compartments
• Flickering or hot spots within illuminated areas
• Entire sections are left in shadow making visibility poor

Note: The factory changed to a warmer color instead of the old cool blue design.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This evaporator cover replaces the internal housing panel that protects the evaporator in compatible Whirlpool refrigerators. It helps maintain proper airflow around the evaporator and supports efficient frost control for reliable cooling. What it does

• Shields the evaporator coil from direct contact and prevents damage
• Directs airflow over the evaporator for consistent cold distribution
• Helps limit ice buildup on the coil when the defrost system is working correctly
• Can address symptoms such as excessive frost, reduced cooling, or unusual freezer airflow/noise

• Disconnect power to the appliance before starting any repair.
• Remove interior panels, shelves, or the evaporator cover screws as needed to access the evaporator housing.
• Handle evaporator fins and nearby components carefully to avoid damage.
• Reinstall all fasteners and panels; verify proper seal and operation before returning the unit to service.

This fan scroll is the plastic housing that surrounds the evaporator fan in the freezer section. It directs air across the evaporator coils and into the ducts, helping your refrigerator move cold air evenly and maintain stable temperatures.

• Channels airflow from the evaporator fan through the coils and into the air ducts
• Helps balance cooling between freezer and fresh food compartments
• Positions the fan motor and blade for proper clearance and reduced vibration
• If cracked, warped, or missing, you may notice weak airflow, temperature swings, rattling noises, or frost buildup on the evaporator cover

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the rear panel to access the fan area
• Transfer the existing fan motor, blade, and hardware to the new scroll
• The fan spins freely and wiring is clear before reassembly and restoring power

Left hand side

Right hand side

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement screw secures appliance panels and components to restore proper fit and stop loose or rattling parts. A simple, OEM-compatible fastener that helps maintain safe, stable operation and original assembly alignment. What it does:

• Secures panels, trim, brackets or components to prevent movement and vibration
• Restores proper fit when a screw is missing or stripped
• Helps eliminate rattling, gaps, or misaligned parts
• Fits the OEM threaded holes and fastening points

• Disconnect power (and gas if applicable) before accessing internal components
• Use the correct driver to avoid stripping the head; hand-start threads before final tightening
• Do not overtighten—stop when snug to avoid damaging threads or plastic parts
• Keep removed hardware organized to ensure correct reassembly

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

Right hand side

Left hand side

This evaporator cover gasket seals the evaporator cover to the refrigerator cabinet, helping maintain proper airflow and reducing frost buildup behind the back wall. It restores a tight seal for more reliable cooling performance. What it does:

• Seals the evaporator cover to prevent air leaks that can cause frost or ice buildup
• Helps maintain consistent cold-air circulation in the freezer/refrigerator compartment
• Reduces chances of excessive frost, water pooling, or longer run cycles tied to air infiltration
• Supports normal defrost operation by keeping warm, moist air out of the evaporator cavity

• Disconnect power before servicing and allow the appliance to defrost if needed
• Remove the evaporator cover carefully; watch for sharp sheet-metal edges and retain fasteners
• Position gasket evenly around the cover mating surface; avoid stretching or creasing the seal
• If adhesive or clips are used, replace or reapply per OEM guidance to ensure a secure fit

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

A thermistor assembly that measures refrigerator temperature and sends that data to the control board so the appliance can regulate cooling. Replaces a failed sensor to help restore accurate temperature control. What it does:

• Senses internal temperature and converts it to a signal the control board uses to adjust cooling.
• Helps regulate compressor, evaporator, and defrost cycles when operating correctly.
• Common symptom: erratic or incorrect refrigerator/freezer temperatures.
• Common symptom: cooling failure, long run times, or temperature-related error codes.

• Disconnect power before accessing or replacing the thermistor to avoid shock.
• Handle the sensor element and wiring gently; avoid pinching or crimping the leads.
• Install in the same location and orientation shown in the OEM diagram for reliable readings.

A thermistor assembly that measures refrigerator temperature and sends that data to the control board so the appliance can regulate cooling. Replaces a failed sensor to help restore accurate temperature control. What it does:

• Senses internal temperature and converts it to a signal the control board uses to adjust cooling.
• Helps regulate compressor, evaporator, and defrost cycles when operating correctly.
• Common symptom: erratic or incorrect refrigerator/freezer temperatures.
• Common symptom: cooling failure, long run times, or temperature-related error codes.

• Disconnect power before accessing or replacing the thermistor to avoid shock.
• Handle the sensor element and wiring gently; avoid pinching or crimping the leads.
• Install in the same location and orientation shown in the OEM diagram for reliable readings.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components
