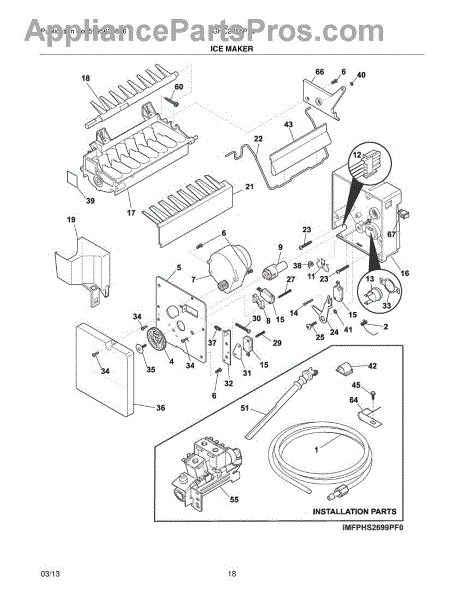

Parts for Frigidaire FGHC2355PF0: 19 - Ice Maker Parts

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This mechanical refrigerator thermostat regulates interior temperature, letting the compressor cycle on and off to maintain your set cooling level. It's a direct replacement for worn or unresponsive temperature controls to restore consistent cooling. What it does:

• Senses cabinet temperature and signals the compressor to run or stop to maintain setpoint
• Replaces a thermostat that won't hold temperature, causes continuous running, or prevents cooling
• Works with manual temperature-control knobs (mechanical sensing and switching)
• Typical failure symptoms: refrigerator too warm, too cold, or compressor that runs constantly or not at all

• Disconnect power before attempting any service to avoid shock or damage
• Access may require removing control panels or shelves; keep track of mounting screws and orientation
• Confirm wiring and terminal placement match the old thermostat before final connection

This mechanical temperature control thermostat replaces the factory temperature sensing switch to restore proper refrigerator temperature regulation. It helps the appliance maintain set temperatures for safe food storage and normal cooling performance. What it does:

• Senses cabinet temperature and opens/closes the cooling circuit to regulate compressor run time.
• Commonly used when the refrigerator runs constantly or cycles too quickly.
• Works as the user-adjustable temperature control for manual-style refrigerator controls.

• Disconnect power to the appliance before starting any repair.
• Handle the sensing bulb/capillary tube gently; avoid kinks or sharp bends.
• Verify correct placement of the sensing bulb in the evaporator/probe clip per OEM location.

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement extension support restores proper alignment and secure mounting for the appliance component it attaches to, helping stop misalignment, rubbing, or loose parts and letting the appliance operate smoothly. What it does:

• Replaces a worn, broken or missing extension support used to secure or extend a nearby panel, drawer, or assembly.
• Helps stop rattling, uneven movement, or binding caused by a damaged support piece.
• Restores proper spacing and mounting so associated parts track and close correctly.
• Works as a direct-fit replacement when the original extension is damaged or missing.

• Disconnect power (and water, if applicable) before beginning any repair.
• Handle edges carefully; use basic hand tools and keep original fasteners if reusing them.
• If mounting hardware is missing or damaged, source matching screws/clips separately.

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This replacement tube carries water from the inlet valve into the refrigerator's icemaker. An intact fill tube helps route water cleanly to the mold, reducing leaks, drips, and ice build-up around the fill area.

• Directs water into the icemaker fill cup/mold during the fill cycle
• Helps seal the cabinet pass-through to prevent leaks and frost intrusion
• Replaces tubes that are cracked, kinked, or blocked by ice/mineral deposits
• Symptoms may include no ice or small cubes, water dripping/ice sheet in the freezer, or frost near the fill tube

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the icemaker as needed, clear any ice from the fill opening, and pull the old tube from the cabinet port
• Insert the new tube fully, align it with the icemaker fill cup, and reconnect the water line
• Restore water and power, then check for proper fill and leaks

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This switch kit is an electrical switch assembly used to restore reliable control of affected appliance functions. It replaces a worn or failed switch so the unit responds correctly to user inputs and power commands. What it does:

• Replaces a faulty or unresponsive control switch that can prevent operation or cause intermittent power/command issues
• Restores proper opening/closing or on/off signaling for the associated control circuit
• Helps eliminate symptoms like no response to button presses, intermittent operation, or a stuck switch
• Matches OEM fit and mounting points for a direct replacement when the original switch has failed

• One switch kit assembly

• Turn off and unplug the appliance or disconnect power at the breaker before beginning work
• Follow the appliance manufacturer's disassembly steps to access the switch; avoid damaging nearby wiring or components
• Verify electrical connections are secure and oriented as original; test function before fully reassembling

This water inlet tube routes incoming water from the supply to the refrigerator's internal water system, restoring proper flow for the dispenser and icemaker. Replace a damaged tube to stop leaks and regain reliable water delivery. What it does

• Channels water from the household supply to the fridge's water valve, dispenser, and icemaker
• Helps prevent leaks caused by cracked, pinched, or deteriorated tubing
• Can restore water flow when internal tubing is blocked or split
• Works with the appliance's existing fittings and seals when installed correctly

• One water inlet tube

• Disconnect power and shut off the water supply before beginning work
• Inspect and reuse only original fittings and seals if undamaged; replace seals if leaking
• Avoid sharp bends or kinks when routing the tube; secure with existing clips or brackets

This replacement refrigerator water tube routes water or condensate between components and maintains a sealed path. Replacing cracked, kinked, or brittle tubing helps stop leaks and restore proper water movement through the system.

• Provides a sealed path to carry water within the refrigerator assembly
• Maintains proper routing to help prevent kinks and restrictions
• Typical failure signs: water leaking inside or underneath, pooling water, visible cracks/brittleness, restricted flow
• Replacing damaged tubing helps prevent water damage to surrounding parts

• Disconnect power and shut off the water supply before servicing
• Note the original routing and connection points; match the length and path during installation
• Fully seat tube ends into existing fittings; transfer any clips/ferrules from the original as required and avoid sharp bends
• Restore water and power, then run and inspect all connections for leaks

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.

The Icemaker Assembly is an OEM part for Frigidaire refrigerators. This assembly is responsible for producing and dispensing ice cubes, ensuring that you always have a steady supply of ice for your beverages or food storage needs.

Causes of a bad Icemaker Assembly include mechanical wear and tear that affects the ice ejector arms or the heating element that loosens the ice, and electronic failures that impair the control module's ability to regulate the ice-making process.

Symptoms of a bad Icemaker Assembly include:

• Failure to produce ice
• Producing small or misshapen ice cubes
• Leaking water in the freezer compartment
• Unusual noises during the ice-making cycle

Fits many Frigidaire side-by-side refrigerators where the icemaker mounts to the back wall of the freezer compartment.

If you experience an issue with the arm hitting the shelf, you may also need to replace the shelf due to manufacturer changes; part number 241691701,
