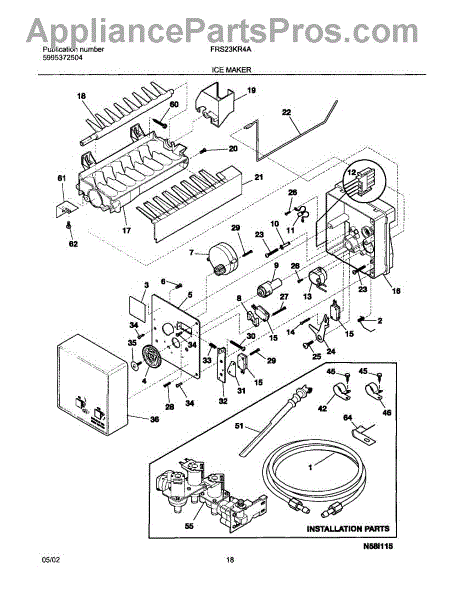

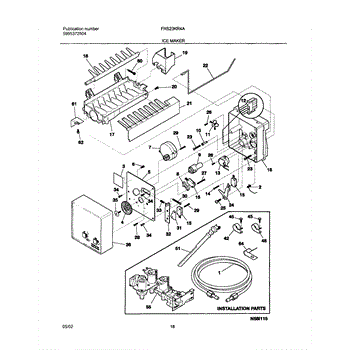

Parts for Frigidaire FRS23KR4AB5: 19 - Ice Maker Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

The Replacement Icemaker is an OEM part for Frigidaire side-by-side refrigerators. It serves the critical function of automatically producing batches of ice cubes on demand. Note: The Icemaker Kit comes with an adaptor harness that may be needed for some applications. The harness converts a 4 pin connector to a 3 pin connector.

Causes of a malfunctioning icemaker can vary. They may stem from failed control sensors affecting conductivity and freeze times, scaled or corroded water lines, or an ice basket mold with broken fins and louvers.
Symptoms of a bad icemaker include:

• Reduced or inconsistent ice production
• Ice cubes getting jammed or fused together
• Water leaks or spray inside the freezer
• Strange sounds or mechanisms not working

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This temperature control thermostat regulates refrigerator cooling by cycling the compressor and fans to maintain set temperatures. Replaces a faulty thermostat to restore proper temperature control and more consistent cooling. What it does

• Senses cabinet temperature and closes or opens the electrical circuit to run the compressor and cooling system
• Helps maintain steady temperatures so food stays properly chilled or frozen
• Commonly replaces a thermostat that causes the unit to run constantly, not run at all, or fail to reach set temperatures
• Works with the fridge's control assembly to respond to user temperature adjustments

• One temperature control thermostat

• Disconnect power to the appliance before starting any repair
• Locate the thermostat behind the control knob or panel; refer to your model's service manual for exact access
• Handle the capillary tube and sensor bulb carefully to avoid kinks or damage

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

Specs: 4 - 40 x 0.375

Specs: 4 - 24 x 0.750

This is a Plazcrew #8-10 screw used to fasten appliance panels, trim and components. It replaces lost or damaged screws to restore secure fit and reduce rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces and small appliance components
• Restores proper alignment and prevents vibration-related noise
• Replaces missing or stripped fasteners that cause loose or wobbly parts
• Matches OEM fit for repair and maintenance where this screw is specified

• Disconnect power and follow appliance safety procedures before working
• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Keep small parts away from children and work over a tray to avoid loss

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This tube clamp secures small tubing and lines inside the appliance to prevent movement and reduce wear. It keeps hoses and tubes routed properly so they don't rub against sharp edges or vibrate during operation. What it does:

• Holds water, drain or refrigerant tubing in place to prevent sagging and chafing
• Reduces vibration and rattling from loose lines
• Helps prevent tubing wear that can lead to leaks or pinch damage
• Keeps hoses routed neatly for reliable appliance operation

• Disconnect power and shut off water supply before beginning any repair
• Remove any access panels needed to reach the clamp location; use caution around sharp sheet metal
• Replace only the damaged clamp with the same style and secure tubing firmly but without over-tightening
• If tubing shows damage where it was rubbing, replace or repair the tubing before reinstalling the clamp

The Icemaker Fill Tube is an OEM part for Frigidaire refrigerators. This tube is responsible for directing water from the water supply line to the icemaker, allowing for the production of ice. It ensures that water is efficiently delivered to the icemaker without leaks or blockages.

You should replace the icemaker fill tube if it becomes damaged or blocked. Causes of a bad fill tube can include mineral deposits or debris clogging the tube, cracks or leaks from wear and tear, or damage from mishandling during maintenance.

Symptoms of a bad icemaker fill tube include:

• No ice production
• Leaks around the icemaker area
• Ice cubes being smaller than usual
• Water overflowing or not reaching the icemaker

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

Inlet valve to door

This 1/4" compression nut and ring is used to connect the water supply line to the water valve inlet. Can be used anywhere a 1/4" compression fitting is needed.

Replacement water inlet tube that connects the refrigerator water inlet valve to the inline filter, restoring proper water routing for the dispenser and ice maker while helping prevent leaks and maintain steady water flow. What it does:

• Routes water from the inlet valve to the fridge's inline filter for filtration and delivery.
• Restores or improves water flow when the original tubing is cracked, pinched, or clogged.
• Helps stop leaks caused by damaged or brittle tubing between the valve and filter.
• Common symptoms indicating replacement: reduced or no water flow, visible leaks, or damaged/kinked tubing.

• Turn off the water supply and unplug the appliance before replacing tubing.
• Use appropriate fittings/clamps and avoid kinking or over-bending the tube; replace worn clamps if present.
• Tighten connections securely but do not overtighten plastic fittings; check for leaks after restoring water and power.

Inlet valve to icemaker

This refrigerator replacement icemaker includes the cover, fill cup, bail arm and a four pin plug harness.

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.
