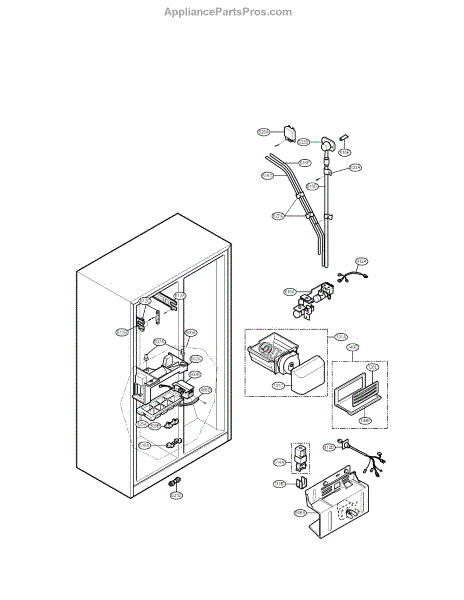

Parts for Kenmore 31006: Ice And Water Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This guide is the replacement drawer slide guide that supports and aligns a refrigerator drawer for smooth, stable opening and closing. Restore proper drawer travel and help prevent binding, sagging, or uneven movement. What it does:

• Supports the drawer on its track and keeps it aligned.
• Guides the drawer during opening and closing for smooth travel.
• Prevents the drawer from binding, sagging, or coming off the track.
• Reduces noise and wobble caused by worn or broken guides.

• Always unplug the appliance or turn off power at the breaker before starting repairs.
• Remove the drawer to access the guide.
• Inspect the mating track and adjacent guides; replace any damaged parts to ensure proper fit.
• Tighten fasteners securely but avoid over-tightening to prevent damage.

The Ice Cube Tray is an OEM part for LG refrigerators. It is located in the freezer section of the refrigerator and provides a designated space for freezing water into ice cubes. It is designed with individual compartments to form ice cubes in a specific shape and size.

Causes of a faulty ice cube tray can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as the tray cracking or breaking, difficulty in removing ice cubes, or improper freezing of the cubes.

Symptoms of a bad ice cube tray may include:

• Cracked or broken tray
• Difficulty in removing ice cubes from the tray
• Irregularly shaped or improperly frozen ice cubes

This OEM LG part can also be used on Kenmore/Sears appliances.

This ice bucket cover is the replacement lid for the freezer ice bin that keeps ice contained and helps maintain freshness. It restores the bin's seal and prevents spills so the ice bin works as intended. What it does:

• Replaces a cracked, warped or missing ice bin lid to keep ice inside the bucket
• Helps reduce ice spillage when removing or sliding the bin from the freezer
• Limits exposure to freezer air to help prevent off-odors and excess frost buildup
• Restores proper fit so the ice storage and dispenser components operate without obstruction

• One ice bucket cover

• Disconnect power to the appliance before servicing for safety
• Remove ice and slide out the ice bucket to access the lid
• Align the cover tabs with the bucket slots and snap into place; no special tools typically required
• Handle gently to avoid cracking; follow manufacturer instructions

Color: white. Measures about 14 inches wide by 9 inches high by 19 inches deep.

A replacement tempered glass shelf that provides a sturdy, easy-to-clean surface for organizing food and containers in your refrigerator. Restores usable shelf space and helps keep items level. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf
• Provides a stable surface for storing food, bowls and containers
• Resists spills and is simple to wipe clean
• Helps maintain proper organization and airflow on the shelf level

• Remove all food and items from the shelf area before installing
• Slide shelf into the support rails until it seats evenly on both sides
• Handle with care — tempered glass can break if dropped or struck
• If shelf supports or rails are damaged, replace or secure them before use

A replacement tempered glass shelf that provides a sturdy, easy-to-clean surface for organizing food and containers in your refrigerator. Restores usable shelf space and helps keep items level. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf
• Provides a stable surface for storing food, bowls and containers
• Resists spills and is simple to wipe clean
• Helps maintain proper organization and airflow on the shelf level

• Remove all food and items from the shelf area before installing
• Slide shelf into the support rails until it seats evenly on both sides
• Handle with care — tempered glass can break if dropped or struck
• If shelf supports or rails are damaged, replace or secure them before use

This harness joint is a wiring connector that links two sections of an appliance wiring harness, restoring electrical continuity and reliable signal/power transfer. Use it to replace a damaged, loose, or corroded harness connection. What it does:

• Joins wiring harnesses so power and control signals pass between components
• Restores intermittent or lost electrical connections caused by broken or corroded terminals
• Helps eliminate symptoms like no power to a module, intermittent operation, or communication failures
• Maintains proper routing and strain relief where harness sections meet

• Disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Match connector shape and terminal arrangement before installation; secure firmly until it clicks or seats
• Avoid forcing pins; inspect adjacent wires and insulation for damage and replace if needed

This is a complete refrigerator ice maker assembly that automatically forms, freezes, and ejects ice cubes into the bin. It restores consistent ice production when the original ice maker stops cycling or no longer makes ice. What it does

• Freezes water in its mold, then harvests and ejects cubes into the ice bucket each cycle
• Controls fill and harvest timing and signals the water inlet valve during the fill portion of the cycle
• Stops ice production when the bin is full via its shutoff mechanism
• Typical failure symptoms: no ice, intermittent/low ice output, or cubes not ejecting

• 1 ice maker assembly

• Disconnect power and turn off the household water supply before servicing
• Remove the ice bin; loosen mounting screws, disconnect the wire harness, and swap in the new assembly in the same position
• Inspect and clear the fill tube of any ice blockage before reconnecting
• Restore power and water; allow the unit to reach operating temperature and begin cycling

This auger motor rotates a refrigerator's ice dispenser auger, which in turn moves ice cubes out through the dispenser chute. If the motor is faulty or broken, the user may notice ice does not dispense or may hear a loud, grinding sound from the appliance despite no ice being produced. In such cases, the motor will need to be replaced. Wear work gloves and be sure to unplug the appliance from the outlet and store perishable foods safely before starting any repair work.This is a replacement auger motor that has been manufactured by LG and sourced directly from the manufacturer. This genuine OEM part is compatible with different refrigerators. This part is sold individually and is a genuine part made of high-quality, durable, non-corrosive materials.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

This sensor cover protects and secures the appliance sensor assembly to help maintain accurate sensor positioning and guard the sensor from damage, dust, and moisture that can interfere with normal operation. What it does:

• Shields the sensor housing from physical damage, dust and moisture.
• Keeps the sensor properly positioned so it can read conditions reliably.
• Can prevent intermittent sensor faults and related error codes when damaged.
• Helps avoid false readings that can cause incorrect cycles or behavior.

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Handle nearby wiring and sensor components carefully; avoid touching circuit contacts.
• Verify the cover seats flush and secures to the sensor housing; do not force or deform plastic tabs.
• If any sensor or wiring was disturbed during installation, recheck connections and test operation before regular use.

The Left Hand Guide Rail is an OEM part for LG refrigerators. This part supports and guides the ice bucket, ensuring smooth and stable movement when inserting or removing the bucket from the freezer compartment.

Causes of a bad guide rail can include regular wear and tear, damage from overloading the ice bucket, or accidental impacts that cause the rail to bend or break.

Symptoms of a bad Left Hand Guide Rail for the ice bucket include:

• Difficulty sliding the ice bucket in and out
• The ice bucket not aligning properly or sagging
• Unusual noises when operating the ice bucket
• The ice bucket getting stuck or not moving smoothly

This OEM LG part is also compatible with some Kenmore models.

Changes between cubed or crushed ice.

This is the water injector tube for select refrigerators. It routes water from the supply system into the appropriate internal channel, helping ensure proper flow to the ice maker or dispenser and preventing leaks at the connection point.

• Directs water from the valve/supply line into the refrigerator's internal water path
• Helps restore proper ice maker/dispenser filling
• Common symptoms: leaking at the rear/under the unit, poor or no ice production, slow or no dispenser flow

• Unplug the refrigerator and shut off the water supply before service
• Have a towel ready to catch residual water from the line
• Note tube routing and connection points before removal; push-to-connect fittings may be present
• After installation, turn water on and check all joints for leaks

The Tube is an OEM replacement part for LG refrigerators. It is a 1/4" plastic tubing that transports water from the main supply line to the refrigerator's water dispenser and ice maker.

Over time, causes of a faulty water line can include mineral buildup restricting water flow, microscopic cracks developing from regular use and pressure fluctuations, or kinks interfering with the flow.

Symptoms of a problematic water line include:

• Slow or intermittent water flow from the dispenser
• Incomplete fills of ice trays
• strange noises when water is dispensed
• Water leaks underneath or behind the fridge

This LG part is also compatible with Sears/Kenmore refrigerators.

The Water Line is an OEM part for LG refrigerators. It is designed to transport water from the home’s supply to the refrigerator, enabling the production of ice and the dispensing of fresh water. This tubing is essential for the refrigerator's water and ice features to function correctly, ensuring clean, clear water is available at all times.

Symptoms of a bad Water Line include:

• Noticeable leaks or dampness along the line's path.
• Decreased water flow to the dispenser or ice maker.
• Unusual noises like buzzing or humming from the line when the dispenser is used.

Causes of a bad water line can include physical damage such as cracks or punctures, blockages from mineral buildup inside the line, or deterioration due to aging or environmental factors such as heat or pressure.

This OEM LG part is also compatible with Sears/Kenmore, ensuring broad compatibility across multiple refrigerator models.

The Water Line is an OEM part for LG refrigerators, designed to supply water to the ice maker and water dispenser. Made from durable materials to withstand water pressure and prevent leaks, this water line is essential for access to clean, filtered water at all times. Note: color of the water tube may be different from original. Tube is 5/16" diameter

Symptoms of a bad Water Line include:

• Leaking of water at the connection points or along the tubing.
• A noticeable decrease in water flow to the dispenser or ice maker.
• A bad taste or odor of the water and ice

Causes of failure can range from physical damage, such as kinks or punctures, to wear and tear over time leading to brittleness or weakening of the material. These issues can compromise the integrity of the water supply, affecting both the quality and safety of the water and ice provided by your refrigerator.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Water Inlet Valve Assembly is an OEM part for LG refrigerators. This valve controls the flow of water into the refrigerator for the ice maker and water dispenser. It ensures a steady supply of water, allowing these features to function efficiently.

You should replace the water inlet valve assembly if it becomes defective. Causes of a bad water inlet valve can include sediment build-up, electrical faults, or mechanical wear. These issues can compromise the valve's ability to open and close correctly, affecting water flow.

Symptoms of a bad water inlet valve assembly include:

• No water or ice production
• Leaks or water pooling around the refrigerator
• Low water pressure from the dispenser
• Strange noises during water filling

This OEM LG part is also compatible with Sears/Kenmore models.

The Water Tube Connector is an OEM part for LG refrigerators. It is specifically designed to securely connect the water supply tubes in the refrigerator. The connector ensures a proper seal, preventing leaks and ensuring a consistent water supply to your refrigerator.

Causes of a bad water tube connector can include wear and tear over time, exposure to water pressure, or damage due to accidental impact or mishandling. These factors can result in leaks, water flow disruptions, or a loose connection, leading to issues with water dispensing or ice making.

Symptoms of a bad water tube connector may include:

• Water leaks at the connection point
• Reduced or intermittent water flow
• Complete water flow blockage

This OEM LG part can also be used on Kenmore/Sears appliances.

The Water Nozzle is an OEM replacement part for LG refrigerators. It is a component within the refrigerator's ice maker and water dispenser system. The water nozzle controls the flow of water into the ice making mold or water dispenser functions.

Symptoms of a bad water nozzle include:

• Slow filling or inability to fill the ice-making mold
• Inconsistent or weak water dispensing from the refrigerator's door
• Leaks or water drips around the ice maker or water dispenser area

Causes of a faulty water nozzle can be mineral deposits accumulating over time, wear and tear from heavy use, or damage due to impact or freezes.

This part is also compatible with many Kenmore side-by-side refrigerator models.

This pipe holder is a small plastic clip that secures tubing and small pipes inside the appliance, helping keep lines organized and preventing rubbing or disconnection. It restores proper routing and reduces vibration-related noises. What it does:

• Holds and secures water, drain, or refrigerant tubing to prevent sagging and chafing
• Keeps lines routed away from moving parts to reduce wear and noise
• Helps maintain proper tube alignment to avoid strain on fittings
• Commonly replaced when the original clip is cracked, broken, or missing

• Disconnect power and water before working on the appliance
• Inspect surrounding tubing and fittings for damage when replacing the clip
• Typically installs as a push-fit or snap-on clip; use gentle pressure and avoid forcing
• Replace broken or brittle clips to prevent tubing damage or leaks

This cover tube is a molded protective housing that shields internal components and wiring from wear, heat, and debris. It helps maintain safe operation and prevents rubbing or chafing that can lead to damage. What it does:

• Covers and protects internal wiring, hoses or assemblies from contact and abrasion
• Helps direct airflow and keeps debris away from sensitive parts
• Reduces noise caused by rubbing or loose components
• Preserves component alignment and prevents premature wear

• Disconnect power to the appliance before beginning any repair.
• Installation requires partial disassembly of the appliance; keep track of screws and clips.
• Use OEM replacement and follow the service manual for correct orientation and torque of fasteners.
• If you see damaged wiring or other compromised parts, replace or repair those items before reinstalling the cover tube.

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power
