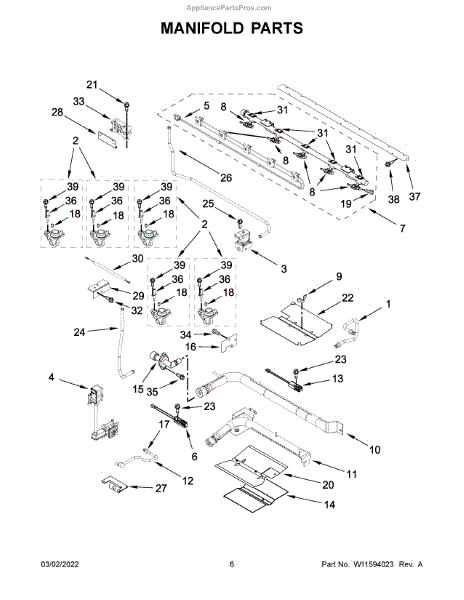

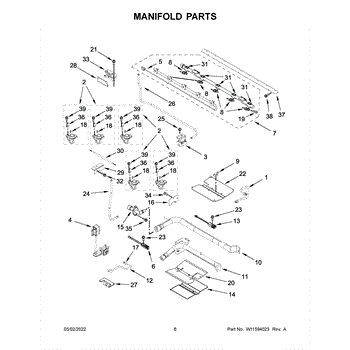

Parts for Kitchenaid KFGD500EBS05: Manifold Parts

This gas tubing is the direct-fit replacement part that routes natural or liquid propane gas between range components, restoring safe fuel flow for proper burner operation. It replaces worn or damaged tubing without modifying factory connections. What it does:

• Carries gas from the valve to burners or manifold to enable ignition and normal burner flames
• Commonly replaced when tubing is corroded, cracked, kinked or leaking
• Can stop symptoms such as persistent gas smell, burner failure to light, or intermittent flame
• Matches OEM fit and connection locations for a straightforward swap

• One gas tubing

• Shut off the gas supply and disconnect power before starting any work
• Only install on compatible appliances; use approved fittings and follow torque specs from the appliance manufacturer
• Check all connections for leaks after installation using a soapy-water solution or approved gas leak detector

This is a genuine replacement Holder ORF that secures a small component on compatible Whirlpool appliances, restoring proper alignment and reliable function. Use it to replace damaged or worn retainers that allow parts to move or rattle. What it does

• Holds/retains a mating component in its proper position to prevent unwanted movement
• Stops loose parts from shifting, which can cause noise or misalignment
• Helps restore correct fit and contact where a worn holder has failed
• Fits into the OEM mounting location and works with the original hardware

• One Holder ORF as shown

• Disconnect power (and gas if applicable) before starting any repair
• Remove only the fasteners or panels necessary to access the old holder; keep track of small hardware
• Compare the new part to the original to confirm orientation before installing

This is a replacement Holder ORF retainer that secures internal components so the appliance operates reliably and parts stay aligned. Designed to restore proper fit where the original holder is cracked, broken or missing. What it does

• Secures and positions an internal component or assembly to prevent shifting or rattling
• Restores proper alignment after damage or wear to the original holder
• Helps reduce noise caused by loose parts
• Used when the original retainer is broken, cracked, or no longer holds parts firmly

• One Holder ORF retainer

• Inspect surrounding parts and mounting points; replace any damaged fasteners before reinstalling
• Use basic hand tools; avoid over-tightening to prevent cracking the plastic retainer
• Disconnect power or follow appliance safety procedures before accessing internal components

This Holder (ORF) is a small mounting clip that secures the ORF assembly or adjacent trim on compatible Whirlpool appliances, restoring proper fit and preventing loose or rattling panels. It provides a simple replacement to refasten worn or broken holders. What it does:

• Secures ORF assembly or trim to the appliance frame to maintain correct alignment
• Stops rattling, vibration noise, and loose-fitting panels caused by a broken holder
• Helps keep doors and trim seated properly for a tighter appearance and operation
• Replaces cracked, worn, or missing holders that no longer hold components firmly

• One Holder (ORF)

• Disconnect power to the appliance before starting any repair to avoid injury
• Inspect surrounding clips and trim for additional damage and replace as needed
• Typically installed by hand or with common hand tools; avoid excessive force to prevent breakage

The Orifice Holder is an OEM part for Whirlpool ranges. Located inside the range cavity, it securely grips the critical gas orifice valve that regulates fuel input into the burners. This small plastic part precisely meters the gas flow, impacting heating performance.

Causes of a bad orifice holder can include cracking from high-temperature fluctuations over extended use. Mineral deposits accumulating inside may also deteriorate components.

Symptoms of a bad orifice holder include:

• Uneven or inconsistent burner flame levels
• Reduced or erratic heating ability of the range
• Gas leaks at the burner valve fittings

This Whirlpool replacement ensures accurate gas metering needed for reliable cooking results. Compatible with KitchenAid, Jenn-Air, and other associated brands.

This solenoid valve controls water flow into the appliance so the unit fills reliably when needed. Replacing a faulty valve restores proper fill operation and helps prevent overfilling or no-fill conditions. What it does:

• Opens and closes to admit water into the appliance during fill cycles
• Stops water flow when the cycle or safety sensor signals the valve to close
• Commonly linked to symptoms like no water fill, slow fill, continuous filling, or leaking at the valve
• Works with the appliance's control system and inlet plumbing to regulate water delivery

• Disconnect power and shut off the water supply before starting work
• Handle electrical connectors and wiring with care; note connector positions for reassembly
• Inspect and replace any worn inlet hoses or seals to ensure a watertight connection
• After installation, restore power and water then run a short cycle to check for correct operation and leaks

This genuine OEM gas valve manufactured by Whirlpool is intended to replace a broken or detached gas valve on gas-powered ranges. The gas valve allows the proper amount of gas to enter the appliance and controls the gas flow to the broil burners and bake burner. If the gas valve is faulty or broken in any way, there may be insufficient gas flow, which can prevent the burners from lighting. Make sure to disconnect the appliance from both the power and gas source before attempting to replace the gas valve.This part is sourced from the manufacturer and is compatible with gas-powered ranges manufactured by Whirlpool, Maytag, Kitchenaid, Jenn-Air, Magic Chef, and other brands. This part has been made from high-quality, durable, non-corrosive metal and is only sold individually.

This wire harness assembly routes power and signals between components to restore electrical connections and normal operation. Replacing a damaged harness helps stop intermittent power loss, shorts, or failed component communication. What it does:

• Transfers power and low-voltage signals between appliance modules and controls
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps eliminate shorts and blown fuses caused by damaged insulation or connectors
• Restores reliable connections to sensors, motors, or switches

• Disconnect power before starting work to avoid shock or injury
• Verify connector orientations and secure clips; do not force connectors into place
• Inspect mating connectors and terminals for corrosion before installing

The Oven Igniter is an OEM part for Whirlpool gas ranges. It is responsible for generating the spark needed to ignite the gas burner.

Causes can be standard wear and tear on the delicate metallic coil. Additionally, food or liquid spills may lead to premature breakdown or surface corrosion.

Symptoms of a faulty igniter include:

• Oven or burners failing to turn on or stay lit
• Requires repeated attempts at ignition before activating
• No spark or glow seen through the observation window

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Manifold is an OEM component for Whirlpool gas ranges. It serves as the main conduit routing gas from the supply line to each burner via individual brass valves. Rugged steel construction ensures durability under appliance pressures and heat.

Causes of a bad manifold can include cracks in welding, damage to gas valves preventing proper flow control, or corrosion from prolonged gas exposure compromising safety.

Symptoms of a bad manifold include:

• Uneven or inconsistent burner flames
• Difficulty adjusting flame heights
• Gas leaks around connections or valves
• Hesitation or failure to light one or more burners

This OEM Whirlpool replacement part is compatible with kitchen ranges from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models. Replacing the manifold restores optimal gas flow and functionality.

A replacement gas burner valve that controls fuel flow to a single surface burner, restoring proper flame control and consistent cooking heat. Fits compatible Whirlpool gas ranges and cooktops. What it does:

• Regulates gas flow to a surface burner for adjustable flame height and even cooking
• Replaces a worn or leaking valve that can cause a burner to fail to light or to burn weakly
• Helps eliminate inconsistent or uneven heat across cookware
• Works as the control point between the household gas supply and the burner assembly

• Turn off the gas supply and disconnect power before attempting replacement
• Inspect and replace any damaged gaskets, seals, or mounting hardware as needed
• After installation, check for gas leaks and proper burner operation per local codes

The Valve-Brnr is an OEM part for Whirlpool gas ranges. It acts as the valve regulating gas flow to each burner, supplying consistent flame levels carefully chosen by the user.

Causes of a bad Valve-Brnr can include wear and mineral buildup over years that inhibit proper motion. Debris or damage could also disrupt gas control.

Symptoms of a bad valve-brnr include:

• Unstable or irregular burner flames during cooking
• Inability to achieve desired flame heights as selected
• Potential safety issues if gas flow cannot be adjusted

This genuine Whirlpool replacement is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore as well.

This oven broil burner supplies high, direct heat for broiling and browning food in the oven, restoring broil performance and even surface cooking. It replaces a worn or damaged broiler element to help regain consistent broil results. What it does

• Produces the intense, direct heat required for broiling and browning
• Works with the oven's ignition system to light and maintain the broil flame
• Helps restore even browning and searing on top of foods
• Commonly used when broil flame is weak, uneven, or won't stay lit

• Disconnect power and shut off gas supply before starting work
• Follow OEM diagram for correct orientation and secure mounting
• Inspect and replace any damaged gaskets or fasteners for a proper seal
• After installation, test broil function and check for proper ignition and flame

Oven burner (bake burner) provides the main bake flame for a gas oven, restoring even heat for baking and roasting. It replaces a worn or damaged burner to help the oven reach and hold correct baking temperatures reliably. What it does:

• Supplies the primary bake flame to heat the oven cavity for baking and roasting.
• Ignites to produce a steady flame so the oven can reach and maintain set temperatures.
• Use when the oven fails to heat, heats unevenly, has a weak flame, or when the burner shows corrosion or physical damage.
• Fits as a direct replacement bake burner for compatible gas ovens.

• Turn off the gas supply and disconnect electrical power before servicing.
• Follow OEM instructions and use proper tools; ensure burner seats correctly and fasteners are secure.
• After installation, check all gas connections for leaks and follow manufacturer procedures to relight or test the oven.

This gas tubing supplies gas from the oven manifold to the burner assembly, restoring a safe, direct fuel path for proper ignition and heating. Use when tubing is cracked, corroded, kinked, or leaking. What it does:

• Carries gas from the appliance's manifold or valve to the burner(s)
• Maintains a sealed, flexible connection to allow component movement
• Replaces damaged, corroded, or pinched tubing that can cause leaks or poor ignition
• Helps restore consistent burner performance and proper heating when tubing is compromised

• Turn off gas supply and electrical power before starting any service
• Verify correct orientation and secure fittings to avoid leaks; use OEM-specified fittings and torque
• Leak-test all connections with a soap solution or approved leak detector before returning appliance to service

This gas tubing is a direct-fit replacement line that routes gas between components and restores a secure fuel path for safe burner operation. It helps stop leaks and ensure consistent gas flow to the appliance. What it does

• Replaces damaged, cracked, or corroded gas tubing that can cause leaks or loss of gas flow
• Restores a sealed connection between the gas valve and burner or between gas components
• Can resolve symptoms such as gas odor, intermittent ignition, or weak burner flame when tubing is the cause
• Designed to match OEM form and fit for straightforward replacement when listed for your model

• One gas tubing assembly as shown

• Shut off the gas supply and unplug the appliance before starting any work
• After installation, test all fittings with a leak detection solution; do not use an open flame
• Follow all local codes and OEM instructions for fittings, sealants, and torque values

This replacement fitting connects the appliance's water line to its internal plumbing so water flows where it's needed and stays sealed. It restores a proper watertight connection to help stop leaks and ensure reliable water delivery. What it does:

• Connects the external water supply line to the appliance's internal water inlet
• Creates a secure, watertight seal to prevent drips and leaks at the connection point
• Supports consistent water flow for ice makers, dispensers, or valves where used
• Can resolve symptoms like visible leaks, reduced water flow, or intermittent filling

• One replacement fitting

• Turn off the water supply and unplug the appliance before installing
• Inspect mating surfaces and replace any damaged O-rings or gaskets as needed
• Hand-tighten first, then snug with appropriate tools; avoid over-tightening
• If plumbing sealant is recommended by your installer, use plumber's tape on threaded connections only

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

This orifice spud secures the gas orifice in the burner tube to help deliver a consistent fuel flow for safe, even burner operation. Replaces a worn or damaged spud to restore reliable ignition and flame control. What it does:

• Holds the gas orifice in place at the inlet of the burner tube
• Helps direct and stabilize gas flow for proper ignition and flame shape
• Commonly replaced when a burner won't light, has weak/uneven flames, or when the spud is corroded or stripped
• Works with the burner assembly and orifice to maintain safe burner performance

• One orifice spud

• Turn off gas supply and disconnect power before servicing any gas appliance
• Inspect mating threads and the orifice for damage and replace if necessary
• Hand-start threads, then tighten securely—do not overtighten or use excessive force
• If you smell gas, detect a leak, or are unsure about the repair, stop.

This orifice spud is the small gas fitting that directs fuel from the valve to the burner, helping produce a consistent, controllable flame for safe cooking. Replace a damaged spud to restore proper burner operation. What it does

• Channels gas from the valve to the burner cap for correct flame delivery.
• Helps maintain steady, even burner flames when functioning properly.
• Commonly replaced when burners have low or uneven flames or fail to light reliably.
• Works with the burner assembly as part of the fuel delivery path.

• One orifice spud

• Turn off gas supply and electrical power to the appliance before starting.
• Remove burner components as needed, swap the spud, and reassemble in reverse order.
• After installation, check for gas leaks with a safe leak-test method (soapy water) and restore power only when no leaks are present.

This orifice spud is the small burner adapter that delivers gas from the valve to the burner assembly, restoring proper flame shape and reliable ignition for gas ranges and cooktops. What it does:

• Directs gas flow from the valve into the burner for correct combustion
• Helps restore a steady, even burner flame when worn or damaged
• Can resolve ignition issues caused by gas flow restriction or misalignment
• Fits in the burner tube/orifice assembly to maintain proper burner operation

• Turn off gas supply and unplug the appliance before starting any work
• Hand-start threads, then snug per OEM guidance; avoid over-tightening
• If you smell gas, stop and

This orifice spud secures the burner orifice and helps deliver gas to the burner for proper ignition and flame. It replaces a damaged or worn spud to restore stable burner operation and consistent cooking performance. What it does:

• Holds the burner orifice in the correct position for a steady, controlled gas flow
• Directs gas from the valve to the burner for reliable ignition
• Replaces cracked, corroded, or misshapen spuds that can cause uneven flames or poor burner performance
• Helps maintain consistent heat across the burner when installed correctly

• One orifice spud

• Turn off gas supply and power to the appliance before starting any repair
• Only reinstall if threads and sealing surfaces are clean and undamaged; replace associated gaskets or fittings if specified
• Hand-start threaded fittings, then tighten to OEM torque; avoid overtightening which can damage the spud

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This burner baffle directs heat and flame away from sensitive components to help maintain even cooking and protect the range's internal parts. It's a direct-replacement trim piece used on compatible gas ranges and cooktops. What it does:

• Shields and redirects burner flame to reduce hot spots and protect nearby components
• Helps maintain more consistent surface temperatures during use
• Prevents flame impingement on adjacent parts that can cause discoloration or premature wear
• Supports proper burner operation by holding components in correct alignment

• One burner baffle

• Disconnect power and shut off the gas supply before starting work; allow all components to cool
• Basic hand tools are typically required; handle the baffle carefully to avoid bending or scratching
• Verify correct fit and orientation from the parts diagram before final reassembly

This gas tubing replaces a damaged or corroded supply line to restore safe fuel flow to the appliance. It provides a direct, OEM-matching tubing solution for appliances that use a routed gas line. What it does:

• Carries natural gas or LP from the appliance inlet to the burner/regulator assembly
• Restores proper gas flow when original tubing is kinked, leaking, or corroded
• Helps eliminate gas odors or poor burner performance caused by a compromised line
• Matches OEM routing and connection points for a direct fit when listed for your model

• Only install with the appliance disconnected from gas and electrical supply
• Use proper flare or compression fittings and approved gas-rated sealants per local codes
• Check all connections with a soapy water solution or approved leak detection fluid after installation

This is a gas tubing used to route fuel inside the appliance, restoring a secure path for gas flow and helping the appliance operate safely when original tubing is damaged or leaking. What it does

• Carries natural gas/LP from the valve/manifold to the burner assembly or other gas connection points.
• Restores a sealed gas path when existing tubing is cracked, corroded, or pinched.
• Matches OEM routing and connection points for a proper fit when replacing the original tubing.

• One gas tubing

• Turn off gas supply and disconnect power before starting work.
• Use approved fittings and follow local codes; apply a soap-and-water leak test after installation.
• Do not modify tubing; replace with the proper OEM part to maintain safe operation.

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This surface ignitor is the spark electrode that lights gas burners on a cooktop or range. It restores reliable spark-based ignition so burners light quickly and consistently when the control is turned on. What it does:

• Creates the spark that ignites gas at the burner for normal burner operation
• Helps stop continuous clicking or no-flame conditions when functioning correctly
• Restores proper ignition when a worn or cracked electrode fails to spark
• Works with standard sealed burner assemblies and spark modules

• One surface ignitor

• Disconnect power and turn off the gas supply before starting any repair
• Handle the ceramic tip carefully; do not touch the firing end with bare hands
• Use basic hand tools to remove the burner cap and mounting hardware; verify proper electrode alignment and gap per OEM instructions
• After installation, restore power/gas and test each burner for proper ignition; replace wiring or harnesses only if visibly damaged

The Surface Igniter is an OEM replacement part for Whirlpool gas ranges. It is responsible for generating the spark needed to ignite the gas, ensuring a consistent and controlled flame for cooking.

Symptoms of a bad electrode igniter include:

• Burner not igniting
• Weak or intermittent sparks
• Clicking sound without ignition

A faulty or worn-out electrode igniter can occur due to normal wear and tear or accidental damage. If you notice issues such as the burner not igniting, weak or intermittent sparks, or a clicking sound without ignition, it may be time to replace the electrode igniter.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Orifice spud secures the burner orifice to the gas valve/manifold and directs fuel to the burner for proper flame performance. Replaces a damaged or corroded spud to help restore correct gas flow at the burner. What it does:

• Holds the burner orifice in place and channels gas from the valve to the burner.
• Helps maintain consistent flame size for even heating and cooking.
• Commonly used when a burner has weak, uneven, or intermittent flame performance.
• Replace if the spud is cracked, corroded, damaged, or leaking.

• Turn off the appliance's gas supply and disconnect power before beginning any repairs.
• Remove burner components per the service manual and install the spud in the same orientation as the original.
• Hand-start threads, then snug with the appropriate wrench—do not overtighten.
• After installation, check fittings for leaks with an approved leak-detection method; if you smell gas or suspect a leak, stop.
