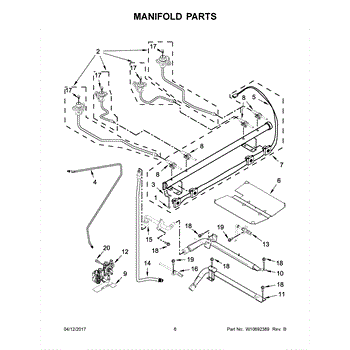

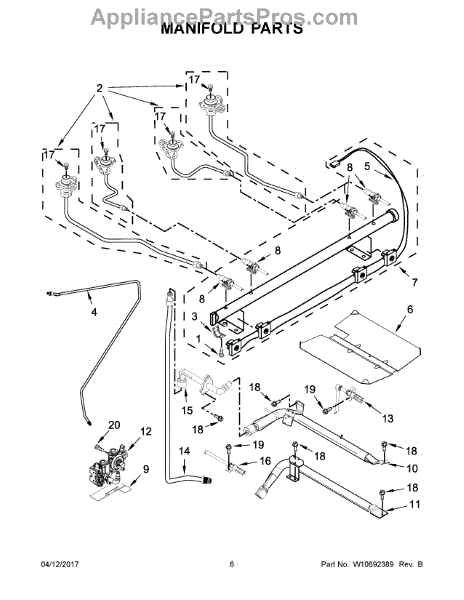

Parts for Maytag MGR8600DE0: 04 - Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This orifice holder assembly secures the burner orifice to the burner tube and helps direct gas flow for stable ignition and flame. It's a direct-fit replacement that restores proper burner alignment and operation. What it does:

• Holds the gas orifice in place at the burner for correct gas delivery
• Helps maintain a consistent flame for even heating
• Can resolve symptoms such as burners that won't light or poor/uneven flames
• Works with the burner tube and associated gas valve assembly to ensure proper operation

• One orifice holder assembly

• Turn off the appliance and shut off the gas supply before beginning work
• Use appropriate tools and avoid overtightening fasteners to prevent damage
• Inspect nearby gaskets and fittings; replace any damaged parts for a proper seal

The HOLDER-ORFICE is an OEM component specifically designed for Whirlpool brand gas ranges and cooktops. It serves as the mounting bracket that secures the gas orifice fitting in the proper position. Correct orifice placement is critical for targeted gas flow and optimal flame adjustment.

Symptoms of a bad holder-orifice include:

• Flames that cannot be properly adjusted and controlled from high to low
• Potential safety hazards such as gas leaks due to a loose fitting
• Inefficient or uneven heating from erratic gas flow issues

Causes of failure include normal wear over time exposed to heat and vibration, or damage from accidental impact that warps the holder.

This OEM Whirlpool replacement ensures the orifice fitting remains firmly in position. Compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models. Replace your holder orifice today for safe, dependable gas range functionality.

The HOLDER-ORFICE is an OEM component specifically designed for Whirlpool brand gas ranges and cooktops. It serves as the mounting bracket that secures the gas orifice fitting in the proper position. Correct orifice placement is critical for targeted gas flow and optimal flame adjustment.

Symptoms of a bad holder-orifice \include:

• Flames that cannot be properly adjusted and controlled from high to low
• Potential safety hazards such as gas leaks due to a loose fitting
• Inefficient or uneven heating from erratic gas flow issues

Causes of failure include normal wear over time exposed to heat and vibration, or damage from accidental impact that warps the holder.

This OEM Whirlpool replacement ensures the orifice fitting remains firmly in position. Compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models. Replace your holder orifice today for safe, dependable gas range functionality.

The Orifice Holder is an OEM part for Whirlpool ranges. This part secures the orifice through which gas flows into the range cooktop and oven burners.

Causes may include natural wear, cracks or damage incurred over years of use. Gas leaks are also a risk if the holder fails.

Symptoms of a bad orifice holder can manifest as:

• Unpredictable or intermittent burner ignition
• Flames that appear abnormally tall, yellow or noisy
• Cooktop that heats unevenly or inadequately

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement wire harness routes power and signals between the control switches and the appliance wiring, restoring reliable electrical connections for proper control operation and reducing intermittent or failed switch responses. What it does:

• Connects the control/switch manifold to the appliance's main wiring harness to enable switch signaling and power flow
• Restores intermittent or non-working switches caused by damaged or loose wiring connections
• Prevents misrouting and poor contact that can cause erratic control behavior
• Provides correct plug-to-plug replacement for a straightforward wiring restore

• Disconnect power to the appliance before starting any repair to avoid shock risk
• Match connector shapes and colors; route harness to avoid pinch points and hot surfaces
• Reconnect all plugs fully until they click; secure with original clips or fasteners

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner valve is a direct-replacement valve that controls gas flow to a cooktop or range burner, restoring proper ignition and steady flame for safe cooking. What it does:

• Regulates gas flow to an individual burner for normal ignition and flame control
• Helps correct issues like burners that won't light or have weak/uneven flames
• Prevents continuous flow when the valve is in the off position (safety-related function)
• Works as the component between the appliance gas line/manifold and the burner port

• Always shut off the appliance gas supply and power before beginning service
• Check all connections for leaks after installation (soap-and-water test recommended) and follow local codes
• Do not test for leaks with an open flame; follow OEM instructions and safety precautions

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

Note: For LP Broil orifice order WPW10400497. For LP bake orifice order WPW10400494.

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

This natural-gas burner orifice spud meters the correct fuel flow for a 15,000-BTU surface burner. Replacing a clogged, damaged, or wrong-size orifice restores proper flame size, cleaner combustion, and reliable cooktop performance. What it does:

• Meters gas through a calibrated opening to the burner head for correct flame height
• Sized for a 15,000-BTU surface burner using natural gas
• Installs in the orifice holder/valve body beneath the burner
• Typical symptoms of a faulty or mismatched orifice: weak/small flames, yellow/sooty flames, uneven heating, delayed ignition, burner won't reach high heat

• 1 natural-gas 15,000-BTU orifice spud

• Shut off gas supply and disconnect power; allow all burners to cool completely
• Remove grates, caps, and burner heads; lift the top or access the orifice holder as required
• Match each orifice to the correct burner location by BTU rating; do not overtighten
• After reassembly, check all connections for leaks with a non-corrosive soap solution and verify proper flame color/size

• For natural gas applications only; use the correct LP/propane orifice when converting fuel types

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This LP conversion kit adapts select gas cooking appliances to operate on liquid propane. Use it when installing a natural-gas model on an LP supply to ensure proper ignition, flame characteristics, and safe performance. What it does

• Converts a natural-gas appliance for use with LP/propane per the model's installation instructions
• Provides correctly sized LP components to achieve proper flame size and combustion
• Helps prevent issues such as yellow flames, sooting, and poor simmer control caused by incorrect gas type
• Required when installing where only propane is available; model-specific kit

• One LP conversion kit

• Conversion must be performed by a qualified gas technician; follow all local codes
• Shut off gas and electrical power and allow all components to cool before servicing
• Replace the specified parts and set the pressure regulator for LP; adjust low flames/air shutters as directed in the service/installation manual
• Leak-test all connections and apply conversion labels after completion; verify flame quality

The LP Bake and Broil Orifice Kit is an OEM replacement part for Whirlpool gas ranges and ovens. It is a kit containing specially-sized orifices that control gas flow to the bake and broil burners. This allows for optimal gas-air mixture and fuel efficiency specific to liquefied petroleum (LP) gas systems.

Causes of needing a replacement kit include worn or damaged orifices that alter proper gas flow and burner performance over time.

Symptoms include:

• Slow or uneven heating from one or multiple burners
• Burners that create hot or cool spots on cookware
• Ineffective or soft flames that impact cooking results
• Higher appliance operation costs due to inefficient fuel usage

This OEM kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Oven orifice kit with Bake orifice and "Male" Broil orifice. For an oven orifice kit with a "Female" Broil orifice, order part# W10859321. The Bake orifice is #56, Broil orifice is #100.
