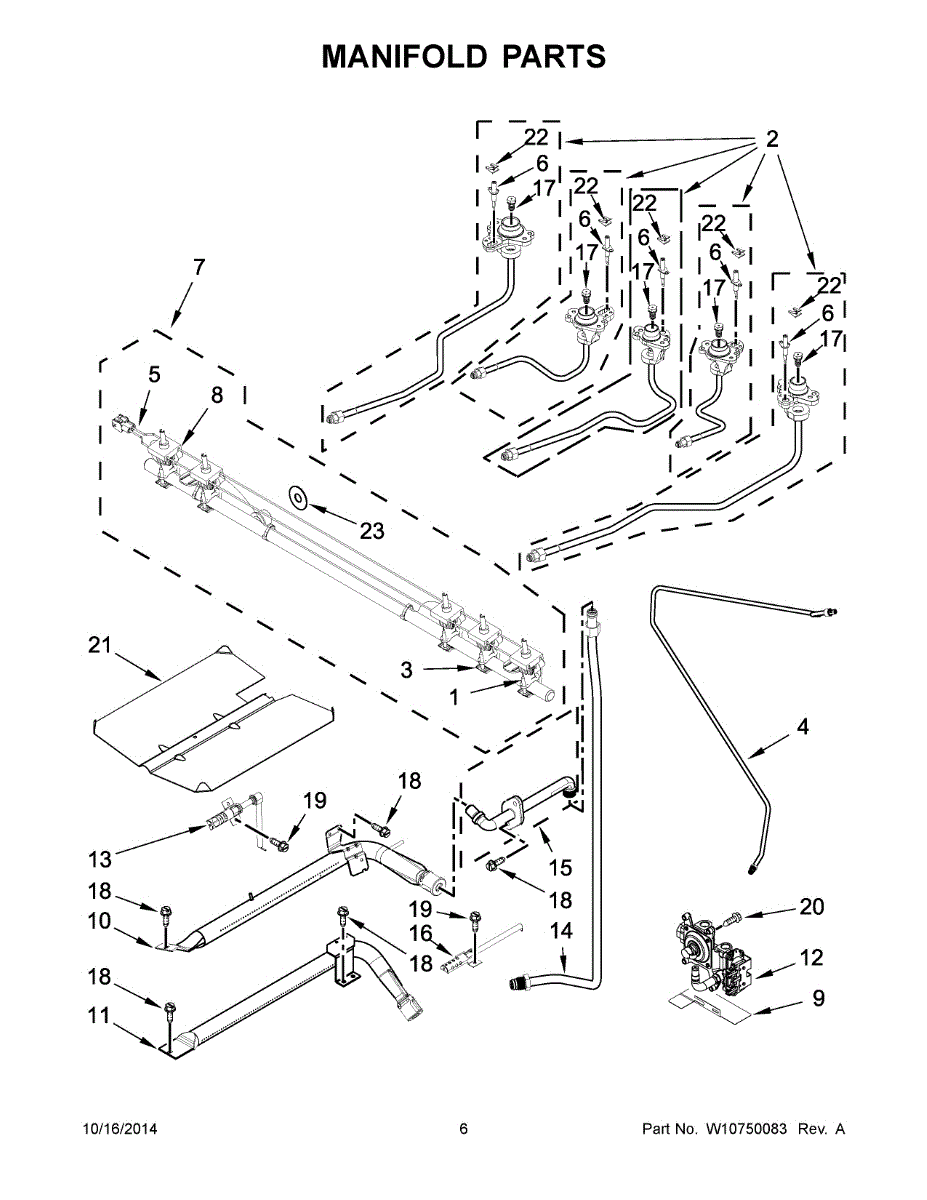

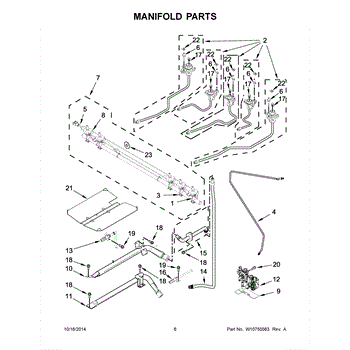

Parts for Maytag MGS8880DE0: 04 - Manifold Parts

The Screw is an OEM part for Whirlpool cooktop. It is a small yet vital component that joins together other parts of the range to create a cohesive appliance. The screw is responsible for tightly securing internal components like the oven cavity walls, heating elements, and outer door during operation.

Causes of a bad screw can include wear and tear over time due to repetitive heating and cooling cycles, or damage from handling that results in bending or stripping of the threads.

Symptoms of a bad screw include:

• Detached or damaged internal range components
• Issues with the door like misalignment or inability to latch securely
• Improper heat circulation and hot or cold spots in the oven
• Component malfunctions if mounting positions are compromised

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement Holder (ORF) secures the ORF mounting/trim assembly so the component stays in the correct position and prevents rattling or shifting during normal use. It restores proper fit and stability where the original holder is broken or missing. What it does:

• Secures the ORF assembly or trim piece to the appliance frame
• Stops movement, rattling, or misalignment caused by a damaged holder
• Helps maintain proper spacing and fit of the surrounding parts
• Supports normal operation by keeping the ORF component in place

• Disconnect power or unplug the appliance before beginning any work
• Removal and reinstallation typically require basic hand tools; handle trim gently to avoid scratching
• Follow the OEM instructions for disassembly and reassembly

This Holder ORF is a direct-replacement retainer that secures the associated ORF component in place, helping restore correct alignment and reduce movement or noise from a loose assembly. What it does:

• Secures the ORF assembly so the adjacent component stays properly positioned
• Helps eliminate rattling, buzzing, or clunking caused by a loose retainer
• Restores correct fit to prevent the part from shifting during normal use
• Maintains intended spacing and alignment for reliable operation

• One Holder ORF retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Basic hand tools may be required; follow the appliance's service manual for step-by-step instructions
• Inspect surrounding parts and fasteners; replace any damaged clips or screws as needed

This Holder ORF retainer secures a small appliance component in place to keep moving parts aligned and reduce noise or misfeeds. It's a simple replacement that restores proper component positioning and stable operation. What it does:

• Secures and centers the associated component so it stays in the correct position during use
• Prevents rattling, shifting, or intermittent contact caused by a loose or broken retainer
• Helps restore consistent operation when an associated part is misaligned or falls out of place
• Works as the mounting/holding point designed for the OEM component it matches

• One Holder ORF retainer

• Disconnect power (and water, if appliance type requires) before replacing the part
• Replace using basic hand tools; avoid forcing or prying plastic parts to prevent breakage
• Inspect adjacent clips and fasteners and replace if damaged to ensure a secure fit

This wire harness connects internal components to deliver power and signals so the appliance runs reliably. It replaces a damaged or worn harness to restore proper electrical connections and help eliminate intermittent operation. What it does:

• Routes and organizes electrical wiring between control and internal parts
• Restores lost or intermittent power to specific components caused by frayed or broken wires
• Prevents loose connections that can cause erratic behavior or shutoffs
• Replaces burnt or damaged wiring that may produce burning smells or visible damage

• Disconnect power (unplug appliance or shut off breaker) before starting any work
• Take photos of existing routing and connector positions to aid reassembly
• Match connectors and route the harness the same way as the original; secure with existing clips or ties
• If you see melted connectors, melted insulation, or other heat damage, verify surrounding parts and components for faults before reassembly

The Surface Ignitor is an OEM part for Whirlpool ranges and cooktops. This component is responsible for generating the spark needed to ignite gas burners on the cooktop or oven pilot light.

Causes of a bad Surface Ignitor can include wear and tear over time due to repeated use during ignition. Physical damage is also possible.

Symptoms of a failed surface ignitor include:

• Inability to ignite any gas burners
• Repeated sparking sounds but no ignition
• Yellow burner flames instead of blue

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner spark electrode creates the spark that lights the gas on your range or cooktop. Replacing a worn or cracked electrode restores reliable ignition so burners light quickly and consistently when you turn the knob.

• Produces a high-voltage spark at the burner to ignite the gas flame
• Helps resolve: burner won't light, no or weak spark at that burner, needs manual lighting, intermittent ignition
• Damage or contamination on the ceramic insulator can prevent proper arcing
• Direct replacement for the failed electrode at the affected burner

• Disconnect power and shut off gas supply before servicing
• Allow unit to cool completely
• Remove burner cap and head to access the electrode; transfer mounting hardware if reused
• Handle the ceramic insulator carefully; reconnect lead securely and align the tip near the burner head as originally positioned

This surface burner igniter creates the spark that lights a gas cooktop or range burner. The attached wire lead simplifies hookup and helps restore quick, dependable ignition when a burner won't light or only lights intermittently.

• Generates a high-voltage spark at the burner to ignite gas
• Restores reliable burner lighting and consistent flame startup
• Common symptoms: burner won't ignite, no visible spark, intermittent lighting, or a chipped/cracked ceramic insulator
• Replaces a worn or damaged electrode to eliminate the need for manual lighting

• Disconnect electrical power and shut off gas before servicing
• Allow the cooktop/range to cool; handle the ceramic tip carefully to avoid damage
• Match the igniter position/orientation to the original for proper spark at the burner
• Route the lead away from sharp edges and heat; make a secure connection to the harness, then test for spark before reassembly

This surface burner igniter is the spark electrode that lights the flame on your gas cooktop or range. Replacing a worn electrode restores reliable ignition at the affected burner for fast, consistent lighting.

• Generates a high-voltage spark at the burner to ignite gas
• Positions and insulates the tip for consistent flame lighting
• Common symptoms: burner won't ignite or no spark at that burner
• Other signs: needs a match to light, intermittent/erratic spark, cracked ceramic

• Disconnect power and shut off gas supply; allow appliance to cool
• Remove burner cap and head to access the electrode; note wire routing and mounting
• Transfer any bracket/clip from the original part if required and set proper gap/position near the burner port
• Restore power and gas, then test ignition at the repaired burner

This replacement manifold assembly routes fluid or gas from the supply to the appliance's internal components, restoring proper distribution and operation. Use this genuine-style manifold when the original is cracked or otherwise failing. What it does

• Directs flow from the supply line to multiple component ports so burners, valves, or injectors receive proper flow.
• Restores proper operation when improper flow causes uneven performance or loss of function.
• Common symptom indicators: weak or no output at related components, visible leaks, or inconsistent operation.
• Works as the central distribution point that mates to supply and downstream lines or valves.

• One manifold assembly as shown

• Turn off and disconnect the appliance from power and the supply (gas/water/electric) before starting.
• Inspect associated seals, gaskets, and fittings; replace any worn items to ensure a proper seal.
• Hand-tighten fittings first, then torque per manufacturer spec if available; avoid overtightening.

This saddle-style gas valve controls gas flow to the appliance, letting technicians create a safe, serviceable gas connection. It's used where a saddle/tap-style inlet is required for supplying natural gas to the unit. What it does:

• Provides a saddle-mounted gas shutoff and inlet for an appliance connection
• Restores gas flow when a damaged or leaking saddle valve prevents operation
• Commonly used when a service replacement or rework of the appliance gas inlet is needed
• Helps isolate the appliance gas supply for repair or maintenance

• Turn off the home gas supply and relieve downstream pressure before starting work
• Installation must follow OEM instructions and local codes; use appropriate fittings and sealants for gas service
• Check all connections for leaks with a gas-safe leak detector or soapy-water test after installation

This surface burner valve regulates gas flow to a single cooktop burner through the control knob. Replacing a worn valve restores smooth flame control, reliable ignition, and a positive shutoff for safer, consistent cooking.

• Regulates and meters gas to one surface burner for off, simmer, and full-flame settings
• Works with the control knob and spark-ignition switch to light the burner
• Common symptoms: burner won't light or adjust properly, flame doesn't shut off completely, or the knob is hard to turn or wobbly
• If a gas odor is detected near the control area, stop use and service the appliance

• Disconnect electrical power and shut off gas before servicing; allow the appliance to cool
• Access the valve/manifold; note valve orientation and stem position before removal
• Transfer the spark switch, mounting clip, and fittings from the old valve as needed
• Apply an approved gas-rated thread sealant, tighten connections, and leak-test all joints with a soap solution before use

The Surface Burner Valve is an OEM part for Whirlpool cooktop ranges. As an internal fixture, each valve regulates gas flow to a specific burner allowing customized heating levels.

Symptoms of a bad surface burner valve include:

• Burners that will not ignite or only ignite at max capacity
• Inability to lower a burner's flame below the maximum setting
• Gas leaks characterized by unusual smells

Causes relate to regular use corrosion restricting valve movement or impact damaging stems preventing full aperture control. Neglect threatens safety.

This OEM Whirlpool part is also compatible with some Maytag, Jenn-Air, and KitchenAid ranges.

This broil burner assembly supplies the focused heat for the oven's broiling function so you can brown and crisp foods quickly. It replaces a worn or damaged broil burner to restore proper broil performance. What it does:

• Directs and emits the high, concentrated flame used during oven broiling.
• Restores even browning and searing when the broil function produces weak or spotty heat.
• Addresses issues such as little/no broil flame or uneven broiling when burner damage or clogging is present.
• Works with the oven's gas supply and ignition system to produce consistent broil heat.

• One broil burner assembly

• Turn off and disconnect gas supply and electrical power before attempting service.
• Follow OEM service manual or parts diagram for correct alignment and secure mounting.
• Use proper tools; verify gas connections are leak-free and ignition lights properly before use.

This gas pressure regulator controls and stabilizes the incoming gas supply to your appliance, helping burners and the oven receive a consistent flow. Replacing a failing regulator can restore steady flames and more reliable heating performance. What it does

• Reduces and regulates incoming gas line pressure to appliance specifications
• Helps maintain consistent burner flames across the cooktop and oven
• Can address weak or uneven flames affecting multiple burners
• May help resolve ignition issues caused by insufficient or inconsistent gas flow

• 1 gas pressure regulator assembly

• Disconnect power and shut off the gas supply before servicing; work in a well-ventilated area away from open flames
• Note gas flow direction; transfer any fittings from the old regulator as required
• Use approved gas-rated thread sealant on NPT connections and tighten to manufacturer guidance
• After installation, restore gas and perform a thorough leak check with a soap-and-water solution on all connections

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas in the oven burner to produce the heat needed for cooking and baking. The igniter ensures a consistent and reliable flame each time the oven is used.

Causes of a bad igniter can include normal wear and tear, electrical faults, or exposure to high temperatures over extended periods. A worn or damaged igniter may fail to produce the necessary spark or heat to ignite the gas.

Symptoms of a bad igniter include:

• The oven not heating up
• Uneven cooking or baking
• A delay in the oven igniting
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the replacement flexible line that routes fuel from the gas valve to the burner assembly, restoring a secure gas connection for safe ignition and operation. Designed to match OEM fit and function. What it does

• Carries natural or LP gas from the control valve to the burner or main manifold.
• Restores a sealed gas path when original tubing is cracked, pinched, or disconnected.
• Helps eliminate symptoms such as gas smell near the appliance, burner failing to light, or intermittent pilot/burner operation.
• Works with appliance gas systems that use a flexible tubing connection.

• One gas tubing as shown.

• Turn off the gas supply and unplug the appliance before starting any work.
• Use correct fittings and thread sealant approved for gas.
• After installation, test all connections for leaks using a soapy water solution or a gas leak detector; never use an open flame.

This fitting is a small connector that joins or secures a fluid line inside the appliance, helping restore a safe, leak-free connection so water or other fluids flow where needed without escaping. What it does:

• Connects or secures a hose or tubing to an internal port so fluid can flow properly
• Helps stop leaks caused by cracked, loose, or worn fittings
• Restores a proper sealed connection when the original fitting is damaged or missing
• Works as a replacement plumbing connector used in common appliance water lines

• Fitting

• Turn off power to the appliance and shut off the water supply before starting
• Remove any retaining clips or clamps and replace the old fitting with the new one, ensuring a snug fit
• Use only the correct clamps or seals for your appliance; tighten to manufacturer guidance without over-torquing
• After installation, restore water and power, then check thoroughly for leaks during a test cycle

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This orifice spud is the small gas burner fitting that holds the burner orifice and helps direct fuel to the burner for proper ignition. It restores correct gas flow to the burner assembly for reliable ignition and flame. What it does:

• Secures the burner orifice in the burner tube so the correct-sized jet is positioned for ignition
• Helps maintain steady, consistent gas flow to the burner
• Commonly replaced when burners fail to light or flame is weak/irregular
• Works with the burner tube assembly to ensure proper burner operation

• One orifice spud

• Turn off gas supply and unplug appliance before beginning service
• Use correct tools and replace only the part(s) explicitly specified for your model
• Do not overtighten fittings; follow torque guidance from the appliance manufacturer
• If you smell gas or suspect a leak after installation, stop immediately

This natural gas burner orifice regulates gas flow to the cooktop burner for a consistent 17K output, restoring proper flame size and heat. It's a direct-fit replacement designed for compatible Whirlpool-range gas valves and burners. What it does

• Controls gas flow to the burner so the flame reaches the intended heat output
• Helps correct weak or uneven flames when the orifice is clogged or worn
• Can resolve ignition or simmering problems caused by improper gas flow
• Matches the OEM 17K specification for proper burner performance

• One natural gas burner orifice (17K)

• Turn off the gas supply and power to the appliance before servicing
• Remove burner components carefully to access the orifice; avoid forcing fittings
• After installation, check for leaks with a soap solution or approved gas leak tester

Replacement orifice spud that controls gas flow to a burner for proper flame size and reliable cooking. Helps restore consistent ignition and heat so burners operate safely and efficiently. What it does:

• Meters gas from the manifold to the burner to produce the correct flame size for cooking.
• Ensures even, stable combustion for consistent heat across the burner.
• Common symptoms of a worn or clogged orifice spud include weak or uneven flames, burners that are slow to light, or poor cooking performance.
• A properly functioning orifice helps prevent fuel waste and supports safe appliance operation.

• Turn off the gas supply and electrical power to the appliance before starting any service.
• Replace with the correct OEM part and thread carefully; seat securely but avoid overtightening which can damage the part.
• After installation, check all connections for gas leaks and test the burner for proper flame shape and operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This clip is a small mounting retainer used to secure panels, harnesses, or trim pieces on compatible Whirlpool appliances. It provides a simple, reliable hold to keep components in place and prevent rattles or shifting during use. What it does:

• Secures plastic panels, trim, or wire harnesses to the appliance frame
• Helps prevent vibration noise by holding parts tight
• Keeps wiring and small components routed and out of the way
• Simple mechanical retention—no tools-specific hardware required for the clip itself

• One clip

• Disconnect power (and water, if applicable) before beginning any repair
• Inspect surrounding parts and alignment before installing the clip to avoid forcing it
• Use appropriate hand tools to remove panels or fasteners as needed; press clip into place until it snaps securely
• If the clip is brittle or broken, replace it rather than reusing damaged pieces

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

Note: Oven orifice kit with Bake orifice and "Female" Broil orifice. For an oven orifice kit with a "Male" Broil orifice, order part# W11087486. The Bake orifice is #56, Broil orifice is #100.

The orifice spud is the fixed jet that meters gas to a burner. Replacing a worn, clogged, or incorrect spud helps restore proper flame size, cleaner combustion, and reliable ignition on your gas cooking appliance.

• Precisely meters gas flow to the burner through a fixed opening
• Helps produce a stable blue flame and consistent heat
• If clogged, damaged, or wrong size, can cause weak/yellow flames, uneven heating, delayed ignition, or burners not lighting
• Supports correct operation when matched to the specified fuel type and burner rating

• Shut off gas supply and power before servicing
• Match the spud to the exact burner position and fuel type specified in your model documentation
• Thread the spud into the orifice holder/manifold with a wrench; do not overtighten
• Restore gas, then leak-test connections and verify proper flame characteristics
