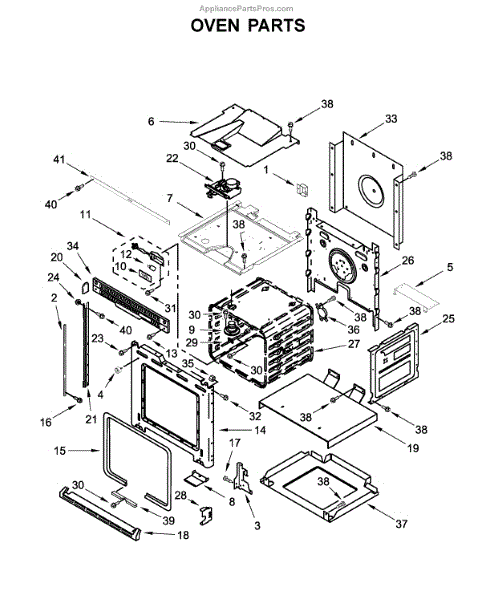

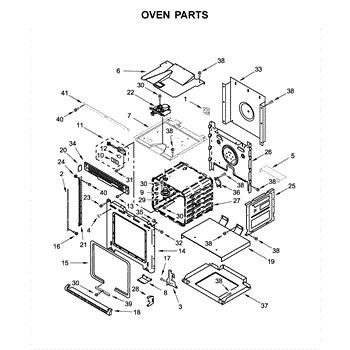

Parts for Kitchenaid KODC304EBL01: Oven Parts

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners

This trim piece finishes the appliance opening for a clean, completed look and covers gaps where panels meet. It restores the appliance's appearance and helps protect edges from everyday wear. What it does:

• Covers and finishes the edge where two panels meet to improve appearance
• Conceals mounting holes and gaps for a uniform look
• Protects exposed edges from snags, scuffs and minor damage
• Helps keep dust and debris out of small crevices around the opening

• One trim piece

• Disconnect power and follow all safety guidelines before beginning any repair
• Retain and reuse any original screws or clips unless replacement hardware is specified
• Align the trim with mounting points and secure using the factory fasteners; some trims snap into place while others use screws
• Replace damaged components to ensure a secure fit

This decorative trim piece restores the finished appearance of your appliance's exterior where the original trim is cracked, scratched, or missing. It blends with the control/door area to improve looks and cover exposed edges. What it does:

• Replaces damaged or missing exterior trim to restore the appliance's appearance
• Covers exposed edges and fastener holes for a finished look
• Helps keep dust and debris out of seams along the control/door area
• Matches the original attachment points so it lines up with factory holes or clips

• Disconnect power (or unplug the appliance) before starting any repair
• Remove any related panels or doors to access trim fasteners
• Use proper hand tools; keep original screws and clips for reassembly if still serviceable
• Handle edges and painted surfaces carefully to avoid damage; avoid overtightening fasteners

The side trim is a finishing piece that covers the appliance's right edge. Replacing a damaged or missing trim restores the factory look and helps keep adjacent panels aligned for proper fit.

• Finishes and protects the right-side edge of the unit for a clean appearance
• Helps align and secure adjoining panels or console components
• Reduces unsightly gaps that can collect debris
• Common symptoms: cracked, chipped, warped, loose, or missing trim; rattling or poor panel alignment

• Disconnect power to the appliance before service; allow hot surfaces to cool
• Wear cut-resistant gloves—edges and surrounding panels can be sharp
• Note right-hand orientation; transfer any clips/brackets from the old trim if present
• Align tabs and fasteners carefully; tighten hardware just snug to avoid distortion

This left-hand side trim finishes and protects the edge of the appliance's panel or housing, restoring a clean, factory look. Replace when the original trim is cracked, missing, or loose to keep panels aligned and edges covered.

• Provides a finished edge on the left side and improves overall appearance
• Helps cover gaps and protect edges from snags or chipping
• Aids proper alignment of adjacent panels or consoles
• Replace if cracked, warped, loose, or missing
• Common symptoms: visible gap on the left side, rattling/loose panel, sharp or broken edge, cosmetic damage

• Disconnect power before servicing; also shut off gas supply
• Wear cut-resistant gloves; edges and surrounding panels can be sharp
• Left/right orientation is determined when facing the front of the appliance
• Align the trim and secure with existing hardware; do not overtighten fasteners

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Right side hinge receiver for door hinge. For left side hinge receiver use WP4455605.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

This clear interior light lens protects and diffuses the refrigerator light, restoring even illumination inside the fresh-food compartment. Replace a cracked, yellowed, or missing lens to improve visibility and protect the bulb from spills. What it does

• Covers and shields the interior light bulb from splashes and debris
• Diffuses light for more even illumination throughout the compartment
• Helps prevent direct contact with the bulb, reducing breakage risk
• Common symptoms: cracked or discolored lens, uneven or glaring light, or a missing lens

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the lens gently—it is a molded plastic part that can crack if dropped
• Inspect the bulb and socket while the lens is removed; replace any damaged components
• No special tools typically required; your model's service instructions for safe removal/replacement steps

This oven light lamp assembly replaces a burned or broken interior oven light so you can clearly see cooking progress without opening the door. Fits compatible Whirlpool-built ranges and ovens that use this OEM-style lamp assembly. What it does:

• Provides interior oven illumination so food and bake performance can be checked without opening the door
• Replaces a cracked lens, damaged socket, or non-functioning oven lamp
• Restores normal lighting when the oven light fails to turn on or flickers
• Helps identify spills, browning, or burn spots inside the oven cavity

• Disconnect power to the appliance before servicing to prevent shock or injury
• Handle the lens and bulb carefully; allow the oven to cool completely before replacing
• Typical replacement requires removing the oven light cover and unplugging the socket.

The Light Bulb is an OEM part for Whirlpool ranges and ovens. It provides illumination inside the oven cavity, allowing users to monitor the cooking process without opening the oven door.

Causes of a bad light bulb can include burnout from regular use, electrical issues, or damage due to high temperatures and vibrations within the oven.

Symptoms of a bad light bulb include:

• The light not turning on when the oven door is opened or the light switch is activated
• Flickering or dim light
• The bulb appears visibly damaged or burned out

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven door gasket creates a tight, heat-resistant seal between the door and the oven frame. It keeps hot air inside, helps the oven reach and hold temperature, and protects nearby surfaces from escaping heat. What it does

• Seals the gap around the oven door to reduce heat loss
• Supports accurate temperatures and more even baking performance
• Replaces gaskets that are brittle, flattened, torn, or frayed
• Common symptoms: heat felt escaping around the door, longer preheat/cook times, temperature swings, visible damage to the gasket

• One door gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Open the door and pull the old gasket straight out of its retaining holes/clips
• Start at the top center; press the new gasket's tabs into place without stretching, ensuring corners are fully seated
• Close the door to confirm uniform contact all the way around the seal

Color: Black.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This oven vent directs heat, steam and cooking vapors out of the oven cavity to help maintain proper temperature and reduce moisture buildup. Replaces a damaged or missing vent to restore normal oven ventilation. What it does:

• Channels heat and steam from the oven cavity to the exterior vent path
• Helps reduce excess moisture and cooking odors in the oven area
• Prevents abnormal heat buildup that can affect oven performance
• Works as a direct-fit replacement for the listed OEM vent assembly

• One oven vent

• Disconnect power to the range/oven before starting any repair
• Access may require removing back panel, top, or oven inner panel—follow your model's service instructions
• Handle metal edges carefully to avoid cuts; use gloves
• After installation, restore power and run a short bake cycle to verify proper venting and operation

The Bottom Vent Trim Assembly is an OEM part for Whirlpool ovens. It is located at the bottom front of the appliance and works together with the vent grille to properly ventilate the oven exhaust.

Symptoms of a faulty bottom vent trim assembly include:

• Excessive heat and smoke emitted from the bottom oven vent during cooking
• Discoloration or warping of external oven panels near the vent area
• Loose, damaged, or missing external vent trim piece(s)

Causes can be normal wear and tear over time exposing the assembly to high heat. Improper cleaning may also damage delicate air channels or mounting components.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Left hand side. For the right hand side order 814373.

Right hand side. For the left side order 814374.

The Door Latch is an OEM replacement part for Whirlpool ranges. It is the mechanism that securely holds the range door shut during cooking operations.

Causes for a bad door latch can include wear and tear of moving parts over time exposing them to high heat, improper cleaning allowing residue to build up and corrode components, or physical damage like bending from excessive force on the door.

Symptoms of a door latch issue include:

• Inability to fully close the range door
• Sagging or loose door that does not feel secure during baking and broiling
• Door that will not safely stay shut on its own

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 8-18 x 3/8 inch.

Mounting bracket for bottom trim.

This sensor monitors moisture inside the microwave cavity during Sensor Cook/Reheat cycles so the control can automatically set time and power. Replace it if sensor-based functions stop working or the unit shows a sensor error during cooking.

• Detects steam/humidity during sensor cycles to help the control adjust cook time and power
• Helps improve cooking results on Sensor Cook/Reheat programs
• Common failure signs: sensor-cook options won't start or end early, or the display shows a sensor error
• Intermittent or inconsistent results on sensor-only programs can also indicate a failing sensor

• Disconnect power before service. Microwaves can retain dangerous high voltage even when unplugged—use extreme caution
• Access is typically behind the control panel or top grille; note wire routing and connector orientation before removal
• Handle the sensor by its body/connector—avoid touching the sensing element
• After installation, run a sensor-cook cycle to confirm proper operation

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.

Screw for control panel vent.

This replacement back cover restores the appliance's rear housing to protect internal components from debris and accidental contact. It keeps wiring and controls enclosed and helps maintain proper airflow behind the unit. What it does:

• Covers and protects the motor, wiring, and control components at the rear of the appliance
• Replaces cracked, broken, or missing rear panels that expose internal parts
• Stops rattling or vibration caused by loose or damaged covers
• Helps prevent debris and pets from entering the cabinet area

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; mounting screws may need removal and reinstallation
• Handle edges carefully—sheet metal can be sharp

This oven vent directs hot air out of the oven cavity and helps maintain proper internal temperature and airflow. It replaces a damaged or warped vent to restore venting performance and oven appearance. What it does:

• Channels heat and steam out of the oven cavity to support even cooking
• Helps prevent heat buildup behind the oven and adjacent cabinetry
• Replaces cracked, bent or discolored vent trim that can affect airflow or appearance
• Compatible with factory vent locations — installs where the original vent was mounted

• Designed for rear/top vent mounting; verify orientation matches your appliance before installing
• Disconnect power to the appliance before beginning any service to avoid shock or injury
• Handle edges carefully; use appropriate tools to remove mounting screws and clips
• If vent damage is extensive or other components are affected, inspect surrounding parts and wiring

U-type clip

The Hi-Limit Thermostat is an OEM part for Whirlpool wall ovens. It monitors internal oven temperature, helping prevent overheating.

The thermostat plays a critical safety role by automatically turning off oven heating elements if temperatures rise too high. This protects against damage, fires, or hazards from unattended cooking.

Symptoms of a bad thermostat include:

• Oven not reaching set baking temperatures
• Uncontrolled heating even after turning elements off
• The thermostat body is warped or has mounting cracks

Causes of a bad thermostat can be a failure from prolonged exposure to excessive heat. Mineral deposits may disrupt its precision temperature sensitivity over time.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This fixed thermostat monitors temperature and opens the circuit at its factory set point to protect components and control heating performance. Replacing a failed thermostat helps restore proper heat function and prevents nuisance shutdowns or overheating. What it does:

• Senses temperature and opens the circuit when its fixed threshold is reached
• Protects heaters, motors, and wiring from over-temperature conditions
• Common failure symptoms: no heat, overheating, erratic cycling, or safety shutdowns
• Restores consistent heating operation when the original thermostat has failed

• 1 fixed thermostat

• Disconnect power before servicing; allow hot surfaces to cool
• Access the thermostat, note wire orientation, and transfer any bracket/insulation from the old part
• Ensure firm thermal contact and secure mounting as originally installed
• After replacement, correct root causes of overheating (restricted airflow/venting, failed relays, etc.) and verify operation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit
